• ProDVX 7″ Android Touch Display 12 Panel PC, Power over Ethernet+, 2-sided LED bar, Integrated NFC | APPC-7XPLN-R23

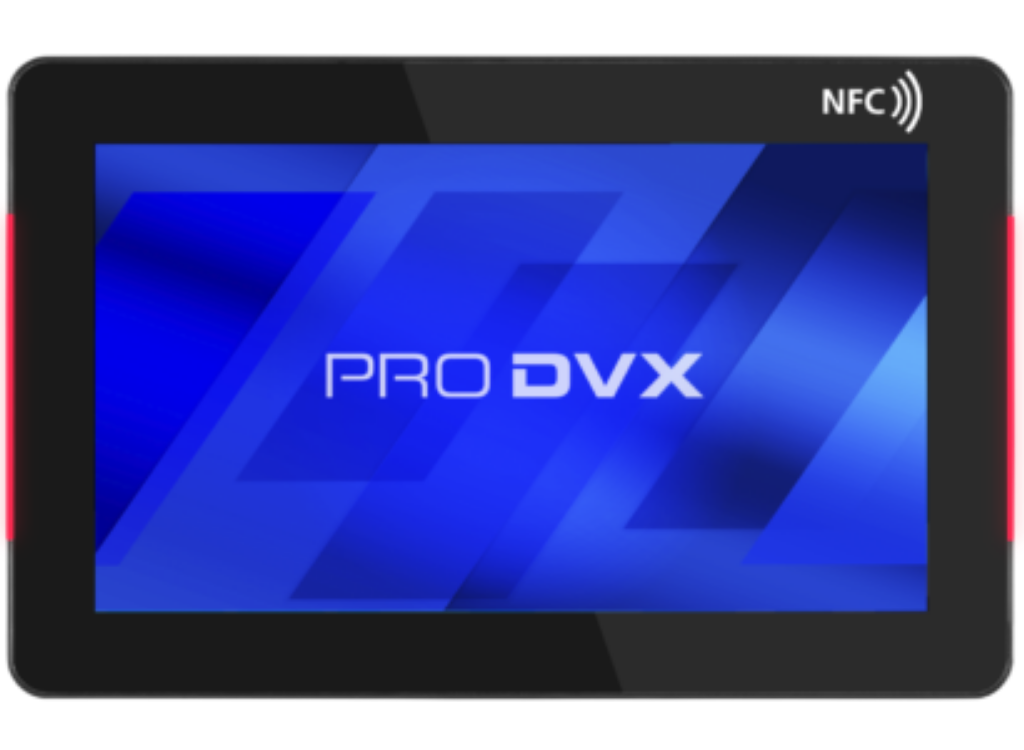

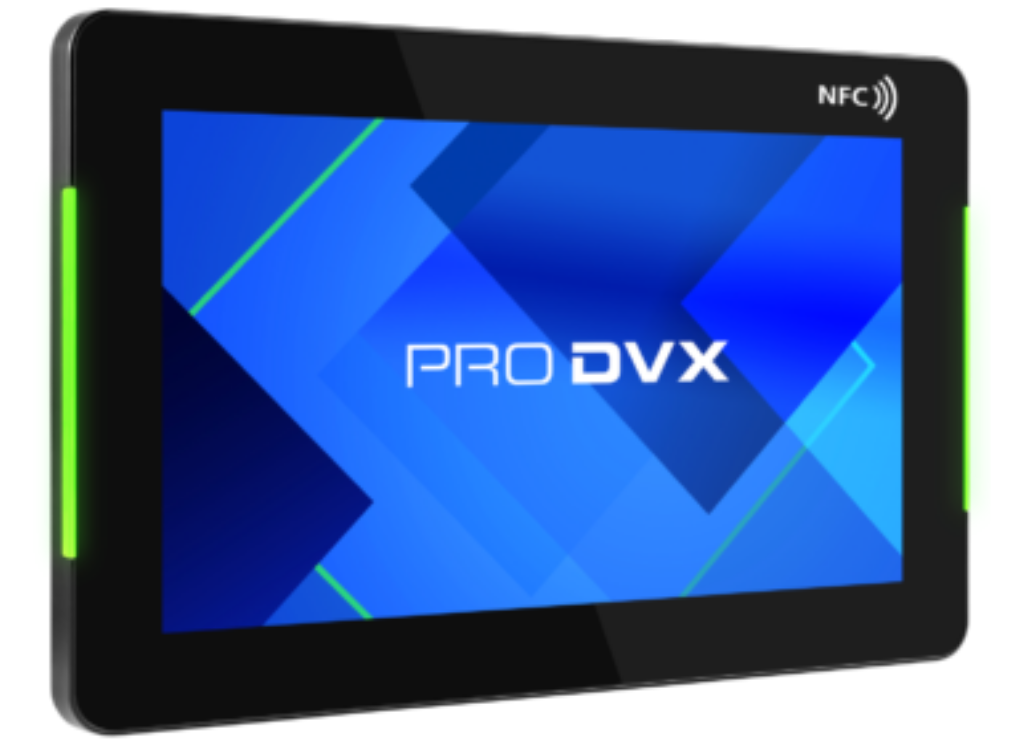

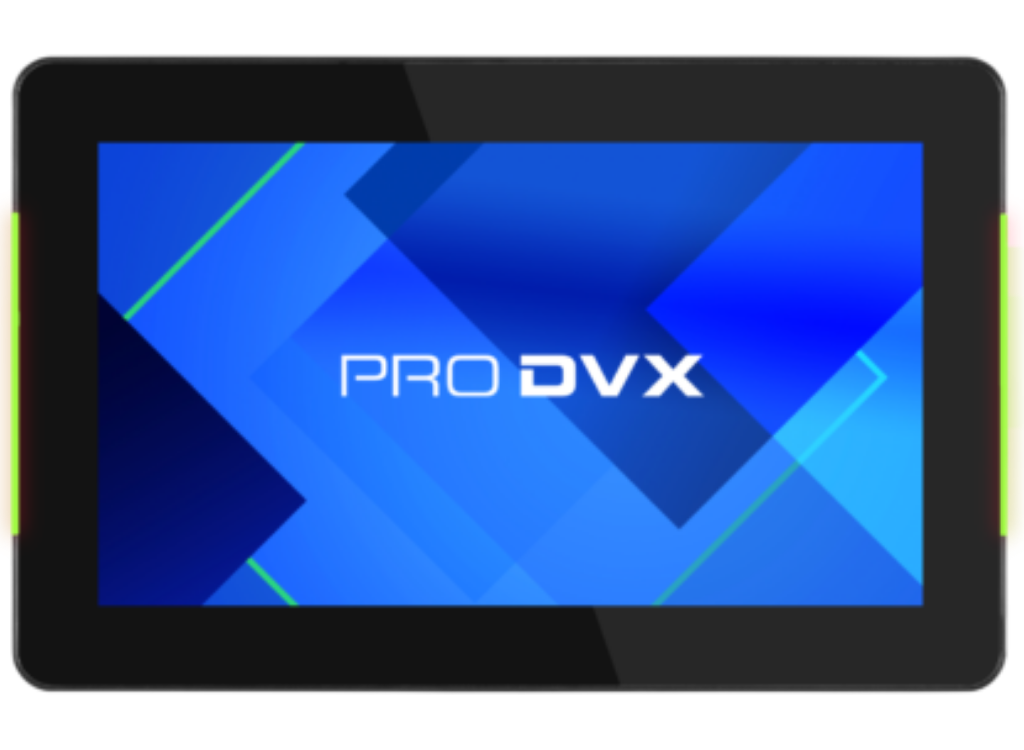

  The APPC-7XPLN (R23-7281) is a 7-inch Android Panel PC running on Android 12. Powered by the quad-core Cortex-A55 CPU and Mali-G52 GPU (RK3568), this device ensures seamless operation and advanced graphical capabilities. With 4GB RAM and 16GB storage, multitasking becomes efficient, while IEEE 802.3at PoE+ support streamlines power and connectivity. Installation is a breeze with VESA mounting capability and a single PoE+ Ethernet cable, eliminating wiring complexities. Connectivity is crucial, offering various I/O ports for peripheral devices, making it ideal for retail, corporate, and industrial settings. The 7-inch touchscreen interface, driven by Android, ensures intuitive navigation, complemented by dual-sided RGB LED status lights. This Android Panel PC supports 10-point PCAP touch functionality and has received a non-glare treatment for enhanced visibility. Additionally, the APPC-7XPLN (R23-7281) includes an integrated NFC module for added functionalities.

• Feature	Specification
  Panel
  Panel type	TFT LCD
  Resolution	1024 x 600
  Aspect ratio	17:10 wide
  Backlight	Edge-LED backlight
  Brightness	300 cd/m²
  Viewing angle	H140 / V130
  Contrast ratio	800:1
  Touch Type	10 TP Pcap 10ms
  Treatment	Non-glare

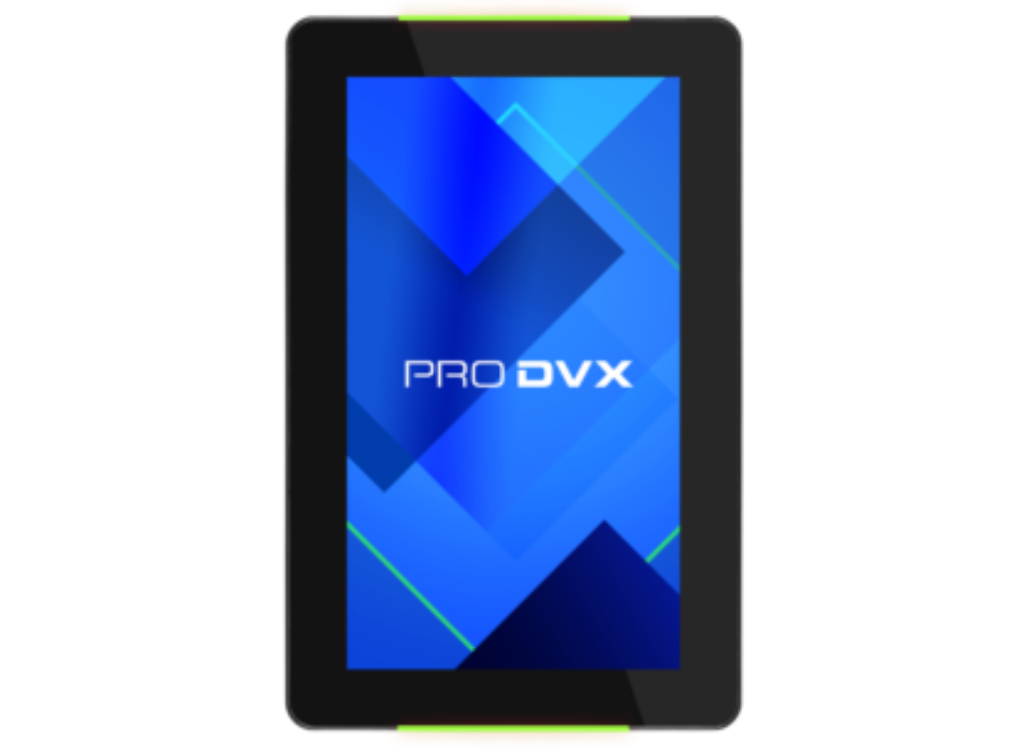

  Convenience	Landscape, Portrait, Table Mode, Flushmount
  Operation hours	24h / 7d
  System
  Chipset	Cortex A55, 2.0 GHz, 4-Core
  CPU	RK3568 (Quad-core ARM Cortex-A55)
  GPU	Mali-G52-2EE
  Cooling	Fanless
  System memory	4 GB DDR4 SDRAM
  Video input	N.A.
  Video out	N.A.
  Video resolution	1024 x 600
  Internal storage	16GB eMMC
  External storage	MicroSD-Card Slot (door)
  Card slot	miniSD
  OS	Android 12
  LED Light Bar	2-sided LED bar (RGB)
  I/O Ports
  DC-IN	12 V
  Pogo pin	1x
  Combo Jack	Yes
  USB	USB 2.0, Micro-USB
  Ethernet	RJ45
  LAN RJ45	10/100/1000 Mbps LAN
  WiFi	802.11 a/b/g/n/ac
  Bluetooth	5
  Power over Ethernet (PoE)	IEEE 802.3at (PoE+)
  Integrated NFC	Integrated NFC reader (NXP PN553)
  Camera	via PoGo & USB
  Video/Audio
  Video support	MPEG2, MPEG4, H.264, MP4, MPG
  Audio support	MP2, WMA, WAV, AAC, OGG, MP3, ASF
  Photo support	JPG, JPEG, PNG, BMP, GIF
  Microphone	Yes
  Speakers	2 x 1 W
  Audio Jack Output 3.5mm	Yes
  Physical
  Housing	ABS+PC (Macrolon)
  Color	Black
  Weight	360 g
  Dimensions	188.1 x 120.3 x 25.2 mm
  Mounting / VESA	VESA 75
  Power Supply	12 V / 2 A
  Power Supply Included?	Optional accessory
  Power Usage	6 ~ 23 Watt
  Pogo Pins	1x (bottom)
  Other
  OSD Language	Multi OSD language
  Clock Battery (for RTC)	CR1220 Lithium metal, non-rechargeable
  Storage Temperature	-10 ~ 55°C
  Working Temperature	0 ~ 40°C
  Storage/Working Humidity	0 ~ 95% non-condensing
  MTBF	35,000 hours demonstrated
  Standard Warranty	3 years
  Certifications	UKCA, CE, FCC, RoHS, REACH
  SKU	5007560
