• ProDVX 10″ PoE LED Android Touch Display | APPC-10XPL-R23

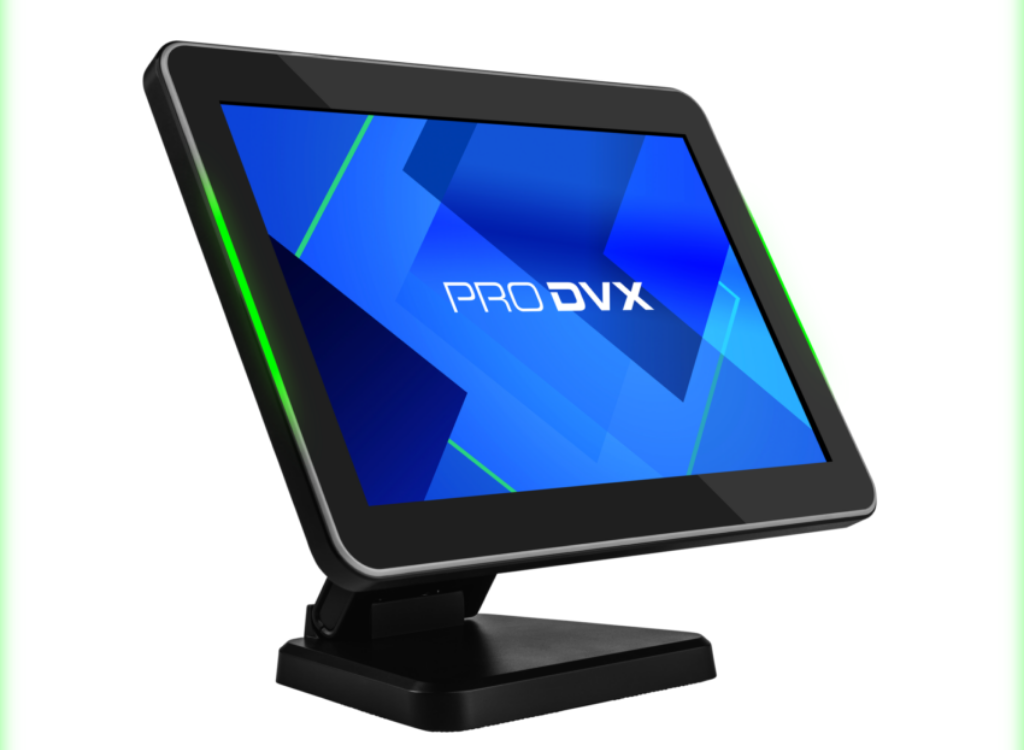

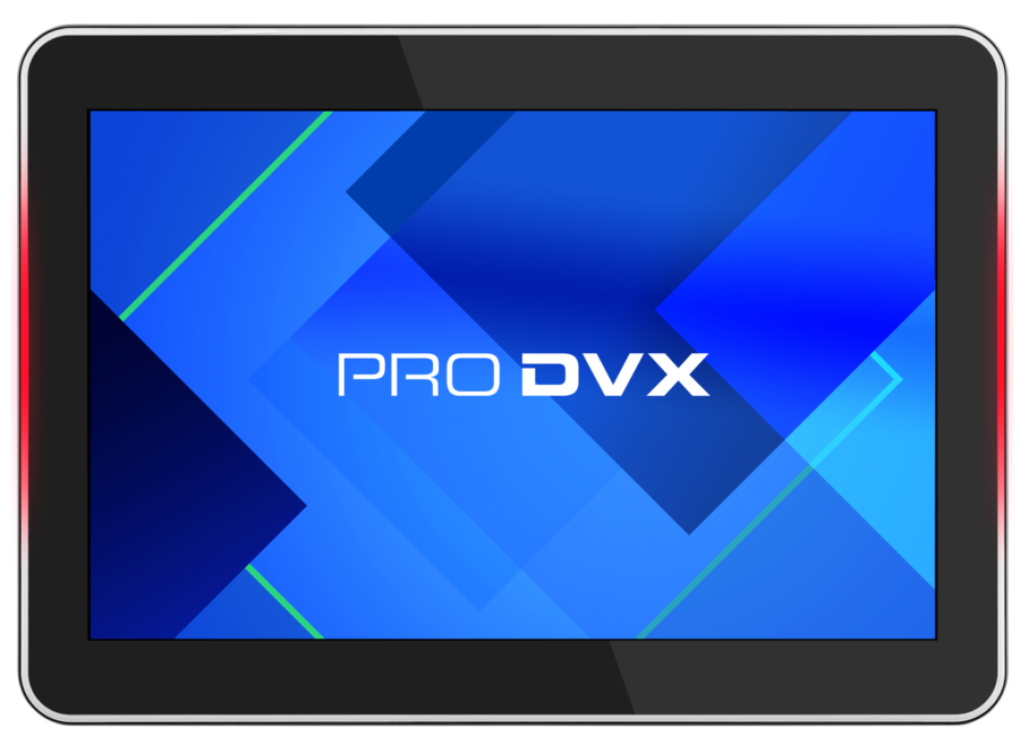

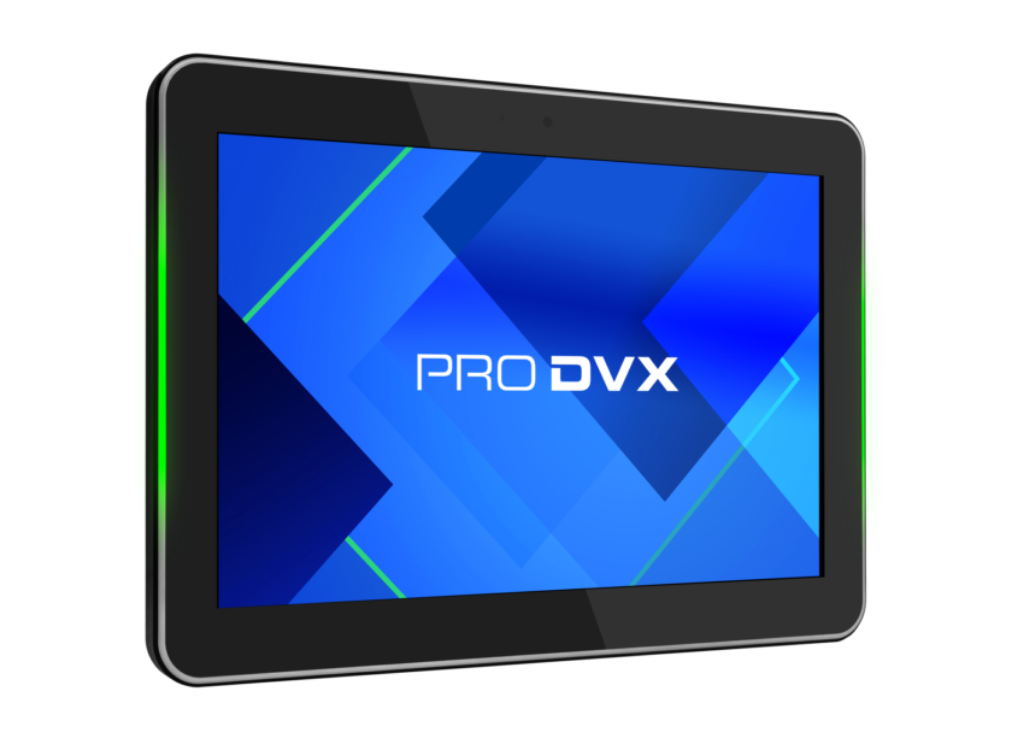

  The APPC-10XPL (R23-7261) is a 10.1-inch Android Panel PC, featuring Android 12 and a new quad-core Cortex-A55 CPU and Mali-G52 GPU (RK3568). It comes with a 2-sided RGB LED bar for efficient signalling. The APPC-10XPL (R23-7261) ensures superior performance and next-level user experience. Enjoy hassle-free installation with the VESA mounting frame, and Power over Ethernet+ capability for efficient power provisioning. In addition, the non-glare touch panel, which supports 10-point PCAP touch functionality and high brightness, ensures an optimal user experience. The APPC-10XPL (R23-7261) is a highly versatile device, capable of handling any solution with ease. Its variety of I/O ports and pogo pin ports allow you to add any peripheral to further enhance your solution.

• Category	Feature	Specification
  Panel	Panel type	TFT LCD IPS
  	Resolution	1280 x 800
  	Aspect ratio	16:10 wide
  	Backlight	Edge-LED backlight
  	Brightness	500 cd/m²
  	Viewing angle	H160 / V160
  	Contrast ratio	800:1
  	Touch Type	10 TP Pcap 10ms
  	Treatment	Non-glare
  	Convenience	Landscape, Portrait, Table Mode, Flushmount
  	Operation hours	24h / 7d
  System	Chipset	Cortex A55, 2.0 GHz, 4-Core
  	CPU	RK3568
  	GPU	Mali-G52
  	Cooling	Fanless
  	System memory	4 GB DDR4 SDRAM
  	Video input	N.A.
  	Video out	Yes, HDMI out
  	Video resolution	1280 x 800
  	Internal storage	16 GB eMMC Flash
  	External storage	SD-Card Slot (door)
  	Card slot	SD
  	OS	Android 12
  	LED Light Bar	2-sided LED bar (RGB)
  I/O Ports	DC-IN	12 V
  	Audio-out	3.5 mm
  	USB	USB 2.0
  	Ethernet	RJ45
  	GPIO	Yes
  	Micro-USB	Yes
  	Pogo pin	3x
  	HDMI out	Yes
  Network	LAN RJ45	10/100/1000 Mbps LAN
  	WiFi	802.11 a/b/g/n/ac
  	Bluetooth	5
  	Power over Ethernet	IEEE 802.3at (PoE+)
  Integrated NFC	NFC	via PoGo & USB
  Camera	Camera	via PoGo & USB
  Video/Audio	Video support	MP4, MPG, MPEG2, MPEG4
  	Audio support	AAC, ASF, MP2, OGG, WAV, WMA
  	Photo support	JPG, JPEG, PNG, BMP, GIF
  	Microphone	Yes
  	Speakers	2 x 2 W
  	Audio Jack Output	3.5mm
  Physical	Housing	ABS+PC (Macrolon)
  	Color	Black
  	Weight	650 g
  	Dimensions	255.3 x 181 x 26.7 mm
  	Mounting / VESA	VESA 75
  	Power Supply	12 V / 2 A (EU, UK, US)
  	Power Supply Included?	No
  	Power Usage	10 ~ 23 Watt
  	Pogo Pins	3x (bottom/left/right)
  Other	OSD Language	Multi OSD language
  	Clock Battery (RTC)	CR1220 Lithium metal, non-rechargeable
  	Storage Temperature	-10 ~ 55°C
  	Working Temperature	0 ~ 40°C
  	Humidity	10 ~ 90% non-condensing
  	MTBF	50,000 hours demonstrated
  	Standard Warranty	3 years
  Certifications	Certifications	UKCA, CE, FCC, RoHS, REACH
  SKU	SKU	5010620
