ProDVX 10″ PoE Android Touch Panel PC | APPC-10XP-R23

• Description
• Specifications
• Downloads

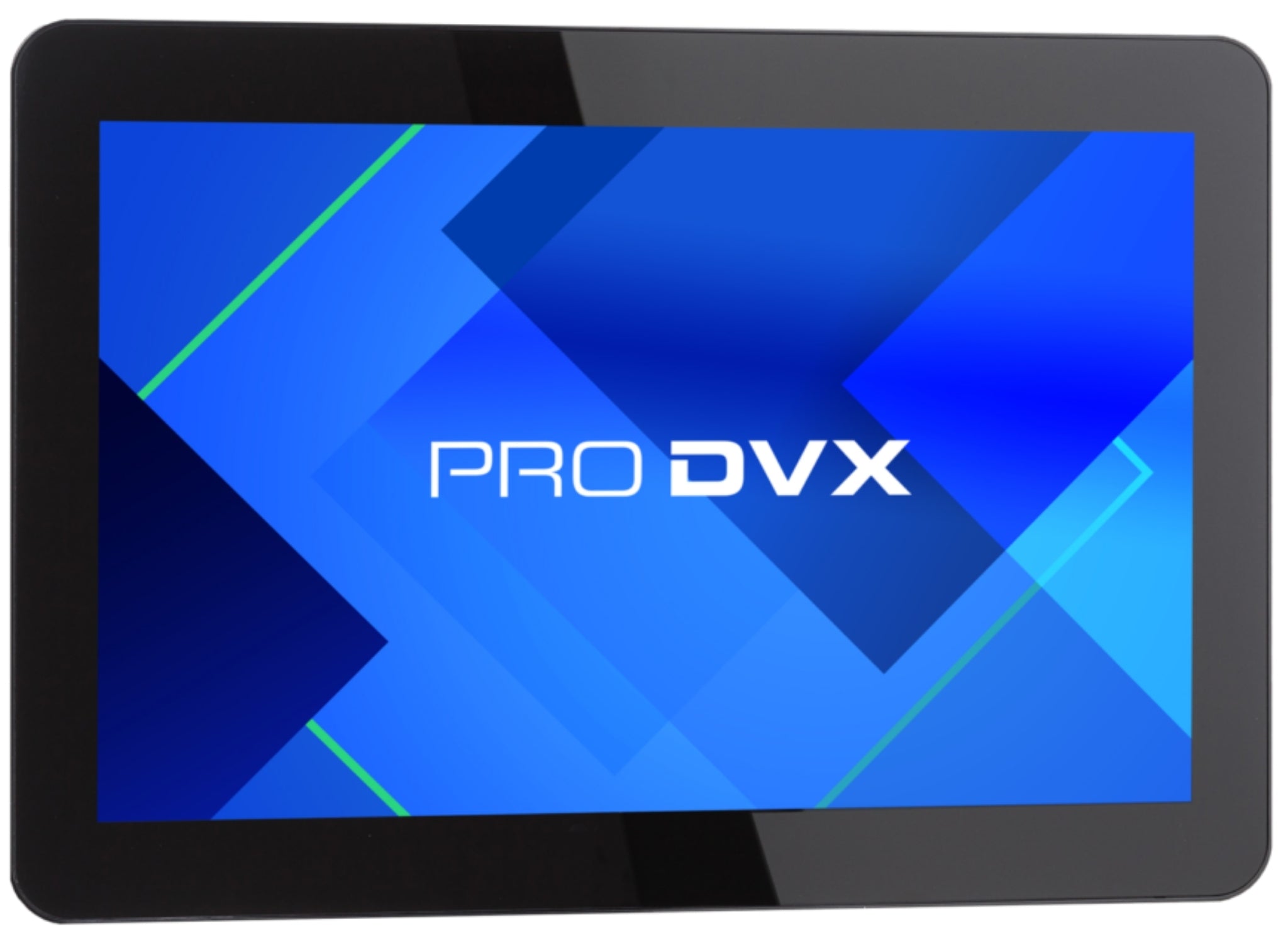

• ProDVX 10″ PoE Android Touch Panel PC


  The APPC-10XP (R23-7221) is a 10.1-inch Android Panel PC, featuring Android 12 and a new quad-core Cortex-A55 CPU and Mali-G52 GPU (RK3568). It ensures superior performance and next-level user experience. Enjoy hassle-free installation with the VESA mounting frame, and Power over Ethernet+ capability for efficient power provisioning. In addition, the non-glare touch panel, which supports 10-point PCAP touch functionality and high brightness, ensures an optimal user experience. The APPC-10XP (R23-7221) is a highly versatile device, capable of handling any solution with ease. Its variety of I/O ports and pogo pin ports allow you to add any peripheral to further enhance your solution.

• Feature	Details
  Panel	TFT LCD IPS, 1280×800, 16:10
  Brightness	500 cd/m², non-glare
  Viewing Angle	H160° / V160°, 800:1 contrast
  Touch Type	10 TP Pcap, 10 ms

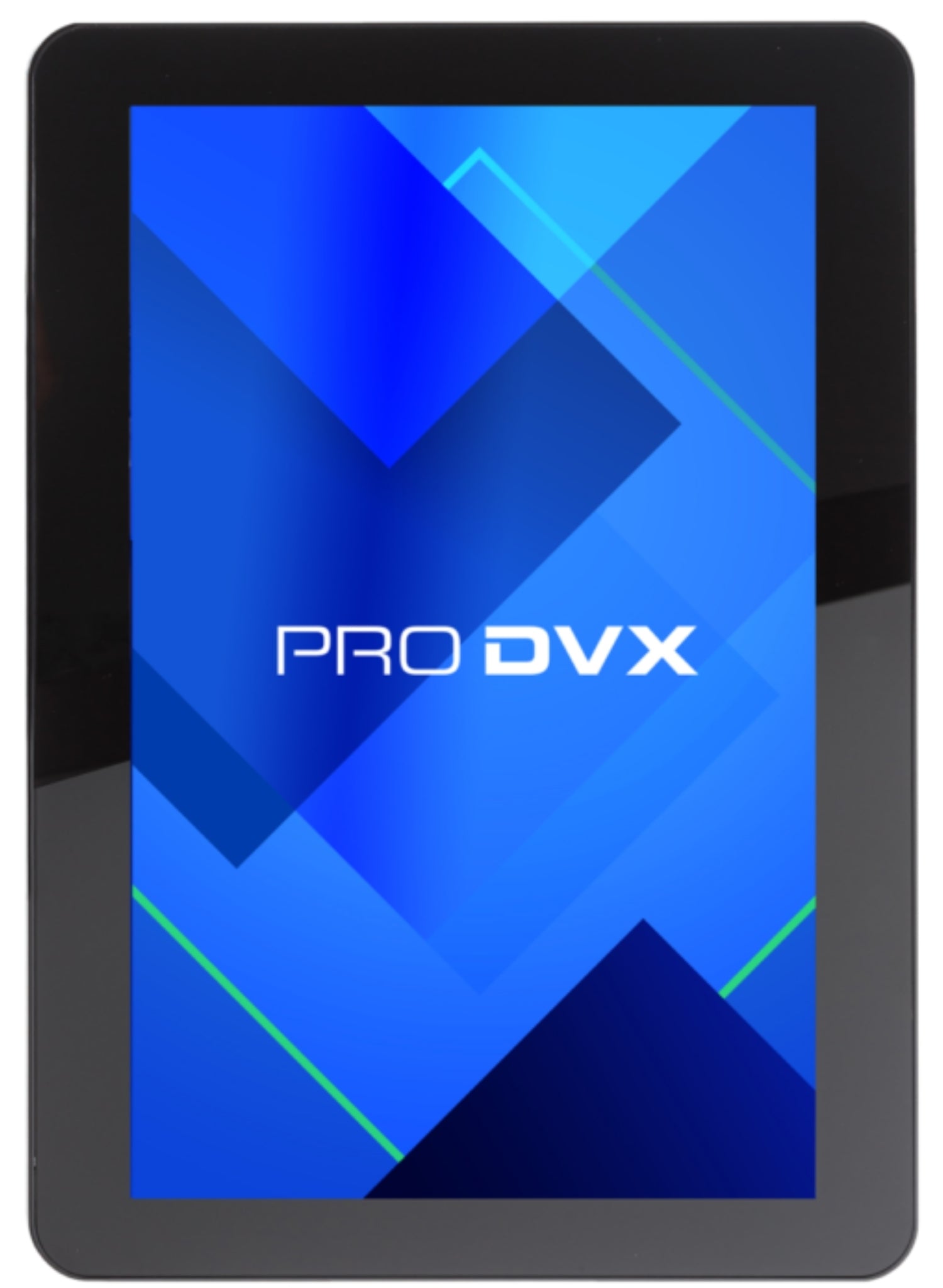

  Modes	Landscape, Portrait, Table, Flushmount
  Operation	24/7
  System	RK3568 CPU, Mali-G52 GPU, Android 12
  Memory	4 GB DDR4, 16 GB eMMC, SD slot
  I/O Ports	HDMI out, USB, RJ45, Audio-out
  Network	LAN 10/100/1000 Mbps, WiFi, BT 5
  PoE	IEEE 802.3at (PoE+)
  Integrated NFC	via PoGo & USB
  Video/Audio	3GP, MP4, WMV, etc.; AAC, WAV, WMA
  Audio Jack	3.5 mm, Yes
  Speakers	2 x 2 W
  Dimensions	255.3 x 181 x 26.7 mm, 650 g

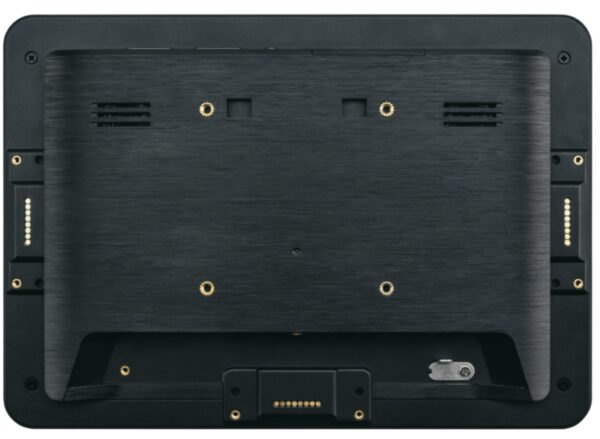

  Mounting	VESA 75, ABS+PC housing
  Power	12 V / 2 A, 10-23 W (supply not incl.)
  Temp/Humidity	-1055°C, 1090% non-condensing
  MTBF	50,000 hours
  Certifications	UKCA, CE, FCC, RoHS, REACH

• Description	Downloads
  ProDVX 10″ PoE Android Touch Panel PC | APPC-10XP-R23 DataSheet	Downloads
  ProDVX 10″ PoE Android Touch Panel PC | APPC-10XP-R23 User Manual	Downloads
  ProDVX 10″ PoE Android Touch Panel PC | APPC-10XP-R23 Drawing	Downloads
  ProDVX 10″ PoE Android Touch Panel PC | APPC-10XP-R23 Quick Start Guide	Downloads
