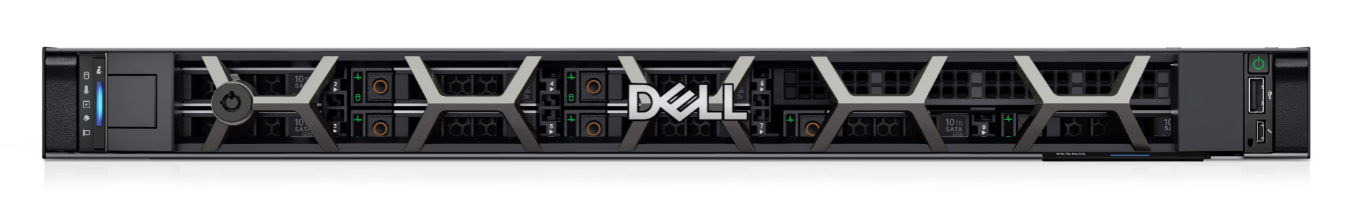

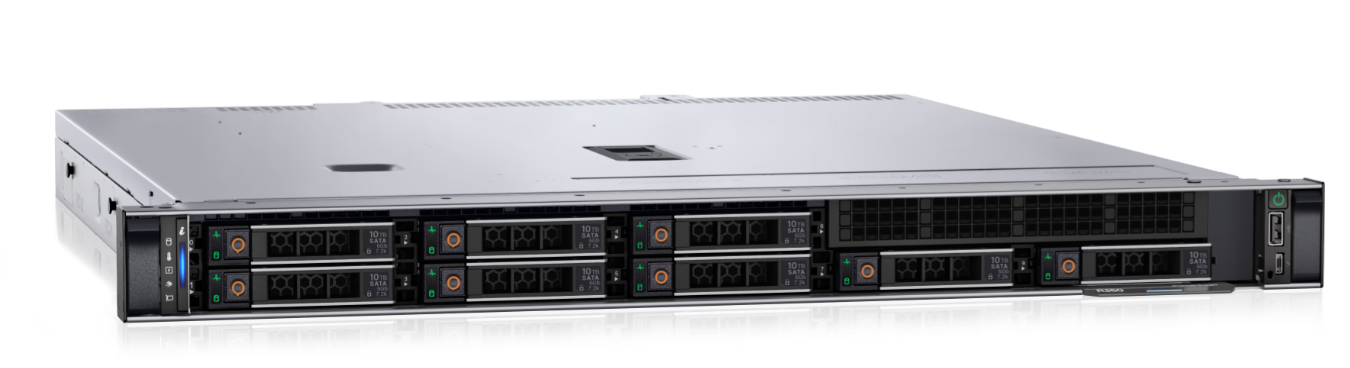

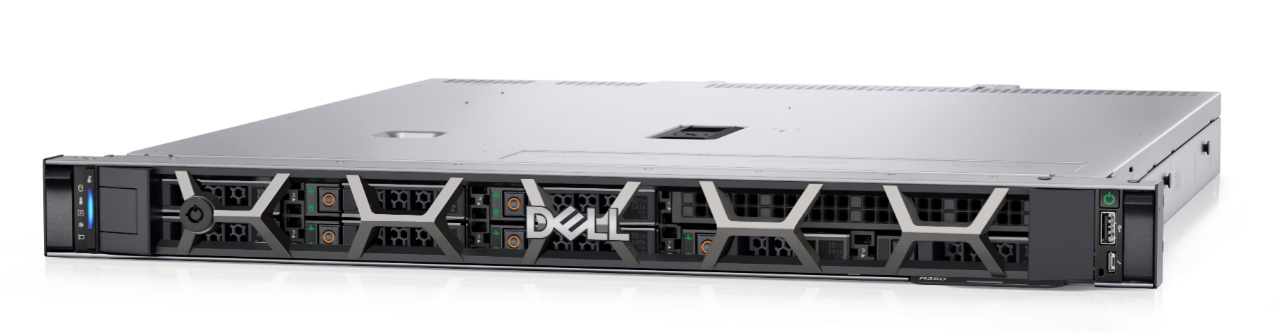

PowerEdge R350 V67J5 Rack Server

PowerEdge R350 V67J5 Rack Server

• Description
• Specifications
• Downloads

• PowerEdge R350 V67J5 Rack Server

  Features
  2.90 GHz processor speed ensures maximum usability without slowing down or crashing.
  Modem data is ideal for communication roadway to ensure maximum usability.
  Rack-mountable server allows maximum space utilisation with easy and convenient access to the keyboard.
  Hexa-core (6 Core) processor core efficiently handles data to ensure quicker transfer of information with maximum usability.
  1 processors supported for enhanced, dependable system performance with maximum usability.
  Up to 10x faster than standard Ethernet connectivity and provides high-performance uplinks.
  Experience high performance, built-in security and remote management capabilities with Intel Xeon 2.90 GHz processor.
  600 W power supply unit (PSU) fulfils your system’s power requirements.
  16 GB powerful memory for any computational task.

  Your Innovation Engine for businesses of all sizes
  The PowerEdge R350, powered by a Intel® Xeon® E-2300 processor, delivers increased performance and is designed for productivity and data intensive applications.

  Innovate, adapt and grow with ever changing demands
  The PowerEdge R350 is an affordable easy to manage one-socket rack server designed to accelerate business growth for organizations looking for enterprise class features.
  Delivers high availability features such as hot-plug redundant power supplies, hot-plug BOSS and hot-plug HDD/SSD
  Supports up to 32GB DIMMS at 3200 MT/s DIMM speed, up to 128GB
  Address substantial throughput improvements with PCIe Gen 4 support
  Provides improved security and faster boot time with UEFI Secure Boot
  Ideal for file/print, mail/messaging, point of sale, web hosting, and collaboration

  OpenManage systems management
  The Dell Technologies OpenManage systems management portfolio helps tame the complexity of your IT environment with tools and solutions to discover, monitor, manage, update, and deploy your PowerEdge infrastructure

  Dell Technologies offers complete end-to-end services
  Optimising the IT lifecycle is vital. We have expert services for all lifecycle phases that save you time and resources, reduce effort, and improve your IT experience.

• Category	Details
  Chipset
  Chipset Manufacturer	Intel
  Controllers
  Controller Type	12Gb/s SAS
  Display & Graphics
  Graphics Controller Manufacturer	No
  Miscellaneous
  Security Features	Cryptographically signed firmware
  	Secure Boot
  	Secure Erase
  	Silicon Root of Trust
  	System Lockdown (requires iDRAC9 Enterprise or Datacenter)
  Network & Communication
  Ethernet Technology	Gigabit Ethernet
  Storage
  Optical Drive Type	No
  Warranty
  Additional Warranty Information	3Y ProSpt
  Operating System
  Operating System Supported	Windows Server
  	Ubuntu Server
  	SuSE Linux Enterprise Server
  	Red Hat Enterprise Linux
  Software
  Red Hat Enterprise Linux
  Windows Server
  SuSE Linux Enterprise Server
  Ubuntu Server
  Physical Characteristics
  Form Factor	Rack
  Rack Height	1U
  Height	42.8 mm
  Width	482 mm
  Depth	598.9 mm
  I/O Expansions
  Number of Total Expansion Bays	4
  Number of 3.5″ Bays	4
  Number of Total Expansion Slots	3
  Hot Swappable Bays	Yes
  Number of LFF Bays	4
  PCI Express Details	1×8 Gen4 (x16 connector) low profile, half length
  	1×8 Gen4 (x8 connector) low profile, half length
  	1×4 Gen4 (x8 connector) for dedicated PERC only
  Power Description
  Input Voltage	120 V AC, 230 V AC
  Plug/Connector Type	C13/C14
  Number of Power Supplies Installed	2
  Redundant Power Supply	Yes
  Maximum Power Supply Wattage	600 W
  Memory
  Error Checking	ECC
  Maximum Memory Supported	128 GB
  Signal Processing	Unregistered (Unbuffered)
  Standard Memory	16 GB
  Memory Technology	DDR4 SDRAM
  Number of Total Memory Slots	4
  Memory Clock Speed	3.20 GHz
  Processor
  Processor Speed	2.90 GHz
  Processor Type	Xeon
  Processor Model	E-2336
  Processor Core	Hexa-core (6 Core)
  Processor Manufacturer	Intel
  Number of Processors Supported	1
  Number of Processors Installed	1
  General Information
  Product Type	Server
  Manufacturer Part Number	V67J5
  Manufacturer Website Address	Dell UK
  Manufacturer	Dell Technologies
  Product Model	R350
  Product Name	PowerEdge R350 Server
  Product Line	PowerEdge
  Brand Name	Dell EMC
  Interfaces/Ports
  VGA	Yes
  Network (RJ-45)	Yes
  Remote Management	Yes
  Total Number of USB Ports	4
  Number of USB 2.0 Ports	2
  Number of USB 3.0 Ports	2
  Number of VGA Ports	1
  Remote Management Controller	iDRAC

• Description	Downloads
  DELL PowerEdge R350 SERVICE MANUAL	Downloads
  DELL PowerEdge R350 TECHNICAL SPECIFICATIONS	Downloads
