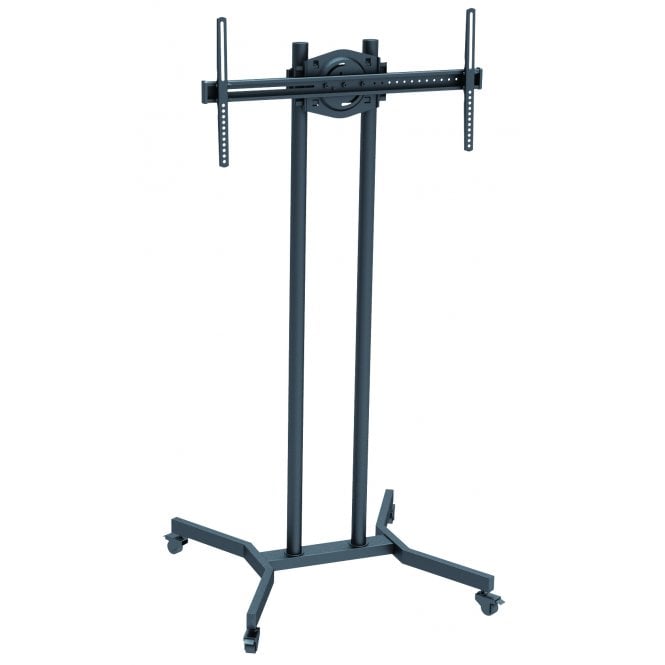

Portrait To Landscape Floor Trolley | For 37″ – 70″ Screen – AS1017P

• Description
• Specifications
• Downloads

• Portrait To Landscape Floor Trolley | For 37″ – 70″ Screen – AS1017P

  Suitable for most 37”-70” screens
  Maximum weight capacity: 40kg/88lbs
  Ability to rotate screen 90° from landscape and portrait positions
  Total height: 1695mm
  Maximum VESA pattern: 800x400mm
  Maximum Hole pattern: 900x440mm
  Minimum Hole pattern: 70mm x 250mm
  Heavy-duty castors with reinforced design support the equipment weight while allowing for maneuverability

• Mount Type	Portrait To Landscape Floor Trolley
  Mounting Pattern	Universal
  Recommended Screen Size	37″-70″
  Weight Capacity	40kg/88lbs
  Maximum Hole Pattern (WxH)	900×440
  Minimum Hole Pattern (WxH)	70×200
  Compatible VESA Patterns	200×200, 400×200, 300×300, 400×400, 600×400, 800×400
  Maximum VESA Pattern (WxH)	800×400
  Tilt	0°
  Swivel	0°
  Rotation	90°
