Poly Studio X50 Video Bar + Poly TC8 Touch Control Video Conferencing Kit

• Description
• Specifications
• Downloads

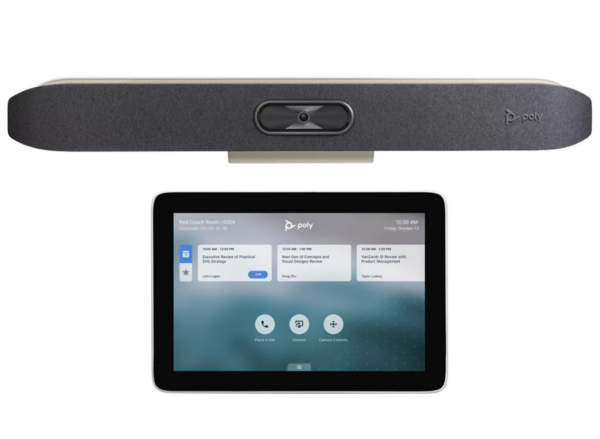

• Poly Studio X50 Video Bar + Poly TC8 Touch Control Video Conferencing Kit

  Poly Studio X50 video bar, 1x HDMI in, 2x HDMI out, 1x USB 3.0, 1x USB-C, WiFi 802.11a/b/g/n/ac, Bluetooth 5.0, 2.54 kg + Poly TC8 touch control

  GIVE YOUR CONFERENCE ROOM MEETING MOJO
  Poly Studio X family video bars deliver radical simplicity in a single sleek device. Leave your PC or Mac at your desk. Then huddle in smaller rooms and connect easily in conference rooms—with nearly any video collaboration software, including Zoom.

  BOARD ROOM PERFORMANCE IN A SMALL PACKAGE.
  Experience full board-room-quality audio and knock-your-socks-off video. Poly Studio X family video bars put the mojo back into meetings.

  POLY STUDIO X50
  The Poly Studio X50 video bar delivers radical simplicity in a small, elegant package. In small- and medium-sized rooms, connect easily with whatever video collaboration software you may use. Experience full boardroom-quality audio, advanced camera capabilities, and quick wireless content—all in one sleek video bar. And say goodbye to unnecessary pucks, cords, and cables, along with the PC or Mac to drive the meeting, since the Poly Video OS runs the show. Easy to install, easy to manage.

• Category	Specification
  Audio
  Audio formats supported	AAC-LD
  Built-in speaker(s)	Yes
  Voice codecs	G.711/G.719/G.722/G.722.1/G.722.1C/G.728/G.729A
  Camera
  Digital zoom	5x
  Field of view (FOV) angle	120°
  Number of camera presets	2
  Computer system
  Applications supported	Zoom, Microsoft Teams, BlueJeans, Dialpad, GoToRoom, RingCentral, StarLeaf

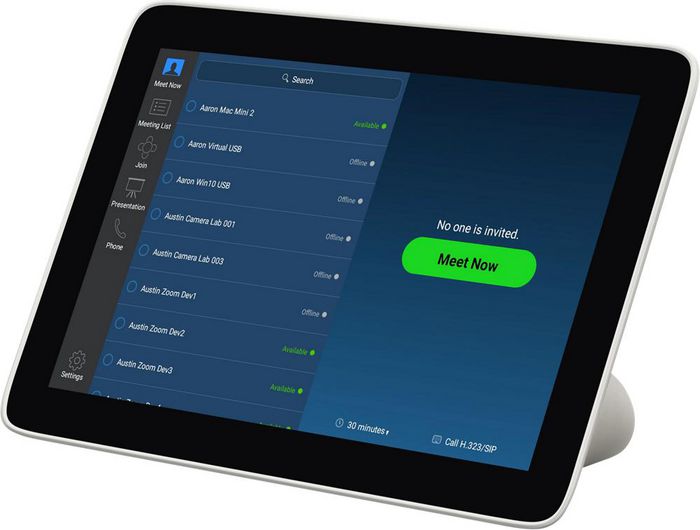

  Display
  Display	LCD
  Display diagonal	8″
  Display resolution	1280 x 800 Pixels
  Touchscreen	Yes
  Legal Information
  EU ECCN Code	N/A
  UNSPSC Code	45111902
  US ECCN Code	5A992
  Logistics data
  Harmonized System (HS) code	85176990
  Network
  Ethernet LAN	Yes
  Ethernet LAN data rates	10/100/1000 Mbit/s
  Security algorithms	128-bit AES/256-bit AES/FIPS 140-2/SSL/TLS
  Wi-Fi	Yes
  Wi-Fi standards	802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)
  Operational conditions
  Heat dissipation	65 BTU/h
  Operating relative humidity (H-H)	15 – 80 %
  Operating temperature (T-T)	0 – 40 °C
  Storage relative humidity (H-H)	5 – 95 %
  Storage temperature (T-T)	-40 – 70 °C
  Package dimensions
  Gross Weight (Package, kg)	1 kg
  Performance
  Bluetooth	Yes
  Bluetooth version	5.0
  Number of persons	10 person(s)
  Product colour	Black
  Product type	Video collaboration bar
  Wall mountable	Yes
  Ports & interfaces
  Ethernet LAN (RJ-45) ports	1
  HDMI ports quantity	2
  Line-in	Yes
  Line-out	Yes
  USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
  USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
  USB connector type	USB Type-A/USB Type-C
  Power
  AC input frequency	50 – 60 Hz
  AC input voltage	120 – 230 V
  Product dimensions
  Net Weight (Product, kg)	0.9 kg
  Product Depth	10.2 cm
  Product Height	10.2 cm
  Product Width	76.2 cm
  Technical details
  Bluetooth	Yes
  Bluetooth version	5.0
  Harmonized System (HS) code	85176990
  Number of persons	10 person(s)
  Product colour	Black
  Product type	Group video conferencing system
  Vendor information
  Brand Name	Poly
  Warranty	1 Year(s)
  Video
  Digital zoom	5x
  HD type	4K Ultra HD
  Maximum frame rate	60 fps
  Maximum video resolution	3840 x 2160 Pixels
  Supported graphics resolutions	1024 x 768 (XGA)/1280 x 1024 (SXGA)/1280 x 720 (HD 720)/1280 x 768 (WXGA)/1600 x 1200 (UXGA)/1680 x 1050 (WSXGA+)/1920 x 1080 (HD 1080)/3840 x 2160/800 x 600 (SVGA)
  Supported video modes	1080p/2160p/720p
  Video formats supported	H.239/H.264/H.265

• 2200-86270-101 : Product Brochure
