• Poly Studio X30 + Poly TC8 Video Conferencing Solution For Small Meeting Rooms

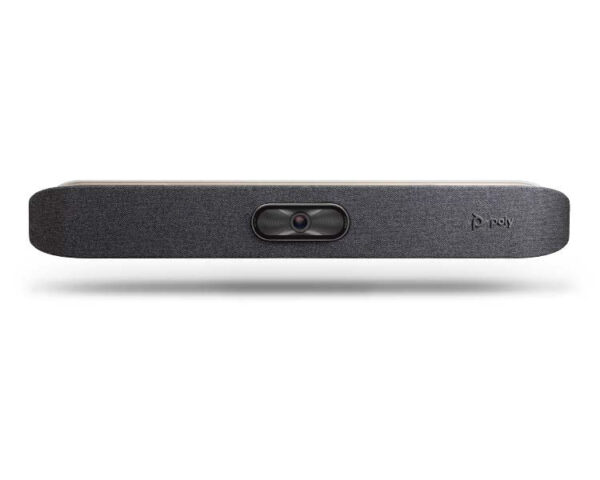

  POLY STUDIO X30
  ALL-IN-ONE VIDEO BAR FOR SMALL ROOMS
  Keep it simple — no computer needed
  Compact design makes it easy to set up
  Share content easily, wired or wirelessly

  YOUR TICKET TO BOARD ROOM EXCELLENCE
  MAKE YOUR HUDDLE ROOMS SOUND LIKE BOARD ROOMS
  Experience boardroom-quality performance with the Poly Studio X30, your delightfully simple all-in-one video bar for huddle and small rooms. Support for leading cloud video services is built right in — no PC or Mac required.

  DRAMA-FREE SETUP
  INSTALLATION IS A SNAP
  Get your huddle and small rooms up and running in moments. No PC or Mac is required — support for your favorite cloud service platforms is built right in. The compact, lightweight design easily fits on top or underneath a display in rooms of up to six participants.

  PRO-QUALITY PERFORMANCE
  GIVE EVERYONE IN MEETINGS A VOICE
  Feel more connected to others on the call, thanks to cinema-quality camera framing. Block out audio distractions with NoiseBlockAI technology, powered by machine learning. And easily share content over wired or wireless connections.

  EASY DIGITAL SIGNAGE IN YOUR VIDEO MEETING SPACES
  Poly video conferencing solutions can now deliver digital signage content from Appspace and Raydiant between meetings. Using Poly Lens cloud management makes deployment a breeze.

  RADICAL SIMPLICITY. BRILLIANT PERFORMANCE.
  Connect easily with nearly any video collaboration software. Get boardroom-quality with a simple, sleek device.

  WE WORK EVERYWHERE THAT YOU DO
  Poly video solutions make meetings a breeze. Use cloud video apps for a full experience with all the features you know and love. Or use standards-based SIP and H.323 compatibility to connect to different cloud video services throughout your day.

• Feature	Specification
  Package Includes	Poly Studio X30, Power supply, HDMI cable, Ethernet cable, Monitor clamp, Privacy cover
  Video Standards and Protocols	H.264 AVC, H.264 High Profile, H.265, H.239
  Video Input	1x HDMI
  Video Out	1x HDMI (Touch display compatible)
  People Video Resolution	4K, 30 fps (TX and RX) from 2048 Kbps, 1080p, 60 fps from 1740 Kbps, 1080p, 30 fps from 1024 Kbps, 720p, 60 fps from 832 Kbps, 720p, 30 fps from 512 Kbps
  Content Video Resolution	Input: UHD (3840 x 2160), HD (1920 x 1080p), WSXGA+ (1680 x 1050), UXGA (1600 x 1200), SXGA (1280 x 1024), WXGA (1280 x 768), HD (1280 x 720p), XGA (1024 x 768), SVGA (800 x 600) Output: UHD (3840 x 2160), WUXGA (1920 x 1200), HD (1920 x 1080), WSXGA+ (1680 x 1050), SXGA+ (1400 x 1050), SXGA (1280 x 1024), HD (1280 x 720), XGA (1024 x 768)
  Content Frame Rate	5–60 fps (up to 4K resolution at 15 fps in call)
  Content Sharing	Apple Airplay, Miracast, HDMI input, Whiteboarding
  Camera	121° DFOV, 110° HFOV, 5x digital zoom, UHD 2160p (4K) capture resolution, Automatic meeting experience powered by Poly DirectorAI including group framing and speaker framing
  Audio	Poly NoiseBlockAI technology, Poly Acoustic Fence technology
  Microphones	Four MEMS microphones, Up to 15 ft of microphone pickup range
  Audio Output	1x HDMI, Single speaker (Power Handling: RMS 3W, MAX 5W, Sensitivity 80dB)
  Other Interfaces	1x USB-A (3.0), 1x USB-C, Bluetooth 5.0, WiFi 802.11a/b/g/n/ac (MIMO) Multi-channel Concurrency
  Audio Standards and Protocols	22 kHz bandwidth with Polycom Siren 22 technology, 20 kHz bandwidth with G.719 (M- Mode) and Polycom Siren 22 technology, 14 kHz bandwidth with Polycom Siren 14 technology, G.722.1 Annex C, 7 kHz bandwidth with G.722, G.722.1, 3.4 kHz bandwidth with G.711, G.728, G.729A
  Network	IPv4, IPv6, 1x 10/100/1G Ethernet, Auto-MDIX, H.323 and/or SIP up to 6 Mbps in Poly App video mode, Polycom Lost Packet Recovery (LPR) technology, Dynamic bandwidth allocation, Reconfigurable MTU size, Web proxy support—basic, digest, and NTLM
  Security	Media Encryption (H.323, SIP): AES-128, AES-256, H.235.6 support, Authenticated access to admin menus, web interface, and APIs, BFCP, Local account password policy configuration, Security profiles, Local account and login port lockout, Secure defaults, Remote logging with support for TLS, Active directory external authentication
  Options	VESA and wall mount kit, Stand, Poly TC8, Poly TC10, Poly Bluetooth remote control, Poly Trio, Inverted mount kit, TAA, JITC, and no radio versions available
  Interoperability	Zoom Certified, Microsoft Teams Certified, Google Meet Certified, All cloud service providers through Poly Video App mode, USB Device Mode, Support for native 3rd party applications includes Zoom, Microsoft Teams, Google Meet, BlueJeans, Dialpad, GoToRoom, RingCentral, and Tencent (China only)
  Digital Signage	Raydiant, Appspace
  Electrical	Auto sensing power supply, Typical operating voltage/power: 37 VA @ 120 V @ 60 Hz, 37 VA @ 230 V @ 50/60 Hz, Typical BTU/h: 65
  Environmental Specification	Operating temperature: 0 to 40 °C, Operating humidity (non-condensing): 15 to 80%, Non-operating temperature: -40 to 70 °C, Non-operating humidity (non-condensing): 5 to 95%, Maximum altitude: 16,000 ft
  Physical Characteristics	17.39 W x 2.46 H x 2.42 D (inches) / 441.8 W x 62.5 H x 61.6 D (mm), 1.6 lbs/.73 kg
  Manageability	Cloud: Poly Lens service
  Warranty	One-year return to factory parts and labor
