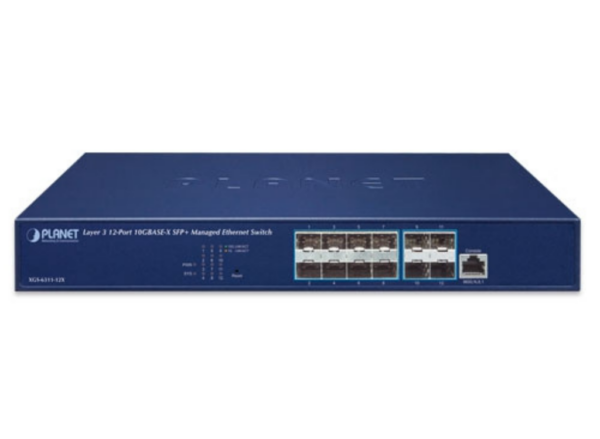

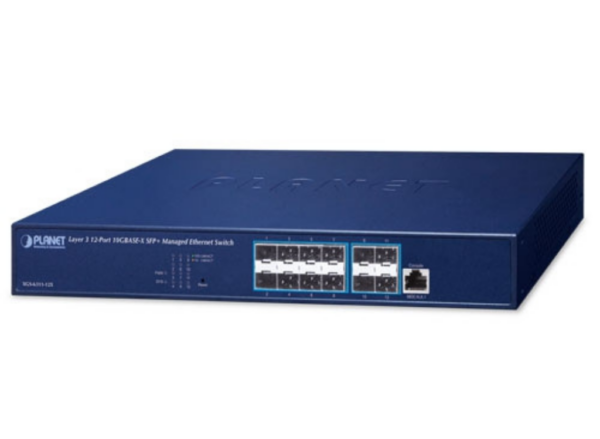

• Planet Layer 3 12-Port 10GBASE-X SFP+ Managed Ethernet Switch | XGS-6311-12X

  Perfect Managed All-port 10Gbps Switch with Layer 3 Switching and Security
  PLANET XGS-6311-12X is a fully-managed all-port 10Gbps Ethernet switch designed for the demand of high-bandwidth required network equipment, such as Wi-Fi 6/6E wireless AP, NAS and workstation. It features 12 10GBASE-X SFP+ fiber ports that are flexibly designed to extend the connection distance.

  The XGS-6311-12X provides high-density performance, Layer 3 static routing, RIP (Routing Information Protocol) and OSPF (Open Shortest Path First) with 10Gbps interfaces.

  With such a favorable data link capability, hardware-based Layer 3 routing performance, Layer 2 switching engine and user-friendly yet advanced IPv6/IPv4 management interfaces, it helps to accelerate the deployment of the next-generation high-bandwidth required network for metro, smart cites and enterprises.


  High Performance 10Gbps Ethernet Capacity
  The twelve SFP+ slots built in the XGS-6311-12X support dual-speed, 10GBASE-SR/LR or 1000BASE-SX/LX. With 10Gbps interfaces, the XGS-6311-12X boasts a high-performance switch architecture that is capable of providing non-blocking switch fabric and wire-speed throughput as high as 240Gbps, which greatly simplifies the tasks of upgrading the LAN for catering to increasing bandwidth demands.

  Redundant Ring, Fast Recovery for Critical Network Applications
  The XGS-6311-12X supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology and Spanning Tree Protocol (802.1s MSTP) into customer’s network to enhance system reliability and uptime in harsh environments. In a certain simple Ring network, the recovery time could be less than 15ms to quickly bring the network back to normal operation.


  Layer 3 Routing Support
  The XGS-6311-12X enables the administrator to conveniently boost network efficiency by configuring Layer 3 static routing manually, and the RIP or OSPF settings automatically. The RIP can employ the hop count as a routing metric and prevent routing loops by implementing a limit on the number of hops allowed in a path from the source to a destination. The OSPF is an interior dynamic routing protocol for autonomous system based on link state. The protocol creates a database for link state by exchanging link states among Layer 3 switches, and then uses the Shortest Path First algorithm to generate a route table based on that database.

  Strong Multicast
  The XGS-6311-12X supports abundant multicast features. In Layer 2, it features IPv4 IGMPv1/v2/v3 snooping and IPv6 MLD v1/v2 snooping. With Multicast VLAN Register (MVR), multicast receiver/sender control and illegal multicast source detect functions which make the XGS-6311-12X great for any robust networking.

  Full IPv6 Support
  The XGS-6311-12X provides IPv6 management and enterprise-level secure features such as SSH, ACL, WRR and RADIUS authentication. It thus helps the enterprises to step in the IPv6 era with the lowest investment. In addition, you don’t need to replace the network facilities when the IPv6 FTTx edge network is built.

  Robust Layer 2 Features
  The XGS-6311-12X can be programmed for basic switch management functions such as port speed configuration, port aggregation, VLAN, Multiple Spanning Tree Protocol, WRR and bandwidth control. This switch provides 802.1Q tagged VLAN, Q-in-Q, voice VLAN and GVRP Protocol functions. By supporting port aggregation, the XGS-6311-12X allows the operation of a high-speed trunk combined with multiple ports.


  Excellent Layer 2 to Layer 4 Traffic Control
  The XGS-6311-12X is loaded with powerful traffic management and WRR features to enhance services offered by telecoms. The WRR functionalities include wire-speed Layer 4 traffic classifiers and bandwidth limitation which are particularly useful for multi-tenant unit, multi-business unit, Telco, or network service applications. It also empowers the enterprises to take full advantage of the limited network resources and guarantees the best in VoIP and video conferencing transmission.

  Powerful Security
  The XGS-6311-12X offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1x Port-based user and device authentications, which can be deployed with RADIUS, to ensure the port level security and block illegal users.

  Advanced IP Network Protection
  The XGS-6311-12X also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before.

  Efficient and Secure Management
  For efficient management, the XGS-6311-12X is equipped with console, Web and SNMP management interfaces.

  With the built-in Web-based management interface, the XGS-6311-12X offers an easy-to-use, platform-independent management and configuration facility.
  For text-based management, it can be accessed via Telnet and the console port. For reducing product learning time, the XGS-6311-12X offers Cisco-like command and customer doesn’t need to learn new command from these switches
  For standard-based monitor and management software, it offers SNMPv3 connection which encrypts the packet content at each session for secure remote management.
  Moreover, the XGS-6311-12X offers secure remote management by supporting SSHv2 and SSLv3 connection which encrypts the packet content at each session.


  Intelligent SFP Diagnosis Mechanism
  The XGS-6311-12X supports SFP-DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP and SFP+ transceivers, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage


  Applications

  High Availability Mesh Networking Solution for Big Data System
  With highly-flexible, highly-extendable and easy-to-install features, the XGS-6311-12X series offers up to 240Gbps data exchange speed via optical fiber interface and the transmission distance can be extended to 120km. The XGS-6311-12X series features strong, rapid, self-recovery capability to prevent interruptions and external intrusions. It incorporates IEEE 802.1s MSTP (Multiple Spanning Tree Protocol, spanning tree by VLAN) into customer’s automation network to enhance system reliability and uptime. The XGS-6311-12X is the ideal solution for data centers, service providers and telecoms to build redundant connection and establish high bandwidth for Big Data server farm.


  Excellent Solution to Core/Data Center Security and QoS Switch
  The XGS-6311-12X series performs 240 Gigabits per second non-blocking switch fabric, so it can easily provide a local 10Gbps high bandwidth Ethernet network for the backbone of your department. With the twelve built-in SFP+ ports, the XGS-6311-12X series provides the uplink to the backbone network through the 10G Ethernet LR/SR SFP+ modules. It further improves the network efficiency and protects the network clients by offering the security and QoS features.


  Layer 3 VLAN Routing
  With the built-in robust Layer 3 traffic routing protocols, the XGS-6311-12X ensures reliable routing between VLANs and network segments. The routing protocols can be applied via VLAN interface. The XGS-6311-12X is certainly a cost-effective and ideal solution for enterprises.

  Key Features

  Physical Ports
  12 10GBASE-SR/LR SFP+ slots, backward compatible with 1000BASE-SX/LX/BX SFP
  RJ45 type RS232 console interface for switch basic management and setup

  IP Routing Features
  IP routing protocol supports RIPv1/v2, OSPFv2
  Routing interface provides per VLAN routing mode
  Supports route redistribution

  Layer 2 Features
  Complies with the IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z Gigabit Ethernet standard
  Prevents packet loss flow control
  IEEE 802.3x pause frame flow control in full-duplex mode
  Back pressure flow control in half-duplex mode
  High performance Store-and-Forward architecture, broadcast storm control, port loopback detection
  32K MAC address table, automatic source address learning and aging
  Supports VLAN
  IEEE 802.1Q tag-based VLAN
  GVRP for dynamic VLAN management
  Provider Bridging (VLAN Q-in-Q, IEEE 802.1ad) supported
  Private VLAN Edge (PVE) supported
  GVRP protocol for Management VLAN
  Protocol-based VLAN
  MAC-based VLAN
  IP subnet VLAN
  Supports Link Aggregation
  Maximum 64 trunk groups, up to 8 ports per trunk group
  IEEE 802.3ad LACP (Link Aggregation Control Protocol)
  Cisco ether-channel (static trunk)
  Supports Spanning Tree Protocol
  STP, IEEE 802.1D (Classic Spanning Tree Protocol)
  RSTP, IEEE 802.1w (Rapid Spanning Tree Protocol)
  MSTP, IEEE 802.1s (Multiple Spanning Tree Protocol, spanning tree by VLAN)
  Supports BPDU & root guard
  Port mirroring to monitor the incoming or outgoing traffic on a particular port (many to many)
  Provides port mirror (many-to-1)
  Supports G.8032 ERPS (Ethernet Ring Protection Switching)

  Quality of Service
  8 priority queues on all switch ports
  Support for strict priority and WRR (Weighted Round Robin) CoS policies
  Traffic classification
  IEEE 802.1p CoS/ToS
  IPv4/IPv6 DSCP
  Port-based WRR
  Strict priority and WRR CoS policies

  Multicast
  Supports IPv4 IGMP snooping v1, v2 and v3
  Supports IPv6 MLD v1 and v2 snooping
  Querier mode support
  Supports Multicast VLAN Register (MVR)

  Security
  IEEE 802.1x port-based network access authentication
  MAC-based network access authentication
  Built-in RADIUS client to cooperate with the RADIUS servers for IPv4 and IPv6
  TACACS+ login users access authentication
  IP-based Access Control List (ACL)
  MAC-based Access Control List
  Supports DHCP snooping
  Supports ARP inspection
  IP Source Guard prevents IP spoofing attacks
  Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding

  Management
  Management IP for IPv4 and IPv6
  Switch Management Interface
  Console/Telnet Command Line Interface
  Web switch management
  SNMP v1, v2c, and v3 switch management
  SSH/SSL/TLS secure access
  BOOTP and DHCP for IP address assignment
  Firmware upload/download via TFTP or HTTP Protocol for IPv4 and IPv6
  SNTP (Simple Network Time Protocol) for IPv4 and IPv6
  User privilege levels control
  Syslog server for IPv4 and IPv6
  Supports DDM
  Four RMON groups 1, 2, 3, 9 (history, statistics, alarms and events)
  Supports sFlow
  Supports ULDP
  Supports ULPP (Uplink Protection Protocol)
  Supports ULSM (Uplink State Monitor protocol)
  Supports LLDP/LLDP MED
  Supports DHCP Option82/43/60/61/67
  Supports ping, trace route function for IPv4 and IPv6
  PLANET Smart Discovery Utility for deployment management

• Category	Specification
  SFP+ Slots	12 x 10GBASE-SR/LR SFP+ (Ports 1–12), supports 1000BASE-SX/LX/BX
  Console Port	1 x RJ45-to-RS232 serial (9600, 8, N, 1)
  CPU	MIPS 800MHz
  RAM / Flash	512MB RAM / 32MB Flash
  ESD Protection	±6KV Contact, ±8KV Air
  Surge Protection	±2KV Differential, ±4KV Common
  Power Supply	AC 100~240V, 50/60Hz
  Power Consumption	Max 16.4W (no load), Max 30.2W (full load)

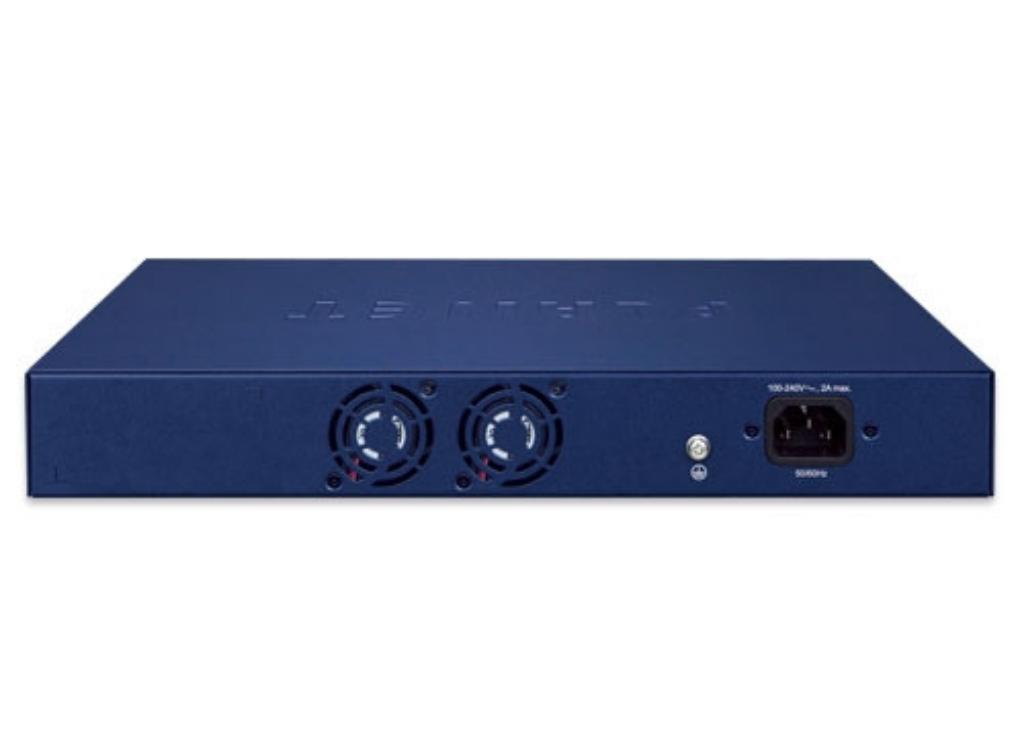

  Cooling	2 Fans
  LED Indicators	PWR, SYS (Green); Ports: 10G (Green), 1G (Amber)
  Dimensions / Weight	330 x 230 x 43.6 mm / 1988g
  Switch Fabric	240Gbps non-blocking
  Throughput	178.56Mpps
  MAC Table	32K entries with auto-learning
  ARP / Routing Table	8K ARP / 12K Routing
  IP Interfaces	1024 IPv4/IPv6 interfaces
  ACL Table	4K Access Control List entries
  Data Buffer	16MB shared
  Flow Control	IEEE 802.3x full duplex / Back pressure half duplex
  Jumbo Frame	12KB
