• Planet L3 8-Port 2.5GBASE-T + 2-Port 10GBASE-T + 2-Port 10GBASE-X SFP+ Managed Ethernet Switch

  Perfect Managed Multigigabit Ethernet Switch with L3/L2 Switching and Security
  PLANET MGS-6311-10T2X is a brand-new Layer 3 managed multigigabit switch providing 2.5Gbps data over UTP cables, designed for the demand of high-bandwidth required network equipment, such as Wi-Fi 6 802.11ax wireless AP, NAS, workstation and those with 2.5GBASE-T interfaces. It features 8 10/100/1000/2500BASE-T copper ports, 2 100/1G/2.5G/5G/10GBASE-T copper ports and 2 extra 1G/10GBASE-X SFP+ fiber ports that are flexibly designed to extend the connection distance.

  The MGS-6311-10T2X provides high-density performance, Layer 3 static routing, RIP (Routing Information Protocol) and OSPF (Open Shortest Path First). With 10Gbps interfaces, it can handle extremely large amounts of data in a secure topology linking to an enterprise backbone or high-capacity servers. The powerful network security features make the MGS-6311-10T2X perform effective data traffic control for ISP and enterprise VoIP, video streaming, and multicast applications.


  2.5Gbps Capability for Diversified Bandwidth Applications
  With the terminal access rates of 802.11ac/ax wireless APs reaching as high as 1.2Gbps to 3.6Gbps, Gigabit ports have been unable to satisfy the demand. The MGS-6311-10T2X is a versatile networking solution featuring eight 2.5Gbps RJ45 copper ports, enabling seamless connectivity expansion. With its impressive 2.5Gbps capability, it effortlessly handles bandwidth-intensive applications and ensures efficient data delivery to 802.11ac/ax wireless access points.


  10GBASE-T and 10GBASE-X SFP Dual Media Interfaces for Network Extension
  PLANET MGS-6311-10T2X has the capability to reach a high speed of 10Gbps over copper or fiber-optic cabling which helps to accelerate the performance of large data transmission. The built-in 10GBASE-T copper interfaces support 5-speed (10G/5G/2.5G/1G/100) auto-negotiation, and 10Gbps data transmission with the existing Cat6A/Cat7 UTP cabling, meaning the speed can be increased without costs. It can definitely give you the speed you demand and its Plug and Play makes installation easy.

  The fiber-optic 10GBASE-X SFP+ interfaces of the MGS-6311-10T2X support dual speeds, 10GBASE-SR/LR and 1000BASE-SX/LX , meaning the administrator now can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the network efficiently.

  Redundant Ring, Fast Recovery for Critical Network Applications
  The MGS-6311-10T2X supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology and Spanning Tree Protocol (802.1s MSTP) into customer’s network to enhance system reliability and uptime in harsh environments. In a certain simple Ring network, the recovery time could be less than 15ms to quickly bring the network back to normal operation.


  Layer 3 Routing Support
  The MGS-6311-10T2X enables the administrator to conveniently boost network efficiency by configuring Layer 3 static routing manually, the RIP (Routing Information Protocol) or OSPF (Open Shortest Path First) settings automatically.

  The RIP can employ the hop count as a routing metric and prevent routing loops by implementing a limit on the number of hops allowed in a path from the source to a destination.
  The OSPF is an interior dynamic routing protocol for autonomous system based on link state. The protocol creates a database for link state by exchanging link states among Layer 3 switches, and then uses the Shortest Path First algorithm to generate a route table based on that database.

  Strong Multicast
  The MGS-6311-10T2X supports abundant multicast features. In Layer 2, it features IPv4 IGMPv1/v2/v3 snooping and IPv6 MLD v1/v2 snooping. With Multicast VLAN Register (MVR), multicast receiver/sender control and illegal multicast source detect functions which make the MGS-6311-10T2X great for any robust networking.

  Full IPv6 Support
  The MGS-6311-10T2X provides IPv6 management and enterprise-level secure features such as SSH, ACL, WRR and RADIUS authentication. It thus helps the enterprises to step in the IPv6 era with the lowest investment. In addition, you don’t need to replace the network facilities when the IPv6 FTTx edge network is built.

  Robust Layer 2 Features
  The MGS-6311-10T2X can be programmed for basic switch management functions such as port speed configuration, port aggregation, VLAN, Multiple Spanning Tree Protocol, bandwidth control and IGMP snooping. This switch provides 802.1Q tagged VLAN, Q-in-Q, voice VLAN and GVRP Protocol functions. By supporting port aggregation, the MGS-6311-10T2X allows the operation of a high-speed trunk combined with multiple ports.  It enables up to 64 groups for trunking with a maximum of 8 ports for each group.


  Excellent Layer 2 to Layer 4 Traffic Control
  The MGS-6311-10T2X is loaded with powerful traffic management and WRR features to enhance services offered by telecoms. The WRR functionalities include wire-speed Layer 4 traffic classifiers and bandwidth limitation which are particularly useful for multi-tenant unit, multi-business unit, Telco, or network service applications. It also empowers the enterprises to take full advantage of the limited network resources and guarantees the best in VoIP and video conferencing transmission.

  Powerful Network Security
  The MGS-6311-10T2X offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1x Port-based, MAC-based and web-based user and device authentications, which can be deployed with RADIUS, to ensure the port level security and block illegal users.

  Advanced IP Network Protection
  The MGS-6311-10T2X also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before.

  Efficient and Secure Management
  For efficient management, the MGS-6311-10T2X is equipped with console, Web and SNMP management interfaces.

  With the built-in Web-based management interface, the MGS-6311-10T2X offers an easy-to-use, platform-independent management and configuration facility.
  For text-based management, it can be accessed via Telnet and the console port. For reducing product learning time, the MGS-6311-10T2X offers Cisco-like command and customer doesn’t need to learn new command from these switches
  For standard-based monitor and management software, it offers SNMPv3 connection which encrypts the packet content at each session for secure remote management.
  Moreover, the MGS-6311-10T2X offers secure remote management by supporting SSHv2 connection which encrypts the packet content at each session.


  Intelligent SFP Diagnosis Mechanism
  The MGS-6311-10T2X supports SFP-DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP and SFP+ transceivers, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.


  Applications

  Excellent Solution to Enterprise Security and QoS Switch
  The MGS-6311-10T2X performs 120 Gigabits per second non-blocking switch fabric, so it can easily provide a local 10Gbps high bandwidth Ethernet network for the backbone of your department. With the two built-in SFP+ ports, the MGS-6311-10T2X provides the uplink to the backbone network through the 10G Ethernet LR/SR SFP+ modules. It further improves the network efficiency and protects the network clients by offering the security and QoS features.


  Layer 3 VLAN Routing
  With the built-in robust Layer 3 traffic routing protocols, the MGS-6311-10T2X ensures reliable routing between VLANs and network segments. The routing protocols can be applied via VLAN interface. The MGS-6311-10T2X is certainly a cost-effective and ideal solution for enterprises.


  High Availability Mesh Networking Solution for Big Data System
  With highly-flexible, highly-extendable and easy-to-install features, the MGS-6311-10T2X offers up to 120Gbps data exchange speed via optical fiber interface and the transmission distance can be extended to 120km. The MGS-6311-10T2X features strong, rapid, self-recovery capability to prevent interruptions and external intrusions. It incorporates IEEE 802.1s MSTP (Multiple Spanning Tree Protocol, spanning tree by VLAN) into customer’s automation network to enhance system reliability and uptime. The MGS-6311-10T2X is the ideal solution for data centers, service providers and telecoms to build redundant connection and establish high bandwidth for Big Data server farm.


  Key Features

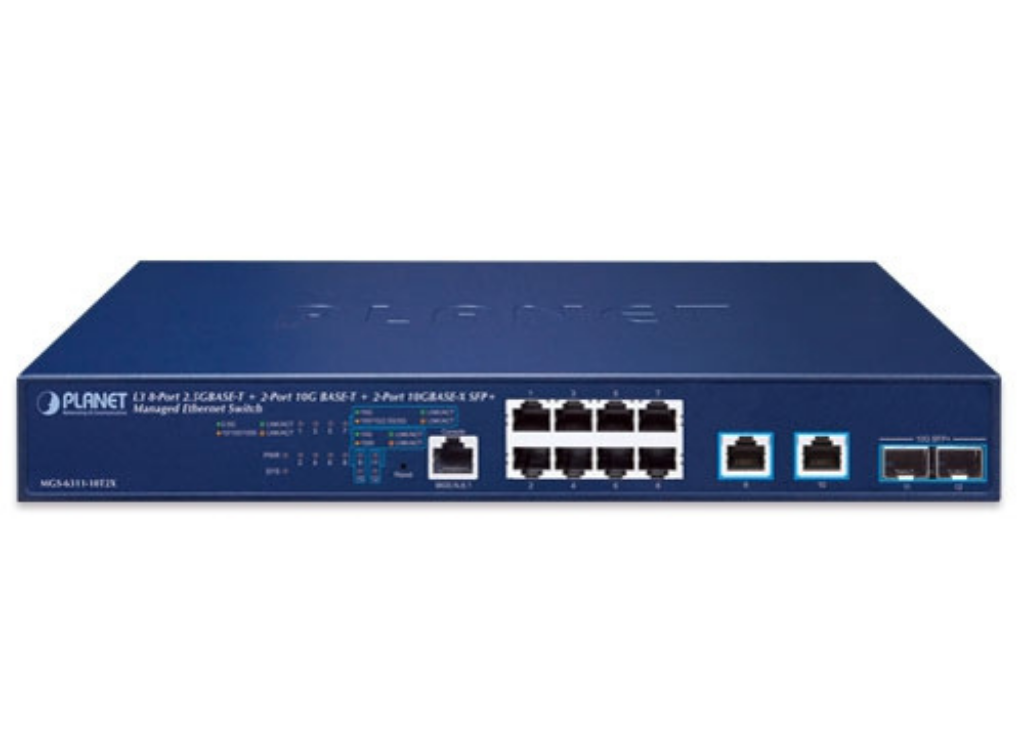

  Physical Ports
  8 10/100/1000/2500BASE-T RJ45 copper ports (Ports 1 to 8)
  2 100/1G/2.5G/5G/10GBASE-T RJ45 auto-negotiation copper ports (Ports 9 to 10)
  2 10GBASE-SR/LR SFP+ slots, compatible with 1000BASE-SX/LX/BX SFP (Ports 11 to 12)
  RJ45 to DB9 console interface for switch basic management and setup

  IP Routing Features
  IP routing protocol supports RIPv1/v2, OSPFv2
  Routing interface provides per VLAN routing mode
  Supports route redistribution

  Layer 2 Features
  Complies with the IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z IEEE 802.3bz, IEEE 802.3an Gigabit Ethernet standard
  Prevents packet loss flow control
  IEEE 802.3x pause frame flow control in full-duplex mode
  Back pressure flow control in half-duplex mode
  High performance Store-and-Forward architecture, broadcast storm control, port loopback detection
  16K MAC address table, automatic source address learning and aging
  Supports VLAN
  IEEE 802.1Q tag-based VLAN
  GVRP for dynamic VLAN management
  Provider Bridging (VLAN Q-in-Q, IEEE 802.1ad) supported
  Private VLAN Edge (PVE) supported
  GVRP protocol for Management VLAN
  Protocol-based VLAN
  MAC-based VLAN
  IP subnet VLAN
  Supports Link Aggregation
  Maximum 64 trunk groups, up to 8 ports per trunk group
  IEEE 802.3ad LACP (Link Aggregation Control Protocol)
  Cisco ether-channel (static trunk)
  Supports Spanning Tree Protocol
  STP, IEEE 802.1D (Classic Spanning Tree Protocol)
  RSTP, IEEE 802.1w (Rapid Spanning Tree Protocol)
  MSTP, IEEE 802.1s (Multiple Spanning Tree Protocol, spanning tree by VLAN)
  Supports BPDU & root guard
  Port mirroring to monitor the incoming or outgoing traffic on a particular port (many to many)
  Provides port mirror (many-to-1)
  Supports G.8032 ERPS (Ethernet Ring Protection Switching)

  Quality of Service
  8 priority queues on all switch ports
  Support for strict priority and WRR (Weighted Round Robin) CoS policies
  Traffic classification
  IEEE 802.1p CoS/ToS
  IPv4/IPv6 DSCP
  Port-based WRR
  Strict priority and WRR CoS policies

  Multicast
  Supports IPv4 IGMP snooping v1, v2 and v3
  Supports IPv6 MLD v1 and v2 snooping
  Querier mode support
  Supports Multicast VLAN Register (MVR)

  Security
  IEEE 802.1x port-based network access authentication
  MAC-based network access authentication
  Built-in RADIUS client to cooperate with the RADIUS servers for IPv4 and IPv6
  TACACS+ login users access authentication
  IP-based Access Control List (ACL)
  MAC-based Access Control List
  Supports DHCP snooping
  Supports ARP inspection
  IP Source Guard prevents IP spoofing attacks
  Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding

  Management
  Management IP for IPv4 and IPv6
  Switch Management Interface
  Console/Telnet Command Line Interface
  Web switch management
  SNMP v1, v2c, and v3 switch management
  SSHv2/TLSv1.2 secure access
  BOOTP and DHCP for IP address assignment
  Firmware upload/download via TFTP or HTTP Protocol for IPv4 and IPv6
  SNTP (Simple Network Time Protocol) for IPv4 and IPv6
  User privilege levels control
  Syslog server for IPv4 and IPv6
  Supports DDM
  Four RMON groups 1, 2, 3, 9 (history, statistics, alarms and events)
  Supports sFlow
  Supports ULDP
  Supports ULPP (Uplink Protection Protocol)
  Supports ULSM (Uplink State Monitor protocol)
  Supports LLDP/LLDP MED
  Supports DHCP Option82/43/60/61/67
  Supports ping, trace route function for IPv4 and IPv6
  PLANET Smart Discovery Utility for deployment management

• Feature	Description
  Copper Ports	8 × 10/100/1000/2500BASE-T RJ45 (Ports 1–8) 2 × 10GBASE-T RJ45 (Ports 9–10)
  SFP+ Ports	2 × 10GBASE-SR/LR SFP+ (Ports 9–10), backward compatible with 1000BASE-SX/LX/BX
  Console Port	1 × RJ45-to-RS232 serial port (9600, 8, N, 1)
  CPU	MIPS 800MHz
  RAM	512MB
  Flash Memory	32MB
  ESD Protection	±6KV Contact, ±8KV Air
  Surge Protection	±2KV Differential mode, ±4KV Common mode
  Dimensions (W×D×H)	330 × 230 × 43.6 mm (1U height)
  Weight	1953g
  Power Consumption	26.6W / 90.7 BTU
  Power Input	AC 100–240V, 50/60Hz
  Fan	1
  LED Indicators	System: PWR (Green), SYS (Green) Ports: Different color LEDs for link/activity per port speed
  Switch Architecture	Store-and-forward
  Switch Fabric	120Gbps non-blocking
  Switch Throughput	89.28Mpps
  MAC Address Table	16K entries
  ARP Table	8K entries
  Routing Table	6K entries
  IP Interfaces	1024
  ACL Table	4K entries
  Shared Buffer	12MB
  Multicast Table	1K entries
  Jumbo Frame Support	Up to 12KB
  Flow Control	Back pressure (half duplex), IEEE 802.3x pause frame (full duplex)
  IPv4 Routing	Static, RIPv1/v2, OSPFv2
  IPv6 Functions	ICMPv6, ND, DNSv6
  Layer 3 Protocols	ARP, ARP Proxy, IGMP Proxy
  Port Configuration	Enable/disable, flow control, bandwidth control, loopback detection
  Port Status Monitoring	Link speed, duplex, negotiation, flow status
  VLAN	802.1Q VLAN (4K groups), Q-in-Q, GVRP, Private VLAN Edge, MAC/IP-based VLAN
  Bandwidth Control	TX / RX / Both directions
  Link Aggregation	IEEE 802.3ad LACP & static trunk, 64 groups, up to 8 ports per group
  QoS	8 queues/port, strict priority, WRR, based on 802.1p/DSCP/ToS/port
  Multicast Support	IGMP snooping v1–v3, IPv4 Querier, MLD v1/v2, MVR (up to 1024 entries)
  ACL Features	Standard, Extended, IP/MAC-based, Time-based ACLs (4K entries)
  Security	Port isolation, IP+MAC+Port binding, L2-L4 ACL filtering, DoS defense, DHCP snooping
  Authentication	IEEE 802.1x port-based access control
  AAA Support	RADIUS & TACACS+ over IPv4/IPv6
  System Configuration	Console, Telnet, Web, SNMP v1/v2c
  Secure Management	SSHv2, TLSv1.2, SNMPv3
  Management Features	IPv4/IPv6 dual-stack, SNMP traps, FTP/TFTP/NTP, CLI, RMON (1,2,3,9), Smart Discovery
  Syslog Support	IPv4 and IPv6
  Standards Compliance	Full IEEE 802.3, 802.1X/Q/p/w/s/ad, RFC suite for TCP/IP, RIP, OSPF, IGMP, SNMP, etc.
  Certifications	FCC Part 15 Class A, CE
  Operating Temperature	0°C to 50°C
  Storage Temperature	-10°C to 70°C
  Humidity (Operating & Storage)	5% to 90% (non-condensing)
