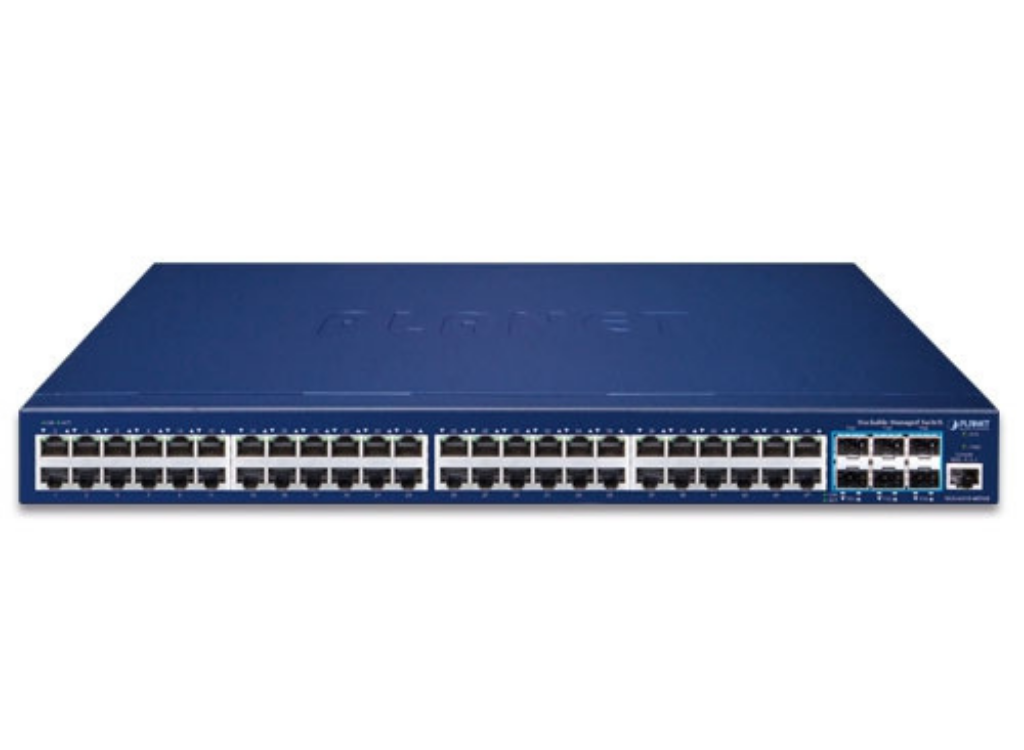

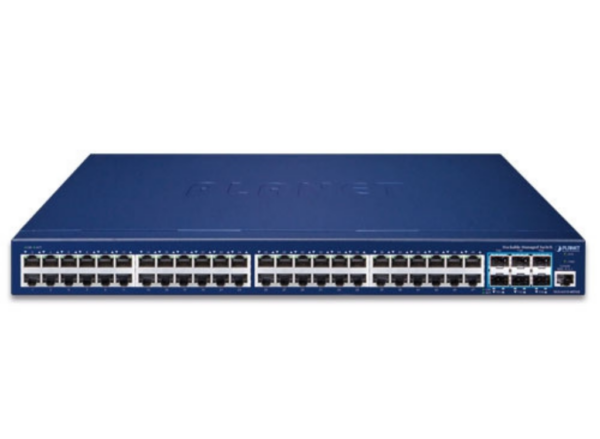

• Planet L3 48-Port 10/100/1000T + 6-Port 10G SFP+ Stackable Managed Switch

  Resilient 10Gbps and Layer 3 Routing Solution for Enterprise Networking
  PLANET SGS-6310 series is a brand-new Layer 3 Stackable Managed Gigabit Switch with 10Gbps uplink capability for various kinds of network applications and flexible deployment. The SGS-6310-48T6X features 48 10/100/1000BASE-T RJ45 ports and  6 1G/10GBASE-X SFP+ ports with 216Gbps switch fabric delivered in a 1U rugged case design.

  The SGS-6310 series provides high-density performance, Layer 3 IPv4/IPv6 static routing, RIP and OSPF dynamic routing capability, ERPS ring, abundant L2/L4 switching engine and virtual switch stacking technology to fulfill the need of heavy transmission of all applications. It gives the enterprises, service providers and campuses flexible control over port density, uplinks and switch stack performance at an affordable price beyond value.

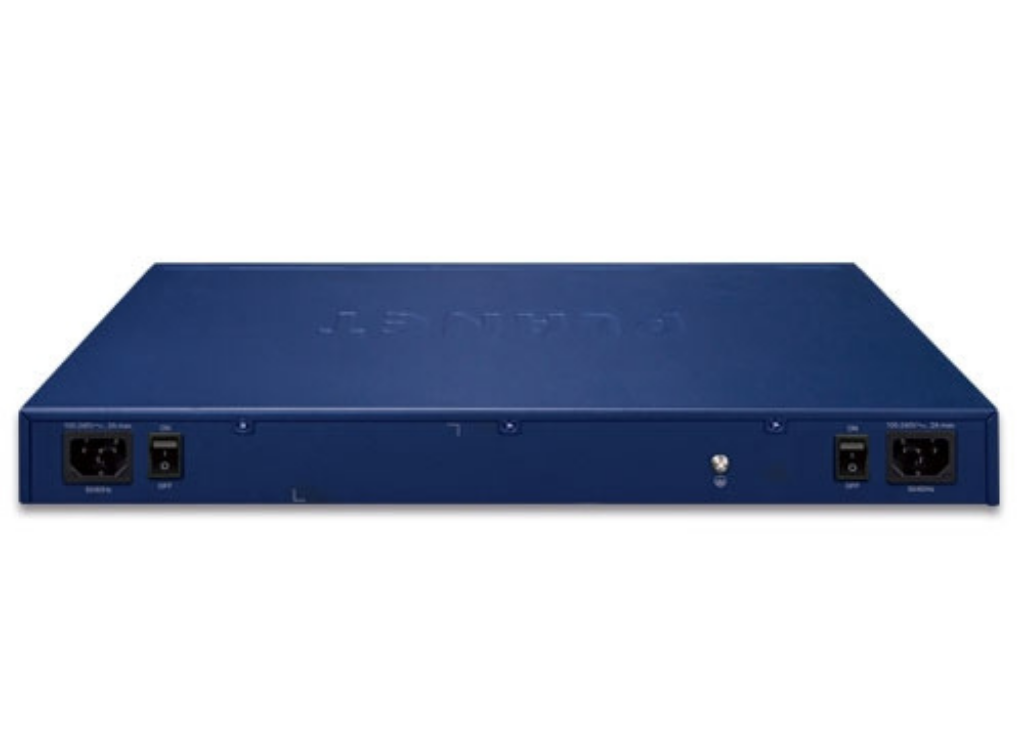

  Dual AC Redundant Power to Ensure Continuous Operation
  The SGS-6310-48T6X is equipped with two 100~240V AC power supply units for redundant power supply installation. A redundant power system is also provided to enhance the reliability with AC power supply units. The redundant power system is specifically designed to handle the demands of high-tech facilities requiring the highest power integrity.

  High Performance 10Gbps Ethernet Capacity
  The four to six SFP+ ports built in the SGS-6310 series boast a high-performance switch architecture that is capable of providing non-blocking switch fabric and wire-speed throughput as high as up to 120Gbps, which greatly meets high bandwidth demands in the LAN. Each of the SFP+ ports supports Dual-Speed, 10GBASE-SR/LR or 1000BASE-SX/LX, meaning the administrator now can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the network efficiently.

  Centralized Hardware Stacking Management
  Two of the 10G SFP+ ports can be configured to connect several SGS-6310 series for building a virtually logical facility. The stackable SGS-6310 series, suitable for the enterprises, service providers and telecoms, provides high port density, large uplink bandwidth and high stacking performance, thus giving great flexibility for different application requirements. The SGS-6310 series can connect as a ring for redundancy and ensures that data integrity is retained even if one switch in the stack fails. You can even hot-swap switches without disrupting the network operations.


  Redundant Ring, Fast Recovery for Critical Network Applications
  The SGS-6310 series supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology and Spanning Tree Protocol (802.1s MSTP) into customer’s network to enhance system reliability and uptime in harsh environments. In a certain simple ring network, the recovery time could be less than 10ms to quickly bring the network back to normal operation.

  Layer 3 Routing Support
  The SGS-6310 series enables the administrator to conveniently boost network efficiency by configuring Layer 3 static routing manually, the RIP (Routing Information Protocol) or OSPF (Open Shortest Path First) settings automatically.

  The RIP can employ the hop count as a routing metric and prevent routing loops by implementing a limit on the number of hops allowed in a path from the source to a destination.

  The OSPF is an interior dynamic routing protocol for autonomous system based on link state. The protocol creates a database for link state by exchanging link states among Layer 3 switches, and then uses the Shortest Path First algorithm to generate a route table based on that database.

  Strong Multicast
  The SGS-6310 series supports abundant multicast features. In Layer 2, it features IPv4 IGMPv1/v2/v3 snooping and IPv6 MLD v1 snooping. With Multicast VLAN Register (MVR), multicast receiver/sender control and illegal multicast source detect functions which make the SGS-6310 series great for any robust networking.

  Full IPv6 Support
  The SGS-6310-Series supports IPv4-to-IPv6 technologies including IPv4 manual/automatic tunnel, IPv6-to-IPv4 tunnel, and Intra-Site Automatic Tunnel Addressing Protocol (ISATAP) tunnel. It comprehensively supports IPv6 Neighbor Discovery, DHCPv6, Path MTU Discovery, IPv6-based Telnet, SSH and ACL, meeting the need of IPv6 network device management and service control.

  Robust Layer 2 Features
  The SGS-6310 series can be programmed for basic switch management functions such as port speed configuration, port aggregation, VLAN, Multiple Spanning Tree Protocol, bandwidth control and IGMP snooping. This switch provides 802.1Q tagged VLAN, Q-in-Q, voice VLAN and GVRP Protocol functions. By supporting port link aggregation, the SGS-6310 series allows the operation of a high-speed trunk combined with multiple ports.  It enables up to 64 groups for trunking with a maximum of 8 ports for each group.


  Excellent Layer 2 to Layer 4 Traffic Control
  The SGS-6310 series is loaded with powerful traffic management and WRR features to enhance services offered by enterprises. The WRR functionalities include wire-speed Layer 4 traffic classifiers and bandwidth limitation which are particularly useful for multi-tenant unit, multi-business unit, Telco, or network service applications. It also empowers the enterprises to take full advantage of the limited network resources and guarantees the best in VoIP and video conferencing transmission.

  Powerful Network Security
  The SGS-6310 series offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1x Port-based and MAC-based user and device authentications, which can be deployed with RADIUS, to ensure the port level security and block illegal users.

  Advanced IP Network Protection
  The SGS-6310 series also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before.

  Efficient and Secure Management
  For efficient management, the SGS-6310 series is equipped with console, Web and SNMP management interfaces.

  With the built-in Web-based management interface, the SGS-6310 series offers an easy-to-use, platform-independent management and configuration facility.

  For text-based management, it can be accessed via Telnet and the console port. For reducing product learning time, the SGS-6310 series offers Cisco-like command and customer doesn’t need to learn new command from these switches.

  For standard-based monitor and management software, it offers SNMPv3 connection which encrypts the packet content at each session for secure remote management.

  Moreover, the SGS-6310 series offers secure remote management by supporting SSHv1/v2 and TLSv1.2 connection which encrypts the packet content at each session.


  Intelligent SFP Diagnosis Mechanism
  The SGS-6310 series supports SFP-DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP and SFP+ transceivers, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.

  Applications

  Excellent Solution to Enterprise Security and QoS Switch
  The SGS-6310 series performs 128 Gigabits per second non-blocking switch fabric, so it can easily provide a local 10Gbps high bandwidth Ethernet network for the backbone of your department. With the four built-in SFP+ ports, the SGS-6310 series provides the uplink to the backbone network through the 10G Ethernet LR/SR SFP+ modules. It further improves the network efficiency and protects the network clients by offering the security and QoS features.


  Layer 3 VLAN Routing
  With the built-in robust Layer 3 traffic routing protocols, the SGS-6310 series ensures reliable routing between VLANs and network segments. The routing protocols can be applied via VLAN interface. The SGS-6310 series is certainly a cost-effective and ideal solution for enterprises.


  High Availability Mesh Networking Solution for Big Data System
  With highly-flexible, highly-extendable and easy-to-install features, the SGS-6310 series offers up to 128Gbps data exchange speed via optical fiber interface and the transmission distance can be extended to 120km. The SGS-6310 series features strong, rapid, self-recovery capability to prevent interruptions and external intrusions. It incorporates IEEE 802.1s MSTP (Multiple Spanning Tree Protocol, spanning tree by VLAN) into customer’s automation network to enhance system reliability and uptime. The SGS-6310 series is the ideal solution for data centers, service providers and telecoms to build redundant connection and establish high bandwidth for Big Data server farm.


  Key Features

  Physical Ports
  48 10/100/1000BASE-T RJ45 copper ports
  6 10GBASE-SR/LR SFP+ slots, backward compatible with 1000BASE-SX/LX/BX SFP
  RJ45 to DB9 console interface for switch basic management and setup

  Stacking Features
  Hardware Stacking
  Virtualized multiple SGS-6310 series stacked into one logical facility
  Connects with stack members via assigned 10G SFP+ interfaces
  Single IP address stack management, supporting up to 8 hardware units stacked together
  Stacking architecture supports redundant Ring mode

  IP Routing Features
  IPv4 routing protocol supports RIPv1/v2 and OSPFv2
  IPv6 routing protocol supports RIPng and OSPFv3
  Routing interface provides per VLAN routing mode
  VRRPv1/v3 protocol for redundant routing deployment
  Supports route redistribution
  Supports hardware-based wire-speed VLAN routing

  Multicast Routing Features
  Supports IPv4 IGMP v1/v2/v3, IGMP Snooping.
  Supports IGMP Fast Leave, MVR, IGMP filter
  Supports IPv6 MLD V1, MLD snooping

  Layer 2 Features
  32K MAC address table, automatic source address learning and aging
  Supports VLAN
  IEEE 802.1Q tag-based VLAN
  Provider Bridging (VLAN Q-in-Q, IEEE 802.1ad) supported
  GVRP protocol for dynamic VLAN management
  Private VLAN Edge (PVE) supported
  MAC-based VLAN
  IP subnet-based VLAN
  Voice VLAN
  Supports Link Aggregation
  IEEE 802.3ad LACP (Link Aggregation Control Protocol)
  Static mode and LACP mode
  Maximum 64 trunk groups, up to 8 ports per trunk group
  Supports Spanning Tree Protocol
  STP, IEEE 802.1D (Classic Spanning Tree Protocol)
  RSTP, IEEE 802.1w (Rapid Spanning Tree Protocol)
  MSTP, IEEE 802.1s (Multiple Spanning Tree Protocol, spanning tree by VLAN)
  Supports BPDU & root guard
  Port mirroring to monitor the incoming or outgoing traffic on a particular port (one-to-one and many-to-one)
  Provides port mirror (many-to-1)
  Supports G.8032 ERPS (Ethernet Ring Protection Switching)
  Loop protection to avoid broadcast loops
  Link Layer Discovery Protocol (LLDP)
  Compatible with Cisco UDLD (uni-directional link detection) that monitors a link between two switches and blocks the ports on both ends of the link if the link fails at any point between the two devices

  Quality of Service
  8 priority queues on all switch ports
  Support for strict priority and WRR (Weighted Round Robin) CoS policies
  Traffic classification
  IEEE 802.1p CoS/ToS
  IPv4/IPv6 DSCP
  Port-based WRR
  Strict priority and WRR CoS policies

  Multicast
  Supports IPv4 IGMP snooping v1, v2 and v3
  Supports IPv6 MLD v1 snooping
  Querier mode support
  Supports Multicast VLAN Register (MVR)

  Security
  Authentication
  IEEE 802.1x port-based network access authentication
  MAC-based network access authentication
  Built-in RADIUS client to cooperate with the RADIUS servers for IPv4 and IPv6
  RADIUS/TACACS+ login users access authentication
  Access Control List
  IP-based Access Control List (ACL)
  MAC-based Access Control List
  Time-based ACL
  DHCP snooping to filter distrusted DHCP messages
  IP Source Guard prevents IP spoofing attacks
  Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding

  Management
  IPv4 and IPv6 dual stack management
  Switch Management Interface
  Console/Telnet Command Line Interface
  HTTP Web switch management
  SNMP v1 and v2c switch management
  SSHv1/v2, TLSv1.2 and SNMPv3 secure access
  SNMP Management
  Four RMON groups 1, 2, 3, 9 (history, statistics, alarms and events)
  SNMP trap for interface Link Up and Link Down notification
  BOOTP and DHCP for IP address assignment
  System Maintenance
  Firmware upload/download via TFTP or HTTP Protocol for IPv4 and IPv6
  SNTP (Simple Network Time Protocol) for IPv4 and IPv6
  User privilege levels control
  Syslog server for IPv4 and IPv6
  Supports sFlow
  DHCP Functions
  DHCP Option82
  DHCP server/relay/client
  Network Diagnostic
  Supports ping, traceroute function for IPv4 and IPv6
  Supports DDM (Digital Diagnostic Monitor)
  Supports ISSU (In-service Software Upgrade) to guaranteeing non-stop user data transmission when the system is upgraded.

  Redundant Power System
  100~240V AC Dual power redundant
  Active-active redundant power failure protection
  Backup of catastrophic power failure on one supply

• Category	Specification
  Copper Ports	48 × 10/100/1000BASE-T RJ45
  SFP+ Ports	6 × 10GBASE-SR/LR SFP+ (Backwards compatible with 1000BASE SFPs)
  Console Port	1 × RJ45-to-RS232 serial port
  Memory	512MB DRAM, 16MB Flash
  Switch Fabric / Throughput	216Gbps / 160.7Mpps
  Dimensions / Weight	440 × 279.8 × 44 mm / 4100g
  Power / Fan	46.9W max, Dual AC input, 2 fans
  L3 Routing Protocols	Static, RIP v1/v2/ng, OSPF v2/v3, VRRP v1/v3, IPv6 routing/tunneling
  Layer 2 Features	VLANs, STP/RSTP/MSTP, LACP, IGMP/MLD snooping, ERPS ring
  QoS / ACL	8 queues, WRR, CoS/ToS/DSCP, ACLs (L2–L4), storm control
  Security	Port security, IP+MAC+port binding, AAA (RADIUS/TACACS+), DoS protection
  Management	Console, Telnet, Web UI, SNMP v1/v2c/v3, SSH, TLS, Syslog, NTP
  Stacking	Up to 8 units via 2 × 10G SFP+ stacking ports
  Environment	Op: 050°C, 1090% RH; Storage: -2070°C, 595% RH
