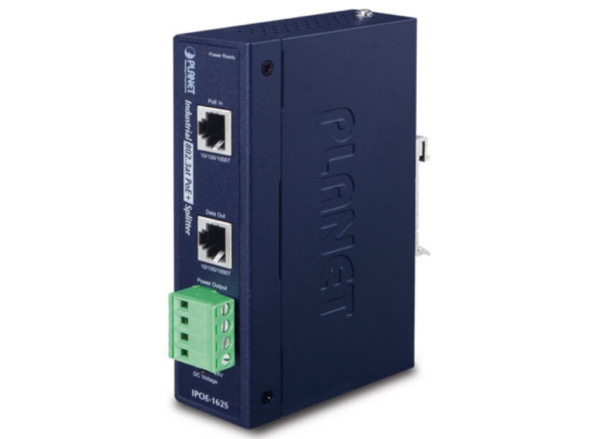

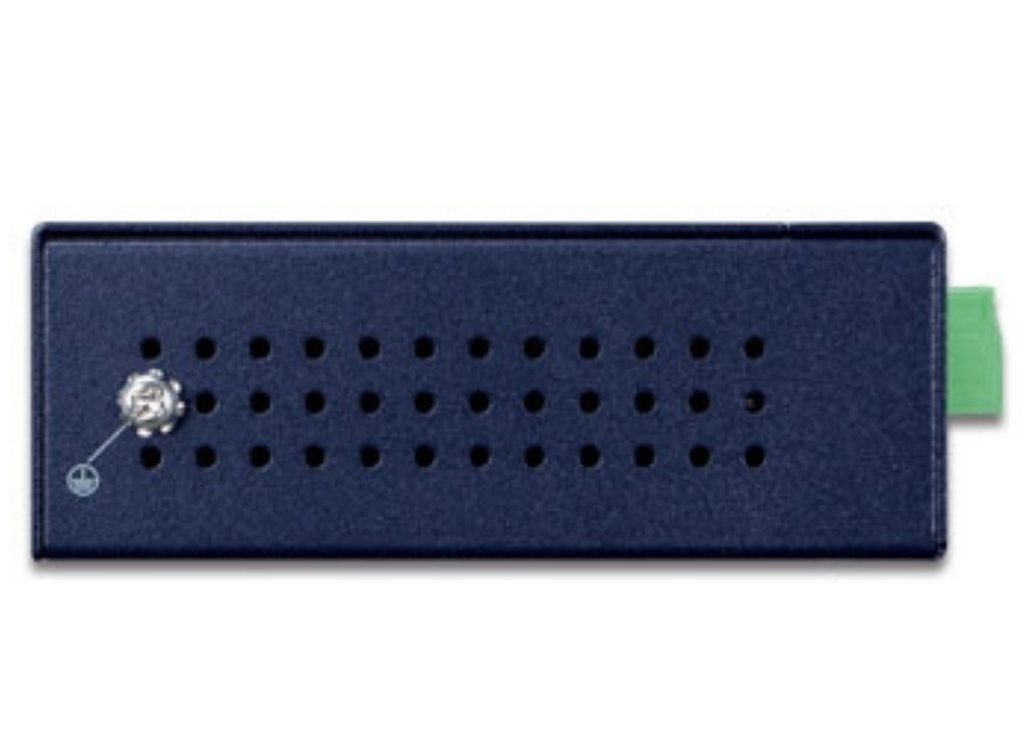

• Planet IPOE-162S Industrial IEEE 802.3at Gigabit High Power over Ethernet Splitter

  The Best Industrial Grade Data Link and Power Sourcing for Non-PoE Solution
  Planet IPOE-162S is an Industrial High Power PoE Splitter that can split the 48~56V DC over the existing Ethernet cable into the selectable 12V or 24V DC power output. It supports passive 10/100/1000Mbps Ethernet connection ability and complies with IEEE 802.3at High Power over Ethernet standard that supports up to 25-watt output power to powered device. To fulfill the growing industrial applications, the IPOE-162S is designed to work under the operating temperature range from -40 to 75 degrees C (-40 to 167 degrees F). The IPOE-162S is an ideal solution to transferring power to traditional network device with high power demand directly without the need to install additional power outlets and electrical cabling in the industrial environment.

  Innovative, Selectable DC Power Output Voltage

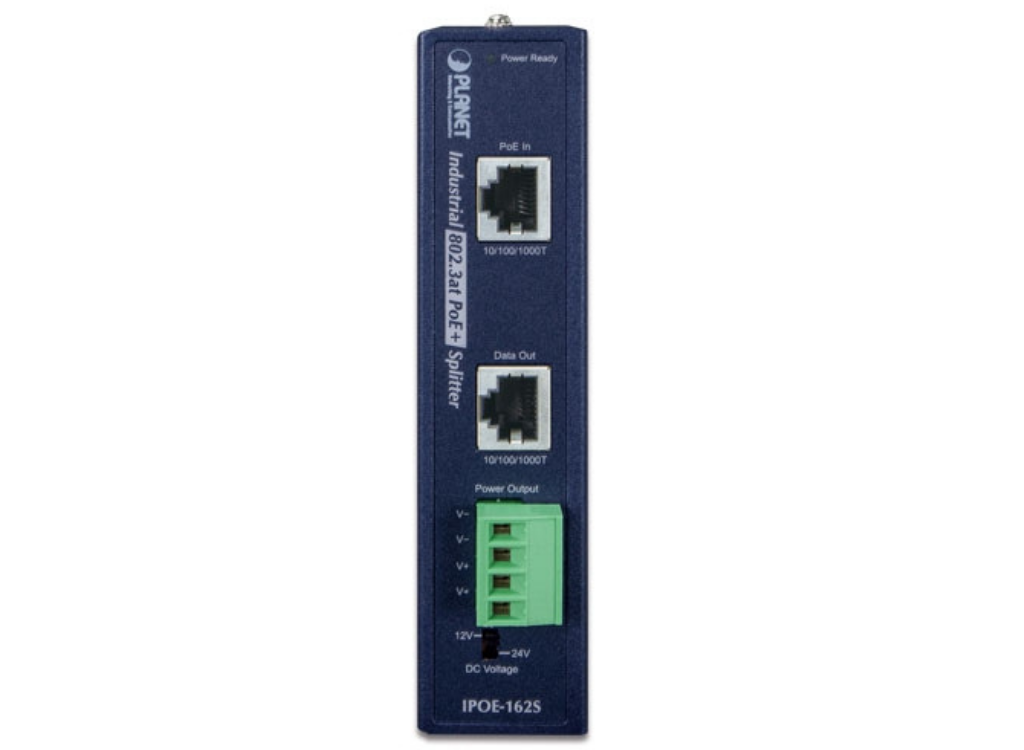

  Via the innovative 12 volt / 24 volt DIP switch on the front panel, the IPOE-162S can supply either 24V DC power to industrial equipment or 12V DC output to the common network devices, such as wireless access point or IP camera. It highly increases the flexibility of the product applications.

  Dual Power Output Capability
  By supporting up to 25-watt 802.3at Power over Ethernet cable, the IPOE-162S can satisfy not only single power-hungry equipment but also able to share the 25-watt output power to two non-PoE Ethernet devices simultaneously through a 4-pin terminal block. For example, the two power output can be applied as shown below to completely solve the need of electric source:
  IP camera (Power 1) + Outdoor housing with fan and heater (Power 2)
  IP camera (Power 1) + Pan & Tilt motor (Power 2)
  Analog camera (Power 1) + IP video server (Power 2)

  Environmentally Hardened Design
  With compact, slim type IP30 industrial case protection, the space saving Industrial High Power PoE Splitter IPOE-162S can be placed in almost any difficult environment. It allows either DIN rail or wall mounting for efficient use of cabinet space. Being able to operate under the temperature range from -40 to 75 degrees C, the IPOE-162S is the ideal product for co-working with Industrial High Power Injector which can feed the power to non-PoE devices up to 100 meters (328 feet) away in those harsh environments.


  Plug and Play, Easy Cabling Installation
  With IEEE 802.3at Gigabit High Power over Ethernet devices installed, the system administrator only has to use one single RJ-45 Ethernet cable to carry both power and data to each device. Besides, connecting through the Industrial High Power PoE Injector with the IPOE-162S, you can also have benefits including cost saving, easy networking planning and high network reliability.

  Applications

  IEEE 802.3at Injector and Splitter Installation
  Due to the capability of IEEE 802.3at standard, the IPOE-162S can co-work with the IEEE 802.3at Gigabit PoE injector devices (like PLANET POE-161), High Power Switch or High Power Media Converter and transform non-PoE equipment into IEEE 802.3at PoE application. For a place where is hard to find the power inlet, the High Power PoE devices and the IPOE-162S operate as a pair to provide the easiest way to power your Ethernet devices that need high power input, such as PTZ (Pan, Tilt & Zoom) network cameras, PTZ speed dome camera, color touch-screen voice over IP (VoIP) telephones, and multi-channel wireless LAN access points.


  Key Features

  Interface
  2-port RJ-45 interfaces
  1-port PoE Power+ Data input
  1-port Data output
  2 DC out (4-pin Terminal Block)

  Power over Ethernet Splitter
  Complies with IEEE 802.3at High Power over Ethernet, PD
  Splits the 48~56V DC power over RJ-45 Ethernet cable into DC 12V / 24V output
  Auto-detects of IEEE 802.3at PoE equipment, protecting devices from being damaged by incorrect installation
  Two different adjustable output voltage options (12V / 2A, 24V / 1A) to fit various devices
  Distance up to 100 meters

  Industrial Case / Installation
  IP30 metal case protection
  DIN rail and wall mount design
  Supports EFT 6000V DC protection for power line
  Supports 6000V DC Ethernet ESD protection
  -40 to 75 degrees C operating temperature

  Standard Compliance
  IEEE 802.3 10Base-T
  IEEE 802.3u 100Base-TX
  IEEE 802.3ab 1000Base-T
  IEEE 802.3at High Power over Ethernet standard
  FCC Part 15 Class A, CE

• Category	Specification
  Interface	“PoE (Power + Data)” Input Port: 1 x RJ-45 10/100/1000Base-T
  	“Data” Out Port: 1 x RJ-45 10/100/1000Base-T
  	DC Out Plug Connector: 1 removable 4-Pin terminal block
  LED Indicator	System: Power Ready x 1 (Green)
  Network Cable	10/100/1000Base-T: 4-Pair UTP Cat. 5, 5e, 6
  	Distance up to 100m (328ft)
  	EIA/TIA-568 100-ohm STP (100m)
  Data Rate	10/100/1000Mbps (vary on Ethernet device attached)
  DIP Switch	12V DC / 24V DC output voltage
  Power Input	802.3at PoE 48~56V DC
  Power Output	12V / 24V DC, max 2A (adjustable)
  Dimensions (W x D x H)	135 x 87.8 x 32 mm
  Weight	421g
  Enclosure	IP30 metal case
  Installation	DIN rail kit and wall mount ear
  ESD / EFT Protection	6KV DC
  PoE Standard	IEEE 802.3at High Power over Ethernet
  Number of Devices Powered	1 or 2 (vary on device’s power requirement; DC1 + DC2 cannot exceed 25 watts)
  Standards Compliance	IEEE 802.3 10Base-T Ethernet
  	IEEE 802.3u 100Base-TX Fast Ethernet
  	IEEE 802.3ab 1000Base-T Gigabit Ethernet
  	IEEE 802.3at High Power over Ethernet
  Regulation Compliance	FCC Part 15 Class A, CE
  Stability Testing	IEC60068-2-32(Free Fall)
  	IEC60068-2-27(Shock)
  	IEC60068-2-6(Vibration)
  Operating Temperature	-40 ~ 75°C
  Storage Temperature	-40 ~ 85°C
  Humidity	5 ~ 95% (non-condensing)
