  Advanced Manageable PoE Solution for Hardened Environment

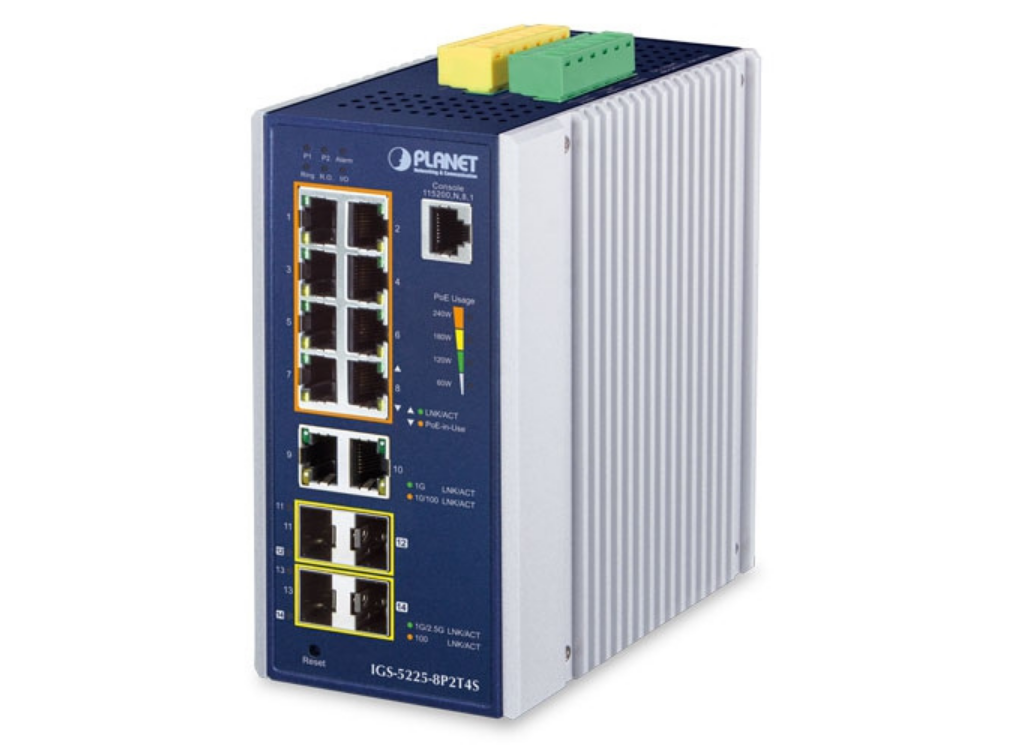

  PLANET IGS-5225-8P2T4S PoE L2+Industrial Managed PoE+ Switch, featuring 8 10/100/1000BASE-T 802.3at PoE+ ports with each port powering up to 36 watts, two 10/100/1000BASE-T ports, two 100/1000 BASE-X SFP ports and two 100/1000/2500 BASE-X SFP ports in an IP30 rugged metal case, can be installed in any difficult environment. It provides user-friendly yet advanced IPv6/IPv4 management interfaces, abundant L2/L4 switching functions, Layer 3 static routing capability, and advanced ITU-G.8032 ERPS Ring technology to improve the rapid self-recovery capability and PLANET intelligent PoE functions for controlling the PoE outdoor IP surveillance and wireless network applications. It is able to operate reliably, stably and quietly in the temperature range from -40 to 75 degrees C.


  Redundant Ring, Fast Recovery for Critical Network Applications
  The IGS-5225-8P2T4S supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and redundant power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. In a simple Ring network, the recovery time of data link can be as fast as 10ms.


  High Power PoE for Security and Public Service Applications
  As the whole system comes with a total 240-watt PoE budget, the IGS-5225-8P2T4S is designed specifically to satisfy the growing demand of higher power consuming network PDs (powered devices) such as multi-channel (802.11n/ac/ax) wireless LAN access points, PTZ (pan, tilt, zoom) speed dome network cameras and other PoE network devices.

  Intelligent Alive Check for Powered Device
  The IGS-5225-8P2T4S can be configured to monitor connected PD’s status in real time via ping action. Once the PD stops working and responding, the IGS-5225-8P2T4S will recycle the PoE port power and bring the PD back to work. It also greatly enhances the reliability in that the PoE port will reset the PD power, thus reducing administrator’s management burden.


  PoE Schedule for Energy Savings
  Under the trend of energy saving worldwide and contributing to environmental protection on the Earth, the IGS-5225-8P2T4S can effectively control the power supply besides its capability of giving high watts power. The built-in “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and money.


  Scheduled Power Recycling
  The IGS-5225-8P2T4S allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specified time each week. Therefore, it will reduce the chance of IP camera or AP crash resulting from buffer overflow.


  SMTP/SNMP Trap Event Alert
  The IGS-5225-8P2T4S provides event alert function to help to diagnose the abnormal device owing to whether or not there is a break of the network connection, or the rebooting response.


  Effective Alarm Alert for Better Protection
  The IGS-5225-8P2T4S supports a Fault Alarm feature which can alert the users when there is something wrong with the switches. With this ideal feature, the users would not have to waste time finding where the problem is. It will help to save time and human resource.


  Digital Input and Digital Output for External Alarm
  The IGS-5225-8P2T4S supports Digital Input and Digital Output on its front panel. This external alarm enables users to use Digital Input to detect and log external device status (such as door intrusion detector), and send event alarm to the administrators. The Digital Output could be used to alarm the administrators if the IGS-5225-8P2T4S port shows link down, link up or power failure.


  Convenient and Smart ONVIF Devices with Detection Feature
  PLANET has developed an awesome feature — ONVIF Support — which is specifically designed for co-operating with video IP surveillances. From the IGS-5225-8P2T4S GUI, clients just need one click to search and show all of the ONVIF devices via network application. In addition, clients can upload floor images to the switch series making the deployments of surveillance and other devices easy for planning and inspection purposes. Moreover, clients can get real-time surveillance’s information and online/offline status; the PoE reboot can be controlled from the GUI.


  Robust Layer 2 Features
  The IGS-5225-8P2T4S can be programmed for advanced switch management functions such as dynamic port link aggregation, Q-in-Q VLAN, private VLAN, Rapid Spanning Tree Protocol, Layer 2 to Layer 4 QoS, bandwidth control and IGMP snooping. The IGS-5225-8P2T4S provides 802.1Q tagged VLAN, and the VLAN groups allowed will be maximally up to 4K. Via aggregation of supporting ports, the IGS-5225-8P2T4S allows the operation of a high-speed trunk combining multiple ports. It enables a maximum of up to 3 trunk groups with 6 ports per trunk group, and supports fail-over as well.


  Network with Cybersecurity Helps Minimize Security Risks
  The IGS-5225-8P2T4S comes with enhanced cyber security to fend off cyber threats and cyber attacks. It supports SSHv2 and TLSv1.2 protocols to provide strong protection against advanced threats. Served as a key point to transmit data to customer’s critical equipment in a business network, the cyber security feature of the IGS-5225-8P2T4S protects the switch management and enhances the security of the mission-critical network without any extra deployment cost and effort.


  Efficient Management
  For efficient management, the IGS-5225-8P2T4S is equipped with Command line, Web and SNMP management interfaces.

  With the built-in Web-based management interface, the IGS-5225-8P2T4S offers an easy-to-use, platform-independent management and configuration facility.
  For text-based management, it can be accessed via Telnet and the console port.
  For standard-based monitor and management software, it offers SNMPv3 connection which encrypts the packet content at each session for secure remote management.


  Powerful Security from Layer 2 to Layer 4
  The IGS-5225-8P2T4S offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1x Port-based and MAC-based user and device authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy.

  Advanced IP Network Protection
  The IGS-5225-8P2T4S also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before.

  Modbus TCP Provides Flexible Network Connectivity for Factory Automation
  With the supported Modbus TCP/IP protocol, the IGS-5225-8P2T4S can easily integrate with SCADA systems, HMI systems and other data acquisition systems in factory floors. It enables administrators to remotely monitor the industrial Ethernet switch’s operating information, port information and communication status, thus easily achieving enhanced monitoring and maintenance of the entire factory.

  1588 Time Protocol for Industrial Computing Networks
  The IGS-5225-8P2T4S is ideal for telecom and Carrier Ethernet applications, supporting MEF service delivery and timing over packet solutions for IEEE 1588 and synchronous Ethernet.


  Flexibility and Extension Solution
  The two SFP ports built in the IGS-5225-8P2T4S support multi-speed, 100BASE-FX, 1000BASE-SX/LX and 2500BASE-X SFP (Small Form-factor Pluggable) fiber-optic modules, meaning the administrator now can flexibly choose the suitable SFP transceiver according to not only the transmission distance but also the transmission speed required.

  The distance can be extended from 300 meters to 2km (multi-mode fiber) and up to 10/20/40/60/80/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.

  Intelligent SFP Diagnosis Mechanism
  The IGS-5225-8P2T4S supports SFP-DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.

  Applications

  Industrial Area Department/Workgroup PoE Switch
  Providing up to 8 PoE+, in-line power interfaces, the IGS-5225-8P2T4S can easily build a power centrally controlled for IP phone system, IP camera system, or wireless AP group for Industrial network. For instance, 8 PoE IP cameras or wireless access points can be easily installed around the corner in the industrial environment for surveillance demands or for a wireless roaming network. Without the power-socket limitation, the IGS-5225-8P2T4S makes the installation of IP cameras or wireless AP easier and more efficient.


  Perfect Integration Solution for IP PoE Camera and NVR System
  The IGS-5225-8P2T4S provides eight 10/100/1000BASE-T 802.3at PoE+ ports which can offer sufficient PoE power to 8 PoE IP cameras at the same time. In addition, with the two 100/1G BASE-X SFP ports and two 100/1000/2500BASE-X SFP interfaces, the IGS-5225-8P2T4S can connect to a core fiber switch and send video streams to an NVR and monitoring center. Through the high-performance switch architecture, the IGS-5225-8P2T4S facilitates the recorded video files from the 8 PoE+ IP cameras to be saved in the NVR systems. Furthermore, the NVR systems can be controlled and monitored in both the local LAN and the remote site via Internet. The IGS-5225-8P2T4S undoubtedly brings an ideal secure surveillance system at a lower total cost.

  Key Features

  Physical Port

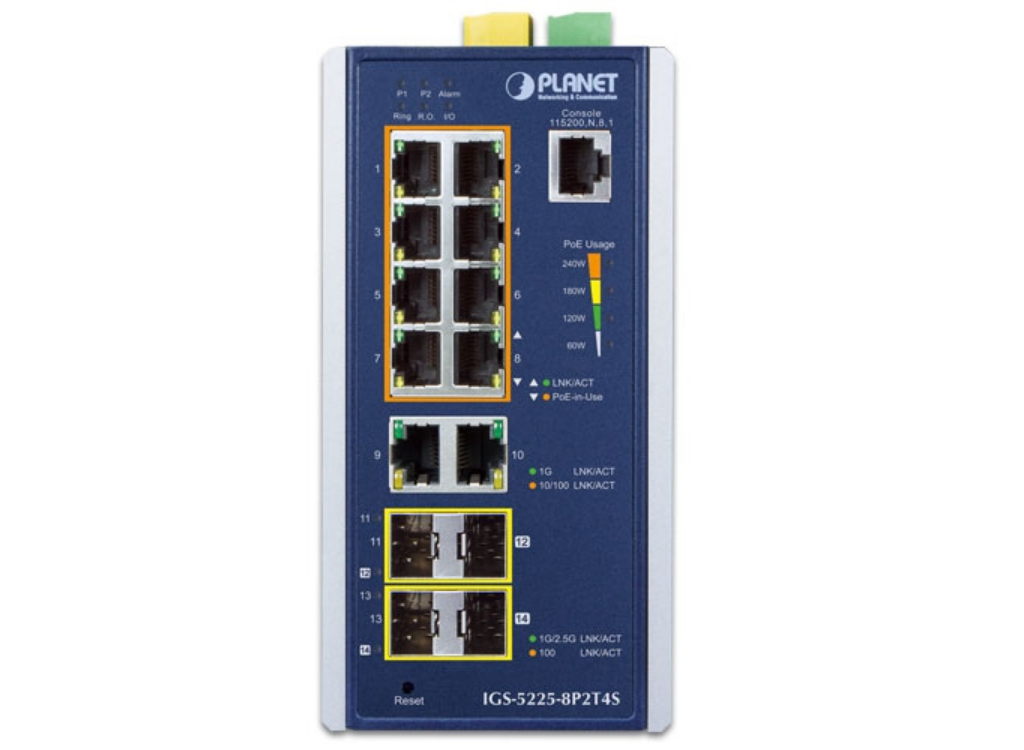

  8 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with IEEE 802.3at PoE+ injector function
  2 10/100/1000BASE-T Gigabit Ethernet RJ45 ports
  2 100/1000BASE-X SFP ports for SFP type auto detection
  2 100/1000/2500BASE-X SFP ports for SFP type auto detection
  One RJ45 console interface for basic management and setup

  Power over Ethernet
  Complies with IEEE 802.3at Power over Ethernet Plus/end-span PSE
  Up to 8 IEEE 802.3af/802.3at devices powered
  Supports PoE power up to 36 watts for each PoE port
  Auto detects powered device (PD)
  Circuit protection prevents power interference between ports
  Remote power feeding up to 100m
  PoE management features
  PoE admin-mode control
  PoE management mode selection
  PoE legacy mode selection
  PoE budget setup option
  Per port PoE function enable/disable
  PoE port power feeding priority
  Per PoE port power limit
  PoE port status monitoring
  PD classification detection
  Sequence port PoE
  PoE extend mode control to support power feeding up to a distance of up to 160 meters
  Intelligent PoE features
  Temperature threshold control
  PoE usage threshold control
  PoE schedule
  PD alive check
  LLDP PoE Neighbors

  Industrial Protocol
  Mod bus TCP for real-time monitoring in the SCADA system
  IEEE 1588v2 PTP (Precision Time Protocol) transparent clock mode

  Industrial Case and Installation
  IP30 aluminum case
  DIN-rail or wall-mount design
  48~54V DC, redundant power with reverse polarity protection
  Supports 6KV DC Ethernet ESD protection
  -40 to 75 degrees C operating temperature

  Digital Input and Digital Output
  2 digital input (DI)
  2 digital output (DO)
  Integrate sensors into auto alarm system
  Transfer alarm to IP network via email and SNMP trap

  Layer 3 IP Routing Features
  Supports maximum 32 static routes and route summarization
  Routing interface provides per VLAN routing mode

  Layer 2 Features
  Storm Control support
  Broadcast / Multicast / Unicast
  Supports VLAN
  IEEE 802.1Q tagged VLAN
  Supports provider bridging (VLAN Q-in-Q, IEEE 802.1ad)
  Private VLAN Edge (PVE)
  Port Isolation
  MAC-based VLAN
  IP Subnet-based VLAN
  Protocol-based VLAN
  VLAN Translation
  Voice VLAN
  GVRP
  Supports Spanning Tree Protocol
  IEEE 802.1D Spanning Tree Protocol (STP)
  IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
  IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN
  BPDU Filtering/BPDU Guard
  Supports Link Aggregation
  802.3ad Link Aggregation Control Protocol (LACP)
  Cisco ether-channel (static trunk)
  Maximum 6 trunk groups with 4 ports per trunk group
  Up to 8Gbps bandwidth (duplex mode)
  Provide sport mirror (many-to-1)
  Port mirroring to monitor the incoming or outgoing traffic on a particular port
  Loop protection to avoid broadcast loops
  Supports ERPS (Ethernet Ring Protection Switching)
  Compatible with Cisco Uni-directional link detection(UDLD) that monitors a link between two switches and blocks the ports on both ends of the link if the link fails at any point between the two devices
  Link Layer Discovery Protocol (LLDP)
  IEEE 802.3ah OAM

  Quality of Service
  Ingress Shaper and Egress Rate Limit per port bandwidth control
  8 priority queues on all switch ports
  Traffic classification
  IEEE 802.1p CoS
  IP TOS/DSCP/IP precedence
  IP TCP/UDP port number
  Typical network application
  Strict priority and Weighted Round Robin (WRR) CoS policies
  Supports QoS and In/Out bandwidth control on each port
  Traffic-policing on the switch port
  DSCP remarking

  Multicast
  SupportsIPv4 IGMP snooping v1, v2 and v3
  Supports IPv6 MLD snooping v1 and v2
  Querier mode support
  IPv4 IGMP snooping port filtering
  IPv6 MLD snooping port filtering
  MVR (Multicast VLAN Registration)

  Security
  Authentication
  IEEE 802.1x port-based/MAC-based network access authentication
  Built-in RADIUS client to co-operate with the RADIUS servers
  TACACS+ login users access authentication
  RADIUS / TACACS+ users access authentication
  Guest VLAN assigns clients to a restricted VLAN with limited services
  Access Control List
  IP-based Access Control List (ACL)
  MAC-based Access Control List
  Source MAC/IP address binding
  DHCP Snooping to filter un-trusted DHCP messages
  Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
  IP Source Guard prevents IP spoofing attacks
  IP address access management to prevent unauthorized intruder

  Management
  IPv4 and IPv6 dual stack management
  Switch Management Interfaces
  Web switch management
  Console and Telnet Command Line Interface
  SNMP v1 and v2c switch management
  SSHv2, TLSv1.2 and SNMPv3 secure access
  SNMP Management
  Four RMON groups (history, statistics, alarms, and events)
  SNMP trap for interface Link Up and Link Down notification
  IPv6 IP Address/NTP/DNS management
  Built-in Trivial File Transfer Protocol (TFTP) client
  BOOTP and DHCP for IP address assignment
  System Maintenance
  Firmware upload/download via HTTP
  Reset button for system reboot or reset to factory default
  Dual Images
  DHCP Relay and DHCP Option82
  DHCP Server
  User Privilege levels control
  NTP (Network Time Protocol)
  UPnP
  Network Diagnostic
  ICMPv6/ICMPv4 Remote Ping
  Cable Diagnostic technology provides the mechanism to detect and report potential cabling issues
  SFP-DDM (Digital Diagnostic Monitor)
  SMTP, Syslog and SNMP trap remote alarm
  Local system Log
  PLANET NMS System and Smart Discovery Utility for deployment management
  Provides ONVIF for co-operating with PLANET video IP surveillances

• Category	Specification
  Copper Ports	10 x 10/100/1000BASE-T RJ45 (auto-MDI/MDI-X)
  SFP Fiber Ports	2 x 100/1000BASE-X (Port 11–12), 2 x 100/1000/2500BASE-X (Port 13–14)
  PoE Injector Ports	8 ports with IEEE 802.3at/af PoE (Port 1–8)
  Console Port	1 x RJ45-to-RS232 serial (115200, 8, N, 1)
  RAM / Flash	128 MB RAM / 64 MB Flash
  Reset Button	<5 sec: Reboot, >5 sec: Factory Reset
  ESD Protection	6KV DC
  Enclosure / Installation	IP30 Aluminum Case / DIN-rail and Wall-mount Kits

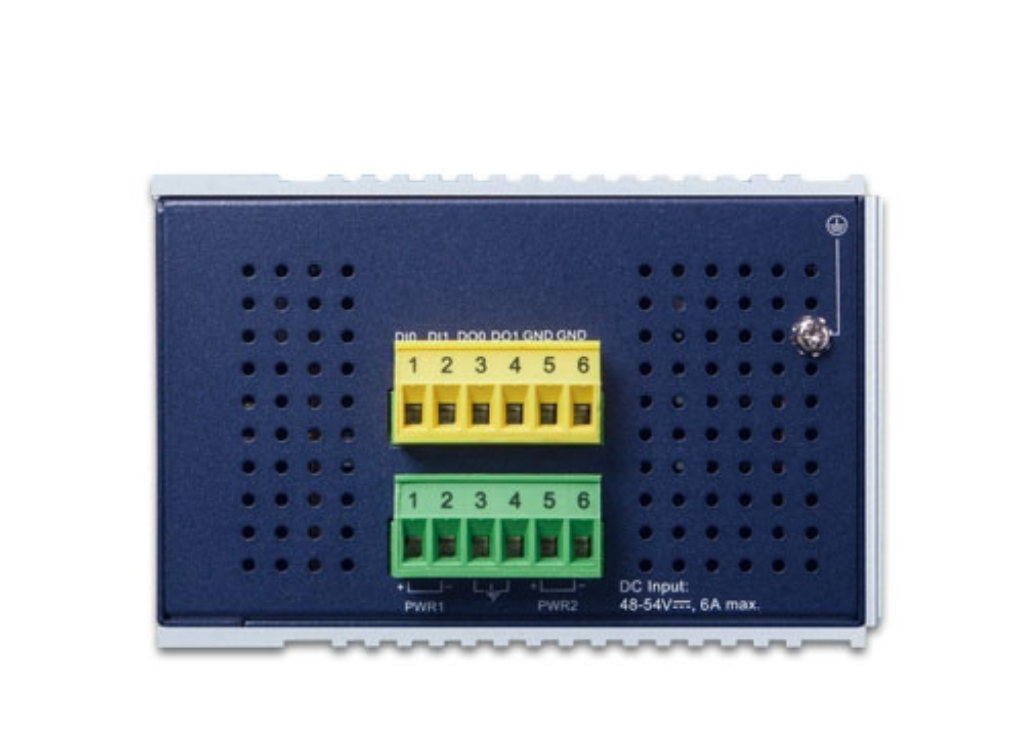

  Power Connector	Removable 6-pin Terminal Block (2 Power, 2 Alarm, 2 DI/DO)
  Alarm Output	1A @ 24V DC (Power Failure Relay)
  Digital I/O	2 x DI (2.1V–24V), 2 x DO (Open collector 100mA @ 24VDC)
  Dimensions / Weight	76.8 x 107.3 x 152 mm / 1144g
  Power Input / Budget	Dual 48–54V DC / Up to 240W PoE Budget
  Power Consumption	Max 6.48W (Idle), Max 261W (Full Load)
  LED Indicators	Power, Alarm, Ring, DIDO, PoE Status, Link/Activity, SFP Link
  Switch Architecture	Store-and-Forward / 34Gbps Fabric / 25.3Mpps Throughput
  MAC Table / Buffer	8K MAC Entries / 4Mbit Buffer
  Jumbo Frame Support	9 KB
  Flow Control	IEEE 802.3x (Full Duplex), Back Pressure (Half Duplex)
  PoE Output per Port	IEEE 802.3af (15.4W) / IEEE 802.3at (36W)
  PoE Features	Alive Check, Recycling, Scheduling, Legacy Mode, Usage Alarms
  PoE Management	Admin Control, Budget Control, Port Schedule, Port Priority
  L3 Routing	IPv4 / IPv6 Static Routing, 8 VLAN Interfaces, 32 Routing Entries
  VLAN Support	802.1Q, Q-in-Q, MAC/Protocol/Voice VLANs, Private VLAN, up to 4K Groups
  Link Aggregation	802.3ad LACP / 6 Trunk Groups (4 Ports Each)
  Spanning Tree	802.1D / 802.1w / 802.1s
  Multicast Support	IGMP v1/v2/v3, MLD v1/v2, Querier Mode, 255 Groups
  Bandwidth Control	500 Kbps ~ 1000 Mbps (Ingress & Egress)
  Ring Protection	ITU-T G.8032 ERPS Ring, Recovery <10ms
  Time Sync	IEEE 1588v2 PTP (Peer-to-peer & End-to-end Transparent Clock)
  QoS	8 Priority Queues, 802.1p, VLAN Tag, DSCP/TOS, Port No., WRR, Strict Priority
  Security – ACL	IP/MAC/Protocol/VLAN/DSCP-based, 256 Entries
  Security – Other	Port Security, IP Source Guard, DAI, Command Role Control, RADIUS, TACACS+
  Authentication	IEEE 802.1x, MAC-based, RADIUS/Local
  Management Interfaces	CLI, Telnet, Web, SNMP v1/v2c/v3, SSHv2, TLS v1.2
  System Tools	HTTP FW Upgrade, Config Backup, Syslog, LLDP, NTP, PLANET Discovery Tool
  ONVIF Support	Device Discovery, Monitoring, Floor Map
  SNMP MIB Support	RFC1213, IF-MIB, Bridge MIB, LLDP, PoE MIB, RMON, and more
  Compliance	FCC Part 15 Class A, CE, IEC Stability Tests (Vibration, Shock, Drop)
  Environmental	-40°C ~ 75°C Operating / -40°C ~ 85°C Storage / 5–95% RH (non-condensing)
