• Planet Industrial L2+ 4-Port 10/100/1000T 802.3bt PoE + 1-Port 10/100/1000T + 2-Port 1G/2.5G SFP Managed Ethernet Switch w/12V Booster

  Renewable Energy for Powering the Switch
  PLANET’s newly-launched Industrial Managed Ethernet Switch, the IGS-5225-4UP1T2S-12V, can be powered by the inexhaustible and natural source of energy, such as solar, wind and hydroelectric power to conserve energy so as to economically power these remote IP cameras and wireless APs.

  Complying with the IEEE 802.3bt Power over Ethernet Plus Plus technology, PLANET’s improved IGS-5225-4UP1T2S-12V L2+ Industrial Managed PoE++ Switch features four 10/100/1000BASE-T 802.3bt PoE++ ports with each port powering up to 95 watts, one extra 10/100/1000BASE-T copper port and two 100/1000/2500BASE-X SFP interfaces in a rugged IP30 aluminum case for stable operation in heavy industrial environments.

  The IGS-5225-4UP1T2S-12V adopts DC 9~48V power boost technology to solve power source issue but does not require special power supplies. It supports rich PoE operation modes including 95-watt 802.3bt type-4 PoE++ ports, 95-watt legacy mode and force mode to solve the incompatibility of non-standard 4-pair PoE PDs in the field. With a total power budget of up to 360 watts with dual power input for different kinds of PoE applications, it is designed to efficiently handle power distribution for a versatile array of connected devices which meet the Environmental, Social, and Governance (ESG) principles. Leveraging cutting-edge IP-based technology, PLANET has transformed conventional Power Over Ethernet (PoE) into genuine network devices that align with sustainable and responsible business practices.

  Being able to operate under wide temperature range from -40 to 75 degrees C, the IGS-5225-4UP1T2S-12V can be placed in almost any difficult environment. The
  IGS-5225-4UP1T2S-12V also allows either DIN-rail or wall mounting for efficient use of cabinet space.


  Wide Range of Power Input Suitable for Renewable Energy and Automotive Markets
  The IGS-5225-4UP1T2S-12V industrial-grade managed switch is designed to deliver exceptional performance and versatility for a variety of industrial applications. With support for a wide DC power input range of 9-54V and a power boost of up to 54V, this switch ensures stable and reliable operation even in demanding environments. It also supports 802.3bt PoE++ with a maximum total power budget of 360W, making it ideal for powering high-demand devices such as IP cameras, Wi-Fi access points, and other networked equipment. Thanks to its excellent energy conversion efficiency, it reduces power loss and maximizes operational performance.

  This switch, using solar, is a robust, energy-efficient solution for transportation markets. Furthermore, it complies with ESG (Environmental, Social, and Governance) standards, highlighting its commitment to sustainable practices and reducing environmental impact. More importantly, it can enhance system’s efficiency and reliability, as well as support a greener, more responsible future.


  802.3bt PoE++ 95-watt Power over 4-pair UTP Solution
  As the IGS-5225-4UP1T2S-12V adopts the IEEE 802.bt PoE++ standard technology, it is capable to source up to 95 watts of power by using all the four pairs of standard Cat5e/6 Ethernet cabling to deliver power and full-speed data to each remote PoE compliant powered device (PD). Its power capability is three times more than that of the conventional 802.3at PoE+ and it is an ideal solution for those high power consuming network PDs, such as:

  PoE PTZ speed dome cameras
  Network devices
  Thin clients
  AIO (all-in-one) touch PCs, point of sale (POS) and information kiosks
  Remote digital signage displays
  PoE lightings


  802.3bt PoE++ and Advanced PoE Power Output Mode Management
  To meet the demand of various powered devices consuming stable PoE power, the IGS-5225-4UP1T2S-12V supports multi-PoE operation modes that include 95-watt 802.3bt type-4 PoE++ mode, 4-pair legacy and force modes to solve the incompatibility of non-standard 4-pair PoE PDs in the field.

  95W 802.3bt PoE++ Power Output Mode
  36W End-span 802.3at PoE+ Power Output Mode
  36W Mid-span 802.3at PoE+ Power Output Mode


  Cybersecurity Network Solution to Minimize Security Risks
  The cybersecurity features that virtually need no effort and cost to have include the protection of the switch management and the enhanced security of the mission-critical network. Both SSHv2 and TLSv1.2 protocols are utilized to provide strong protection against advanced threats. The network administrator can now construct highly-secure corporate networks with considerably less time and effort than before.


  Redundant Ring, Fast Recovery for Critical Network Applications
  The IGS-5225-4UP1T2S-12V supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and redundant power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments.

  The IGS-5225-4UP1T2S-12V also protects customer’s industrial network connectivity with switching recovery capability that is used for implementing fault tolerant ring and mesh network architectures. If the Industrial network is interrupted accidentally, the fault recovery time could be as fast as 10ms to quickly bring the network back to normal operation.


  Convenient and Smart ONVIF Devices with Detection Feature
  PLANET has developed an awesome feature — ONVIF Support — which is specifically designed for co-operating with video IP surveillances. From the IGS-5225-4UP1T2S-12V’s GUI, you just need one click to search and show all of the ONVIF devices via network application. In addition, you can upload floor images to the switch and can remotely monitor or inspect an assembly line. Moreover, you can get real-time surveillance information and online/offline status; the PoE reboot can be controlled from the GUI.


  Built-in Unique PoE Functions for Powered Devices Management
  As it is the managed PoE++ switch for surveillance, wireless and VoIP networks, the IGS-5225-4UP1T2S-12V features the following special PoE management functions:

  PD Alive Check
  Scheduled Power Recycling
  PoE Schedule
  PoE Usage Monitoring
  PoE Extension

  Intelligent Powered Device Alive Check
  The IGS-5225-4UP1T2S-12V PoE++ Switch can be configured to monitor connected PD’s status in real time via ping action. Once the PD stops working and responding, the IGS-5225-4UP1T2S-12V will recycle the PoE port power and bring the PD back to work. It also greatly enhances the reliability in that the PoE port will reset the PD power, thus reducing administrator’s management burden.


  Scheduled Power Recycling
  The IGS-5225-4UP1T2S-12V allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specified time each week. Therefore, it will reduce the chance of IP camera or AP crash resulting from buffer overflow.


  PoE Schedule for Energy Savings
  Under the trend of energy savings worldwide and contributing to environmental protection on the Earth, the IGS-5225-4UP1T2S-12V can effectively control the power supply besides its capability of giving high watts power. The built-in “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and money.


  Intelligent LED Indicator for Real-time PoE Usage
  The IGS-5225-4UP1T2S-12V helps users to monitor the current status of PoE power usage easily and efficiently by means of its advanced LED indication. Called “PoE Power Usage”, the front panel of the IGS-5225-4UP1T2S-12V has four amber LEDs indicating 90W, 180W, 270W and 360W of PoE power usage.


  PoE Usage Monitoring
  Via the power usage chart in the web management interface, the IGS-5225-4UP1T2S-12V enables the administrator to monitor the status of the power usage of the connected PDs in real time. Thus, it greatly enhances the management efficiency of the facilities.


  802.3at PoE+ Power and Ethernet Data Transmission Distance Extension
  In the “Extend” operation mode, the IGS-5225-4UP1T2S-12V operates on a per-port basis at 10Mbps duplex operation but can support 50-watt PoE power output over a distance of up to 250 meters overcoming the 100m limit on Ethernet UTP cable. With this brand-new feature, the IGS-5225-4UP1T2S-12V provides an additional solution for 802.3at PoE distance extension, thus saving the cost of Ethernet cable installation.


  IPv6/IPv4 Dual Stack Management
  Supporting both IPv6 and IPv4 protocols, the IGS-5225-4UP1T2S-12V helps the SMBs to step in the IPv6 era with the lowest investment as its network facilities need not be replaced or overhauled if the IPv6 FTTx edge network is set up.


  SMTP/SNMP Trap Event Alert
  The IGS-5225-4UP1T2S-12V provides event alert function to help to diagnose the abnormal device owing to whether or not there is a break of the network connection, or the rebooting response.


  Effective Alarm Alert for Better Protection
  The IGS-5225-4UP1T2S-12V supports a Fault Alarm feature which can alert the users when there is something wrong with the switches. With this ideal feature, the users would not have to waste time finding where the problem is. It will help to save time and human resource.


  Digital Input and Digital Output for External Alarm
  The IGS-5225-4UP1T2S-12V supports Digital Input and Digital Output on its upper panel. This external alarm enables users to use Digital Input to detect and log external device status (such as door intrusion detector), and send event alarm to the administrators. The Digital Output could be used to alarm the administrators if the IGS-5225-4UP1T2S-12V port shows link down, link up or power failure.


  Layer 3 IPv4 and IPv6 Software VLAN Routing for Secure and Flexible Management
  To help customers stay on top of their businesses, the IGS-5225-4UP1T2S-12V not only provides ultra high transmission performance and excellent Layer 2 technologies, but also IPv4/IPv6 software VLAN routing feature which allows to crossover different VLANs and different IP addresses for the purpose of having a highly-secure, flexible management and simpler networking application.

  Robust Layer 2 Features
  The IGS-5225-4UP1T2S-12V can be programmed for advanced switch management functions such as dynamic port link aggregation, Q-in-Q VLAN, private VLAN, Rapid Spanning Tree Protocol, Layer 2 to Layer 4 QoS, bandwidth control and IGMP snooping. The IGS-5225-4UP1T2S-12V provides 802.1Q tagged VLAN, and the VLAN groups allowed will be maximally up to 4K. Via aggregation of supporting ports, the  IGS-5225-4UP1T2S-12V allows the operation of a high-speed trunk combining multiple ports. It enables a maximum of up to 3 trunk groups with 7 ports per trunk group, and supports fail-over as well.


  Efficient Secure Management
  For efficient management, the IGS-5225-4UP1T2S-12V is equipped with Command line, Web and SNMP management interfaces.

  With the built-in Web-based management interface, the IGS-5225-4UP1T2S-12V offers an easy-to-use, platform-independent management and configuration facility.
  For text-based management, it can be accessed via Telnet and the RJ45 console port.
  By supporting the standard SNMP protocol, the switch can be managed via any SNMP-based management software.


  Powerful Security
  The IGS-5225-4UP1T2S-12V offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1x Port-based and MAC-based user and device authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before.

  Remote Management Solution
  PLANET’s Universal Network Management System (UNI-NMS) and CloudViewer app support IT staff by remotely managing all network devices and monitoring PDs’ operational statuses. Thus, they’re designed for both the enterprises and industries where deployments of PDs can be as remote as possible, without having to go to the actual location once a bug or faulty condition is found. With the UNI-NMS or CloudViewer app, all kinds of businesses can now be speedily and efficiently managed from one platform.


  Flexibility and Extension Solution
  The additional two mini-GBIC slots built in the IGS-5225-4UP1T2S-12V support triple-speed 100/1000/2500BASE-X SFP (small form-factor pluggable) fiber-optic modules, meaning the administrator now can flexibly choose the suitable SFP transceiver according to not only the transmission distance but also the transmission speed required. The distance can be extended from 300meters to 2km (multi-mode fiber) and to 10/20/30/40/60/70/80/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.

  Intelligent SFP Diagnosis Mechanism
  The IGS-5225-4UP1T2S-12V supports SFP-DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.


  Modbus TCP Provides Flexible Network Connectivity for Factory Automation
  With the supported Modbus TCP/IP protocol, the IGS-5225-4UP1T2S-12V can easily integrate with SCADA systems, HMI systems and other data acquisition systems in factory floors. It enables administrators to remotely monitor the industrial Ethernet switch’s operating information, port information and communication status, thus easily achieving enhanced monitoring and maintenance of the entire factory.

  1588 Time Protocol for Industrial Computing Networks
  The IGS-5225-4UP1T2S-12V is ideal for telecom and Carrier Ethernet applications, supporting MEF service delivery and timing over packet solutions for IEEE 1588 and synchronous Ethernet.


  Applications

  Gigabit 802.3bt PoE++ and PoE+ IP Surveillance and Wireless LAN Service in Public Transportation
  With IEEE 802.3bt/802.3at Power over Ethernet standard, the IGS-5225-4UP1T2S-12V can directly connect with any third-party IEEE 802.3at/802.3bt compliant devices like PTZ (Pan, Tilt & Zoom) IP cameras, PTZ speed dome cameras, color touch-screen Voice over IP (VoIP) telephones, and multi-channel wireless LAN access points. Wireless LAN would be more efficient for the transportation station to provide high speed and wide area Internet services for travelers. With the PoE wireless LAN structure, the transportation authority gains benefits from less cost while providing better Internet services in wider areas for the travelers.

  Solar-based 12V/24V Power Feed for Industrial Equipment Deployment
  The IGS-5225-4UP1T2S-12V uses 9~54V DC power input, suitable for 12V/24V renewable energy applications, easily solving power problems, like electrical power supply.

  With the 802.3bt PoE++ injector and 2.5GBASE-X SFP fiber ports, the IGS-5225-4UP1T2S-12V supplies power to other devices, such as IP phone, IP camera, or wireless AP where high-speed and stable data transmission can be made to a remote core network. It can extend the distance to a maximum of 120 kilometers between the IGS-5225-4UP1T2S-12V and control center via fiber-optic link.

  Key Features

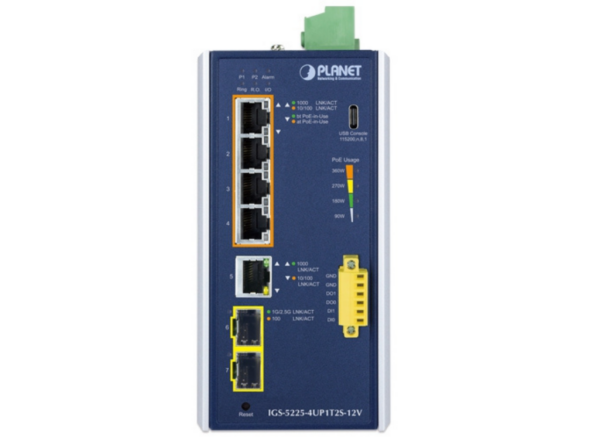

  Physical Port
  4 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with 802.3bt PoE++ Injector function
  1 10/100/1000BASE-T Gigabit Ethernet RJ45 port
  2 100/1000/2500BASE-X SFP slots for SFP type auto detection
  One USB Type C serial port (115200,8, N, 1) for basic management and setup

  Power over Ethernet
  Complies with IEEE 802.3bt Power over Ethernet Plus Plus Type-4 PSE
  Backward compatible with IEEE 802.3at PD device
  Up to 4 ports of IEEE 802.3at/IEEE 802.3bt PoE++ devices powered
  Supports PoE power up to 95 watts for each PoE port
  Total of 360-watt PoE budget
  Auto detects powered device (PD)
  Circuit protection prevents power interference between ports
  Remote power feeding up to 100m in standard mode and 250m in extend mode
  PoE management features
  PoE admin-mode control
  PoE management mode selection
  Per port PoE function enable/disable
  PoE port power feeding priority
  Per PoE port power limit
  PoE Port Status monitoring
  PD classification detection
  Sequence port PoE
  Intelligent PoE features
  PoE Legacy/Force mode enable/disable
  Temperature threshold control
  PoE usage threshold control
  PoE schedule
  PD alive check
  LLDP PoE Neighbors

  Industrial Protocol
  Modbus TCP for real-time monitoring in a SCADA system
  IEEE 1588v2 PTP (Precision Time Protocol) transparent clock mode

  Industrial Case and Installation
  IP30 aluminum case
  DIN-rail and wall-mount designs
  DC 9-54V, redundant power with reverse polarity protection
  Supports 6000 VDC Ethernet ESD protection
  -40 to 75 degrees C operating temperature

  Digital Input and Digital Output
  2 Digital Input (DI)
  2 Digital Output (DO)
  Integrate sensors into auto alarm system
  Transfer alarm to IP network via email and SNMP trap

  Layer 2 Features
  Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
  High performance of Store-and-Forward architecture, and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
  Storm Control support
  Broadcast/Multicast/Unicast
  Supports VLAN
  IEEE 802.1Q tagged VLAN
  Supports provider Bridging (VLAN Q-in-Q, IEEE 802.1ad)
  Private VLAN Edge (PVE)
  Port Isolation
  MAC-based VLAN
  Protocol-based VLAN
  Voice VLAN
  VLAN Translation
  GVRP
  Supports Spanning Tree Protocol
  IEEE 802.1D Spanning Tree Protocol (STP)
  IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
  IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN
  BPDU Guard
  Supports Link Aggregation
  802.3ad Link Aggregation Control Protocol (LACP)
  Cisco ether-channel (static trunk)
  Maximum 3 trunk groups with 7 ports per trunk group
  Up to 14Gbps bandwidth (duplex mode)
  Provides port mirror (many-to-1)
  Port mirroring to monitor the incoming or outgoing traffic on a particular port
  Loop protection to avoid broadcast loops
  Supports ERPS (Ethernet Ring Protection Switching)
  Compatible with Cisco Uni-directional link detection(UDLD) that monitors a link between two switches and blocks the ports on both ends of the link if the link fails at any point between the two devices
  Link Layer Discovery Protocol (LLDP) and LLDP-MED
  Provides ONVIF for co-operating with PLANET video IP surveillances

  Layer 3 IP Routing Features
  Supports maximum 32 static routes and route summarization

  Quality of Service
  Ingress Shaper and Egress Rate Limit per port bandwidth control
  8 priority queues on all switch ports
  Traffic classification
  IEEE 802.1p CoS
  IP TOS/DSCP/IP precedence
  IP TCP/UDP port number
  Typical network application
  Strict priority and Weighted Round Robin (WRR) CoS policies
  Supports QoS and In/Out bandwidth control on each port
  Traffic-policing policies on the switch port
  DSCP remarking

  Multicast
  Supports IPv4 IGMP snooping v1, v2 and v3
  Supports IPv6 MLD snooping v1 and v2
  Querier mode support
  IPv4 IGMP snooping port filtering
  IPv6 MLD snooping port filtering
  Multicast VLAN Registration (MVR) support

  Security
  Authentication
  IEEE 802.1x Port-based/MAC-based network access authentication
  Built-in RADIUS client to co-operate with the RADIUS servers
  TACACS+ login users access authentication
  RADIUS/TACACS+ users access authentication
  Access Control List
  IP-based Access Control List (ACL)
  MAC-based Access Control List
  Source MAC/IP address binding
  DHCP Snooping to filter un-trusted DHCP messages
  Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
  IP Source Guard prevents IP spoofing attacks
  IP address access management to prevent unauthorized intruder

  Management
  IPv4 and IPv6 dual stack management
  Switch Management Interfaces
  Console/Telnet Command Line Interface
  Web switch management
  SNMP v1, v2c, and v3 switch management
  SSHv2 and TLSv1.2 secure access
  IPv6 IP Address/NTP/DNS management
  BOOTP and DHCP for IP address assignment
  System Maintenance
  Firmware upload/download via HTTP
  Reset button for system reboot or reset to factory default
  Dual Images
  DHCP Relay
  DHCP Option82
  DHCP Server Mode support
  User Privilege levels control
  NTP (Network Time Protocol)
  Link OAM
  Network Diagnostic
  ICMPv6/ICMPv4 Remote Ping
  Cable Diagnostic technology provides the mechanism to detect and report potential cabling issues
  SMTP/Syslog remote alarm
  Four RMON groups (history, statistics, alarms and events)
  SNMP trap for interface Link up and Link down notification
  System Log
  SFP-DDM (Digital Diagnostic Monitor)
  PLANET Smart Discovery Utility for deployment management
  PLANET NMS/NMSViewerPro app for deployment management
  PLANET CloudViewerPro app for deployment management

• Specification	Details
  Copper Ports	5 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
  SFP/mini-GBIC Slots	2 x 100/1000/2500BASE-X mini-GBIC SFP ports (Port 6 and Port 7)
  Console Port	1 x USB Type C serial port (115200, 8, N, 1)
  Reset Button	< 5 sec: System reboot; > 5 sec: Factory default
  Enclosure	IP30 aluminum case
  Installation	DIN-rail kit and wall-mount kit

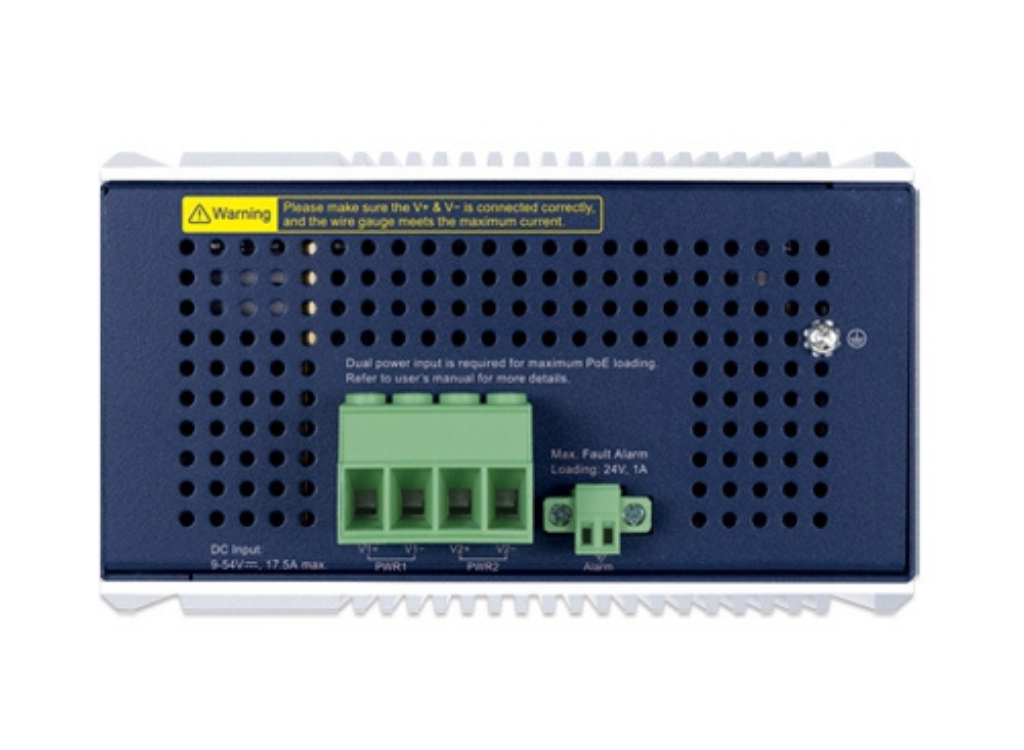

  Power Connectors	Removable 4-pin terminal block for power input; Removable 2-pin terminal block for fault alarm interface; Removable 6-pin terminal block for DI/DO interface
  Power Supply	Dual 9~54V DC
  Power Consumption	Max 7.6 watts (system on); Max 367.6 watts (full loading with 802.3bt PoE++)
  ESD Protection	6KV DC
  LED Indicators	Power 1 (Green), Power 2 (Green), Alarm (Red), Ring (Green), R.O. (Green), DIDO (Red), 10/100/1000T RJ45 Ports LEDs
  Dimensions	76 x 135 x 152 mm
  Weight	1400g
  PoE Standards	IEEE 802.3bt PoE++ PSE, backward compatible with IEEE 802.3at PoE PSE
  PoE Power Output	Per port 54V DC: Maximum 95W for Ports 1 to 4 in 802.3bt mode
  PoE Power Budget	360W maximum (dual power input >= 48V DC)
  Layer 2 Functions	VLAN, Spanning Tree, Link Aggregation, IGMP Snooping, MLD Snooping, Ring (ERPS)
  Layer 3 Functions	IPv4/IPv6 static routing, Max. 32 routing entries
  Security	IP-based/MAC-based ACL, Port Security, IEEE 802.1X, Static MAC, Dynamic ARP inspection, RADIUS/TACACS+ client
  Management	Console, Telnet, Web browser, SNMP v1/v2c, SSHv2, TLSv1.2, SNMPv3
  Environmental	Operating Temperature: -40 ~ 75°C; Storage Temperature: -40 ~ 85°C; Humidity: 5 ~ 95% (non-condensing)
  Regulatory Compliance	FCC Part 15 Class A, CE
  Protection	IEC60068-2-32 (free fall), IEC60068-2-27 (shock), IEC60068-2-6 (vibration)

• Description	Downloads
  Datasheet	Download
