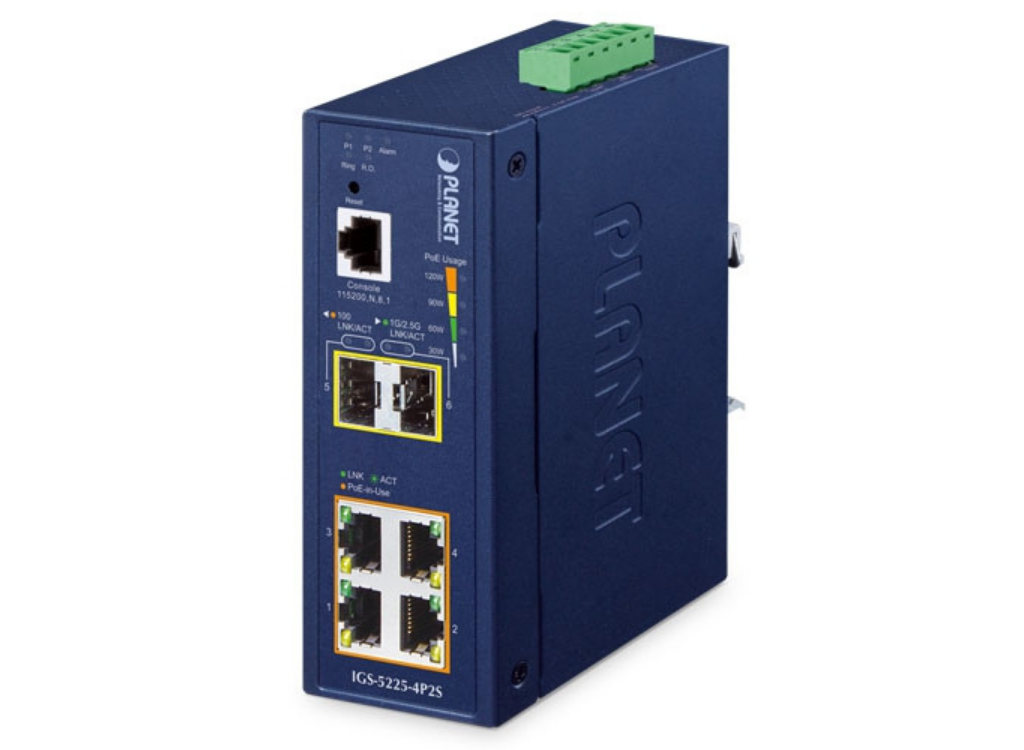

Planet Industrial L2+ 4-Port 10/100/1000T 802.3at PoE + 2-Port 1G/2.5G SFP Managed Ethernet Switch

• Description
• Specifications
• Downloads

• Planet Industrial L2+ 4-Port 10/100/1000T 802.3at PoE + 2-Port 1G/2.5G SFP Managed Ethernet Switch

  Advanced Manageable PoE+ Solution for Hardened Environment
  Complying with the IEEE 802.3at Power over Ethernet Plus technology, PLANET’s improved IGS-5225-4P2S L2+ Industrial Managed PoE+ Switch features four 10/100/1000BASE-T 802.3at PoE+ ports with each port powering up to 36 watts, and two 100/1000/2500BASE-X SFP interfaces in a rugged IP40 metal case for stable operation in heavy industrial environments. It supports rich PoE operation modes including 36-watt 802.3at type-2 PoE+ ports, 36-watt legacy mode and force mode to solve the incompatibility of non-standard 4-pair PoE PDs in the field.

  With a total power budget of up to 144 watts for different kinds of PoE applications, the IGS-5225-4P2S provides a quick, safe and cost-effective 802.3at PoE+ network solution for small businesses and enterprises.

  Being able to operate under wide temperature range from -40 to 75 degrees C, the IGS-5225-4P2S can be placed in almost any difficult environment. The IGS-5225-4P2S also allows either DIN-rail or wall mounting for efficient use of cabinet space.


  Cybersecurity Network Solution to Minimize Security Risks
  The cybersecurity features that virtually need no effort and cost to have include the protection of the switch management and the enhanced security of the mission-critical network. Both SSHv2 and TLSv1.2 protocols are utilized to provide strong protection against advanced threats. The network administrator can now construct highly-secure corporate networks with considerably less time and effort than before.

  Redundant Ring, Fast Recovery for Critical Network Applications
  The IGS-5225-4P2S supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and redundant power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments.

  The IGS-5225-4P2S also protects customer’s industrial network connectivity with switching recovery capability that is used for implementing fault tolerant ring and mesh network architectures. If the Industrial network is interrupted accidentally, the fault recovery time could be as fast as 10ms to quickly bring the network back to normal operation.


  Convenient and Smart ONVIF Devices with Detection Feature
  PLANET has developed an awesome feature — ONVIF Support — which is specifically designed for cooperating with video IP surveillances. From the IGS-5225-4P2S’s GUI, you just need one click to search and show all of the ONVIF devices via network application. In addition, you can upload floor images to the switch and can remotely monitor or inspect an assembly line. Moreover, you can get real-time surveillance information and online/offline status; the PoE reboot can be controlled from the GUI.


  Built-in Unique PoE Functions for Powered Devices Management
  As it is the industrial managed PoE+ switch for surveillance, wireless and VoIP networks, the IGS-5225-4P2S features the following special PoE management functions:

  PD Alive Check
  Scheduled Power Recycling
  PoE Schedule
  PoE Usage Monitoring
  PoE Extension

  Intelligent Powered Device Alive Check
  The IGS-5225-4P2S PoE+ Switch can be configured to monitor connected PD’s status in real time via ping action. Once the PD stops working and responding, the IGS-5225-4P2S will recycle the PoE port power and bring the PD back to work. It also greatly enhances the reliability in that the PoE port will reset the PD power, thus reducing administrator’s management burden.


  Scheduled Power Recycling
  The IGS-5225-4P2S allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specified time each week. Therefore, it will reduce the chance of IP camera or AP crash resulting from buffer overflow.


  PoE Schedule for Energy Savings
  Under the trend of energy savings worldwide and contributing to environmental protection on the Earth, the IGS-5225-4P2S can effectively control the power supply besides its capability of giving high watts power. The built-in “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and money.


  Intelligent LED Indicator for Real-time PoE Usage
  The IGS-5225-4P2S helps users to monitor the current status of PoE power usage easily and efficiently by means of its advanced LED indication. Called “PoE Power Usage”, the front panel of the IGS-5225-4P2S has four amber LEDs indicating 30W, 60W, 90W and 120W of PoE power usage.


  PoE Usage Monitoring
  Via the power usage chart in the web management interface, the IGS-5225-4P2S enables the administrator to monitor the status of the power usage of the connected PDs in real time. Thus, it greatly enhances the management efficiency of the facilities.

  802.3at PoE+ Power and Ethernet Data Transmission Distance Extension
  In the “Extend” operation mode, the IGS-5225-4P2S operates on a per-port basis at 10Mbps duplex operation but can support 22-watt PoE power output over a distance of up to 250 meters overcoming the 100m limit on Ethernet UTP cable. With this brand-new feature, the IGS-5225-4P2S provides an additional solution for 802.3at/af PoE distance extension, thus saving the cost of Ethernet cable installation.


  IPv6/IPv4 Dual Stack Management
  Supporting both IPv6 and IPv4 protocols, the IGS-5225-4P2S helps the SMBs to step in the IPv6 era with the lowest investment as its network facilities need not be replaced or overhauled if the IPv6 FTTx edge network is set up.


  SMTP/SNMP Trap Event Alert
  The IGS-5225-4P2S provides event alert function to help to diagnose the abnormal device owing to whether or not there is a break of the network connection, or the rebooting response.


  Effective Alarm Alert for Better Protection
  The IGS-5225-4P2S supports a Fault Alarm feature which can alert the users when there is something wrong with the switches. With this ideal feature, the users would not have to waste time finding where the problem is. It will help to save time and human resource.


  Layer 3 IPv4 and IPv6 Software VLAN Routing for Secure and Flexible Management
  To help customers stay on top of their businesses, the IGS-5225-4P2S not only provides ultra high transmission performance and excellent Layer 2 technologies, but also IPv4/IPv6 software VLAN routing feature which allows to cross over different VLANs and different IP addresses for the purpose of having a highly-secure, flexible management and simpler networking application.

  Robust Layer 2 Features
  The IGS-5225-4P2S can be programmed for advanced switch management functions such as dynamic port link aggregation, Q-in-Q VLAN, private VLAN, Rapid Spanning Tree Protocol, Layer 2 to Layer 4 QoS, bandwidth control and IGMP snooping. The IGS-5225-4P2S provides 802.1Q tagged VLAN, and the VLAN groups allowed will be maximally up to 4K. Via aggregation of supporting ports, the IGS-5225-4P2S allows the operation of a high-speed trunk combining multiple ports. It enables a maximum of up to 3 trunk groups with 6 ports per trunk group, and supports fail-over as well.


  Efficient Secure Management
  For efficient management, the IGS-5225-4P2S is equipped with Command line, Web and SNMP management interfaces.

  With the built-in Web-based management interface, the IGS-5225-4P2S offers an easy-to-use, platform-independent management and configuration facility.
  For text-based management, it can be accessed via Telnet and the RJ45 console port.
  By supporting the standard SNMP protocol, the switch can be managed via any SNMP-based management software.


  Powerful Security
  The IGS-5225-4P2S offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1x Port-based and MAC-based user and device authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before.

  Remote Management Solution
  PLANET’s Universal Network Management System (UNI-NMS) and NMSViewerPro/CloudViewerPro app support IT staff by remotely managing all network devices and monitoring PDs’ operational statuses. Thus, they’re designed for both the enterprises and industries where deployments of PDs can be as remote as possible, without having to go to the actual location once a bug or faulty condition is found. With the UNI-NMS or NMSViewerPro/CloudViewerPro app, all kinds of businesses can now be speedily and efficiently managed from one platform.


  Flexibility and Extension Solution
  The additional two mini-GBIC slots built in the IGS-5225-4P2S support triple-speed 100/1000/2500BASE-X SFP (small form-factor pluggable) fiber-optic modules, meaning the administrator now can flexibly choose the suitable SFP transceiver according to not only the transmission distance but also the transmission speed required. The distance can be extended from 300 meters to 2km (multi-mode fiber) and to 10/20/30/40/60/70/80/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.

  Intelligent SFP Diagnosis Mechanism
  The IGS-5225-4P2S supports SFP-DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.


  Modbus TCP Provides Flexible Network Connectivity for Factory Automation
  With the supported Modbus TCP/IP protocol, the IGS-5225-4P2S can easily integrate with SCADA systems, HMI systems and other data acquisition systems in factory floors. It enables administrators to remotely monitor the industrial Ethernet switch’s operating information, port information and communication status, thus easily achieving enhanced monitoring and maintenance of the entire factory.

  1588 Time Protocol for Industrial Computing Networks
  The IGS-5225-4P2S is ideal for telecom and Carrier Ethernet applications, supporting MEF service delivery and timing over packet solutions for IEEE 1588 and synchronous Ethernet.


  Applications

  Industrial Area Department/Workgroup PoE+ Switch
  Providing up to 4 802.3at PoE+, in-line power interfaces, the IGS-5225-4P2S can easily build a power centrally controlled for IP phone system, IP camera system, or wireless AP group for Industrial network. For instance, 4 PoE IP cameras or wireless access points can be easily installed around the corner in the industrial environment for surveillance demands or for a wireless roaming network. Without the power-socket limitation, the IGS-5225-4P2S makes the installation of IP cameras or wireless AP easier and more efficient.


  Gigabit 802.3at PoE+ IP Surveillance and Wireless LAN Service in Public Transportation
  With IEEE 802.3at Power over Ethernet standard, the IGS-5225-4P2S can directly connect with any third-party IEEE 802.3af/802.3at compliant devices like PTZ (Pan, Tilt & Zoom) IP cameras, PTZ speed dome cameras, color touch-screen Voice over IP (VoIP) telephones, and multi-channel wireless LAN access points. Wireless LAN would be more efficient for the transportation station to provide high speed and wide area Internet services for travelers. With the PoE wireless LAN structure, the transportation authority gains benefits from less cost while providing better Internet services in wider areas for the travelers.

  Key Features

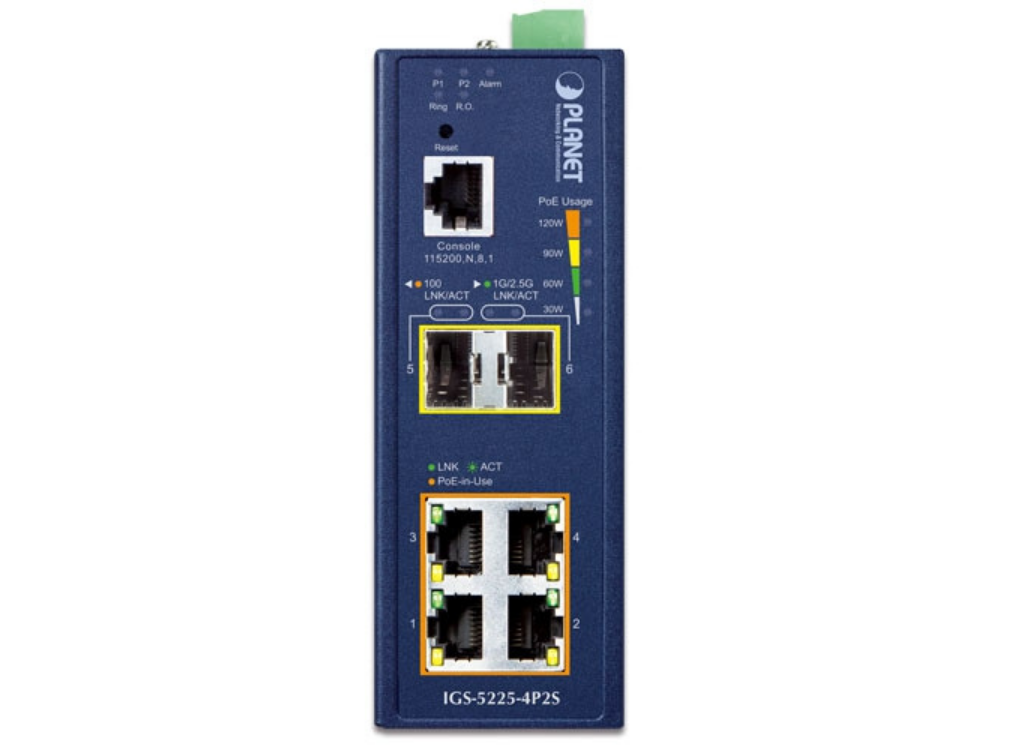

  Physical Port
  4 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with 802.3at PoE+ injector function
  2 100/1000/2500BASE-X SFP slots for SFP type auto detection
  One RJ45 console interface for basic management and setup

  Power over Ethernet
  Complies with IEEE 802.3at Power over Ethernet Plus Type-2 PSE
  Backward compatible with IEEE 802.3af PD device
  Up to 4 ports of IEEE 802.3af/IEEE 802.3at PoE+ devices powered
  Supports PoE power up to 36 watts for each PoE port
  Total of 144-watt PoE budget
  Auto detects powered device (PD)
  Circuit protection prevents power interference between ports
  Remote power feeding up to 100m in standard mode and 250m in extend mode
  PoE management features
  PoE admin-mode control
  PoE management mode selection
  Per port PoE function enable/disable
  PoE port power feeding priority
  Per PoE port power limit
  PoE Port Status monitoring
  PD classification detection
  Sequence port PoE
  Intelligent PoE features
  PoE Legacy/Force mode enable/disable
  Temperature threshold control
  PoE usage threshold control
  PoE schedule
  PD alive check
  LLDP PoE Neighbors

  Industrial Protocol
  Modbus TCP for real-time monitoring in a SCADA system
  IEEE 1588v2 PTP (Precision Time Protocol) transparent clock mode

  Industrial Case and Installation
  IP40 metal case
  DIN-rail and wall-mount designs
  DC 48-54V, redundant power with reverse polarity protection
  Supports 6000V DC Ethernet ESD protection
  -40 to 75 degrees C operating temperature

  Layer 2 Features
  Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
  High performance of Store-and-Forward architecture, and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
  Storm Control support
  Broadcast/Multicast/Unicast
  Supports VLAN
  IEEE 802.1Q tagged VLAN
  Supports provider Bridging (VLAN Q-in-Q, IEEE 802.1ad)
  Private VLAN Edge (PVE)
  Port Isolation
  MAC-based VLAN
  Protocol-based VLAN
  Voice VLAN
  VLAN Translation
  GVRP
  Supports Spanning Tree Protocol
  IEEE 802.1D Spanning Tree Protocol (STP)
  IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
  IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN
  BPDU Guard
  Supports Link Aggregation
  802.3ad Link Aggregation Control Protocol (LACP)
  Cisco ether-channel (static trunk)
  Maximum 3 trunk groups with 6 ports per trunk group
  Up to 18Gbps bandwidth (duplex mode)
  Provides port mirror (many-to-1)
  Port mirroring to monitor the incoming or outgoing traffic on a particular port
  Loop protection to avoid broadcast loops
  Supports ERPS (Ethernet Ring Protection Switching)
  Compatible with Cisco Uni-directional link detection(UDLD) that monitors a link between two switches and blocks the ports on both ends of the link if the link fails at any point between the two devices
  Link Layer Discovery Protocol (LLDP) and LLDP-MED
  Provides ONVIF for cooperating with PLANET video IP surveillances

  Layer 3 IP Routing Features
  Supports maximum 32 static routes and route summarization

  Quality of Service
  Ingress Shaper and Egress Rate Limit per port bandwidth control
  8 priority queues on all switch ports
  Traffic classification
  IEEE 802.1p CoS
  IP TOS/DSCP/IP precedence
  IP TCP/UDP port number
  Typical network application
  Strict priority and Weighted Round Robin (WRR) CoS policies
  Supports QoS and In/Out bandwidth control on each port
  Traffic-policing policies on the switch port
  DSCP remarking

  Multicast
  Supports IPv4 IGMP snooping v1, v2 and v3
  Supports IPv6 MLD snooping v1 and v2
  Querier mode support
  IPv4 IGMP snooping port filtering
  IPv6 MLD snooping port filtering
  Multicast VLAN Registration (MVR) support

  Security
  Authentication
  IEEE 802.1x Port-based/MAC-based network access authentication
  Built-in RADIUS client to co-operate with the RADIUS servers
  TACACS+ login users access authentication
  RADIUS/TACACS+ users access authentication
  Access Control List
  IP-based Access Control List (ACL)
  MAC-based Access Control List
  Source MAC/IP address binding
  DHCP Snooping to filter un-trusted DHCP messages
  Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
  IP Source Guard prevents IP spoofing attacks
  IP address access management to prevent unauthorized intruder

  Management
  IPv4 and IPv6 dual stack management
  Switch Management Interfaces
  Console/Telnet Command Line Interface
  Web switch management
  SNMP v1, v2c, and v3 switch management
  SSHv2 and TLSv1.2 secure access
  IPv6 IP Address/NTP/DNS management
  BOOTP and DHCP for IP address assignment
  System Maintenance
  Firmware upload/download via HTTP
  Configuration upload/download through HTTP
  Reset button for system reboot or reset to factory default
  Dual Images
  DHCP Relay
  DHCP Option82
  DHCP Server Mode support
  User Privilege levels control
  NTP (Network Time Protocol)
  Link OAM
  Network Diagnostic
  ICMPv6/ICMPv4 Remote Ping
  Cable Diagnostic technology provides the mechanism to detect and report potential cabling issues
  SMTP/Syslog remote alarm
  Four RMON groups (history, statistics, alarms and events)
  SNMP trap for interface Link up and Link down notification
  System Log
  SFP-DDM (Digital Diagnostic Monitor)
  PLANET Smart Discovery Utility for deployment management
  PLANET NMS system and NMSViewerPro/CloudViewerPro for deployment management

• Category	Specification
  Model Version	2
  Ports	4 x RJ45 (10/100/1000BASE-T) 2 x SFP (100/1000/2500BASE-X)
  Console Port	1 x RJ45-to-RS232 (115200, 8, N, 1)
  Reset Button	<5s: Reboot >5s: Factory reset

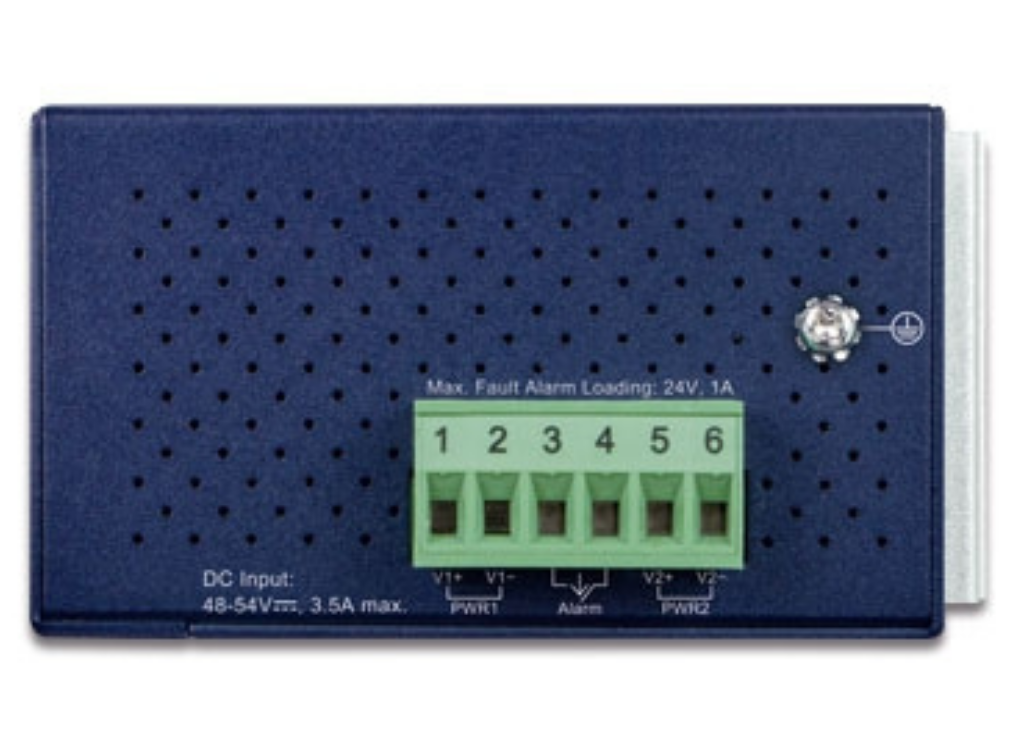

  Power Input	Dual 48–54V DC via 6-pin terminal block
  Power Consumption	Max 153W / 522 BTU
  PoE Output	4 x PoE+ ports IEEE 802.3af (15.4W), 802.3at (36W) Total Budget: 144W
  PoE Features	Live PD detection, PoE recycling, Extend mode (up to 250m), Schedule
  Switching Capacity	18Gbps / 13.3Mpps @ 64Bytes
  Jumbo Frame	9KB
  Buffer/Address Table	4Mbits shared buffer / 8K MAC entries
  Layer 2 Features	VLAN (4K), STP/RSTP/MSTP, Link Aggregation (3 groups), IGMP/MLD Snooping
  Layer 3 Features	Static IPv4/IPv6 Routing (32 entries), 8 VLAN interfaces
  QoS & Traffic	8 priority levels, WRR & Strict, Bandwidth control, Storm control
  Security Features	ACL (512 entries), Port Security, DAI, IP Source Guard, 802.1x, MAC auth
  Management	Web, CLI, Telnet, SSH, SNMP v1/2c/3, NTP, LLDP, Syslog, ONVIF discovery
  Enclosure & Mount	IP40-rated Metal Case DIN-Rail & Wall-Mount
  Protection	ESD & EFT 6KV DC
  LED Indicators	Power, Alarm, PoE usage (30W-120W), Link/Activity
  Environmental	Temp: -40 to 75°C (Op), -40 to 85°C (Storage) Humidity: 5%–95% (non-cond.)
  Compliance	FCC Class A, CE, IEC (shock/vibration/drop)
