• Planet Industrial IP67 8-Port 10/100TX M12 802.3at PoE+ Switch | ISW-808PT-M12

  Reliable Data and Power over Ethernet

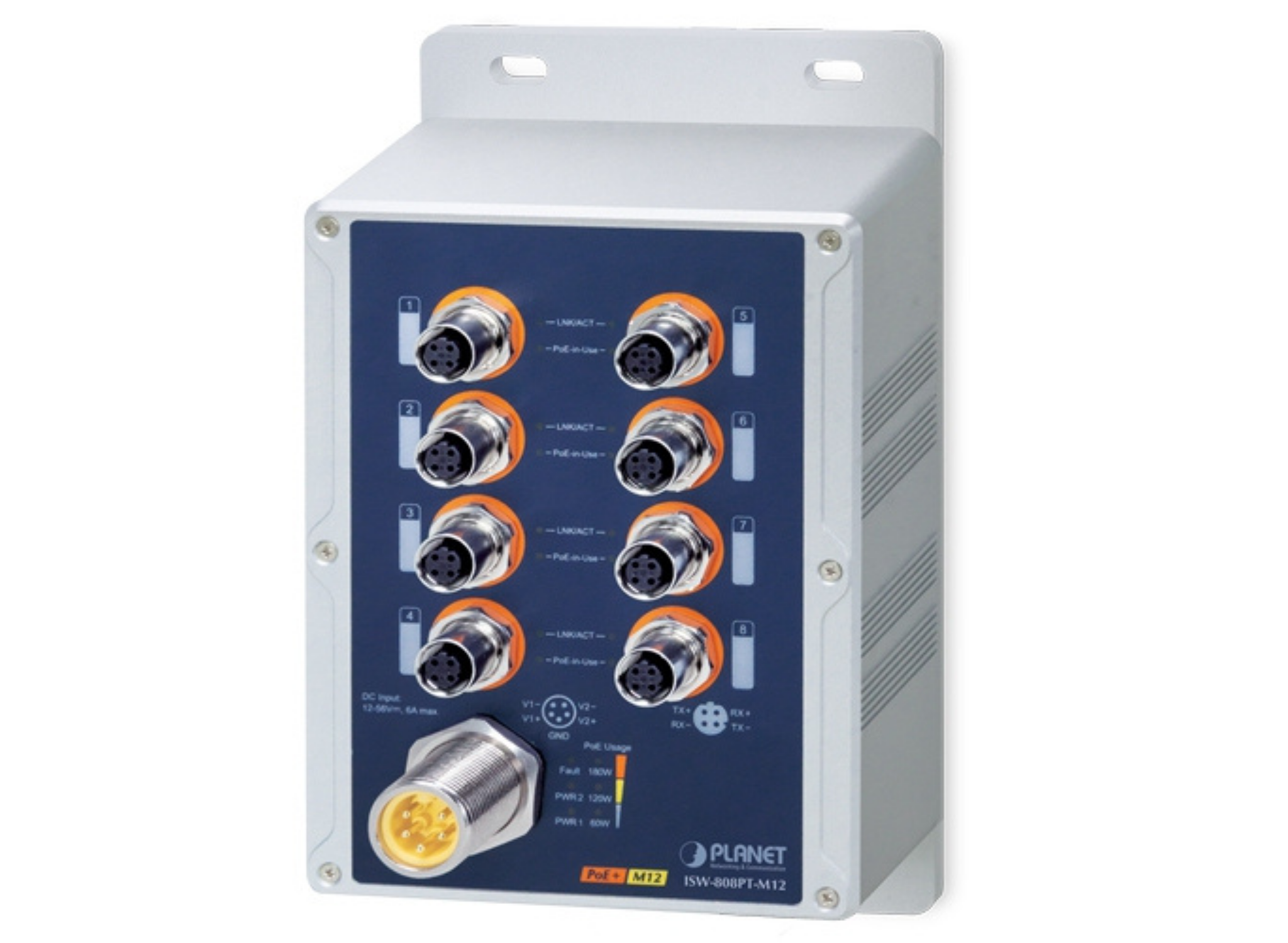

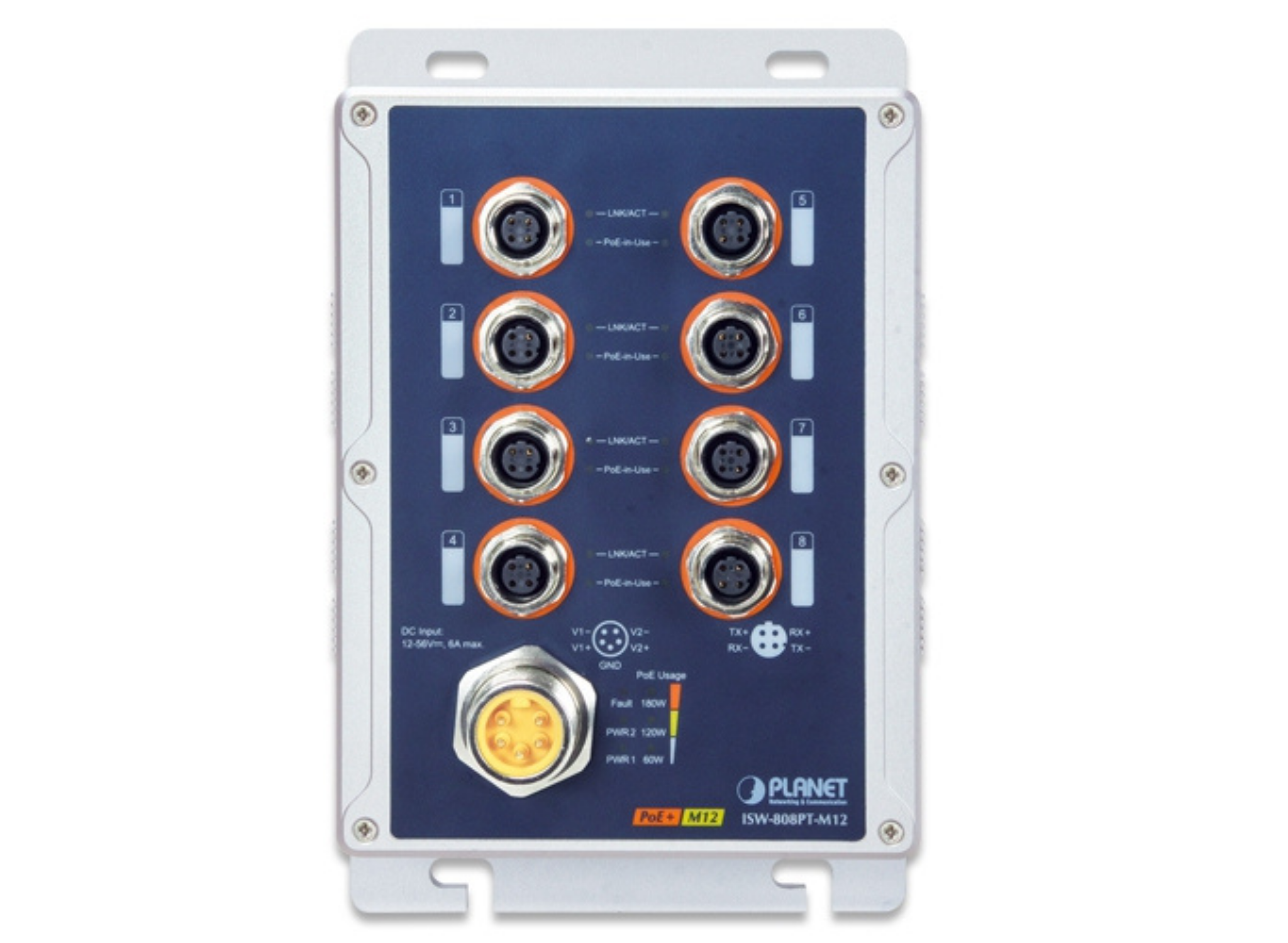

  PLANET ISW-808PT-M12 is an industrial-grade robust and vibration-proof PoE+ switch for a wide range of applications in factories or moving trains as it guarantees a reliable performance under vibration and shock. It features eight 10/100BASE-TX auto-negotiation waterproof/dustproof M12 connectors with IEEE 802.3at PoE+ injector function; each PoE+ port provides 36 watts of PoE output. The M12 connector provides tight and strong connection, and ensures stable Ethernet operating performance withstanding humidity, dirt, dust, shock, vibrations, heat and cold. The compact, IP67-rated aluminum case of the ISW-808PT-M12 allows either DIN-rail or wall mounting for efficient use of cabinet space.


  Environmentally-hardened Design
  Being able to operate under the temperature range from -40 to 75 degrees C, the ISW-808PT-M12, equipped with a tough IP67-rated industrial aluminum case, provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets. It ensures the highest level of reliability for mission-critical applications in any difficult environment.


  Convenient and Reliable Power System
  To facilitate the 802.3at PoE usage with commonly-used 12~54V DC power input for transportation and industrial-level applications, the ISW-808PT-M12 adopts the 12~54V DC to 54V power boost technology to solve power source issue but does not require special power supplies. Its wide-ranging voltages design is suitable for worldwide operability with high availability applications requiring dual or backup power inputs.

  Intelligent LED Indicator for Real-time PoE Usage

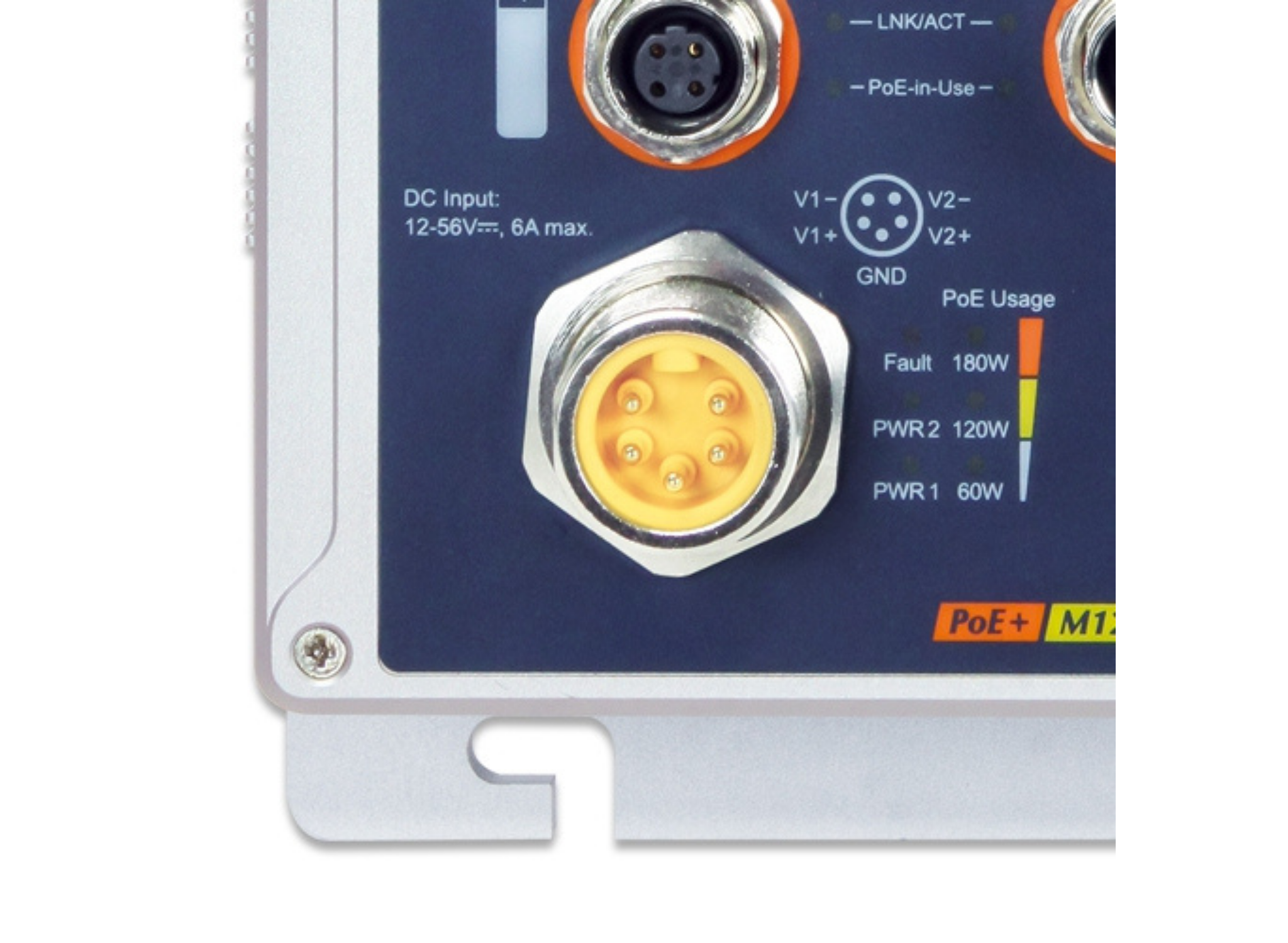

  The ISW-808PT-M12 helps users to monitor current status of PoE power usage easily and efficiently by its advanced LED indication. Called “PoE Power Usage”, the front panel of the ISW-808PT-M12 has three orange LEDs indicating 60W,120W and 180W of PoE power usage.

  High Performance
  The ISW-808PT-M12 has 2K MAC address table and offers wire-speed packets transfer performance without the risk of packet loss. The high data throughput of the device makes it ideal for most Gigabit environments. With a 1.6Gbps internal switching fabric and featuring auto negotiation support in each Fast Ethernet port, the ISW-808PT-M12 can handle large amounts of data in a secure topology linking to a backbone or high capacity servers.

  Easy Installation
  The flow control function enables the ISW-808PT-M12 to provide fast and reliable data transfer. All of the M12 RJ45 copper interfaces in the ISW-808PT-M12 support 10/100Mbps auto-negotiation for optimal speed detection through RJ45 Category 3, 4, 5, 5e, 6 cables. The standard auto-MDI/MDI-X support can detect the type of connection to any Ethernet device without requiring special straight-through or crossover cables.

• Specification	Details
  Copper Ports	8 x M12, 4-pin D-coded female connector
  	10/100BASE-TX auto-MDI/MDI-X
  IEEE 802.3at PoE+ Ports	8, port 1 to port 8
  Power Connector	1 x M23, 5-pin A-coded male connector
  Enclosure	IP67 aluminum case
  Dimensions (W x D x H)	124 x 53 x 204mm
  Weight	1.75kg
  Installation	Wall-mount and DIN-rail kit
  Power Requirements	Dual 12~54V DC
  Power Consumption	DC 12V: 75.6 watts/257 BTU
  	DC 24V: 129.3 watts/441 BTU
  	DC 48V: 190.1 watts/648 BTU
  	DC 54V: 191.7 watts/654 BTU
  ESD Protection	6KV DC
  Surge Protection	6KV DC
  Switch Specifications	Switch Processing Scheme: Store-and-Forward
  	Address Table: 2K entries
  	Flow Control: Back pressure for half duplex
  	IEEE 802.3x pause frame for full duplex
  	Switch Fabric: 1.6Gbps
  	Throughput (packet per second): 1.19Mpps
  	Maximum Transmit Unit: 1536 bytes
  	Network Cables:
  	10BASE-T: 2-pair UTP Cat.3,4,5 up to 100m (328ft)
  	100BASE-TX: 2-pair UTP Cat.5, 5e, 6 up to 100m (328ft)
  	EIA/TIA-568 100-ohm STP (100m, max.)
  Power over Ethernet	PoE Standard: IEEE 802.3at Power over Ethernet Plus / PSE
  	PoE Power Supply Type: End-span
  	PoE Power Output: 54V DC per port with maximum of 36 watts
  	Power Pin Assignment: 1/2(+), 3/6(-)
  	PoE Budget:
  	180 watts@48-56V DC input
  	120 watts@24~48V DC input
  	60 watts@12~23V DC input
  Standards Conformance	Regulatory Compliance: FCC Part 15 Class A, CE
  	Standards Compliance:
  	IEEE 802.3 10BASE-T Ethernet
  	IEEE 802.3u 100BASE-TX Fast Ethernet
  	IEEE 802.3x Full-Duplex Flow Control
  	IEEE 802.3af Power over Ethernet
  	IEEE 802.3at Power over Ethernet plus
  	Stability Testing:
  	IEC60068-2-32 (free fall)
  	IEC60068-2-27 (shock)
  	IEC60068-2-6 (vibration)
  	Railway Traffic: EN50155
  Environments	Operating:
  	Temperature: -40 ~ 75 degrees C
  	Relative Humidity: 5 ~ 95% (non-condensing)
  	Storage:
  	Temperature: -40 ~ 80 degrees C
  	Relative Humidity: 5 ~ 95% (non-condensing)

• Description	Downloads
  Datasheet	Downloads
