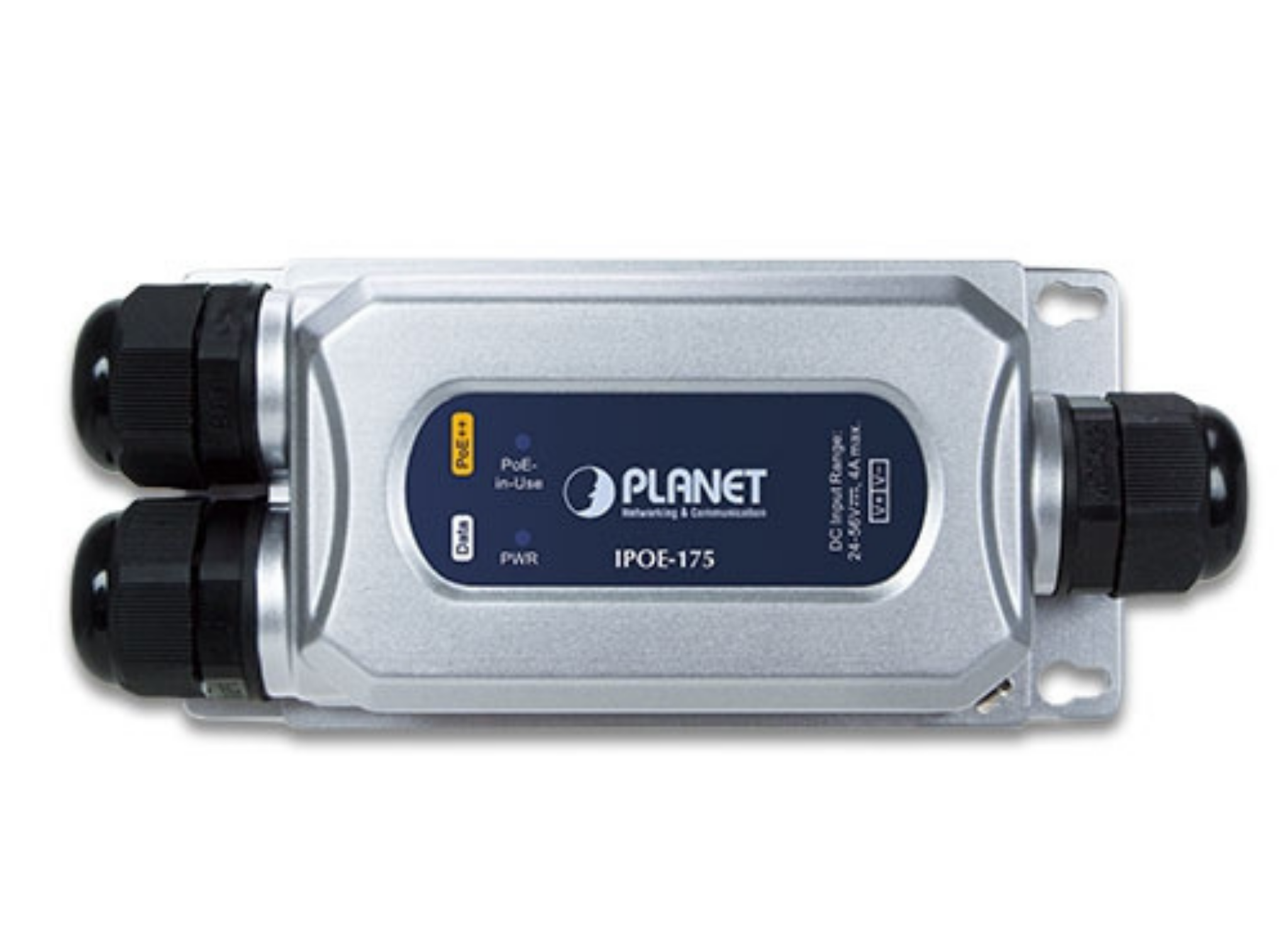

• Planet Industrial IP67 1-Port 60W 802.3bt PoE++ Injector | IPOE-175

  Ideal for Powered Devices that Consume High Power
  Planet IPOE-175 Industrial IP67-rated Single-port 802.3bt PoE ++ Injector provides a maximum of up to 60 watts for PoE output port, transmitting both the Gigabit Ethernet data and 802.3bt PoE power over the UTP cable. It is specifically designed for such powered devices (PDs) as PTZ network cameras, PTZ speed dome cameras, color touch-screen voice over IP (VoIP) telephones, multi-channel (11a/b/g/n) wireless LAN access points and other network devices that need a higher power to work stably.

  Weather-proof RJ45 Ethernet Connector and Shielded Plug

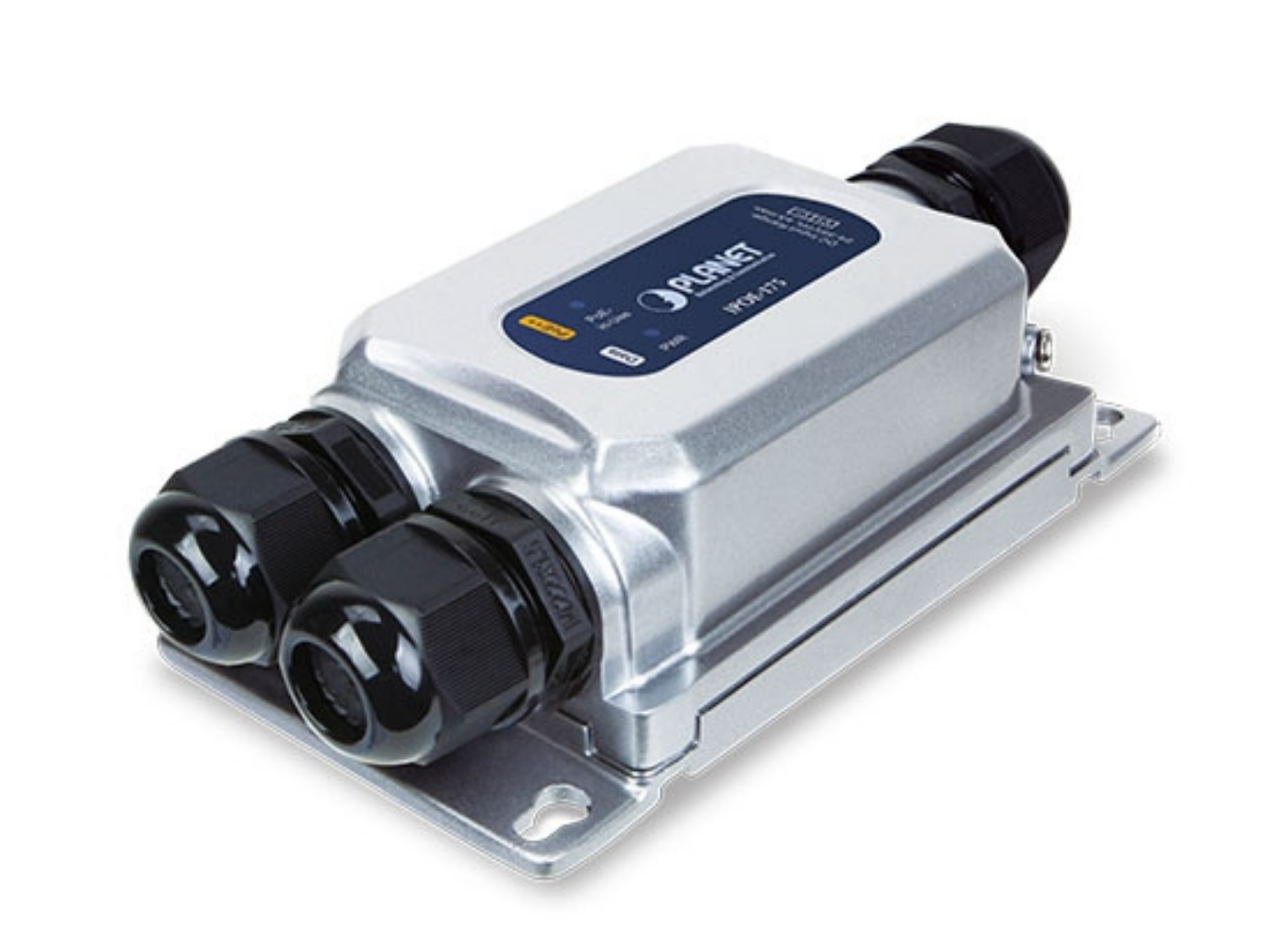

  The IPOE-175 is ideal for installing an extended range of outdoor PoE devices such as outdoor PoE wireless access points, outdoor PoE IP cameras, outdoor PoE IP intercoms and many more. The IPOE-175 is equipped with 3 waterproof cable glands for direct-attach applications. Assembled with waterproof cable gland, it can make the general RJ45 connector weather-proof and provides tight and strong connection. Moreover, it comes with the industrial protection rating of IP67 capable of withstanding humidity, dirt, dust, shock, vibrations, heat and cold.

  Environmentally-hardened Design
  With industrial-level IP67-rated aluminum case, the IPOE-175 provides a high level of immunity against electromagnetic interference, and is able to protect itself from dust and water ingress and to operate under the temperature range from -40 to 75 degrees C. All these features ensure the highest level of reliability for mission-critical applications in any difficult environment.


  Convenient and Reliable Power System
  To facilitate the 802.3bt PoE++ usage with commonly used 24~56V DC power input for transportation and industrial-level applications, the IPOE-175 adopts 24~56V DC to 54V power boost technology to solve power source issue but does not require special power supplies. Its wide-ranging voltages design is suitable for worldwide operability with high availability applications requiring dual or backup power inputs.


  Robust Protection
  The IPOE-175 provides ±8KV DC for Ethernet ESD protection and ±6KV surge immunity to improve product stability and protects users’ networks, making sure the flow of operation does not fluctuate.

  Making Network Easier and More Reliable
  The IPOE-175 can deliver 60-watt 54V DC power over Cat.5/5e/6/6A Ethernet cables which allow data and power to transmit simultaneously through the cable between the Injector (IPOE-175) and PoE PD or PoE++ Splitter (IPOE-173S). The maximum distance between the Injector and Splitter is 100 meters. As the IPOE-175 is also backward compatible with IEEE 802.3at PoE+ PD or PoE Splitter, the system administrator only has to use one single RJ45 Ethernet cable to carry both power and data to another device. It would make the network deployment easier and more reliable.

• Hardware Specifications	Details
  Interface
  [Input Port]	1 x 10/100/1000/2500BASE-T “Data” in RJ45 port
  [Output Port]	1 x 10/100/1000/2500BASE-T Ethernet with IEEE 802.3bt PoE++ “Data + DC” out RJ45 port

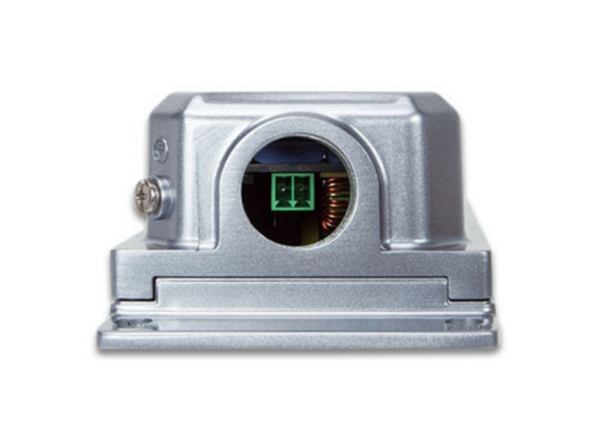

  [Input Power Terminal Block]	1 x 2-pin terminal block (Pin 1: V+ / Pin 2: V-)
  Data Rate	10/100/1000/2500Mbps
  LED Indicator	PWR (Green), PoE-in-use x 1 (Amber)
  Input Voltage	24~56V DC
  Power Consumption
  Voltage	System on
  DC 24V	1.2W
  DC 36V	1.44W
  DC 54V	1.71W
  ESD Protection	Air 8KV DC, Contact 6KV DC
  Surge Protection	6KV
  Enclosure	IP67-rated and IK10 aluminum metal case
  Installation	Wall-mount ear
  Dimensions (W x D x H)	150 x 43.8 x 72.94 mm, 169.85 x 43.8 x 72.94 mm (with cable gland)
  Weight	485g
  MTBF	>100,000 hours
  Network Cable	10BASE-T: UTP category 3, 5 cable (≤100m)
  	100BASE-TX: UTP category 5, 5e cable (≤100m)
  	1000BASE-T: UTP category 5e, 6 cable (≤100m)
  	2500BASE-T: UTP category 5e, 6, 6A cable (≤100m)
  Power over Ethernet
  PoE Standard	IEEE 802.3bt PoE++ type 3 PSE, Backward compatible with IEEE 802.3at PoE+
  PoE Power Output	802.3bt End-span/Mid-span
  PoE Power Supply Type	55V DC
  	Max. 60 watts to 802.3bt PoE++ PD
  	Max. 30 watts to 802.3at PoE+ PD
  Power Pin Assignment	802.3bt: 1/2 (-), 3/6 (+), 4/5 (+), 7/8 (-)
  	End-span: 1/2 (-), 3/6 (+)
  	Mid-span: 4/5 (+), 7/8 (-)
  Standards Conformance
  Regulatory Compliance	FCC Part 15 Class A, CE
  Stability Testing	IEC 60068-2-32 (Free fall), IEC 60068-2-27 (Shock), IEC 60068-2-6 (Vibration)
  Standard Conformance	IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3af Power over Ethernet, IEEE 802.3at Power over Ethernet Plus, IEEE 802.3bt Power over Ethernet Plus Plus
  Environment
  Operating Temperature	-40 ~ 75 degrees C
  Storage Temperature	-40 ~ 85 degrees C
  Humidity	5 ~ 95% (non-condensing)
