• Planet Industrial 8-Port 10/100/1000T Wall-mounted Gigabit Ethernet Switch | WGS-810

  Easily-deployed and Expanded Network
  Designed to be installed in a wall enclosure or simply mounted at any convenient location on a wall, PLANET WGS-810 is an innovative, wall-mounted industrial 8-port Gigabit Ethernet Switch. It comes in a compact but rugged IP30 metal housing. Featuring ultra networking speed and operating temperature ranging from -20 to 60 degrees C, the WGS-810 is an ideal solution to meeting the demand for the following network applications.

  Building / Home automation network
  Internet of things (IoT)
  IP surveillance and wireless
  The WGS-810 is able to operate reliably, stably and quietly in any environment without affecting its performance, and provides a quick, safe and easy deployment of home automation network.

  Innovative Wall-mount Installation

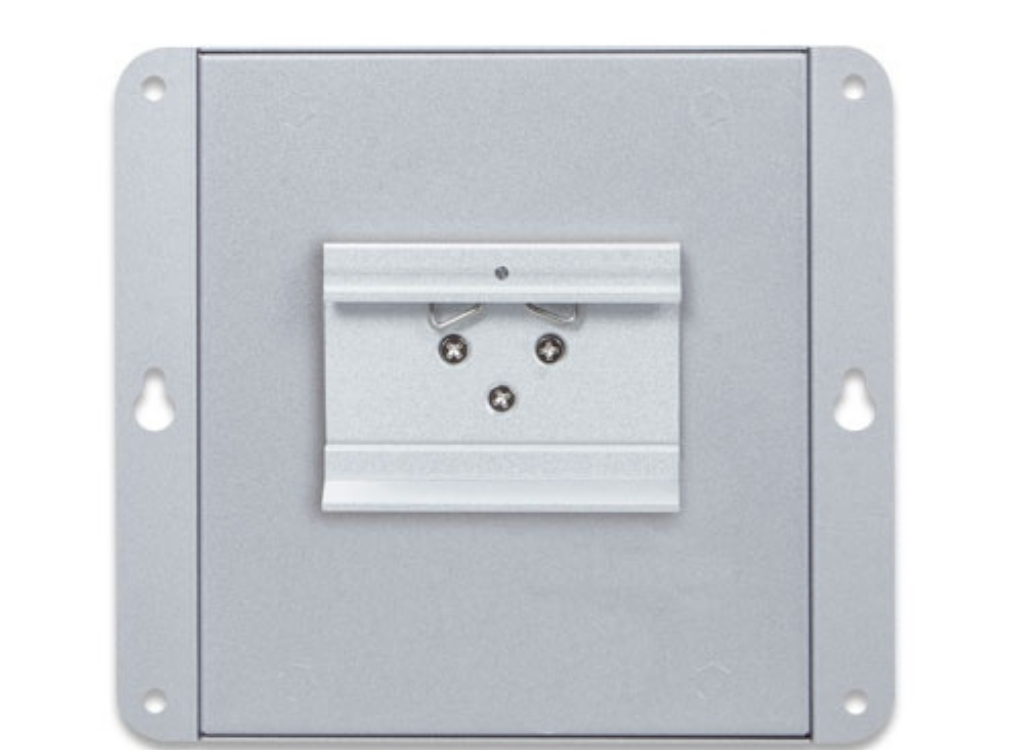

  The WGS-810 is specially designed to be installed in a narrow environment, such as wall enclosure. The compact, flat and wall-mounted design fits easily in any space-limited location. It adopts the user-friendly “Front Access” design, making the installing, cable wiring, LED monitoring and maintenance of the WGS-810 placed in an enclosure very convenient for technicians. The WGS-810 can be installed by fixed wall mounting, magnetic wall mounting or DIN-rail mounting, thereby making its usability more flexible.


  Standard, VLAN and Extend Operation Modes
  The WGS-810 provides Standard, VLAN and Extend operation modes. The WGS-810 can operate as a normal gigabit switch in the standard operation mode.

  The VLAN operation mode features the port-based VLAN function that can help to prevent the multicast or broadcast storm from influencing each other. With two uplink ports with 1000Mbps transfer rate, it ensures high-speed data and video transmission, and reliable assurance for connection between server farm and end users.

  In the Extend operation mode, the WGS-810 operate on a per-port basis at 10Mbps duplex operation but over a distance of up to 250 meters overcoming the 100m limit on Ethernet UTP cable. It also supports VLAN isolation to isolate ports so as to prevent broadcast storm and defend DHCP spoofing in the extend operation mode.


  Plug and Power Network Deployment
  All of the RJ45 copper interfaces in the WGS-810 support 10/100/1000Mbps auto negotiation for optimal speed detection through RJ45 Category 6, 5 or 5e cables. The standard auto-MDI/MDI-X support can detect the type of connection to any Ethernet device without requiring special straight-through or crossover cables.

  Ready to Go with IoT Generation
  Internet is very popular the world over as users surf online daily with their mobile devices, such as smart phones, tablets, or laptop computers. However, users expect more from the convenience of Internet, like how to use their mobile devices to control something via the Internet, thus making life more convenient. The WGS-810 is based on such concept to help users implement the Internet of things (IoT) on the SOHO/Home network. Home automation is no longer a dream as Gigabit network can easily cloud IoT equipment, making it a smart home.

• Hardware Specifications	Details
  Network Connector	8-Port RJ45 for 10/100/1000BASE-T
  Switch Architecture	Store and forward
  MAC Address Table	4K MAC address table with auto learning function
  Switch Fabric	16Gbps / non-blocking
  Switch Throughput	11.9Mpps@64Bytes
  Jumbo Frame	9Kbytes
  Flow Control	IEEE 802.3x pause frame for full duplex, Back pressure for half duplex
  LED Indicators	Power LED: Power (Green), 10/100/1000BASE-T Port: LNK/ACT (Green)
  ESD Protection	4KV DC
  DIP Switch	Selectable operation modes: Standard (Transmission distance of 100m), VLAN (Port-based VLAN), Extend (Transmission distance of 250m at speed of 10Mbps)
  Connector	DC power jack with 2.0mm central pole
  Power Requirements	12V DC, 1A (max.)
  Enclosure	IP30 metal
  Dimensions (W x D x H)	148 x 25 x 134 mm
  Weight	446g
  Installation	Fixed wall mounting, magnetic wall mounting, and DIN-rail mounting
  Standard Conformance
  Standard Compliance	IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet, IEEE 802.3ab Gigabit Ethernet, IEEE 802.3x Flow Control, IEEE 802.3z Energy Efficient Ethernet
  Regulatory Compliance	FCC Part 15 Class A, CE
  Stability Testing	IEC 60068-2-32 (Free fall), IEC 60068-2-27 (Shock), IEC 60068-2-6 (Vibration)
  Environment
  Operating	Temperature: -20 ~ 60 degrees C, Relative Humidity: 5 ~ 95% (non-condensing)
  Storage	Temperature: -20 ~ 70 degrees C, Relative Humidity: 5 ~ 95% (non-condensing)
