Planet Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP Wall-mount Managed Switch

• Description
• Specifications

• Planet Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP Wall-mount Managed Switch

  Easily-deployed and Expanded Network
  Designed to be installed in a wall enclosure or simply mounted on a wall in any convenient location, PLANET WGS-4215-8P2S, an innovative Industrial 8-port 10/100/1000T 802.3at PoE + 2-port 100/1000X SFP Wall-mounted Managed Switch, offers IPv6/IPv4 dual stack management, intelligent Layer 2 management functions, and user-friendly interface. The WGS-4215-8P2S is able to operate reliably, stably and quietly in any environment without affecting its performance. With a total power budget of up to 200 watts for different kinds of PoE applications and featuring ultra networking speed and operating temperature ranging from -40 to 75 degrees C in a compact but rugged IP30 metal housing, the WGS-4215-8P2S is an ideal solution to meeting the demand for the following network applications:

  Building/Home automation network
  Internet of things (IoT)
  IP surveillance
  Wireless LAN


  Cybersecurity Network Solution to Minimize Security Risks
  The WGS-4215-8P2S supports SSHv2 and TLS protocols to provide strong protection against advanced threats. It includes a range of cybersecurity features such as DHCP Snooping, IP Source Guard, dynamic ARP Inspection Protection, 802.1x port-based network access control, RADIUS and TACACS+ user accounts management, SNMPv3 authentication, and so on to complement it as an all-security solution.


  Redundant Ring, Fast Recovery for Critical Network Applications
  The WGS-4215-8P2S supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP) into customer’s network to enhance system reliability and uptime in various environments.

  Built-in Unique PoE Functions for Powered Devices Management
  As it is the managed PoE switch for surveillance, wireless and VoIP networks, the WGS-4215-8P2S features the following special PoE management functions:

  PD alive check
  Scheduled power recycling
  PoE schedule
  PoE usage monitoring
  PoE extension

  Intelligent Powered Device Alive Check
  The WGS-4215-8P2S can be configured to monitor connected PD (Powered Device) status in real time via ping action. Once the PD stops working and responding, the WGS-4215-8P2S will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source and reducing administrator management burden.


  Scheduled Power Recycling
  The WGS-4215-8P2S allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specified time each week. Therefore, it will reduce the chance of IP camera or AP crash resulting from buffer overflow.


  PoE Schedule for Energy Savings
  Under the trend of energy saving worldwide and contributing to environmental protection, the WGS-4215-8P2S can effectively control the power supply besides its capability of giving high watts power. The “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and budget. It also increases security by powering off PDs that should not be in use during non-business hours.


  802.3at PoE+ Power and Ethernet Data Transmission Distance Extension
  In the “Extend” operation mode, the WGS-4215-8P2S operates on a per-port basis at 10Mbps duplex operation but can support 20-watt PoE power output over a distance of up to 250 meters overcoming the 100m limit on Ethernet UTP cable. With this brand-new feature, the WGS-4215-8P2S provides an additional solution for 802.3at/af PoE distance extension, thus saving the cost of Ethernet cable installation.


  Innovative Wall-mount Installation
  The WGS-4215-8P2S is specially designed to be installed in a narrow environment, such as wall enclosure. The compact, flat and wall-mounted design fits easily in any space-limited location. It adopts the user-friendly “Front Access” design, making the installing, cable wiring, LED monitoring and maintenance of the WGS-4215-8P2S placed in an enclosure very convenient for technicians. The WGS-4215-8P2S can be installed by fixed wall mounting, magnetic wall mounting or DIN rail, thereby making its usability more flexible.


  Environmentally Hardened Design
  With IP30, flat but rugged metal housing protection, the WGS-4215-8P2S provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets without air conditioner. Being able to operate under the temperature range from -40 to 75 degrees C, the WGS-4215-8P2S can be placed in almost any difficult environment.


  IPv6/IPv4 Dual Stack Management
  Supporting both IPv6 and IPv4 protocols, the WGS-4215-8P2S helps the SMBs to step in the IPv6 era with the lowest investment as its network facilities need not be replaced or overhauled if the IPv6 FTTx edge network is set up.

  Robust Layer 2 Features
  The WGS-4215-8P2S can be programmed for advanced switch management functions such as dynamic port link aggregation, 802.1Q VLAN, Q-in-Q VLAN, Multiple Spanning Tree Protocol (MSTP), Loop and BPDU Guard, IGMP Snooping, and MLD Snooping. Via the link aggregation, the WGS-4215-8P2S allows the operation of a high-speed trunk to combine with multiple ports such as a 16Gbps fat pipe, and supports fail-over as well. Also, the Link Layer Discovery Protocol (LLDP) is the Layer 2 protocol included to help discover basic information about neighboring devices on the local broadcast domain.


  Efficient Traffic Control
  The WGS-4215-8P2S is loaded with robust QoS features and powerful traffic management to enhance services to business-class data, voice, and video solutions. The functionality includes broadcast/multicast/unicast storm control, per port bandwidth control, 802.1p/CoS/IP DSCP QoS priority and remarking. It guarantees the best performance in VoIP and video stream transmission, and empowers the enterprises to take full advantage of the limited network resources.

  Powerful Security
  PLANET WGS-4215-8P2S offers comprehensive IPv4/IPv6 Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1X port-based user and device authentication, which can be deployed with RADIUS to ensure the port level security and block illegal users. With the protected port function, communication between edge ports can be prevented to guarantee user privacy. Furthermore, Port security function allows to limit the number of network devices on a given port. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before.

  User-friendly and Secure Management
  For efficient management, the WGS-4215-8P2S is equipped with Command line, Web and SNMP management interfaces.

  With the built-in Web-based management interface, the WGS-4215-8P2S offers an easy-to-use, platform-independent management and configuration facility.
  For text-based management, it can be accessed via Telnet and the console port.
  By supporting the standard SNMP protocol, the switch can be managed via any SNMP-based management software.
  Moreover, the WGS-4215-8P2S offers secure remote management by supporting SSHv2, TLSv1.2 and SNMP v3 connections which encrypt the packet content at each session.


  Remote Management Solution
  PLANET’s Universal Network Management System (UNI-NMS) and CloudViewer App support IT staff to remotely manage all network devices and monitor the PDs’ operation statuses. Thus, they’re designed for both the enterprises and industries where deployments of PDs can be as remote as possible, without having to go to the actual location once a bug or faulty condition is found. With the UNI-NMS or CloudViewer App, all kinds of businesses can now be speedily and efficiently managed from one platform.

  Flexibility and Long-distance Extension Solution
  The two mini-GBIC slots built in the WGS-4215-8P2S support SFP auto-detection and dual speed as it features 100BASE-FX and 1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber transceivers to uplink to backbone switch and monitoring center in long distance. The distance can be extended from 550 meters to 2 kilometers (multi-mode fiber) and to 10/20/40/60/80/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.

  Intelligent SFP Diagnosis Mechanism
  The WGS-4215-8P2S supports SFP-DDM (Digital Diagnostic Monitor) function that can easily monitor real-time parameters of the SFP for the network administrator, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.


  Applications

  ITU-T G.8032 ERPS Makes Data Transmission Uninterrupted
  The WGS-4215-8P2S features strong rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology into customer’s automation network to enhance system reliability and uptime. Applying the IEEE 802.3at Power over Ethernet standard, the WGS-4215-8P2S can directly connect with any IEEE 802.3at end-nodes like PTZ (Pan, Tilt & Zoom) network cameras and speed dome cameras. The WGS-4215-8P2S can easily help system integrators with the available network infrastructure to build wireless AP, IP camera and VoIP systems where power can be centrally-controlled.


  Security Building Automation Switch
  Suitable for buildings where security is strictly to be enforced, the WGS-4215-8P2S Industrial Wall-mount Managed Switch offers a comprehensive Layer 2 to Layer 4 Access Control List (ACL). The switch can restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. With the WGS-4215-8P2S, a tightly-controlled network can be easily had in no time.


  Perfect Integration Solution for IP PoE Camera and NVR System
  The WGS-4215-8P2S provides 8 10/100/1000Mbps 802.3at PoE ports which can offer sufficient PoE power to 8 PoE IP cameras at the same time. In addition, with the 2 100/1000BASE-X SFP interfaces, the WGS-4215-8P2S can connect to a core fiber switch and send video streams to an NVR and monitoring center. Through the high-performance switch architecture, the WGS-4215-8P2S facilitates the recorded video files from the 8 PoE IP cameras to be saved in the NVR systems. Furthermore, the NVR systems can be controlled and monitored both in the local LAN and the remote site via Internet. The WGS-4215-8P2S undoubtedly brings an ideal secure surveillance system at a lower total cost.

  Physical Port

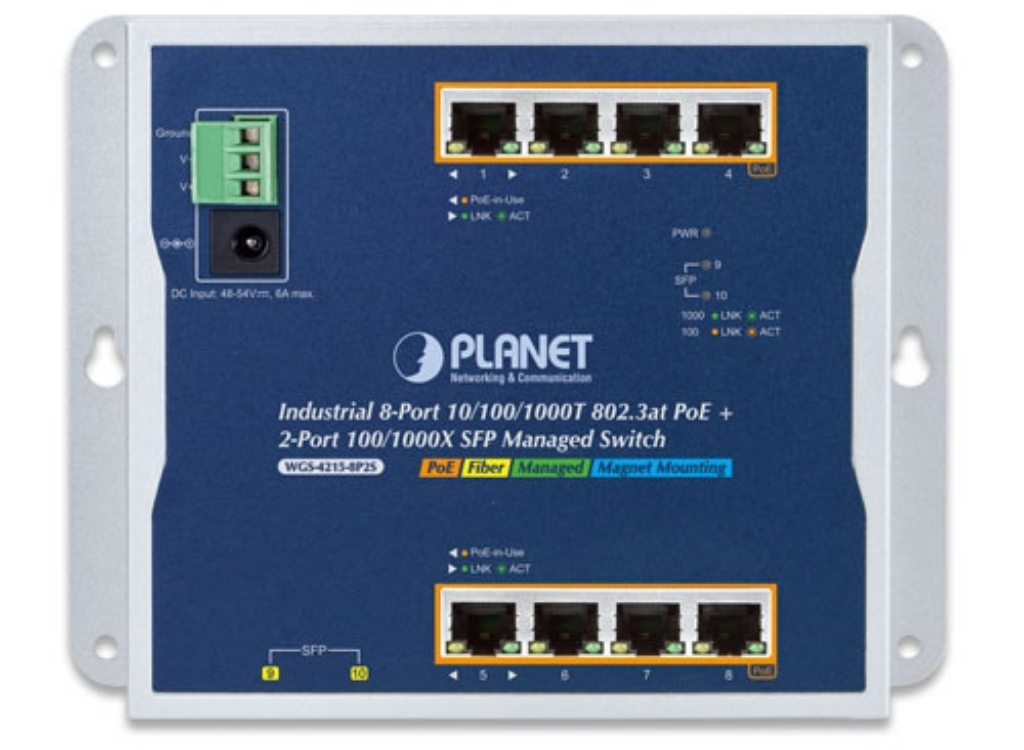

  8 10/100/1000BASE-T Gigabit RJ45 copper ports with IEEE 802.3at PoE+ injector function

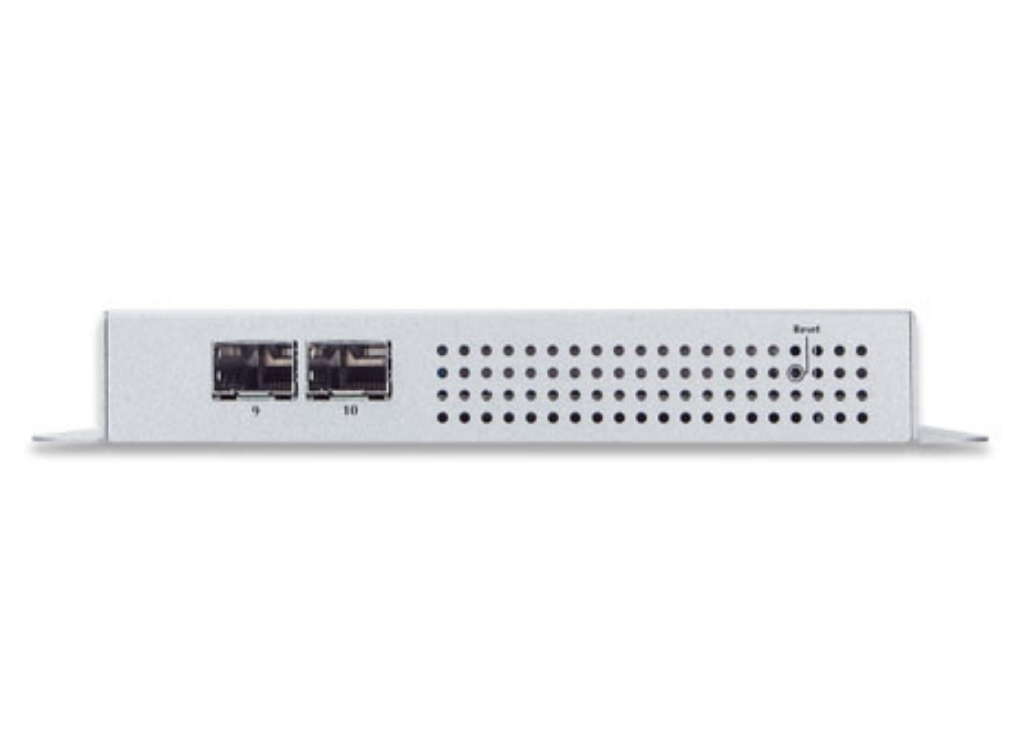

  2 100/1000BASE-X mini-GBIC/SFP ports

  Power over Ethernet
  Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE
  Backward compatible with IEEE 802.3af Power over Ethernet
  Up to 8 ports of IEEE 802.3af/802.3at devices powered
  200-watt PoE budget
  Supports PoE power up to 36 watts for each PoE port
  Auto detects powered device (PD)
  Circuit protection prevents power interference between ports
  Remote power feeding up to 100 meters in standard mode and 250m in extend mode
  PoE management
  Total PoE power budget control
  Per port PoE function enable/disable
  PoE port power feeding priority
  Per PoE port power limitation
  PD classification detection
  Intelligent PoE features
  PD alive check
  PoE schedule

  Industrial Case and Installation
  Compact size with fixed wall-mounted, magnetic wall-mounted or DIN-rail design
  IP30 metal case
  Supports -40 to 75 degrees C operating temperature
  Supports ESD 6KV DC Ethernet protection
  Dual power input design
  48V~54V DC wide power input with reverse polarity protection
  3-pin terminal block or DC jack connector

  Switching
  Hardware-based 10/100Mbps, half/full duplex and 1000Mbps full duplex mode, flow control and auto-negotiation and auto MDI/MDI-X
  IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
  8K MAC address table size
  10K jumbo frame
  Automatic address learning and address aging

  Layer 2 Features
  Supports VLAN
  IEEE 802.1Q tagged VLAN
  Provider bridging (VLAN Q-in-Q, IEEE 802.1ad) support
  Protocol VLAN
  Voice VLAN
  Private VLAN (Protected port)
  Management VLAN
  GVRP
  Supports Spanning Tree Protocol
  STP (Spanning Tree Protocol)
  RSTP (Rapid Spanning Tree Protocol)
  MSTP (Multiple Spanning Tree Protocol)
  STP BPDU Guard, BPDU Filtering and BPDU Forwarding
  Supports Link Aggregation
  IEEE 802.3ad Link Aggregation Control Protocol (LACP)
  Cisco ether-channel (static trunk)
  Provides port mirror (many-to-1)
  Loop protection to avoid broadcast loops
  Supports ERPS (Ethernet Ring Protection Switching)
  Link Layer Discovery Protocol (LLDP)

  Quality of Service
  Ingress/Egress Rate Limit per port bandwidth control
  Traffic classification
  IEEE 802.1p CoS
  TOS/DSCP/IP precedence of IPv4/IPv6 packets
  Strict priority and Weighted Round Robin (WRR) CoS policies

  Multicast
  Supports IPv4 IGMP snooping v2, v3
  Supports IPv6 MLD snooping v1, v2
  IGMP querier mode support
  IGMP snooping port filtering
  MLD snooping port filtering

  Security
  Storm Control support
  Broadcast/Unknown unicast/Unknown multicast
  Authentication
  IEEE 802.1X port-based network access authentication
  Built-in RADIUS client to cooperate with the RADIUS servers
  DHCP Option 82
  RADIUS/TACACS+ authentication
  Access Control List
  IPv4/IPv6 IP-based ACL
  IPv4/IPv6 IP-based ACE
  MAC-based ACL
  MAC-based ACE
  MAC Security
  Static MAC
  MAC filtering
  Port security for source MAC address entries filtering
  DHCP snooping to filter distrusted DHCP messages
  Dynamic ARP inspection discards ARP packets with invalid MAC address to IP address binding
  IP source guard prevents IP spoofing attacks
  DoS attack prevention

  Management
  IPv4 and IPv6 dual stack management
  Switch Management Interface
  Web switch management
  Telnet Command Line Interface
  SNMP v1 and v2c switch management
  SSHv2, TLSv1.2 and SNMP v3 secure access
  SNMP Management
  SNMP trap for interface Link Up and Link Down notification
  Four RMON groups (history, statistics, alarms and events)
  User privilege levels control
  Built-in Trivial File Transfer Protocol (TFTP) client
  Static and DHCP for IP address assignment
  System Maintenance
  Firmware upload/download via HTTP/TFTP
  Configuration upload/download through HTTP/TFTP
  Dual images
  Hardware reset button for system reboot or reset to factory default
  SNTP Network Time Protocol
  Link Layer Discovery Protocol (LLDP) and LLDP-MED
  Event message logging to remote syslog server
  Network Diagnostic
  ICMPv6/ICMPv4 Ping Test
  Cable diagnostics technology provides the mechanism to detect and report potential cabling issues
  SFP-DDM (Digital Diagnostic Monitor)
  PLANET Smart Discovery Utility for deployment management
  PLANET NMS system and CloudViewer for deployment management

• Category	Specification
  Hardware Version	–
  Copper Ports	8 x 10/100/1000BASE-T RJ45 (auto-MDI/MDI-X)
  PoE Injector Ports	8 Ports (802.3af/at PoE+ supported)
  SFP Slots	2 x 100/1000BASE-X SFP (dual mode)
  Reset Button	< 5 sec: Reboot; > 5 sec: Factory Reset
  LED Indicators	Power (Green), PoE In-Use (Amber), LNK/ACT (Green/Amber), SFP ACT
  Power Input	48~54V DC, 5A (Terminal Block or DC Jack, non-redundant)
  Power Consumption	Max. 210W / 716 BTU
  Dimensions (W x D x H)	178 x 24.2 x 134 mm
  Weight	640g
  Enclosure	IP30-rated metal
  Installation	Wall mount (fixed or magnetic), DIN rail
  ESD Protection	Contact: 6KV, Air: 8KV
  Switching Capacity	20Gbps (non-blocking)
  Throughput	14.8Mpps @ 64 bytes
  MAC Table	8K Entries
  Buffer Size	4.1Mbits shared
  Jumbo Frame	10KB
  PoE Output	802.3af: up to 15.4W, 802.3at: up to 36W per port
  PoE Budget	Max. 200W
  PoE Features	PD Alive Check, Schedule, Usage Monitoring, Extend Mode (up to 250m)
  Layer 2 Features	VLAN (802.1Q, Voice, Protocol, Private), Link Aggregation, IGMP/MLD Snooping
  QoS	8 Queues, Port/DSCP/802.1p-based Priority, Rate Limiting
  Security	ACLs, IEEE 802.1X, MAC Filtering, DHCP Snooping, IP Source Guard
  Management	Web, Telnet, SNMP v1/2c/3, SSHv2, TLSv1.2, LLDP, PLANET NMS/CloudViewer
  Standards	Full IEEE 802.3 family incl. af/at/az, VLAN, STP/RSTP/MSTP, ERPS, IGMP/MLD etc.
  Environmental Range	Operating: -40°C ~ 75°C, Storage: -40°C ~ 85°C, Humidity: 5% ~ 95% (non-cond.)
  Certifications	FCC Part 15 Class A, CE, IEC shock/vibration/fall tested
  Accessories	Terminal block, wall/DIN/magnet kits, dust caps, quick guide
