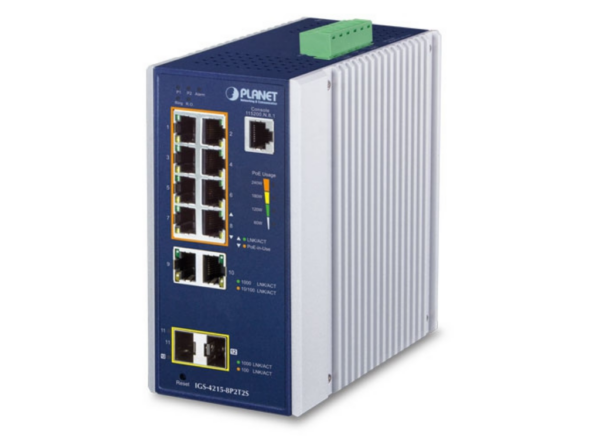

• Planet Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T + 2-Port 100/1000X SFP Managed Switch

  Cost-optimized Full PoE+ Power Solution Ideal for Hardened Environment
  Designed to be installed in heavy industrial demanding environments, the IGS-4215-8P2T2S is the new member of PLANET Industrial-grade, DIN-rail type L2/L4 Managed Gigabit PoE+ Switch family featuring PLANET intelligent PoE functions to improve the availability of critical business applications. It provides IPv6/IPv4 dual stack management and built-in L2/L4 Gigabit switching engine along with 8 10/100/1000BASE-T ports featuring 36-watt 802.3at PoE+, 2 additional Gigabit copper ports and another 2 extra 100/1000BASE-X SFP fiber slots for data and video uplink. The IGS-4215-8P2T2S is able to operate reliably, stably and quietly in any hardened environment without affecting its performance. It comes with a total power budget of up to 240 watts for different kinds of PoE applications and operating temperature ranging from -40 to 75 degrees C in a rugged IP30 metal housing.

  Cybersecurity Network Solution to Minimize Security Risks
  The IGS-4215-8P2T2S supports SSHv2 and TLS protocols to provide strong protection against advanced threats. It includes a range of cybersecurity features such as DHCP Snooping, IP Source Guard, dynamic ARP Inspection Protection, 802.1x port-based network access control, RADIUS and TACACS+ user accounts management, SNMPv3 authentication, and so on to complement it as an all-security solution.


  Redundant Ring, Fast Recovery for Critical Network Applications
  The IGS-4215-8P2T2S supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP) into customer’s network to enhance system reliability and uptime in various environments.


  Built-in Unique PoE Functions for Powered Devices Management
  As the industrial PoE+ managed switch for surveillance, wireless and VoIP networks, the IGS-4215-8P2T2S features special PoE management functions:

  PD alive check
  Scheduled power recycling
  PoE schedule
  PoE usage monitoring
  PoE extension

  Intelligent Powered Device Alive Check
  The IGS-4215-8P2T2S can be configured to monitor connected PD (powered device) status in real time via ping action. Once the PD stops working and responding, the IGS-4215-8P2T2S will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source and reducing the administrator’s management burden.


  Scheduled Power Recycling
  The IGS-4215-8P2T2S allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specified time each week. Therefore, it will reduce the chance of IP camera or AP crash resulting from buffer overflow.


  PoE Schedule for Energy Savings
  Under the global trend of energy saving and contributing to environmental protection, the IGS-4215-8P2T2S can effectively control the power supply besides its capability of giving high watts power. The “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals, which is a powerful function to help SMBs or enterprises save power and budget. It also increases security by powering off PDs that should not be in use during non-business hours.

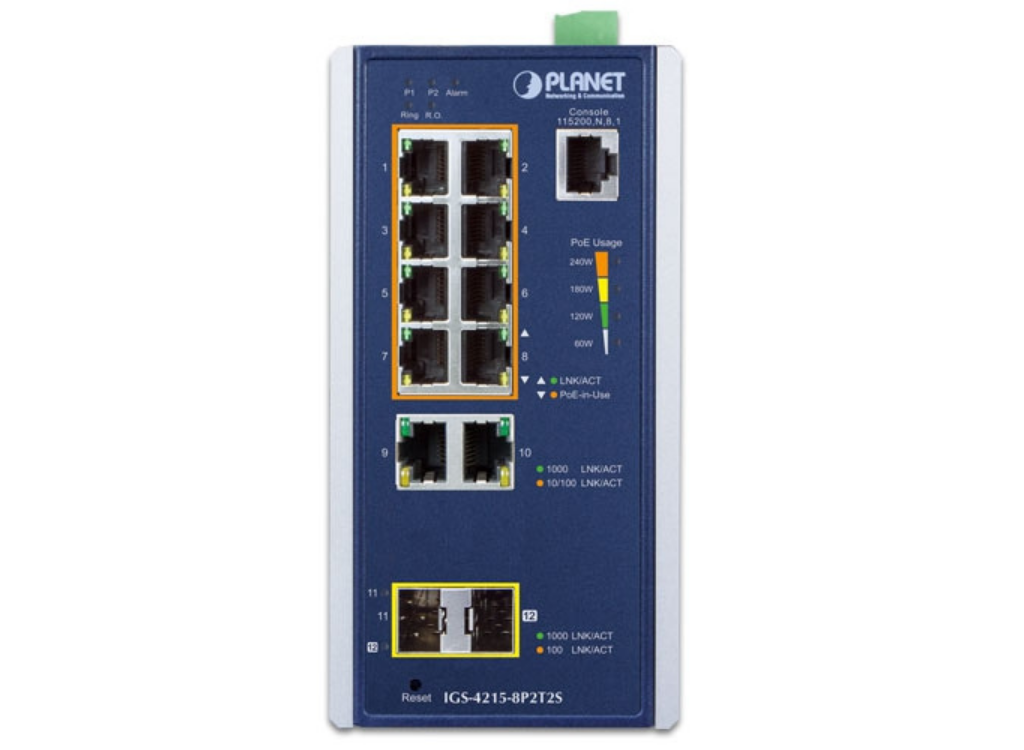

  Intelligent LED Indicator for Real-time PoE Usage Monitoring
  Via the power usage chart in the web management interface, the IGS-4215-8P2T2S enables the administrator to monitor the status of the power usage of the connected PDs in real time. Thus, it greatly enhances the management efficiency of the facilities. Moreover, the IGS-4215-8P2T2S helps users to monitor the current status of PoE power usage easily and efficiently via its advanced LED indication. Called “PoE Power Usage”, the front panel of the IGS-4215-8P2T2S has four amber LEDs indicating four different PoE power usages, namely 60W, 120W, 180W and 240W.

  802.3at PoE+ Power and Ethernet Data Transmission Distance Extension
  In the “Extend” operation mode, the IGS-4215-8P2T2S operates on a per-port basis at 10Mbps duplex operation but can support 20-watt PoE power output over a distance of up to 250 meters overcoming the 100m limit on Ethernet UTP cable. With this brand-new feature, the IGS-4215-8P2T2S provides an additional solution for 802.3at/af PoE distance extension, thus saving the cost of Ethernet cable installation.


  Environmentally Hardened Design
  With the IP30 aluminum industrial case, the IGS-4215-8P2T2S provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets without air conditioner. Being able to operate under the temperature range from -40 to 75 degrees C, the IGS-4215-8P2T2S can be placed in almost any difficult environment.

  Robust Protection
  The IGS-4215-8P2T2S provides contact discharge of ±6KV DC and air discharge of ±8KV DC for Ethernet ESD protection. It also supports ±4KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.

  IPv6/IPv4 Dual Stack Management
  Supporting both IPv6 and IPv4 protocols, the IGS-4215-8P2T2S helps the SMBs to step in the IPv6 era with the lowest investment as its network facilities need not be replaced or overhauled if the IPv6 FTTx edge network is set up.


  Robust Layer 2 Features
  The IGS-4215-8P2T2S can be programmed for advanced switch management functions such as dynamic port link aggregation, 802.1Q VLAN, Q-in-Q VLAN, Multiple Spanning Tree Protocol (MSTP), loop and BPDU guard, IGMP snooping, and MLD snooping. Via the link aggregation, the IGS-4215-8P2T2S allows the operation of a high-speed trunk to combine with multiple ports such as an 8Gbps fat pipe, and supports fail-over as well.  Also, the Link Layer Discovery Protocol (LLDP) is the Layer 2 protocol included to help discover basic information about neighboring devices on the local broadcast domain.


  Efficient Traffic Control
  The IGS-4215-8P2T2S is loaded with robust QoS features and powerful traffic management to enhance services to business-class data, voice, and video solutions. The functionality includes broadcast/multicast/unicast storm control, per port bandwidth control, 802.1p/CoS/IP DSCP QoS priority and remarking. It guarantees the best performance in VoIP and video stream transmission, and empowers the enterprises to take full advantage of the limited network resources.

  Powerful Security
  PLANET IGS-4215-8P2T2S offers comprehensive IPv4/IPv6 Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1X port-based user and device authentication, which can be deployed with RADIUS to ensure the port level security and block illegal users. With the protected port function, communication between edge ports can be prevented to guarantee user privacy. Furthermore, Port security function allows to limit the number of network devices on a given port. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before.

  User-friendly and Secure Management
  For efficient management, the IGS-4215-8P2T2S is equipped with Command line, Web and SNMP management interfaces.

  With the built-in Web-based management interface, the IGS-4215-8P2T2S offers an easy-to-use, platform-independent management and configuration facility.
  For text-based management, it can be accessed via Telnet and the console port.
  By supporting the standard SNMP protocol, the switch can be managed via any SNMP-based management software.
  Moreover, the IGS-4215-8P2T2S offers secure remote management by supporting SSHv2, TLSv1.2 and SNMP v3 connections which encrypt the packet content at each session.


  Flexible Long-distance Extension Solution
  The IGS-4215-8P2T2S provides 2 extra Gigabit TP interfaces supporting 10/100/1000BASE-T RJ45 copper to connect with surveillance network devices such as NVR, Video Streaming Server or NAS to facilitate surveillance management. Or through the two dual-speed fiber SFP slots, it can also connect with the 100BASE-FX /1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber transceiver to uplink to backbone switch and monitoring center in long distance. The distance can be extended from 550 meters to 2 kilometers (multi-mode fiber) and to 10/20/40/60/80/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.

  Intelligent SFP Diagnosis Mechanism
  The IGS-4215-8P2T2S supports SFP-DDM (Digital Diagnostic Monitor) function that can easily monitor real-time parameters of the SFP for the network administrator, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.

  Applications

  ITU-T G.8032 ERPS Makes Data Transmission Uninterrupted
  The IGS-4215-8P2T2S features strong rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology into customer’s automation network to enhance system reliability and uptime. Applying the IEEE 802.3at Power over Ethernet standard, the IGS-4215-8P2T2S can directly connect with any IEEE 802.3at end-nodes like PTZ (Pan, Tilt & Zoom) network cameras and speed dome cameras. The IGS-4215-8P2T2S can easily help system integrators with the available network infrastructure to build wireless AP, IP camera and VoIP systems where power can be centrally-controlled.


  Industrial-grade PoE+ Switch for Building Automation and Security
  Suitable for buildings where security is strictly to be enforced, the IGS-4215-8P2T2S, with eight 802.3at PoE+, in-line power interfaces, can easily build a power centrally controlled for an IP phone system, IP surveillance system, and wireless AP group in the harsh Industrial environment. For instance, 8 PoE IP cameras or PoE wireless APs can be easily installed for surveillance demands or a wireless roaming environment in the industrial area can be built. Without the power-socket limitation, the IGS-4215-8P2T2S makes the installation of IP cameras or wireless APs easier and more efficient.


  Perfect Integration Solution for IP PoE Camera and NVR System
  The IGS-4215-8P2T2S provides eight 10/100/1000BASE-T 802.3at PoE+ ports which can offer sufficient PoE power to 8 PoE IP cameras at the same time. In addition, with the two 100/1000BASE-X SFP interfaces, the IGS-4215-8P2T2S can connect to a core fiber switch and send video streams to an NVR and monitoring center. Through the high-performance switch architecture, the IGS-4215-8P2T2S facilitates the recorded video files from the 8 PoE+ IP cameras to be saved in the NVR systems. Furthermore, the NVR systems can be controlled and monitored in both the local LAN and the remote site via Internet. The IGS-4215-8P2T2S undoubtedly brings an ideal secure surveillance system at a lower total cost.


  Key Features

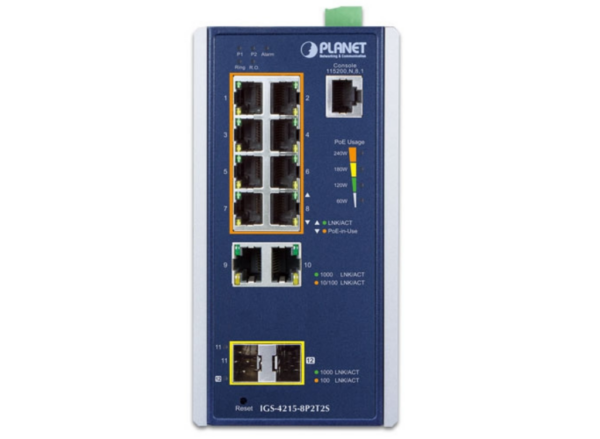

  Physical Port
  Eight 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with IEEE 802.3at/af PoE+ Injector function(Ports 1 to 8)
  Two 10/100/1000BASE-T Gigabit Ethernet RJ45 ports (Ports 9 to 10)
  Two 100/1000BASE-X mini-GBIC/SFP slots for SFP type auto detection (Ports 11 to 12)
  One RJ45 console interface for basic management and setup

  Power over Ethernet
  Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE
  Backward compatible with IEEE 802.3af Power over Ethernet
  Up to 8 ports of IEEE 802.3af/802.3at devices powered
  240-watt PoE budget
  Supports PoE power up to 36 watts for each PoE port
  Auto detects powered device (PD)
  Circuit protection prevents power interference between ports
  Remote power feeding up to 100 meters in standard mode and 250m in extend mode
  PoE management
  Total PoE power budget control
  Per port PoE function enable/disable
  PoE port power feeding priority
  Per PoE port power limitation
  PD classification detection
  Intelligent PoE features
  PD alive check
  PoE schedule

  Industrial Case and Installation
  IP30 aluminum case
  DIN rail and wall-mount design
  48~54V DC, redundant power with reverse polarity protection
  Supports 6000V DC Ethernet ESD protection
  -40 to 75 degrees C operating temperature

  Switching
  Hardware-based 10/100Mbps (half/full duplex), 1000Mbps (full duplex), auto-negotiation and auto MDI/MDI-X
  IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
  8K MAC address table size
  10K jumbo frame
  Automatic address learning and address aging

  Layer 2 Features
  Supports VLAN
  IEEE 802.1Q tagged VLAN
  Provider bridging (VLAN Q-in-Q, IEEE 802.1ad) support
  Protocol VLAN
  Voice VLAN
  Private VLAN (Protected port)
  Management VLAN
  GVRP
  Supports Spanning Tree Protocol
  STP (Spanning Tree Protocol)
  RSTP (Rapid Spanning Tree Protocol)
  MSTP (Multiple Spanning Tree Protocol)
  STP BPDU Guard, BPDU Filtering and BPDU Forwarding
  Supports Link Aggregation
  IEEE 802.3ad Link Aggregation Control Protocol (LACP)
  Cisco ether-channel (static trunk)
  Maximum 6 trunk groups, up to 8 ports per trunk group
  Provides port mirror (many-to-1)
  Loop protection to avoid broadcast loops
  Supports ERPS (Ethernet Ring Protection Switching)
  Link Layer Discovery Protocol (LLDP)

  Quality of Service
  Ingress/Egress Rate Limit per port bandwidth control
  Traffic classification
  IEEE 802.1p CoS
  TOS/DSCP/IP precedence of IPv4/IPv6 packets
  Strict priority and Weighted Round Robin (WRR) CoS policies

  Multicast
  Supports IPv4 IGMP snooping v2, v3
  Supports IPv6 MLD snooping v1, v2
  IGMP querier mode support
  IGMP snooping port filtering
  MLD snooping port filtering

  Security
  Storm Control support
  Broadcast/ unknown multicast/unknown unicast
  Authentication
  IEEE 802.1X port-based network access authentication
  Built-in RADIUS client to cooperate with the RADIUS servers
  DHCP Option 82
  RADIUS/TACACS+ authentication
  Access Control List
  IPv4/IPv6 IP-based ACL
  IPv4/IPv6 IP-based ACE
  MAC-based ACL
  MAC-based ACE
  MAC Security
  Static MAC
  MAC filtering
  Port security for source MAC address entries filtering
  DHCP snooping to filter distrusted DHCP messages
  Dynamic ARP inspection discards ARP packets with invalid MAC address to IP address binding
  IP source guard prevents IP spoofing attacks
  DoS attack prevention

  Management
  IPv4 and IPv6 dual stack management
  Switch Management Interface
  Web switch management
  Console/Telnet Command Line Interface
  SNMP v1 and v2c switch management
  SSHv2, TLSv1.2 and SNMP v3 secure access
  SNMP Management
  SNMP trap for interface Link Up and Link Down notification
  Four RMON groups (history, statistics, alarms and events)
  User privilege levels control
  Built-in Trivial File Transfer Protocol (TFTP) client
  Static and DHCP for IP address assignment
  System Maintenance
  Firmware upload/download via HTTP/TFTP
  Configuration upload/download through HTTP/TFTP
  Dual images
  Hardware reset button for system reboot or reset to factory default
  SNTP Network Time Protocol
  Network Diagnostic
  Cable diagnostics
  ICMPv6/ICMPv4 Remote Ping
  SFP-DDM (Digital Diagnostic Monitor)
  Link Layer Discovery Protocol (LLDP) Protocol and LLDP-MED
  Event message logging to remote syslog server
  PLANET Smart Discovery Utility for deployment management
  PLANET NMS system and CloudViewer for deployment management

• Category	Specification
  Copper Ports	Ten 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports (Ports 1 to 10)
  PoE Injector Port	Eight ports with 802.3af/802.3at PoE+ injector function (Ports 1 to 8)
  SFP Ports	Two 1000BASE-SX/LX/BX SFP interfaces (Ports 11 to 12), Compatible with 100BASE-FX SFP
  Console	1 x RS232-to-RJ45 serial port (115200,8, N, 1)
  Reset Button	< 5 sec: System reboot, > 5 sec: Factory default

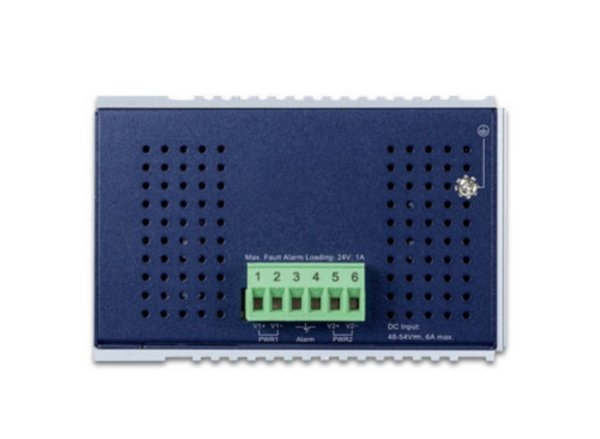

  Connector	Removable 6-pin terminal block (Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2)
  Alarm	One relay output for power failure, Alarm relay current carry ability: 1A @ 24V AC
  Power Requirements	48~54V DC, 6A (max.) (>51V DC for PoE+ output recommended)
  Power Consumption/ Dissipation	Max. 6.72 watts/22.91BTU (system on), Max. 252 watts/859.32BTU (Full loading)
  Dimensions (W x D x H)	76.8 x 107.3 x 152 mm
  Weight	1084g
  Enclosure	IP30 aluminum case
  Installation	DIN-rail kit and wall-mount ear
  ESD Protection	Contact Discharge 6KV DC, Air Discharge 8KV DC
  LED Indicators	Power 1/Power 2 (Green), Fault Alarm (Red), Link (Green), PoE-in-Use (Amber)
  Switch Architecture	Store-and-Forward
  Switch Fabric	24Gbps/non-blocking
  MAC Address Table	8K entries
  Shared Data Buffer	4.1 megabits
  Flow Control	IEEE 802.3x pause frame for full duplex, Back pressure for half duplex
  Jumbo Frame	10 Kbytes
  PoE Standard	IEEE 802.3at Power over Ethernet Plus/PSE
  PoE Power Output	IEEE 802.3af Standard: 15.4 watts, IEEE 802.3at Standard: 36 watts per port
  PoE Power Budget	Dual power input: maximum 240W
  PoE Management Functions	PD Alive Check, Scheduled Power Recycling, PoE Schedule, PoE Usage Monitoring
  Layer 2 Functions	Port Mirroring, VLAN, Link Aggregation, Spanning Tree Protocol (STP), IGMP Snooping, MLD Snooping
  Security Functions	IPv4/IPv6 ACL, Port Security, MAC Security, DHCP Snooping, DoS attack prevention, IP source guard
  Management Functions	RS232 to RJ45 Console, Web browser, Telnet, SNMP v1, v2c, SSHv2, TLS v1.2, SNMP v3, Firmware upgrade via HTTP/TFTP
  Regulatory Compliance	FCC Part 15 Class A, CE
  Standards Compliance	IEEE 802.3 10BASE-T, IEEE 802.3af/at PoE, IEEE 802.3z, IEEE 802.1Q VLAN, IEEE 802.1X Port Authentication, ITU G.8032 ERPS Ring
  Operating Temperature	-40 ~ 75 degrees C
  Storage Temperature	-40 ~ 85 degrees C
  Humidity	5 ~ 95% (non-condensing)
