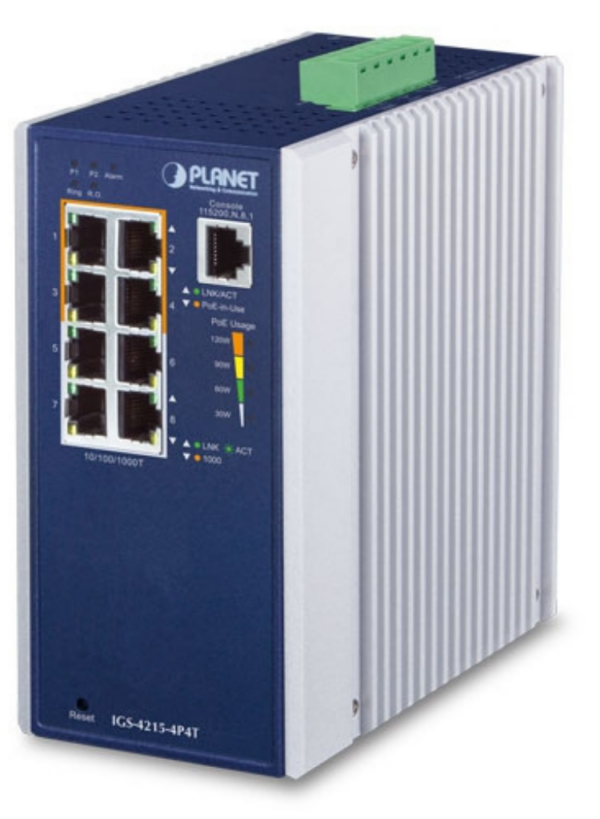

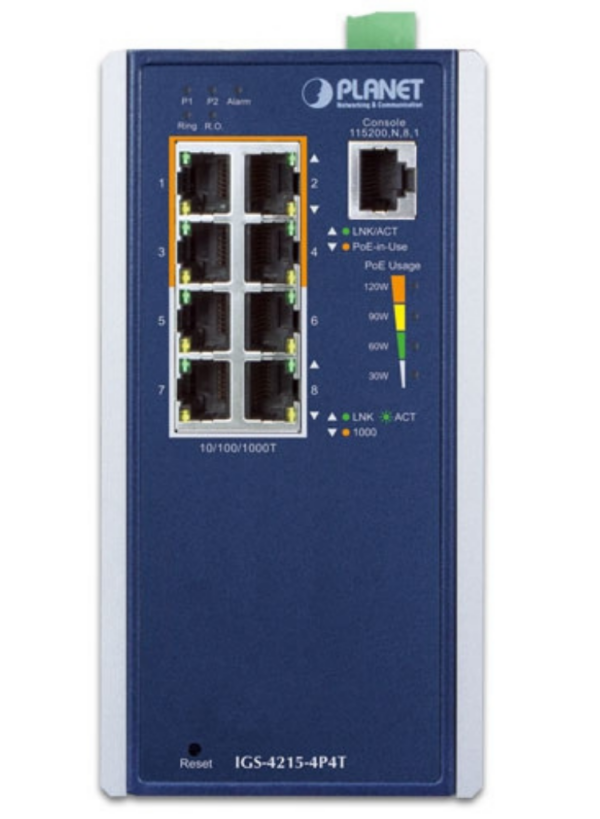

• Planet Industrial 4-Port 10/100/1000T 802.3at PoE + 4-Port 10/100/1000T Managed Switch | IGS-4215-4P4T

  Cost-optimized Full PoE+ Power Solution Ideal for Hardened Environment
  Designed to be installed in heavy industrial demanding environments, the IGS-4215-4P4T is the new member of PLANET Industrial-grade, DIN-rail type L2/L4 Managed Gigabit PoE+ Switch family featuring PLANET intelligent PoE functions to improve the availability of critical business applications. It provides IPv6/IPv4 dual stack management and built-in L2/L4 Gigabit switching engine along with 4 10/100/1000BASE-T ports featuring 36-watt 802.3at PoE+, 4 additional Gigabit copper ports. The IGS-4215-4P4T is able to operate reliably, stably and quietly in any hardened environment without affecting its performance. It comes with a total power budget of up to 144 watts for different kinds of PoE applications and operating temperature ranging from -40 to 75 degrees C in a rugged IP30 metal housing.

  Cybersecurity Network Solution to Minimize Security Risks
  The IGS-4215-4P4T supports SSHv2 and TLSv1.2  protocols to provide strong protection against advanced threats. It includes a range of cybersecurity features such as DHCP Snooping, IP Source Guard, dynamic ARP Inspection Protection, 802.1x port-based network access control, RADIUS and TACACS+ user accounts management, SNMPv3 authentication, and so on to complement it as an all-security solution.


  Redundant Ring, Fast Recovery for Critical Network Applications
  The IGS-4215-4P4T supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP) into customer’s network to enhance system reliability and uptime in various environments.


  Built-in Unique PoE Functions for Powered Devices Management
  As the industrial PoE+ managed switch for surveillance, wireless and VoIP networks, the IGS-4215-4P4T features special PoE management functions:

  PD alive check
  Scheduled power recycling
  PoE schedule
  PoE usage monitoring
  PoE extension

  Intelligent Powered Device Alive Check
  The IGS-4215-4P4T can be configured to monitor connected PD (powered device) status in real time via ping action. Once the PD stops working and responding, the IGS-4215-4P4T will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source and reducing the administrator’s management burden.


  Scheduled Power Recycling
  The IGS-4215-4P4T allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specified time each week. Therefore, it will reduce the chance of IP camera or AP crash resulting from buffer overflow.


  PoE Schedule for Energy Savings
  Under the global trend of energy saving and contributing to environmental protection, the IGS-4215-4P4T can effectively control the power supply besides its capability of giving high watts power. The “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals, which is a powerful function to help SMBs or enterprises save power and budget. It also increases security by powering off PDs that should not be in use during non-business hours.


  Intelligent LED Indicator for Real-time PoE Usage Monitoring
  Via the power usage chart in the web management interface, the IGS-4215-4P4T enables the administrator to monitor the status of the power usage of the connected PDs in real time. Thus, it greatly enhances the management efficiency of the facilities. Moreover, the IGS-4215-4P4T helps users to monitor the current status of PoE power usage easily and efficiently via its advanced LED indication. Called “PoE Power Usage”, the front panel of the IGS-4215-4P4T has four amber LEDs indicating four different PoE power usages, namely 30W, 60W, 90W, and 120W.


  802.3at PoE+ Power and Ethernet Data Transmission Distance Extension
  In the “Extend” operation mode, the IGS-4215-4P4T operates on a per-port basis at 10Mbps duplex operation but can support 20-watt PoE power output over a distance of up to 250 meters overcoming the 100m limit on Ethernet UTP cable. With this brand-new feature, the IGS-4215-4P4T provides an additional solution for 802.3at/af PoE distance extension, thus saving the cost of Ethernet cable installation.


  Environmentally Hardened Design
  With the IP30 aluminum industrial case, the IGS-4215-4P4T provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets without air conditioner. Being able to operate under the temperature range from -40 to 75 degrees C, the IGS-4215-4P4T can be placed in almost any difficult environment.

  Robust Protection
  The IGS-4215-4P4T provides contact discharge of ±6KV DC and air discharge of ±8KV DC for Ethernet ESD protection. It also supports ±4KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.

  IPv6/IPv4 Dual Stack Management
  Supporting both IPv6 and IPv4 protocols, the IGS-4215-4P4T helps the SMBs to step in the IPv6 era with the lowest investment as its network facilities need not be replaced or overhauled if the IPv6 FTTx edge network is set up.


  Robust Layer 2 Features
  The IGS-4215-4P4T can be programmed for advanced switch management functions such as dynamic port link aggregation, 802.1Q VLAN, Q-in-Q VLAN, Multiple Spanning Tree Protocol (MSTP), loop and BPDU guard, IGMP snooping, and MLD snooping. Via the link aggregation, the IGS-4215-4P4T allows the operation of a high-speed trunk to combine with multiple ports such as an 8Gbps fat pipe, and supports fail-over as well.  Also, the Link Layer Discovery Protocol (LLDP) is the Layer 2 protocol included to help discover basic information about neighboring devices on the local broadcast domain.


  Efficient Traffic Control
  The IGS-4215-4P4T is loaded with robust QoS features and powerful traffic management to enhance services to business-class data, voice, and video solutions. The functionality includes broadcast/multicast/unicast storm control, per port bandwidth control, 802.1p/CoS/IP DSCP QoS priority and remarking. It guarantees the best performance in VoIP and video stream transmission, and empowers the enterprises to take full advantage of the limited network resources.

  Powerful Security
  PLANET IGS-4215-4P4T offers comprehensive IPv4/IPv6 Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1X port-based user and device authentication, which can be deployed with RADIUS to ensure the port level security and block illegal users. With the protected port function, communication between edge ports can be prevented to guarantee user privacy. Furthermore, Port security function allows to limit the number of network devices on a given port. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before.

  User-friendly and Secure Management
  For efficient management, the IGS-4215-4P4T is equipped with Command line, Web and SNMP management interfaces.
  With the built-in Web-based management interface, the IGS-4215-4P4T offers an easy-to-use, platform-independent management and configuration facility.
  For text-based management, it can be accessed via Telnet and the console port.
  By supporting the standard SNMP protocol, the switch can be managed via any SNMP-based management software.

  Moreover, the IGS-4215-4P4T offers secure remote management by supporting SSHv2, TLSv1.2 and SNMP v3 connections which encrypt the packet content at each session.

• Category	Specification
  Hardware Specifications
  Copper Ports	Eight 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports (Ports 1 to 8)
  PoE Injector Port	Four ports with 802.3af/802.3at PoE+ injector function (Ports 1 to 4)
  Console	1 x RS232-to-RJ45 serial port (115200, 8, N, 1)
  Reset Button	< 5 sec: System reboot <br> > 5 sec: Factory default

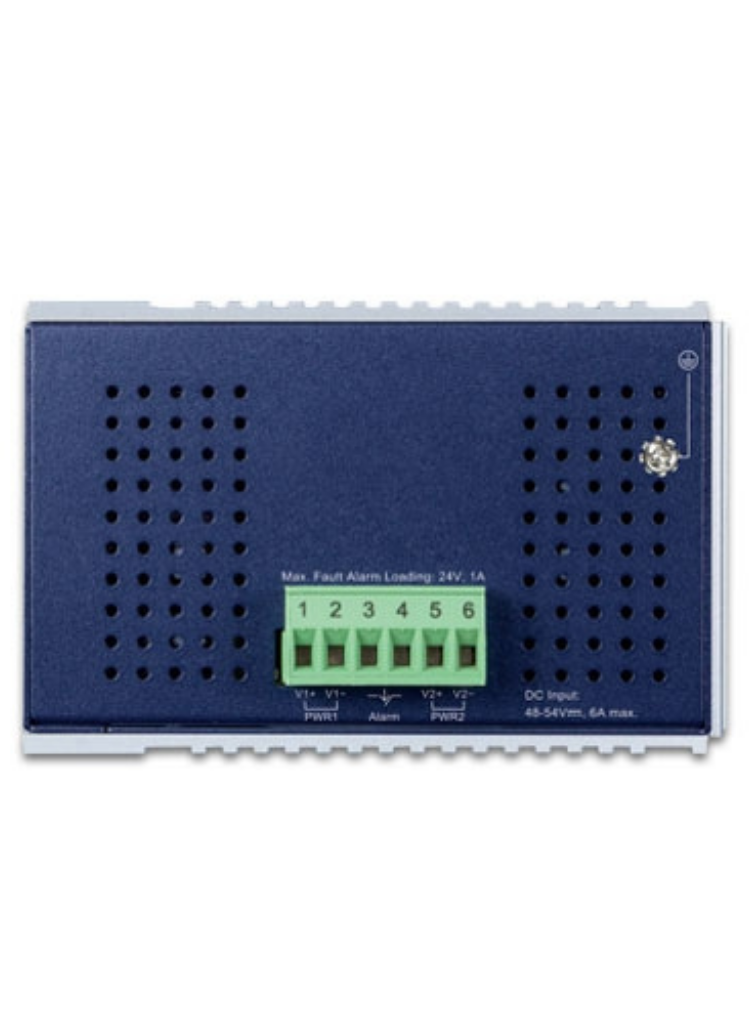

  Connector	Removable 6-pin terminal block <br> Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2
  Alarm	One relay output for power failure. Alarm relay current carry ability: 1A @ 24V AC
  Power Requirements	48~54V DC, 6A (max.) (>51V DC for PoE+ output recommended)
  Power Consumption/ Dissipation	Max. 4.32 watts/14.73 BTU (system on) <br> Max. 151 watts/514.91 BTU (Full loading)
  Dimensions (W x D x H)	76.8 x 107.3 x 152 mm
  Weight	1000g
  Enclosure	IP30 aluminum case
  Installation	DIN-rail kit and wall-mount ear
  ESD Protection	Contact Discharge 6KV DC <br> Air Discharge 8KV DC
  LED	System: <br> Power 1 (Green), Power 2 (Green), Fault Alarm (Red), Ring (Green), R.O.(Green) <br> Per 10/100/1000T RJ45 PoE+ Ports (Port 1Port 4): <br> LNK/ACT (Green), PoE-in-Use (Amber) <br> Per 10/100/1000T RJ45 Ports (Port 5Port 8): <br> LNK/ACT (Green), 1000 LNK (Amber) <br> PoE Usage: <br> 30W, 60W, 90W, 120W (Amber)
  Switching Specifications
  Switch Architecture	Store-and-Forward
  Switch Fabric	16Gbps/non-blocking
  Switch Throughput@64 bytes	11.9Mpps @64 bytes
  MAC Address Table	8K entries
  Shared Data Buffer	4.1 megabits
  Flow Control	IEEE 802.3x pause frame for full duplex <br> Back pressure for half duplex
  Jumbo Frame	10 Kbytes
  Power over Ethernet
  PoE Standard	IEEE 802.3at Power over Ethernet Plus/PSE
  PoE Power Supply Type	End-span
  Power Pin Assignment	1/2(+), 3/6(-)
  PoE Power Output	IEEE 802.3af Standard <br> Per port 48V51V DC, max. 15.4 watts <br> IEEE 802.3at Standard <br> Per port 51V54V DC, max. 36 watts
  PoE Power Budget	Maximum 144W (depending on power input)
  Max. Number of Class 2 PDs	4
  Max. Number of Class 3 PDs	4
  Max. Number of Class 4 PDs	4
  PoE Management Functions
  PoE Management	PD Alive Check, Scheduled Power Recycling, PoE Schedule, PoE Usage Monitoring, PoE Extension
  Enhanced PoE Mode	Standard/Legacy/Force
  Active PoE Device Live Detection	Yes
  PoE Power Recycling	Yes, daily or predefined schedule
  PoE Schedule	4 schedule profiles
  PoE Extend Mode	Yes, max. up to 250 meters
  Layer 2 Functions
  Port Mirroring	TX/RX/Both, Many-to-1 monitor, Up to 4 sessions
  VLAN	802.1Q tagged VLAN, 802.1ad Q-in-Q tunneling (VLAN stacking), Voice VLAN, Protocol VLAN, Private VLAN (Protected port), GVRP, Management VLAN <br> Up to 256 VLAN groups, out of 4094 VLAN IDs
  Link Aggregation	IEEE 802.3ad LACP and static trunk <br> Supports 4 groups with 8 ports per trunk
  Spanning Tree Protocol	IEEE 802.1D Spanning Tree Protocol (STP) <br> IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) <br> IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) <br> STP BPDU Guard, BPDU Filtering and BPDU Forwarding
  IGMP Snooping	IPv4 IGMP snooping v2, v3, IGMP querier <br> Up to 256 multicast groups
  MLD Snooping	IPv6 MLD snooping v2, v3 <br> Up to 256 multicast groups
  Security Functions
  Access Control List	IPv4/IPv6 IP-based ACL/MAC-based ACL, IPv4/IPv6 IP-based ACE/MAC-based ACE <br> Max. 256 ACL entries
  Port Security	IEEE 802.1X – Port-based authentication <br> Built-in RADIUS client to co-operate with RADIUS server <br> RADIUS/TACACS+ user access authentication
  MAC Security	IP-MAC port binding, MAC filter, Static MAC address, max. 256 static MAC entries
  Enhanced Security	DHCP Snooping and DHCP Option82, STP BPDU guard, BPDU filtering and BPDU forwarding, DoS attack prevention, ARP inspection, IP source guard
  Management Functions
  Basic Management Interfaces	RS232 to RJ45 Console, Web browser, Telnet, SNMP v1, v2c
  Secure Management Interfaces	SSHv2, TLS v1.2, SNMP v3
  System Management	Firmware upgrade by HTTP/TFTP protocol through Ethernet network, Configuration upload/download through HTTP/TFTP, LLDP protocol, SNTP, PLANET Smart Discovery Utility, PLANET NMS System/CloudViewer
  Event Management	Remote/Local Syslog, System log
  SNMP MIBs	RFC 1213 MIB-II, RFC 1215 Generic Traps, RFC 1493 Bridge MIB, RFC 2674 Bridge MIB Extensions, RFC 2737 Entity MIB (Version 2), RFC 2819 RMON (1, 2, 3, 9), RFC 2863 Interface Group MIB, RFC 3635 Ethernet-like MIB, RFC 3621 Power Ethernet MIB
  Standards Conformance
  Regulatory Compliance	FCC Part 15 Class A, CE
  Stability Testing	IEC 60068-2-32 (free fall), IEC 60068-2-27 (shock), IEC 60068-2-6 (vibration)
  Standards Compliance	IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX/100BASE-FX, IEEE 802.3ab Gigabit 1000BASE-T, IEEE 802.3x Flow Control and Back Pressure, IEEE 802.3ad Port Trunk with LACP, IEEE 802.1D Spanning Tree Protocol, IEEE 802.1w Rapid Spanning Tree Protocol, IEEE 802.1s Multiple Spanning Tree Protocol, IEEE 802.1p Class of Service, IEEE 802.1Q VLAN Tagging, IEEE 802.1x Port Authentication Network Control, IEEE 802.1ab LLDP, IEEE 802.3af Power over Ethernet, IEEE 802.3at Power over Ethernet Plus, IEEE 802.3az for Energy-Efficient Ethernet
  	RFC 768 UDP, RFC 783 TFTP, RFC 791 IP, RFC 792 ICMP, RFC 2068 HTTP, RFC 1112 IGMP v1, RFC 2236 IGMP v2, RFC 3376 IGMP v3, RFC 2710 MLD v1, RFC 3810 MLD v2, ITU G.8032 ERPS Ring
  Environment
  Operating Temperature	-40 ~ 75 degrees C
  Storage Temperature	-40 ~ 85 degrees C
  Humidity	5 ~ 95% (non-condensing)
