• Planet Industrial 4-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000/2500X SFP Ethernet Switch | IGS-624HPT

  Cost-effective Full PoE+ Power Solution Ideal for Hardened Environment
  Featuring Plug and Play designed to be installed in heavy industrial  environments, the IGS-624HPT is a PLANET Industrial-grade, DIN-rail type Unmanaged Gigabit Ethernet PoE+ Switch with four 10/100/1000BASE-T ports featuring IEEE 802.3at PoE+ and two extra 100/1000/2500BASE-X SFP fiber optic interfaces for uplink connection.

  The IGS-624HPT, designed with redundant power system, is able to operate reliably, stably and quietly in any hardened environment without affecting its performance. It comes with a total power budget of up to 120 watts for different kinds of PoE applications and operating temperature ranging from -40 to 75 degrees C in a rugged IP40 metal housing.


  Convenient and Reliable Power System
  To facilitate the 802.3at PoE+ usage with commonly used 12~54V DC power input for transportation and industrial-level applications, the IGS-624HPT adopts 12~54V DC to 54V power boost technology to solve power source issue but does not require special power supplies. The IGS-624HPT provides an integrated power solution with a wide range of voltages (12~54V DC) for worldwide operability. It also provides dual-redundant, reversible polarity 12~54V DC power supply inputs for high availability applications.


  Adjustable 6-Port Switch Mode or 4 + 2 Fiber Redundant Mode
  Via the built-in DIP switch, the IGS-624HPT can be configured as 6-port Gigabit Ethernet switch or 4+2 fiber redundant mode. With the 6-port Gigabit Switch mode, the IGS-624HPT can operate in Store-and-Forward mechanism with high performance; on the other hand, when in the 4+2 fiber redundant mode, it provides rapid fiber redundancy of link for highly critical Ethernet applications. The redundant mode also supports auto-recovering function. If the destination port of a packet is link down, it will forward the packet to the other port of the backup pair.


  Fiber Optic Link Capability for Flexible Distance Extension
  The additional two mini-GBIC slot built in the IGS-624HPT supports SFP auto-detection and dual speed as it features 100BASE-FX, 1000BASE-SX/LX and 2500BASE-X SFP (Small Form-factor Pluggable) fiber-optic modules, meaning the administrator now can flexibly choose the suitable SFP transceiver according to the transmission distance or the transmission speed required to extend the network efficiently. The distance can be extended from 550 meters to 2 kilometers (multi-mode fiber) and 10/20/40/60/80/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications to uplink to backbone switch and monitoring center in long distance.


  Environmentally Hardened Design
  With the IP40 metal industrial case, the IGS-624HPT provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets without air conditioning. It features a ventilated construction in which a cooling fan is not necessary, thereby making its operation noiseless. Being able to operate under the temperature range from -40 to 75 degrees C, the IGS-624HPT can be placed in almost any difficult environment.

  Robust Protection
  The IGS-624HPT provides contact discharge of ±6KV DC and air discharge of ±8KV DC for Ethernet ESD protection. It also supports ±6KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.

  Intelligent LED Indicator for Real-time PoE Usage

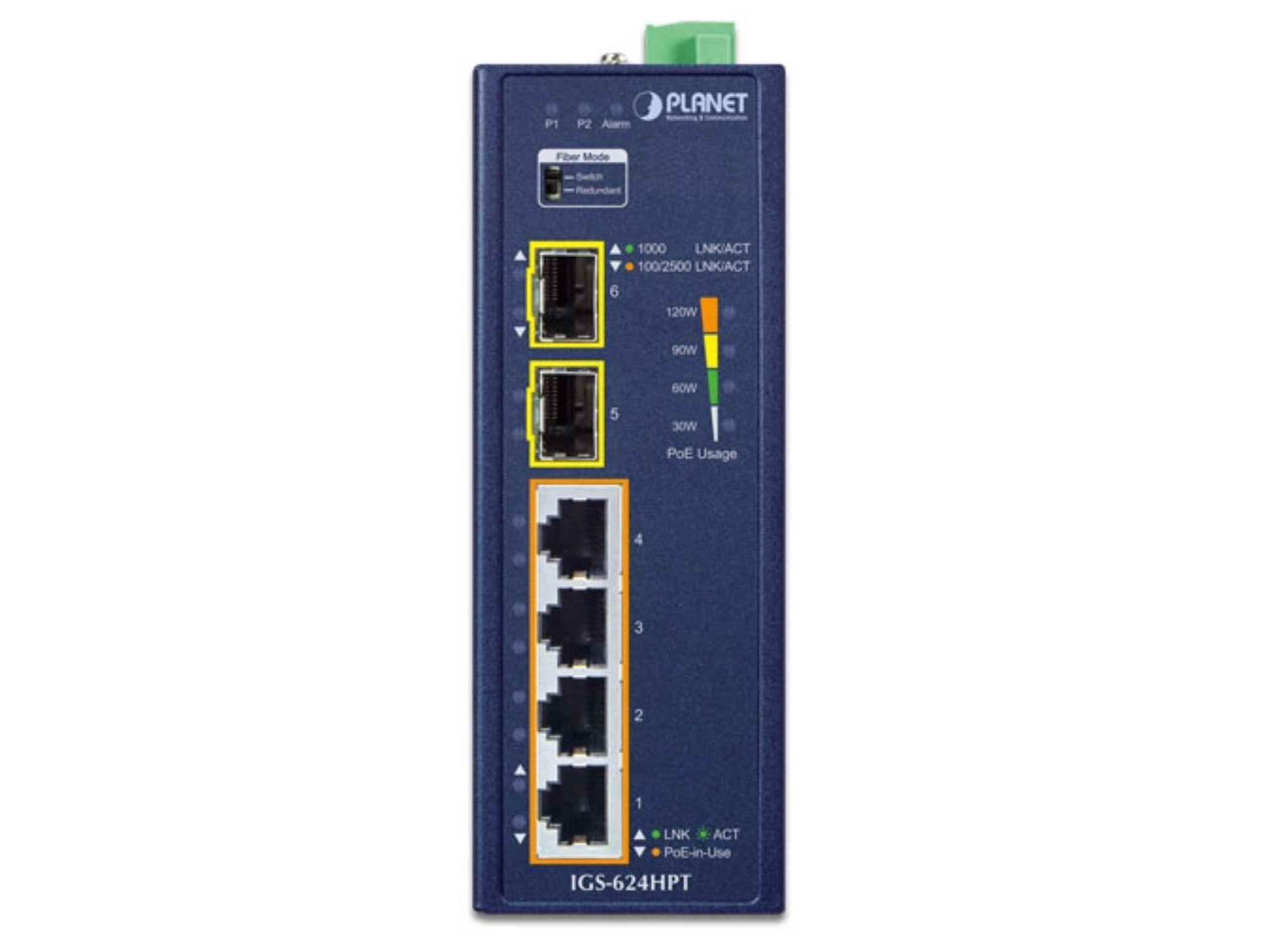

  The IGS-624HPT helps users to monitor current status of PoE power usage easily and efficiently by its advanced LED indication. Called “PoE Power Usage”, the front panel of the Industrial Gigabit PoE+ Switch has four orange LEDs indicating 30W, 60W, 90W and 120W of PoE power usage.


  Flexible and Easy Installation with Limited Space
  The compact-sized IGS-624HPT is specially designed to be installed in a narrow environment, such as wall enclosure. It can be installed by fixed wall mounting or DIN rail, thereby making its usability more flexibly and easily in any space-limited location.

• Category	Specification
  Copper Ports	4 10/100/1000BASET RJ45 auto-MDI/MDI-X ports
  PoE Injector Ports	Four ports with 802.3at PoE+ injector function (Ports 1 to 4)
  SFP Slots (Auto Detection)	Two 100/1000/2500BASE-SX/LX/BX SFP interfaces (Ports 5 to 6)
  DIP Switch	Switch (default)/fiber redundant mode
  Connector	Removable 6-pin terminal block

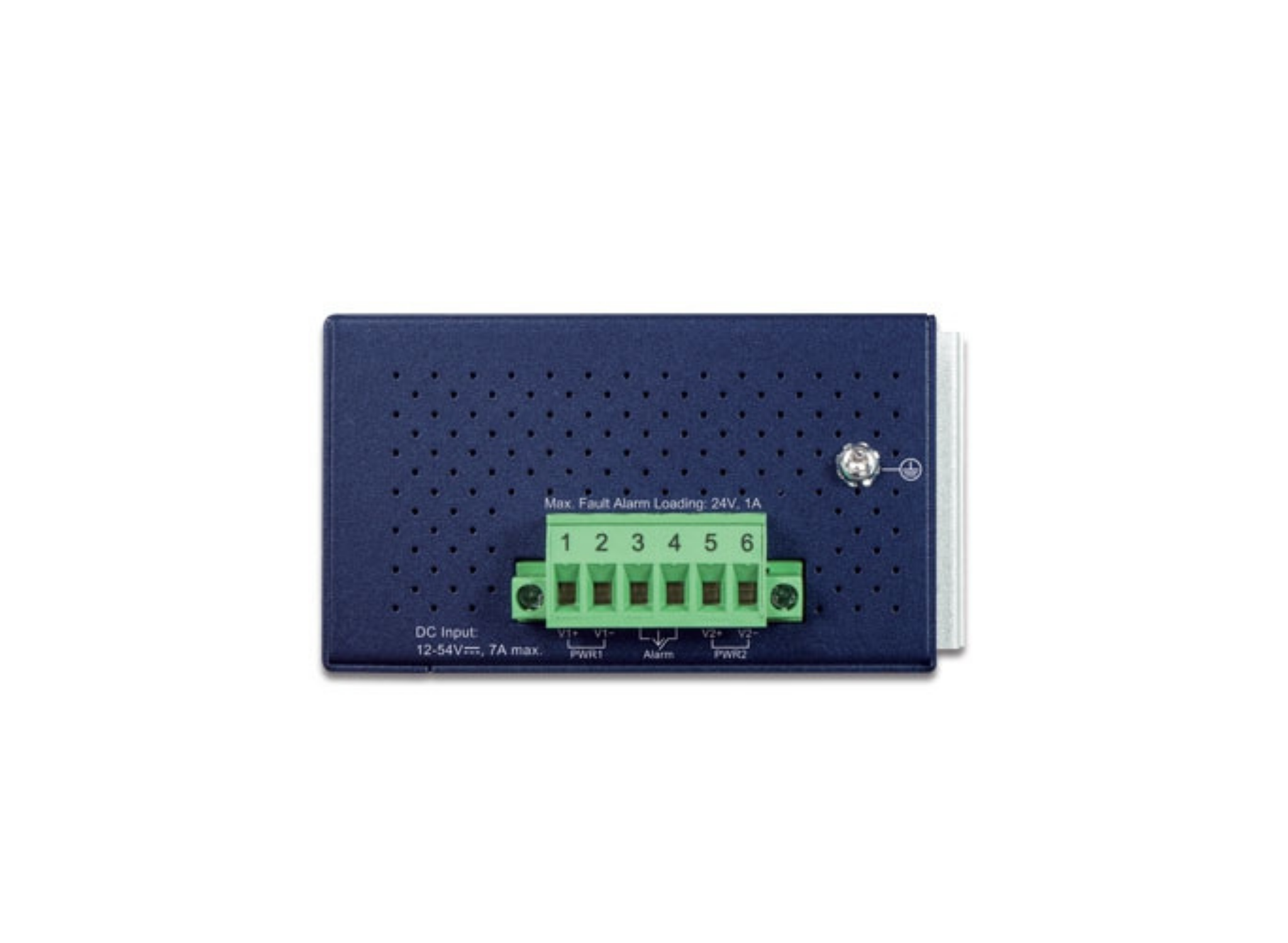

  Pin Assignment	Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2
  Power Requirements	12~54V DC, 7A (max.), Redundant power with reverse polarity protection
  Alarm	Provides one relay output for power failure, Alarm relay current carry ability: 1A @ 24V DC
  Power Consumption	Max. 7.56 watts/25.77BTU (Ethernet Full Loading), Max. 140 watts/477.4BTU (Ethernet + PoE Full Loading)
  Dimensions (W x D x H)	50 x 87 x 135 mm
  Weight	635g
  Enclosure	IP40 metal case
  Installation	DIN-rail kit and wall-mount kit
  ESD Protection	6KV
  LED Indicators	System: Power 1 (Green), Power 2 (Green), Fault Alarm (Red)
  	Per 10/100/1000T RJ45 PoE+ Port (Port 1~Port 4): LNK/ACT (Green), PoE-in-Use (Amber)
  	Per SFP Interface: (Port 5~Port 6): 1000 LNK/ACT (Green), 100/2500 LNK/ACT (Amber)
  	PoE Usage: 30W, 60W, 90W, 120W (Amber)
  Switch Architecture	Store-and-Forward
  Switch Fabric	18Gbps
  Throughput (pps)	13.39Mpps @ 64bytes
  Address Table	4K entries
  Buffer Memory	1M bits on-chip buffer memory
  Jumbo Frame	12.2K bytes
  Flow Control	Back pressure for half duplex, IEEE 802.3x pause frame for full duplex
  PoE Standard	IEEE 802.3at Power over Ethernet Plus/PSE
  PoE Power Supply Type	End-span
  Power Pin Assignment	1/2(+), 3/6(-)
  PoE Power Output	IEEE 802.3af Standard: Per port 48V~51V DC (depending on the power supply), max. 15.4 watts
  	IEEE 802.3at Standard: Per port 51V~54V DC (depending on the power supply), max. 36 watts
  PoE Power Budget	60W @ 12V DC input, 90W @ 24V DC input, 120W @ 48V-54V DC input
  Max. Number of PDs	Class 4 PDs: 4
  Regulatory Compliance	FCC Part 15 Class A, CE
  Stability Testing	IEC 60068-2-32 (free fall), IEC 60068-2-27 (shock), IEC 60068-2-6 (vibration)
  Standards Compliance	IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet, IEEE 802.3ab Gigabit Ethernet, IEEE 802.3az Gigabit SX/LX, IEEE 802.3x Full-Duplex Flow Control, IEEE 802.3at Power over Ethernet Plus PSE, IEEE 802.3af Power over Ethernet Plus, IEEE 802.1p Class of Service
  Temperature	Operating: -4075 degrees C, Storage: -4075 degrees C
  Humidity	Operating: 590% (non-condensing), Storage: 590% (non-condensing)

• Description	Downloads
  Datasheet	Downloads
