• Planet Industrial 4-Port 10/100/1000T 802.3at PoE + 1-Port 10/100/1000T + 1-Port 100/1000X SFP Gigabit Ethernet Switch | IGS-614HPT

  A Perfect Full PoE+ Power Solution Ideal for Hardened Environment
  With Plug and Play design,  PLANET IGS-614HPT Industrial-grade, DIN-rail type Unmanaged Gigabit Ethernet PoE+ Switch, featuring four IEEE 802.3at PoE+ 10/100/1000BASE-T ports, and one extra 10/100/1000BASE-T RJ45 copper port and one 100/1000BASE-X fiber optic interface for uplink connection, allows to automatically detect and configure internal and external peripherals.

  The IGS-614HPT is designed with redundant power system and is able to operate reliably, stably and quietly in any hardened environment without affecting its performance. It comes with a total power budget of up to 120 watts for different kinds of PoE applications and operating temperature ranging from -40 to 75 degrees C in a rugged IP40 metal housing.


  Convenient and Reliable Power System
  To facilitate the 802.3at PoE+ usage with commonly used 12~54V DC power input for transportation and industrial-level applications, the IGS-614HPT adopts 12~54V DC to 54V power boost technology to solve power source issue but does not require special power supplies. The IGS-614HPT provides an integrated power solution with a wide range of voltages (12~54V DC) for worldwide operability. It also provides dual-redundant, reversible polarity 12~54V DC power supply inputs for high availability applications


  Fiber Optic Link Capability for Flexible Distance Extension
  The additional mini-GBIC slot built in the IGS-614HPT supports SFP auto-detection and dual speed as it features 100BASE-FX and 1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber-optic modules, meaning the administrator now can flexibly choose the suitable SFP transceiver according to the transmission distance or the transmission speed required to extend the network efficiently. The distance can be extended from 550 meters to 2 kilometers (multi-mode fiber) and to 10/20/40/60/80/120 kilometers (single-mode fiber or WDM fiber).  They are well suited for applications to uplink to backbone switch and monitoring center in long distance.


  Environmentally Hardened Design
  With the IP40 metal industrial case, the IGS-614HPT provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets without air conditioning. It features a ventilated construction in which a cooling fan is not necessary, thereby making its operation noiseless. Being able to operate under the temperature range from -40 to 75 degrees C, the IGS-614HPT can be placed in almost any difficult environment.

  Robust Protection
  The IGS-614HPT provides contact discharge of ±6KV DC and air discharge of ±8KV DC for Ethernet ESD protection. It also supports ±6KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.

  Intelligent LED Indicator for Real-time PoE Usage

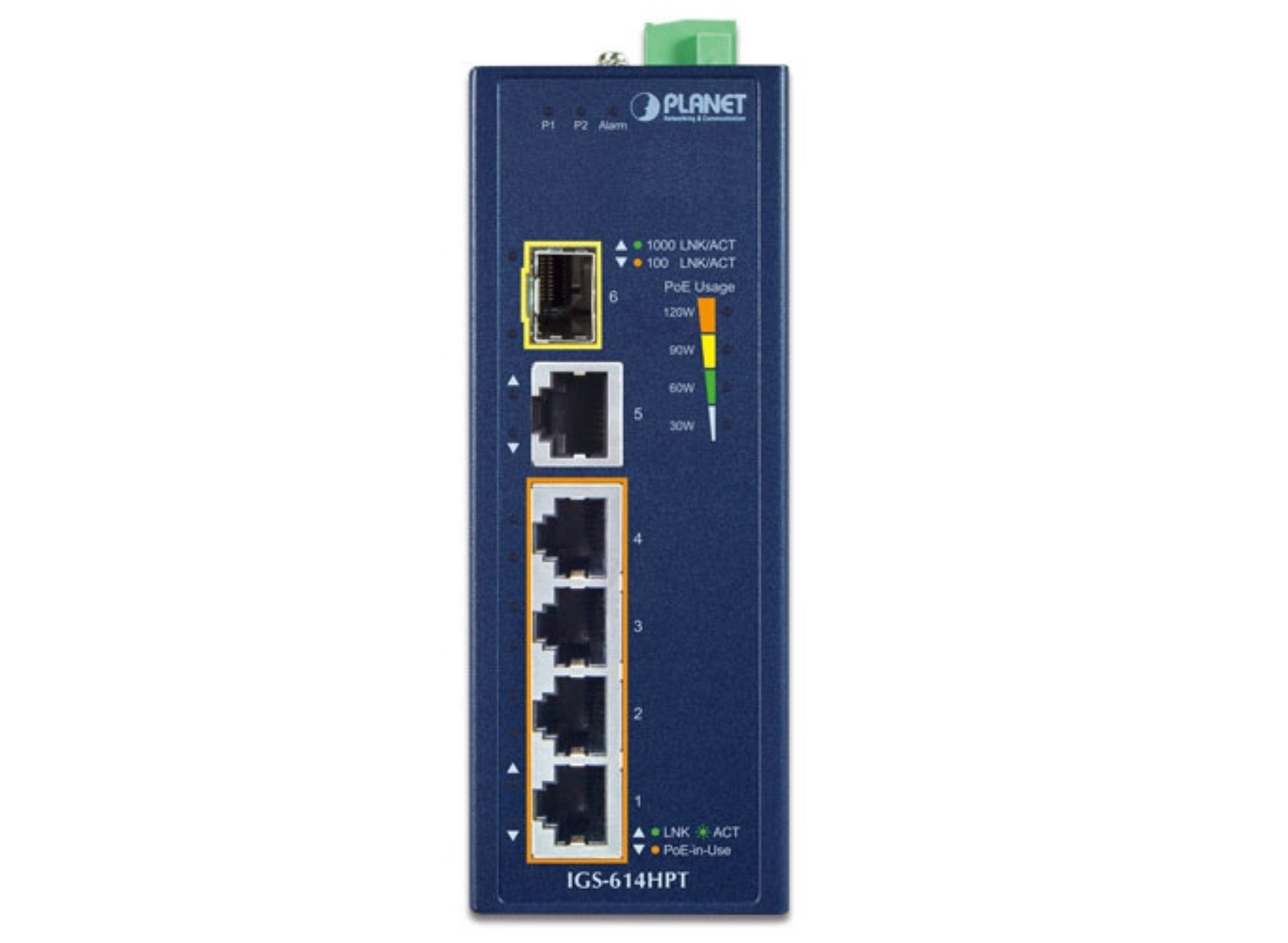

  The IGS-614HPT helps users to monitor current status of PoE power usage easily and efficiently by its advanced LED indication. Called “PoE Power Usage”, the front panel of the Industrial Gigabit PoE+ Switch has four orange LEDs indicating 30W, 60W, 90W and 120W of PoE power usage.


  Flexible and Easy Installation with Limited Space

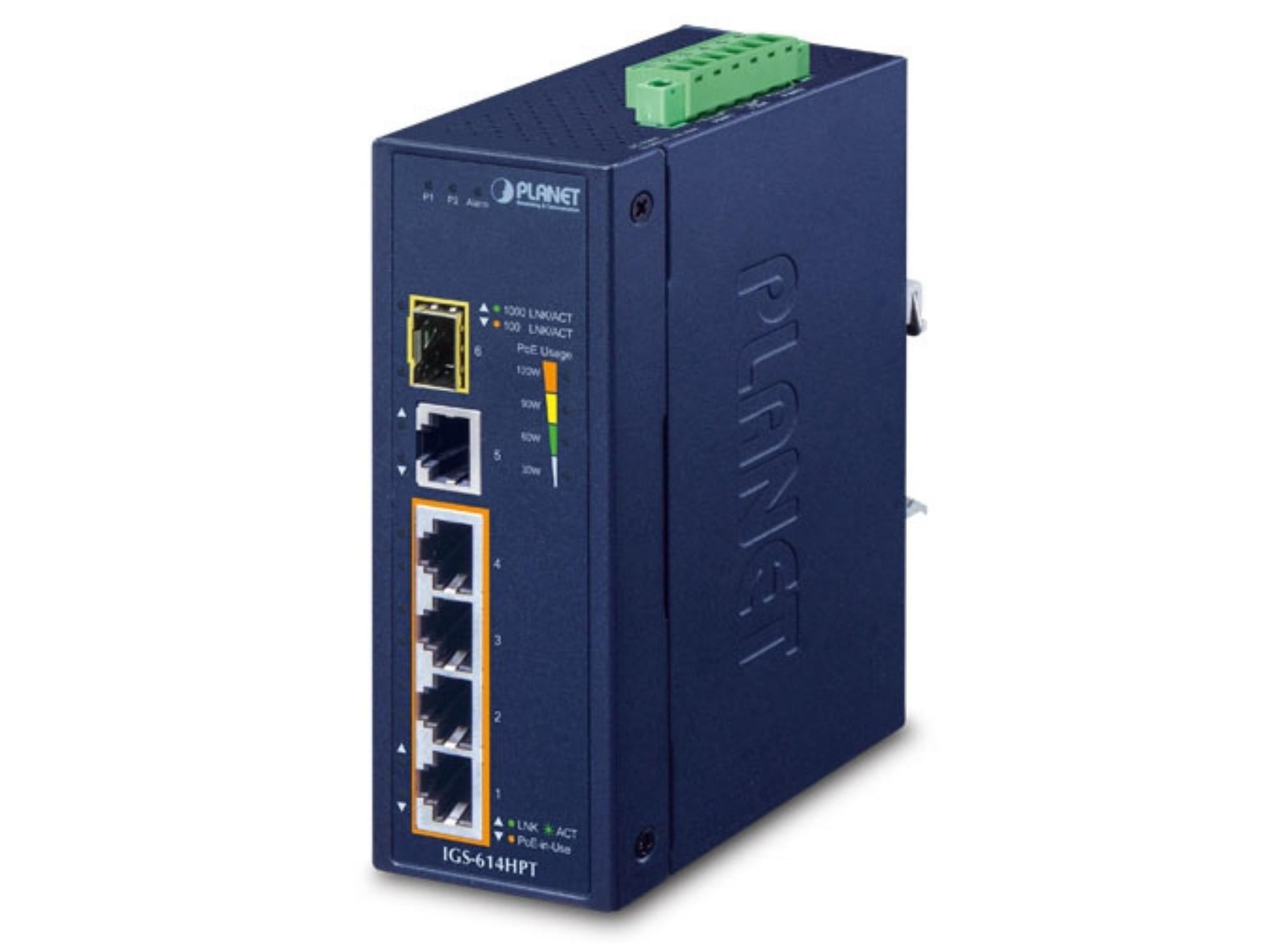

  The compact sized IGS-614HPT is specially designed to be installed in a narrow environment, such as wall enclosure. It can be installed by fixed wall mounting or DIN rail, thereby making its usability more flexible and easier in any space-limited location.

• Category	Specification
  Copper Ports	5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports
  PoE Injector Ports	Four ports with 802.3at PoE+ injector function (Ports 1 to 4)
  SFP Slots	1 1000BASE-SX/LX/BX SFP interface, Compatible with 100BASE-FX SFP
  Connector	Removable 6-pin terminal block

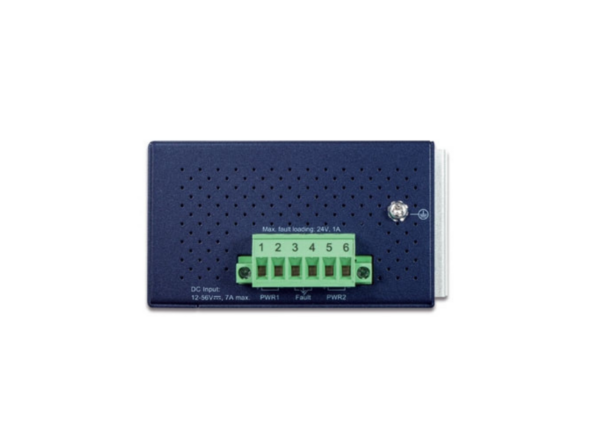

  Pin Assignment	Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2
  Power Requirements	12~54V DC, 7A (max.), Redundant power with reverse polarity protection
  Power Consumption	Max. 5.94 watts/20BTU@54V DC input (System), Max. 139 watts/474BTU (Ethernet + PoE)
  Dimensions (W x D x H)	50 x 86 x 135 mm
  Weight	623g
  Enclosure	IP40 metal case
  Installation	DIN-rail kit and wall-mount kit
  ESD Protection	6KV
  LED Indicators	3 x LED for System and Power: Green (DC Power), Green (DC Power 2), Red (Power Alarm)
  	2 x LED for PoE Copper Port (Ports 1~4): Green (LNK/ACT), Amber (PoE-In-Use)
  	2 x LED for 10/100/1000T Copper Port (Port 5): Green (1000 LNK/ACT), Amber (10/100 LNK/ACT)
  	2 x LED for 100/1000X SFP Interface (Port 6): Green (1000 LNK/ACT), Amber (100 LNK/ACT)
  	4 x LED for PoE Power Usage (W): Amber (30W, 60W, 90W, 120W)
  Switch Architecture	Store-and-Forward
  Switch Fabric	12Gbps
  Throughput (pps)	8.93Mpps @ 64 bytes
  Address Table	2K entries
  Buffer Memory	4M bits on-chip buffer memory
  Jumbo Frame	9K bytes
  Flow Control	Back pressure for half duplex, IEEE 802.3x pause frame for full duplex
  PoE Standard	IEEE 802.3at Power over Ethernet Plus/PSE
  PoE Power Supply Type	End-span
  Power Pin Assignment	1/2(+), 3/6(-)
  PoE Power Output	Per port 54V DC, max. 36 watts
  PoE Power Budget	60W @ 12V DC input, 90W @ 24V DC input, 120W @ 48V-54V DC input
  Max. Number of PDs	Class 2 PDs: 4, Class 3 PDs: 4, Class 4 PDs: 4
  Regulatory Compliance	FCC Part 15 Class A, CE
  Stability Testing	IEC 60068-2-32 (free fall), IEC 60068-2-27 (shock), IEC 60068-2-6 (vibration)
  Standards Compliance	IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet, IEEE 802.3ab Gigabit Ethernet, IEEE 802.3z Gigabit SX/LX, IEEE 802.3x Full-Duplex Flow Control, IEEE 802.3az Energy Efficient Ethernet (EEE), IEEE 802.3at Power over Ethernet Plus PSE, IEEE 802.3af Power over Ethernet Plus, IEEE 802.1p Class of Service
  Temperature	Operating: -4075 degrees C, Storage: -4075 degrees C
  Humidity	Operating: 590% (non-condensing), Storage: 590% (non-condensing)
