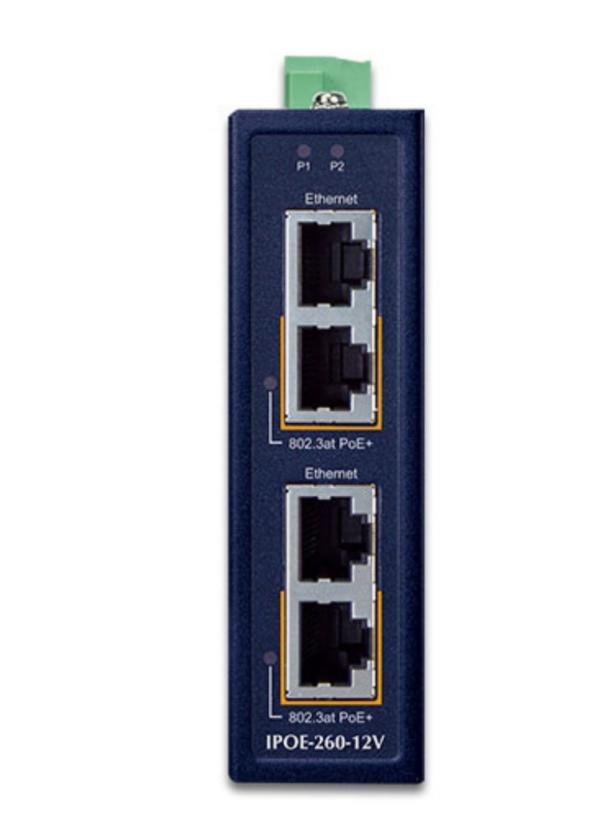

• Planet Industrial 2-port 10/100/1000T 802.3at PoE+ Injector Hub | IPOE-260

  Advanced 802.3at PoE+ Network Solution
  PLANET IPOE-260 2-Port, Mid-span Industrial IEEE 802.3at Power over Ethernet Plus Injector Hub series provides a maximum of up to 36 watts of power output over Ethernet cables. It frees the security IP camera and wireless AP deployment from restrictions of power outlet locations and the additional AC wiring. It thus reduces cables and eliminates the need for electrical outlets on the wall or ceiling, and most of all, it reduces installation time.

  The IPOE-260 series includes two models: IPOE-260 and IPOE-260-12V.


  Quick and Easy High Power PoE Network Deployment
  The IPOE-260 series can deliver 36-watt 54V DC power over Cat. 5/5e/6 Ethernet cables which allow data and power to transmit simultaneously through the cable between the injector (IPOE-260 series) and PoE PD (powered device) or PoE splitter (IPOE-162S). The maximum distance between the Injector and Splitter is 100 meters. The IPOE-260 series is also compatible with IEEE 802.3af PoE PD or PoE splitter and provides a maximum of up to 15.4-watt power output. With Industrial IEEE 802.3at Power over Ethernet Plus devices installed, the system administrator only has to use one single RJ45 Ethernet cable to carry both power and data to each device. It would make the network deployment easier and more reliable.

  Convenient and Reliable Power System
  To facilitate the 802.3at  PoE usage with commonly used 12~54V DC power input for transportation and industrial-level applications, the IPOE-260-12V adopts 12~54V DC to 54V power boost technology to solve power source issue but does not require special power supplies. Its wide-ranging voltages design is suitable for worldwide operability with high availability applications requiring dual or backup power inputs.


  Environmentally Hardened Design for Industrial PoE Networks
  The IPOE-260 series is specifically designed with durable components and strong housing case to operate reliably in electrically harsh and climatically demanding environments like plant floors or curbside traffic control cabinets. The IPOE-260 series is packaged in a compact, IP30 rugged case that allows either DIN-rail or wall mounting to have the efficient use of cabinet space. It is ideal for service providers, campuses and public areas to deploy PoE wireless access points, IP cameras or IP phones in any places easily and efficiently with cost-effectiveness. It can also operate in a wide temperature range of -40 to 75 degrees C, so it can be placed in almost any location.

• IPOE-260 Series	Details
  Model	IPOE-260, IPOE-260-12V
  Hardware Specifications
  Copper Ports	2 pair 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports:
  	Data input port 1 and PoE output port 1
  	Data input port 2 and PoE output port 2
  Connector	Removable 4-pin terminal block
  	Pin 1/2 for Power 1; Pin 3/4 for Power 2
  LED Indicator	System: Power 1 (Green), Power 2 (Green)
  	PoE Port: 802.3at PoE+ x 1 (Green + Orange)
  Network Cable	Twisted-pair cable up to 100 meters (328ft)
  	10BASE-T: 4-pair UTP Cat. 3, 4, 5, 5e, 6
  	100BASE-TX: 4-pair UTP Cat. 5, 5e, 6
  	1000BASE-T: 4-pair UTP Cat. 5e, 6
  Data Rate	10/100/1000Mbps
  Power Requirements	IPOE-260: 48~56V DC, redundant power with reverse polarity protection function.
  	IPOE-260-12V: 12~56V DC, redundant power with reverse polarity protection function.
  Power Consumption (Ethernet Full Loading)
  IPOE-260	IPOE-260-12V
  Max. 2 watts/6.8 BTU (Power on without any connection)	Max. 4 watts/13.6 BTU (Power on without any connection)
  Max. 80 watts/272.9 BTU (Full loading with PoE function)	Max. 80 watts/272.9 BTU (Full loading with PoE function)
  Dimensions (W x D x H)	30 x 70 x 105 mm
  Weight	280g
  Enclosure	IP30 metal case
  Installation	DIN-rail, wall-mount or side wall-mount design
  ESD Protection	6KV
  EFT Protection	6KV
  Power over Ethernet
  PoE Standard	IEEE 802.3at Power over Ethernet Plus / mid-span PSE
  PoE Power Output	IPOE-260: 48V DC input: Per PoE port max. 32 watts, 56V DC input: Per PoE port max. 36 watts
  	IPOE-260-12V: Per port 54V DC, max. 36 watts
  PoE Power Supply Type	Mid-span
  Power Pin Assignment	4/5 (+), 7/8 (-)
  PoE Power Budget (max.)	IPOE-260: 72 watts@48~56V DC input
  	IPOE-260-12V: 60W @1223V DC input, 72W @2456V DC input
  Number of devices that can be powered	2
  Standards Conformance
  Regulatory Compliance	FCC Part 15 Class A, CE
  Stability Testing	IEC 60068-2-32 (free fall)
  	IEC 60068-2-27 (shock)
  	IEC 60068-2-6 (vibration)
  Standards Compliance	IEEE 802.3 Ethernet
  	IEEE 802.3u Fast Ethernet
  	IEEE 802.3ab Gigabit Ethernet
  	IEEE 802.3af Power over Ethernet
  	IEEE 802.3at Power over Ethernet Plus
  Environment
  Temperature	Operating: -40~75 degrees C
  	Storage: -40~75 degrees C
  Humidity	Operating: 5~90% (non-condensing)
  	Storage: 5~90% (non-condensing)
