• Planet Industrial 16-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP Wall-mounted Managed Switch | WGS-4215-16P2S

  Easily-deployed and Expanded Network
  Designed to be installed in a wall enclosure or simply mounted on a wall in any convenient location, PLANET WGS-4215-16P2S, an innovative, Industrial 16-port 10/100/1000T 802.3at PoE + 2-port 100/1000X SFP Wall-mounted Managed Switch, offers IPv6/IPv4 dual stack management, intelligent Layer 2 management functions, and user-friendly interface. The WGS-4215-16P2S is able to operate reliably, stably and quietly in any environment without affecting its performance. With a total power budget of up to 240 watts for different kinds of PoE applications and featuring ultra networking speed and operating temperature ranging from -10 to 60 degrees C in a flat but rugged IP30 metal housing, the WGS-4215-16P2S is an ideal solution to meet the demand for the following network applications:

  Building/Home automation network
  Internet of things (IoT)
  IP surveillance
  Wireless LAN


  Cybersecurity Network Solution to Minimize Security Risks
  The WGS-4215-16P2S supports SSHv2 and TLS protocols to provide strong protection against advanced threats. It includes a range of cybersecurity features such as DHCP Snooping, IP Source Guard, dynamic ARP Inspection Protection, 802.1x port-based network access control, RADIUS and TACACS+ user accounts management, SNMPv3 authentication, and so on to complement it as an all-security solution.


  Redundant Ring, Fast Recovery for Critical Network Applications
  The WGS-4215-16P2S supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP) into customer’s network to enhance system reliability and uptime in various environments.

  Built-in Unique PoE Functions for Powered Devices Management
  As it is the managed PoE switch for surveillance, wireless and VoIP networks, the WGS-4215-16P2S features the following special PoE management functions:

  PD alive check
  Scheduled power recycling
  PoE schedule
  PoE usage monitoring
  PoE extension

  Intelligent Powered Device Alive Check
  The WGS-4215-16P2S can be configured to monitor connected PD (powered device) status in real time via ping action. Once the PD stops working and responding, the WGS-4215-16P2S will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source and reducing administrator management burden.


  Scheduled Power Recycling
  The WGS-4215-16P2S allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specific time each week. Therefore, it will reduce the chance of IP camera or AP crash resulting from buffer overflow.


  PoE Schedule for Energy Savings
  Under the trend of energy saving worldwide and contributing to environmental protection, the WGS-4215-16P2S can effectively control the power supply besides its capability of giving high watts power. The “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and budget. It also increases security by powering off PDs that should not be in use during non-business hours.


  802.3at PoE+ Power and Ethernet Data Transmission Distance Extension
  In the “Extend” operation mode, the WGS-4215-16P2S operates on a per-port basis at 10Mbps duplex operation but can support 20-watt PoE power output over a distance of up to 250 meters overcoming the 100m limit on Ethernet UTP cable. With this brand-new feature, the WGS-4215-16P2S provides an additional solution for 802.3at/af PoE distance extension, thus saving the cost of Ethernet cable installation.

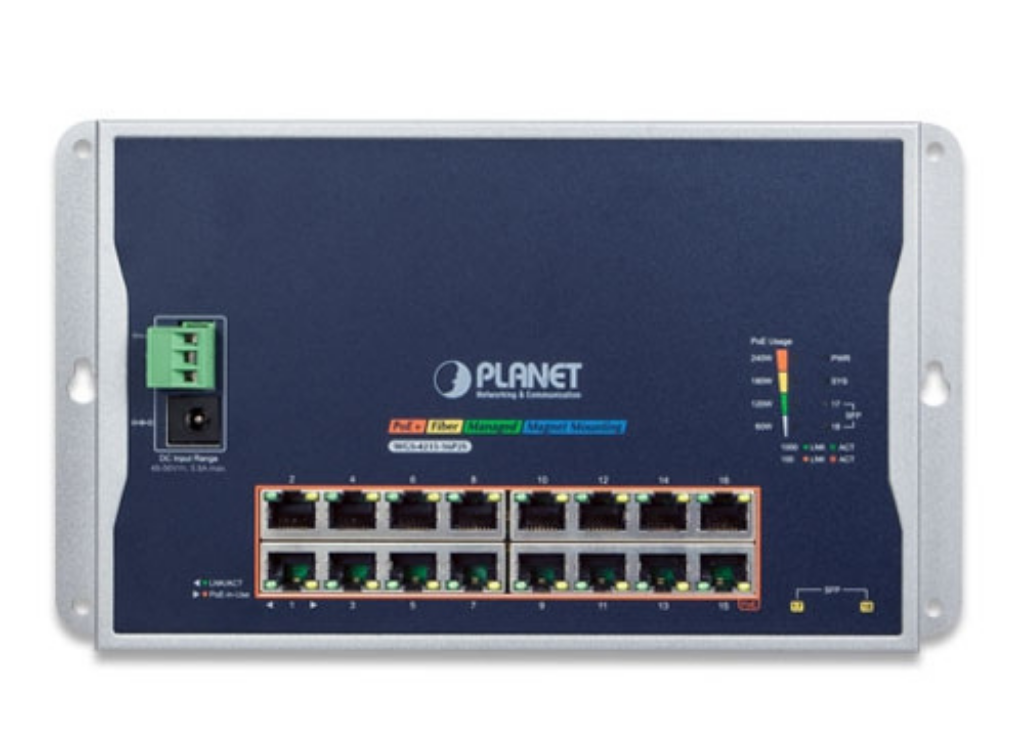

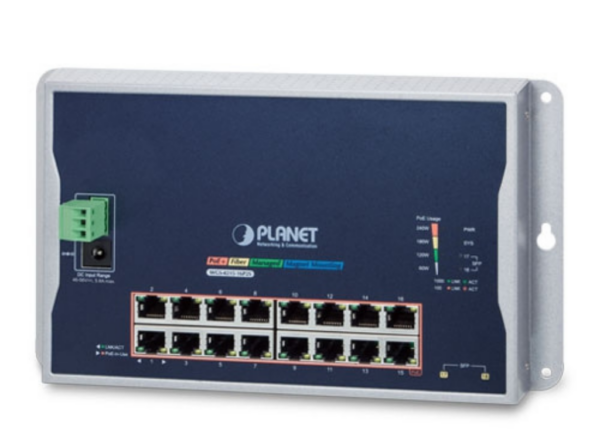

  Innovative Wall-mount Installation
  The WGS-4215-16P2S is specially designed to be installed in a narrow environment, such as wall enclosure. The compact, flat and wall-mounted design fits easily in any space-limited location. It adopts the user-friendly “Front Access” design, making the installing, cable wiring, LED monitoring and maintenance of the WGS-4215-16P2S placed in an enclosure very convenient for technicians. The WGS-4215-16P2S can be installed by fixed wall mounting, magnetic wall mounting or DIN rail, thereby making its usability more flexible.


  Environmentally Hardened Design
  With IP30, flat but rugged metal housing protection, the WGS-4215-16P2S provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets without air conditioning. Being able to operate under the temperature range from -10 to 60 degrees C, the WGS-4215-16P2S can be placed in almost any difficult environment.


  IPv6/IPv4 Dual Stack Management
  Supporting both IPv6 and IPv4 protocols, the WGS-4215-16P2S helps the SMBs to step in the IPv6 era with the lowest investment as its network facilities need not be replaced or overhauled if the IPv6 FTTx edge network is set up.


  Robust Layer 2 Features
  The WGS-4215-16P2S can be programmed for advanced switch management functions such as dynamic port link aggregation, 802.1Q VLAN, Q-in-Q VLAN, Multiple Spanning Tree Protocol (MSTP), Loop and BPDU Guard, IGMP Snooping, and MLD Snooping. Via the link aggregation, the WGS-4215-16P2S allows the operation of a high-speed trunk to combine with multiple ports such as a 4Gbps fat pipe, and supports fail-over as well. Also, the Link Layer Discovery Protocol (LLDP) is the Layer 2 protocol included to help discover basic information about neighboring devices on the local broadcast domain.


  Efficient Traffic Control
  The WGS-4215-16P2S is loaded with robust QoS features and powerful traffic management to enhance services to business-class data, voice, and video solutions. The functionality includes broadcast/multicast/unicast storm control, per port bandwidth control, 802.1p/CoS/IP DSCP QoS priority and remarking. It guarantees the best performance in VoIP and video stream transmission, and empowers the enterprises to take full advantage of the limited network resources.

  Powerful Security
  PLANET WGS-4215-16P2S offers comprehensive IPv4/IPv6 Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1X port-based user and device authentication, which can be deployed with RADIUS to ensure the port level security and block illegal users. With the protected port function, communication between edge ports can be prevented to guarantee user privacy. Furthermore, Port security function allows to limit the number of network devices on a given port. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before.

  Friendly and Secure Management
  For efficient management, the WGS-4215-16P2S is equipped with Command line, Web and SNMP management interfaces.

  With the built-in Web-based management interface, the WGS-4215-16P2S offers an easy-to-use, platform-independent management and configuration facility.
  For text-based management, it can be accessed via Telnet and the console port.
  By supporting the standard SNMP protocol, the switch can be managed via any SNMP-based management software.
  Moreover, the WGS-4215-16P2S offers secure remote management by supporting SSHv2, TLSv1.2 and SNMP v3 connections which encrypt the packet content at each session.


  Flexibility and Long-distance Extension Solution
  The two mini-GBIC slots built in the WGS-4215-16P2S support SFP auto-detection and dual speed as it features 100BASE-FX and 1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber transceivers to uplink to backbone switch and monitoring center in long distance. The distance can be extended from 550 meters to 2 kilometers (multi-mode fiber) and to 10/20/40/60/80/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.

  Intelligent SFP Diagnosis Mechanism
  The WGS-4215-16P2S supports SFP-DDM (Digital Diagnostic Monitor) function that can easily monitor real-time parameters of the SFP for network administrator, such as optical output power, optical input power, temperature, laser bias current and transceiver supply voltage.

• Category	Specification
  Hardware Specifications
  Copper Ports	Sixteen 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
  PoE Inject Ports	Sixteen with 802.3at PoE+ injector function (Ports 1 to 16)
  SFP/mini-GBIC Ports	Two 100/1000BASE-X SFP interfaces, supporting 100/1000Mbps dual mode
  Reset Button	< 5 sec: System reboot <br> > 5 sec: Factory default
  Connector	Removable 3-pin terminal block for power input <br> Pin 1/2 for Power (Pin 1: V+ / Pin 2: V-) <br> Pin 3 for earth ground <br> DC power jack with 2.1mm central pole
  Power Requirements	4854V DC, 5.8A (max.) terminal block power input <br> 4854V DC, 5.8A (max.) DC jack power input
  Note	The two power input interfaces don’t support power redundant function.
  Power Consumption/ Dissipation	Max. 276 watts/941 BTU
  Dimensions (W x D x H)	245 x 140 x 24.4 mm
  Weight	929g
  Enclosure	IP30 metal case

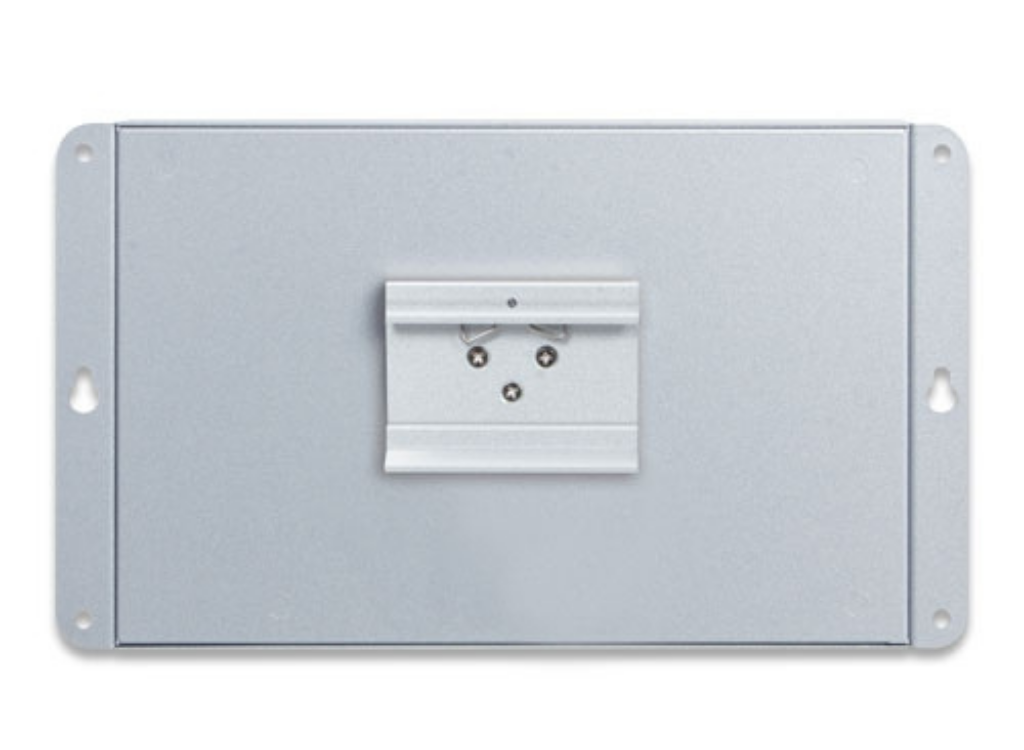

  Installation	Fixed wall mount, magnetic wall mount or DIN rail
  ESD Protection	Contact Discharge 6KV DC <br> Air Discharge 8KV DC
  LED	Power LED: <br> Power (Green) <br> PoE Port (Ports 1 to 16): <br> PoE-in-Use (Amber) <br> LNK/ACT (Green) <br> 100/1000X SFP Ports (Port 17 to 18): <br> 1000 LNK/ACT (Green) <br> 100 LNK/ACT (Amber)
  Switch Specifications
  Switch Architecture	Store-and-Forward
  Switch Fabric	36Gbps/non-blocking
  Switch Throughput@64 bytes	26.78Mpps @64 bytes
  MAC Address Table	8K entries
  Shared Data Buffer	4.1 megabits
  Flow Control	IEEE 802.3x pause frame for full duplex <br> Back pressure for half duplex
  Jumbo Frame	10Kbytes
  Power over Ethernet
  PoE Standard	IEEE 802.3af/802.3at Power over Ethernet PSE
  PoE Power Supply Type	End-span
  PoE Power Output	IEEE 802.3af Standard: <br> Per port 48V54V DC (depending on the power supply), max. 15.4 watts <br> IEEE 802.3at Standard: <br> Per port 50V54V DC (depending on the power supply), max. 36 watts
  Power Pin Assignment	1/2(+), 3/6(-)
  PoE Power Budget	240 watts (depending on power input)
  Max. Number of Class 2 PDs	16
  Max. Number of Class 3 PDs	16
  Max. Number of Class 4 PDs	9
  PoE Management Functions
  PoE Management	PD Alive Check <br> Scheduled Power Recycling <br> PoE Schedule <br> PoE Usage Monitoring <br> PoE Extension
  Enhanced PoE Mode	Standard/Legacy/Force
  Active PoE Device Live Detection	Yes
  PoE Power Recycling	Yes, daily or predefined schedule
  PoE Schedule	4 schedule profiles
  PoE Extend Mode	Yes, max. up to 250 meters
  Layer 2 Functions
  Port Mirroring	TX/RX/Both <br> Many-to-1 monitor <br> Up to 4 sessions
  VLAN	802.1Q tagged VLAN <br> 802.1ad Q-in-Q tunneling (VLAN stacking) <br> Voice VLAN <br> Protocol VLAN <br> Private VLAN (Protected port) <br> GVRP <br> Management VLAN <br> Up to 256 VLAN groups, out of 4094 VLAN IDs
  Link Aggregation	IEEE 802.3ad LACP and static trunk <br> Supports 8 groups with 8 ports per trunk
  Spanning Tree Protocol	IEEE 802.1D Spanning Tree Protocol (STP) <br> IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) <br> IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) <br> STP BPDU guard, BPDU filtering and BPDU forwarding
  IGMP Snooping	IPv4 IGMP (v2/v3) snooping <br> IGMP querier <br> Up to 256 multicast groups
  MLD Snooping	IPv6 MLD (v1/v2) snooping, up to 256 multicast groups
  QoS	8 mapping IDs to 8 level priority queues <br> Port Number <br> 802.1p priority <br> DSCP/IP precedence of IPv4/IPv6 packets <br> Traffic classification based, strict priority and WRR <br> Ingress/Egress Rate Limit per port bandwidth control
  Ring	Supports ERPS, and complies with ITU-T G.8032 <br> Recovery time < 450ms
  Security Functions
  Access Control List	IPv4/IPv6 IP-based ACL/MAC-based ACL <br> IPv4/IPv6 IP-based ACE/MAC-based ACE <br> Max. 256 ACL entries
  Port Security	IEEE 802.1X – Port-based authentication <br> Built-in RADIUS client to co-operate with RADIUS server <br> RADIUS/TACACS+ user access authentication
  MAC Security	IP-MAC port binding <br> MAC filter <br> Static MAC address, max. 256 static MAC entries
  Enhanced Security	DHCP Snooping and DHCP Option82 <br> STP BPDU guard, BPDU filtering and BPDU forwarding <br> DoS attack prevention <br> ARP inspection <br> IP source guard
  Management Functions
  Basic Management Interfaces	Web browser <br> Telnet <br> SNMP v1, v2c
  Secure Management Interfaces	SSHv2, TLSv1.2, SNMPv3
  Switch Management	Firmware upgrade by HTTP/TFTP protocol through Ethernet network <br> Configuration upload/download through HTTP/TFTP <br> LLDP protocol <br> SNTP <br> PLANET Smart Discovery Utility <br> PLANET NMS System/CloudViewer
  Event Management	Remote/Local Syslog <br> System log
  SNMP MIBs	RFC 1213 MIB-II <br> RFC 1215 Generic Traps <br> RFC 1493 Bridge MIB <br> RFC 2674 Bridge MIB Extensions <br> RFC 2737 Entity MIB (Version 2) <br> RFC 2819 RMON (1, 2, 3, 9) <br> RFC 2863 Interface Group MIB <br> RFC 3635 Ethernet-like MIB <br> RFC 3621 Power Ethernet MIB
  Standards Conformance
  Regulatory Compliance	FCC Part 15 Class A, CE
  Stability Testing	IEC 60068-2-32 (free fall) <br> IEC 60068-2-27 (shock) <br> IEC 60068-2-6 (vibration)
  Standards Compliance	IEEE 802.3 10BASE-T <br> IEEE 802.3u 100BASE-TX/100BASE-FX <br> IEEE 802.3z Gigabit SX/LX <br> IEEE 802.3ab Gigabit 1000BASE-T <br> IEEE 802.3x Flow Control and Back Pressure <br> IEEE 802.3ad Port Trunk with LACP <br> IEEE 802.1D Spanning Tree Protocol <br> IEEE 802.1w Rapid Spanning Tree Protocol <br> IEEE 802.1s Multiple Spanning Tree Protocol <br> IEEE 802.1p Class of Service <br> IEEE 802.1Q VLAN Tagging <br> IEEE 802.1x Port Authentication Network Control <br> IEEE 802.1ab LLDP <br> IEEE 802.3af Power over Ethernet <br> IEEE 802.3at Power over Ethernet Plus <br> IEEE 802.3az Energy Efficient Ethernet (EEE) <br> RFC 768 UDP <br> RFC 783 TFTP <br> RFC 793 TCP <br> RFC 791 IP <br> RFC 792 ICMP <br> RFC 2068 HTTP <br> RFC 1112 IGMP v1 <br> RFC 2236 IGMP v2 <br> RFC 3376 IGMP v3 <br> RFC 2710 MLD v1 <br> RFC 3810 MLD v2 <br> ITU G.8032 ERPS Ring
  Environment
  Operating	Temperature: -10 ~ 60 degrees C <br> Relative Humidity: 5 ~ 95% (non-condensing)
  Storage	Temperature: -40 ~ 85 degrees C <br> Relative Humidity: 5 ~ 95% (non-condensing)
  Accessories
  Standard Accessories	Quick Installation Guide x 1 <br> 3-pin Terminal Block Connector x 1 <br> Wall-mounted Kit x 1 <br> DIN-rail Kit x 1 <br> Magnet Kit x 1 <br> RJ45 Dust Cap x 16 <br> SFP Dust Cap x 2
