• Planet 8-Port 10/100TX Industrial Fast Ethernet Switch | ISW-801T

  Slim Type with More Practicability and Convenience
  PLANET ISW-801T Industrial 8-Port 10/100TX Fast Ethernet Switch is tailored for industrial applications, featuring 8 auto-negotiation 10/100Mbps ports, an IP30-rated rugged yet compact case, and a versatile redundant power system (12~48V DC or 24V AC). The ISW-801T operates efficiently in harsh environments, with an operating temperature range of -40 to 75 degrees Celsius.

  In response to the growing demand for IIoT (Industrial Internet of Things) infrastructure, the ISW-801T is designed for easy deployment of industrial networks with its Plug and Play capability. Furthermore, it ensures stable and reliable fast data and power transmission. The ISW-801T also supports PROFINET traffic pass-through with QoS, making it an ideal choice for integrating with industrial automation systems and enhancing communication between devices in a factory setting.


  PROFINET Traffic Pass-through with QoS
  The ISW-801T features a brand-new function that enhances support for recognizing the PROFINET traffic for higher delivery priority. Once the ISW-801T receives the PROFINET traffic, it will forward the PROFINET traffic first, and then handle other Ethernet traffic. With this enhanced function, the ISW-801T will become the ideal Industrial Unmanaged Switch for the faster PROFINET traffic.


  Low Power Consumption for Green Networking

  The ISW-801T, adopting the advanced green networking technology, provides the link-on cable length power saving and link-down power saving methods. These features make the ISW-801T consume very low power in full load operation mode, which helps conserve energy effectively but maintains high performance efficiently. With the Auto Power Saving and IEEE 802.3az Energy Efficient Ethernet (EEE) Protocol, the ISW-801T can automatically detect cable link status and network traffic, and thus is able to adjust power consumption accordingly. It enables the switch to consume less power when it is less active.

  Robust Protection
  The ISW-801T provides contact discharge of ±6KV DC and air discharge of ±8KV DC for Ethernet ESD protection. It also supports ±4KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.

  Robust Switch Performance
  The ISW-801T offers a high-performance switch architecture. With the 8 10/100Mbps Fast Ethernet ports providing non-blocking switch fabric and wire-speed throughput as high as 1.6Gbps and the 1K MAC address table, the ISW-801T can perform wire-speed packet transfer without the risk of packet loss. The flow control function enables the ISW-801T to provide fast and reliable data transfer.

  Plug and Play
  All of the RJ45 copper interfaces in the ISW-801T support 10/100Mbps auto negotiation for optimal speed detection through RJ45 Category 5, 5e, 6, 6a or 7 cables. The standard auto-MDI/MDI-X support can detect the type of connection to any Ethernet device without requiring special straight-through or crossover cables.

  Flexible and Easy Installation with Limited Space
  The compact-sized ISW-801T is specially designed to be installed in a narrow environment, such as wall enclosure. It can be installed by fixed wall mounting or DIN rail, thereby making its usability more flexible and easier in any space-limited location.


  Applications

  Designed for Heavy Industries
  The ISW-801T’s IP30-rated metal case is particularly designed for heavy industries, such as factories, harbors, warehouses, and more. When installed at these establishments, it can enhance the work performance of these establishments by speedily transferring incoming and outgoing data.


  Key Features

  Physical Port
  8-port 10/100BASE-TX RJ45 with auto-MDI/MDI-X function

  Layer 2 Features
  Complies with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX Ethernet standard
  Supports auto-negotiation and 10/100Mbps half/full duplex mode
  PROFINET traffic pass-through with QoS
  Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
  Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)
  Supports 1K MAC address
  Automatic address learning and address aging

  Industrial Case and Installation
  IP30 metal case
  DIN-rail and wall-mount designs
  12 to 48V DC, redundant power with reverse polarity protection
  24V AC power input acceptable
  Supports 6000 VDC Ethernet ESD protection
  -40 to 75 degrees C operating temperature
  Free fall, shock-proof and vibration-proof for industries

• Category	Specification
  Hardware Version	3
  Copper Ports	8 x 10/100BASE-TX RJ45, auto-MDI/MDI-X, auto negotiation

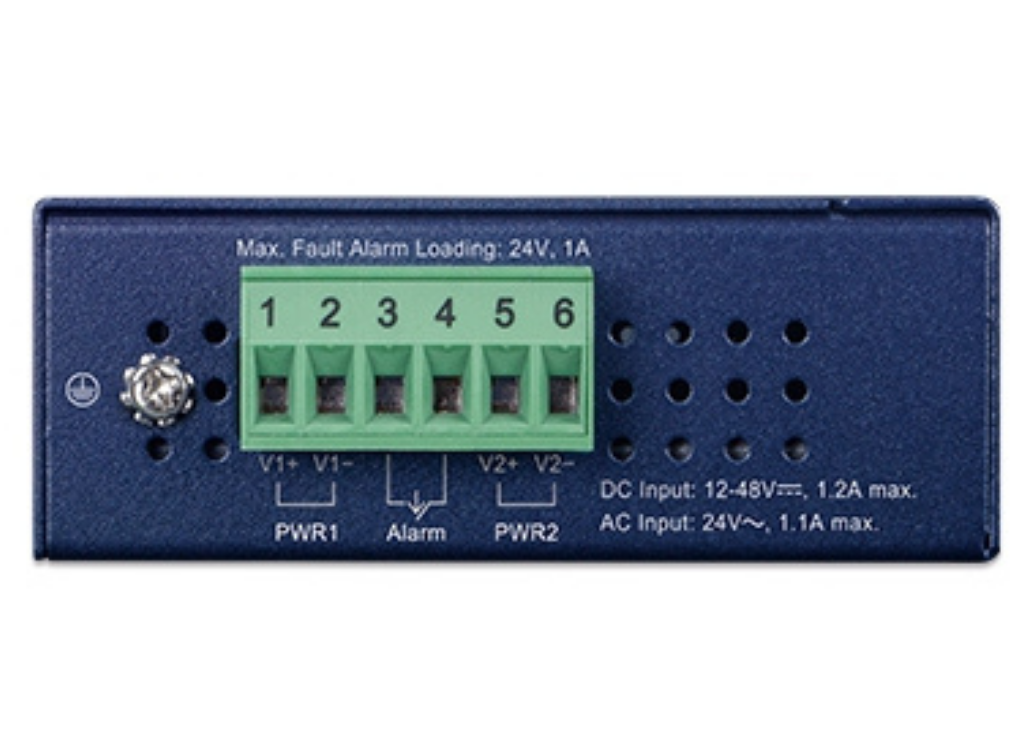

  Connector	Removable 6-pin terminal block (Power 1: pin 1/2, Alarm: pin 3/4, Power 2: pin 5/6)
  Alarm Output	1 relay output for power failure, 1A @ DC 24V
  LED Indicators	Power 1 (Green), Power 2 (Green), Alarm (Red), Per port LNK/ACT (Green)
  ESD Protection	6KV
  EFT Protection	6KV
  Power Requirements	12~48V DC (redundant), reverse polarity protection, 24V AC supported
  Power Consumption	Max 2.1W / 7.16BTU (full load), 0.9W / 3.07BTU (idle)
  Installation Options	DIN-rail mount & wall-mount
  Enclosure	Metal case, IP30 rated
  Dimensions (W x D x H)	32 x 87.8 x 135 mm
  Weight	428g
  Switching Scheme	Store-and-Forward
  MAC Address Table	1K
  Data Buffer	448K bits shared
  Flow Control	Back pressure (half-duplex), IEEE 802.3x (full-duplex)
  Switch Fabric	1.6Gbps
  Throughput	1.19 Mpps
  Network Cable Support	Cat 3/4/5/5e/6 UTP (up to 100m), EIA/TIA-568 STP (100m)
  Standards Compliance	IEEE 802.3, 802.3u, 802.3x, 802.3az; PROFINET QoS
  Regulatory Certifications	FCC Part 15 Class A, CE
  Stability Testing	IEC60068-2-32 (free fall), IEC60068-2-27 (shock), IEC60068-2-6 (vibration)
  Operating Temperature	-40°C ~ 75°C
  Storage Temperature	-40°C ~ 75°C
  Humidity	5% ~ 95% (non-condensing)
