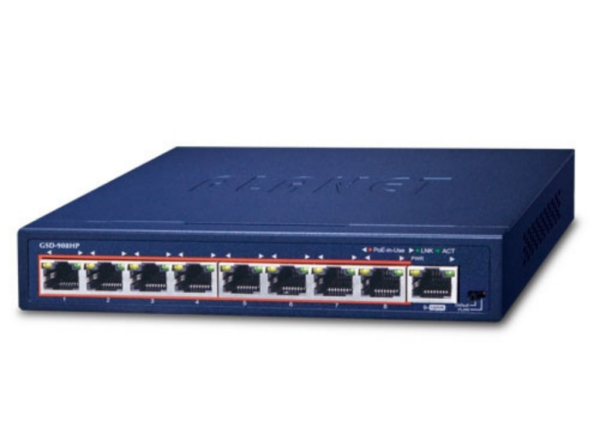

• Planet 8-Port 10/100/1000T 802.3at PoE + 1-Port Gigabit Desktop Switch | GSD-908HP

  Centralized Power Distribution for Ethernet Networking
  PLANET GSD-908HP  8-port 10/100/1000T 802.3at Power over Ethernet Plus + 1-port 10/100/1000T Desktop Switch  comes with a total PoE budget of 100 watts, which is an ideal solution to fulfill the demand of network applications with Gigabit Ethernet speed transmission for more PoE power. Its eight 802.3af/802.3at PoE+ Gigabit ports provide PoE power injector function which is able to drive 6 IEEE 802.3af compliant powered devices or 3 IEEE 802.3at compliant powered devices. The GSD-908HP also provides a simple, cost-effective and Gigabit switch performance. It comes with a metal compact housing, suitable for desktop deployment in SOHO office or department network application.


  Perfectly Integrated Solution for PoE IP Camera and NVR System
  Different from the general PoE Switch which usually comes with 12 or 24 PoE ports, the GSD-908HP provides eight 802.3af/802.3at PoE+ Gigabit ports for catering to small-scale IP surveillance networks at a lower total cost. The GSD-908HP comes with a high-performance switch architecture and 100-watt PoE power budget. The recorded video files from 8 PoE IP cameras can be powered by the GSD-908HP and saved in the 8-channel NVR system or surveillance software to perform comprehensive security monitoring. For instance, one GSD-908HP can be combined with one 8-channel NVR and 8 PoE IP cameras as a kit for the administrators to centrally and efficiently manage the surveillance system in the local LAN and the remote site via Internet.


  Innovative Port-based VLAN Isolated Feature
  The GSD-908HP features “VLAN” function whose ports can be isolated from each other via one DIP switch. This can help to prevent the IP camera’s multicast or broadcast storm from influencing each other.


  Stable and High Performance Switch Architecture
  The GSD-908HP has a 2K MAC address table and provides the 18Gbps switch fabric and throughput as high as 13.3Mpps, which greatly simplifies the tasks of upgrading the LAN for catering to increasing bandwidth demands. Besides, the 802.3x full-duplex flow control function of the GSD-908HP enables PD devices and servers to be directly connected to the switch for packet transfer performance without the risk of packet loss.

  Easy Cable Connection
  With data and power over Ethernet from one unit, the GSD-908HP reduces cabling requirements and eliminates the need for dedicated electrical outlets on the wall, ceiling or any unreachable place. A wire that carries both data and power can lower the installation costs, simplify the installation effort and eliminate the need for electricians or extension cords. Providing eight 802.3af/802.3at PoE+ interfaces, the GSD-908HP is ideal for small businesses and workgroups requiring the PoE deployment of wireless access points, IP-based surveillance cameras or IP phones in any places with ease, efficiency and cost-effectiveness.

  Applications

  SOHO/HOME-Use Gigabit Ethernet PoE Network Deployment
  With its expanded home-use feature, the GSD-908HP 802.3af/802.3at PoE+ Switch helps SOHO/home users to create an integrated data, video, and powered network. The wireless AP and PoE IP camera devices work perfectly with the GSD-908HP, which injects power through the Ethernet cables, thus helping SOHO/home users to build a cost-effective and reliable PoE networking environment easily.


  Ideal Solution for Securing IP Surveillance Infrastructure
  Particularly designed for the growing popular IP Surveillance applications, the GSD-908HP 802.3af/802.3at PoE+ Switch is positioned as a surveillance switch for quick and easy PoE IP camera deployment with power feeding. The GSD-908HP provides both 802.3af and 802.3at PoE+ functions along with 8 10/100/1000BASE-T ports featuring 15.4-watt 802.3af and 30-watt 802.3at PoE+ in RJ45 copper interfaces and 1 extra Gigabit TP interface supporting high-speed transmission of surveillance images and videos.


  IP Office Department Workgroup PoE Switch
  With the business office expansion, the additional telephones required could be installed at a much lesser cost via the implementation of PoE IP Telephony system than that of the traditional circuit wiring telephony system. The GSD-908HP PoE+ Ethernet Switch helps enterprises to create an integrated data, voice, and powered network. The IEEE 802.3af compliant IP phones can be installed without the need of an additional power cable because the power can be provided via the standard Ethernet cable from the connected GSD-908HP.

  The Wireless AP group, PoE IP Phones and Analog Telephony Adapter work perfectly with the GSD-908HP which injects power through the Ethernet cables. With the GSD-908HP, IP Telephony deployment becomes more reliable and cost-effective, which helps enterprises save tremendous cost when upgrading from the traditional telephony system to IP Telephony communications infrastructure.


  Key Features

  Physical Port
  9-port 10/100/1000BASE-T Gigabit RJ45 copper

  Power over Ethernet
  Complies with IEEE 802.3at Power over Ethernet Plus
  Complies with IEEE 802.3af Power over Ethernet
  Up to 8 ports of IEEE 802.3af/802.3at devices powered
  Supports PoE Power up to 30.8 watts for each PoE port
  Each port supports 54V DC power to PoE powered device
  100-watt PoE budget
  Auto detects powered device (PD)
  Circuit protection prevents power interference between ports
  Remote power feeding up to 100m

  Switching
  Hardware-based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
  Flow control for full duplex operation and back pressure for half duplex operation
  Integrates address look-up engine, supporting 2K absolute MAC addresses
  9K jumbo frame supports all speeds (10/100/1000Mbps)
  IEEE 802.1Q VLAN transparency
  Automatic address learning and address aging
  Solid DIP switch to isolate ports to prevent broadcast storm and defend DHCP spoofing

  Hardware
  Made of metal, desktop size and wall-mount design

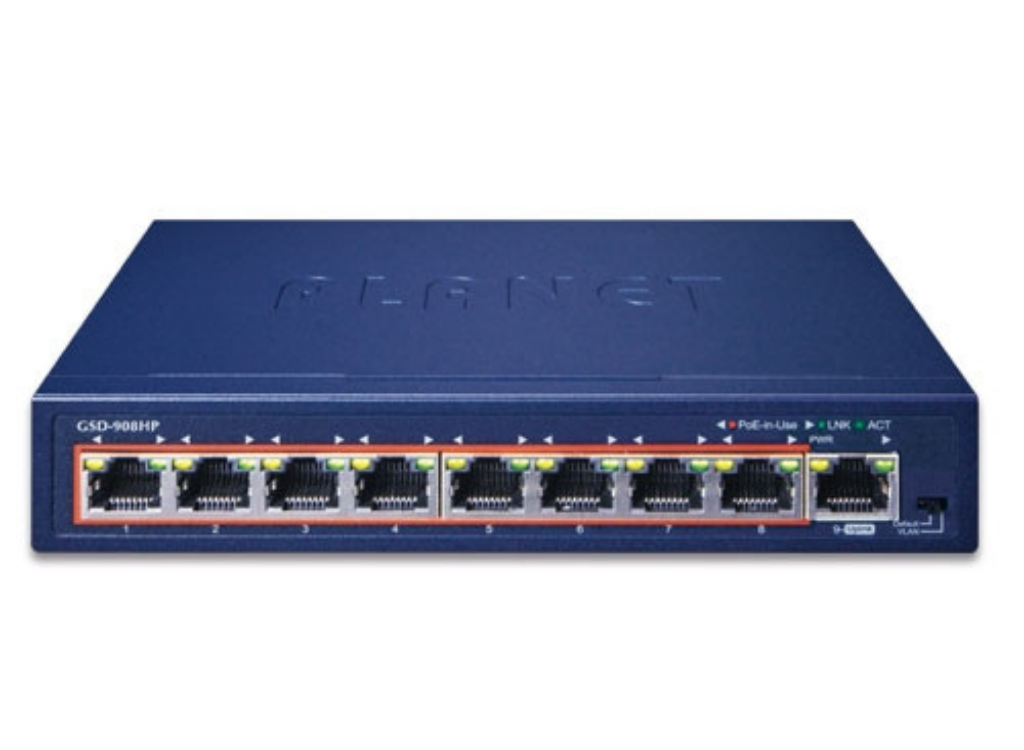

  LED indicators for system power, per port PoE-in-Use (Port 1 to port 8), per port Link/Act (10/100/1000Mbps, port 1 to port 9).
  55V DC, 2A external power adapter
  FCC, CE Class A compliant

• Category	Specification
  Copper Ports	9 x 10/100/1000BASE-T auto-MDI/MDI-X ports
  PoE Injector Port	8 x 802.3af/802.3at PoE+ Injector Ports
  DIP Switch	Default mode for switch architecture, VLAN mode for port-based VLAN
  Dimensions (W x D x H)	168 x 94 x 32 mm
  Enclosure	Metal
  Weight	419g
  Power Requirements	55V DC, 2A
  Power Consumption/Dissipation	Max. 100 watts / 341 BTU
  LED Indicators	System: Power (Amber), PoE-in-Use (Amber), LNK / ACT (Green)
  Switch Architecture	Store-and-Forward
  Switch Fabric	18Gbps
  Switch Throughput @ 64bytes	13.3Mpps
  MAC Address Table	2K entries
  Jumbo Frame	9216 bytes
  Flow Control	IEEE 802.3x pause frame for full duplex; back pressure for half duplex
  PoE Standard	IEEE 802.3af Power over Ethernet/PSE, IEEE 802.3at Power over Ethernet Plus/PSE
  PoE Power Supply Type	End-span: 1/2 (+), 3/6 (-)
  PoE Power Output	54V DC, 300mA max. 15.4W (IEEE 802.3af), 54V DC, 600mA max. 30W (IEEE 802.3at)
  PoE Power Budget	100 watts
  Number of PDs	8 for 7W, 6 for 15.4W, 3 for 30W
  Regulatory Compliance	FCC Part 15 Class A, CE
  Standards Compliance	IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at
  Operating Temperature	0 ~ 50 degrees C
  Operating Humidity	5 ~ 95% (non-condensing)
  Storage Temperature	-10 ~ 70 degrees C
  Storage Humidity	5 ~ 95% (non-condensing)
