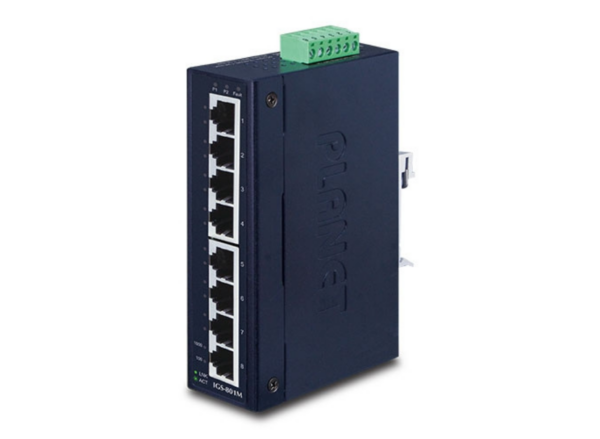

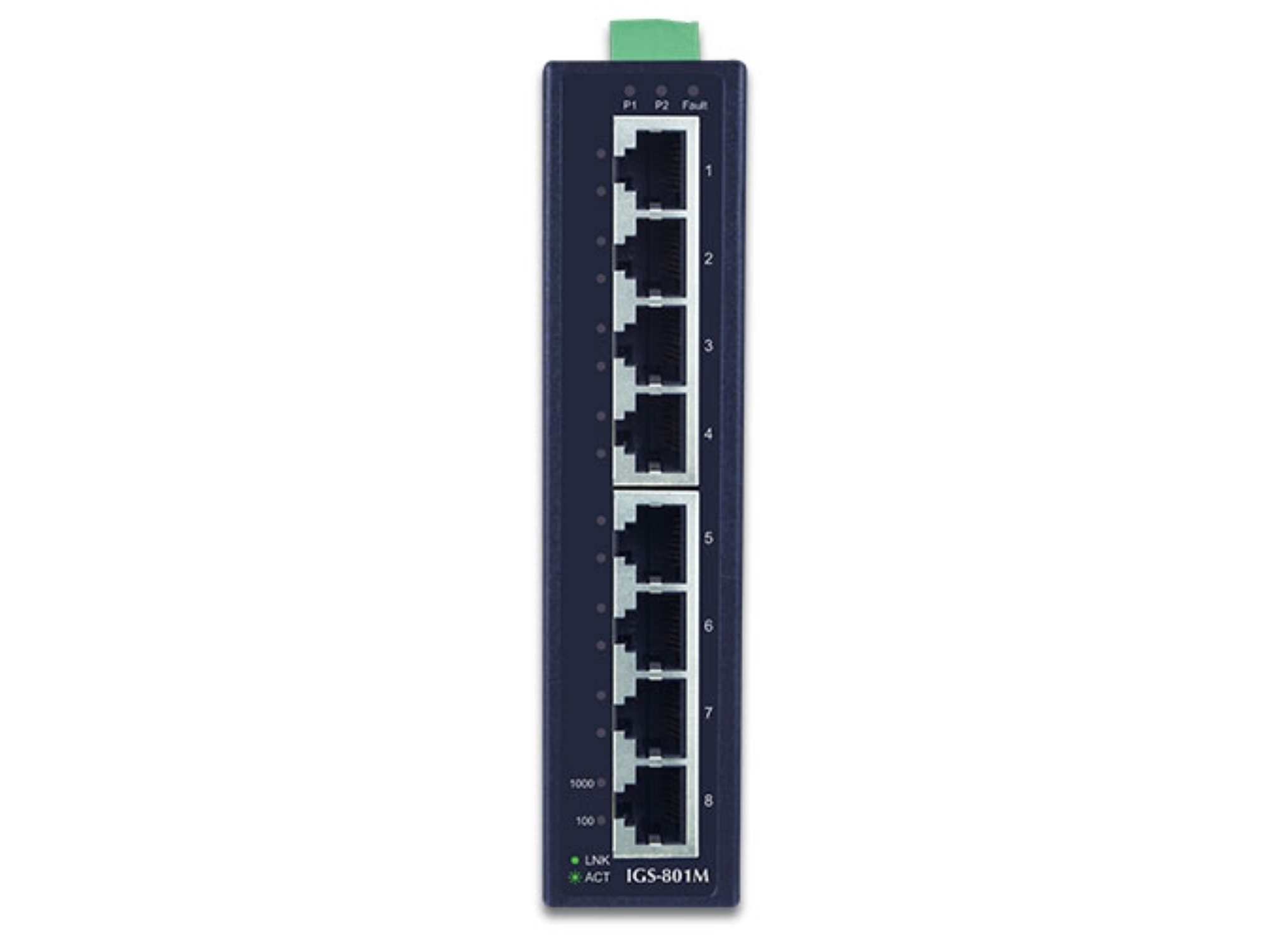

• Planet 8-Port 10/100/1000Mbps Managed Industrial Ethernet Switch | IGS-801M

  Perfect, Slim-type Managed Switch with More Practicability and Convenience
  PLANET IGS-801M is an Industrial 8-Port Full Gigabit Managed Ethernet Switch specially designed to transmit reliable but high-speed data in heavy industrial demanding environments. It provides eight 10/100/1000BASE-T copper ports delivered in an IP30 rugged strong case with redundant power system. Besides support for 16Gbps switch fabric to handle extremely large amounts of video, voice and important data in a secure topology, the IGS-801M provides user-friendly but advanced IPv6/IPv4 management interfaces and abundant L2/L4 switching functions. It is the best investment for industrial business expanding or upgrading its network infrastructure.


  Cybersecurity Network Solution to Minimize Security Risks
  The IGS-801M supports SSHv2 and TLS protocols to provide strong protection against advanced threats. It includes a range of cybersecurity features such as DHCP Snooping, IP Source Guard, dynamic ARP Inspection Protection, 802.1x port-based network access control, RADIUS and TACACS+ user accounts management, SNMPv3 authentication, and so on to complement it as an all-security solution.


  Redundant Ring, Fast Recovery for Critical Network Applications
  The IGS-801M supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP) into customer’s network to enhance system reliability and uptime in various environments.


  Environmentally Hardened Design
  With IP30 aluminum industrial case protection, the IGS-801M provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets. It also possesses an integrated power supply source with wide range of voltages (12 to 48V DC or 24V AC) for worldwide high availability applications requiring dual or backup power inputs. Being able to operate under the temperature range from -40 to 75 degrees C, the IGS-801M can be placed in almost any difficult environment.

  Robust Layer 2 Features
  The IGS-801M can be programmed for advanced switch management functions such as dynamic port link aggregation, 802.1Q VLAN and Q-in-Q VLAN, Multiple Spanning Tree Protocol (MSTP), loop and BPDU guard, IGMP snooping, and MLD snooping. Via the link aggregation, the IGS-801M allows the operation of a high-speed trunk to combine with multiple ports, and supports fail-over as well. Also, the Link Layer Discovery Protocol (LLDP) is the Layer 2 protocol included to help discover basic information about neighboring devices on the local broadcast domain.


  Efficient Traffic Control
  The IGS-801M is loaded with robust QoS features and powerful traffic management to enhance services to business-class data, voice and video solutions. The functionality includes broadcast/multicast storm control, per port bandwidth control, IP DSCP QoS priority and remarking. It guarantees the best performance for VoIP and video stream transmission, and empowers the enterprises to take full advantage of the limited network resources.

  Powerful Security
  PLANET IGS-801M offers comprehensive IPv4/IPv6 Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1X port-based user and device authentication, which can be deployed with RADIUS to ensure the port level security and block illegal users. With the protected port function, communication between edge ports can be prevented to guarantee user privacy. Furthermore, port security function allows to limit the number of network devices on a given port. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before.

  Friendly and Secure Management
  For efficient management, the IGS-801M is equipped with Command line, Web and SNMP management interfaces.

  With the built-in Web-based management interface, the IGS-801M offers an easy-to-use, platform-independent management and configuration facility.
  For text-based management, it can be accessed via Telnet.
  By supporting the standard SNMP protocol, the switch can be managed via any SNMP-based management software.
  Moreover, the IGS-801M offers secure remote management by supporting SSHv2, TLSv1.2 and SNMPv3 connections which encrypt the packet content at each session.

• Category	Specification
  Hardware Version	2
  Copper Ports	8 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X port
  Reset Button	< 5 sec: System reboot
  	> 5 sec: Factory default
  Connector	Removable 6-pin terminal block for power input
  	Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2
  Alarm	One relay output for power failure. Alarm relay current carry ability: 1A @ DC 24V
  Dimensions (W x D x H)	135 x 87 x 32 mm, 1U height
  Weight	472g
  Power Requirements	DC 12 to 48V, AC 24V
  Power Consumption/ Dissipation	4.5 watts/15BTU (System on), 10 watts/34BTU (Full loading)
  ESD Protection	6KV DC
  Enclosure	IP30 metal case
  Installation	DIN-rail kit and wall-mount kit
  LED Indicators	System:
  	Power 1, Power 2, Fault Alarm
  	Ports:
  	10/100 Link/Act, 1000 Link/Act
  Switch Architecture	Store-and-Forward
  Switch Fabric	16Gbps/non-blocking
  Switch Throughput@64Bytes	11.9Mpps
  Address Table	8K entries
  Shared Data Buffer	4.1 megabits
  Flow Control	IEEE 802.3x pause frame for full-duplex, Back pressure for half-duplex
  Jumbo Frame	10K bytes
  Port Mirroring	TX/RX/both, Many-to-1 monitor
  VLAN	802.1Q tagged-based VLAN, Up to 256 VLAN groups, out of 4094 VLAN IDs
  	802.1ad Q-in-Q tunneling, Voice VLAN, Protocol VLAN, Private VLAN (Protected port), GVRP
  Link Aggregation	IEEE 802.3ad LACP and static trunk, Supports 8 trunk groups with 8 ports per trunk
  Spanning Tree Protocol	STP, IEEE 802.1D Spanning Tree Protocol, RSTP, IEEE 802.1w Rapid Spanning Tree Protocol, MSTP, IEEE 802.1s Multiple Spanning Tree Protocol
  IGMP Snooping	IGMP (v2/v3) snooping, IGMP querier, Up to 256 multicast groups
  MLD Snooping	MLD (v1/v2) snooping, up to 256 multicast groups
  QoS	8 mapping ID to 8 level priority queues
  	– Port number, 802.1p priority, 802.1Q VLAN tag, DSCP field in IP packet
  	Traffic classification based, strict priority and WRR
  Ring	Supports ERPS, and complies with ITU-T G.8032
  Access Control List	IPv4/IPv6 IP-based ACL/MAC-based ACL
  Port Security	IEEE 802.1X – Port-based authentication, Built-in RADIUS client to cooperate with RADIUS server
  	RADIUS/TACACS+ user access authentication
  MAC Security	IP-MAC port binding, MAC filter, Static MAC address
  Enhanced Security	DHCP Snooping and DHCP Option82, STP BPDU guard, BPDU filtering and BPDU forwarding, DoS attack prevention, ARP inspection, IP source guard
  Basic Management Interfaces	Web browser, Telnet, SNMP v1, v2c
  Secure Management Interfaces	SSHv2, TLS v1.2, SNMP v3
  System Management	Firmware upgrade by HTTP/TFTP protocol through Ethernet network, LLDP protocol, SNTP, PLANET Smart Discovery Utility, PLANET NMS System/CloudViewer
  Event Management	Remote/Local Syslog, System log
  SNMP MIBs	RFC 1213 MIB-II, RFC 1215 Generic Traps, RFC 1493 Bridge MIB, RFC 2674 Bridge MIB Extensions, RFC 2737 Entity MIB (Version 2), RFC 2819 RMON (1, 2, 3, 9), RFC 2863 Interface Group MIB, RFC 3635 Ethernet-like MIB
  Regulatory Compliance	FCC Part 15 Class A, CE
  Stability Testing	IEC60068-2-32 (Free fall), IEC60068-2-27 (Shock), IEC60068-2-6 (Vibration)
  Standards Compliance	IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab Gigabit 1000BASE-T, IEEE 802.3x flow control and back pressure, IEEE 802.3ad port trunk with LACP, IEEE 802.1D Spanning Tree Protocol, IEEE 802.1w Rapid Spanning Tree Protocol, IEEE 802.1s Multiple Spanning Tree Protocol, IEEE 802.1p Class of Service, IEEE 802.1Q VLAN tagging, IEEE 802.1x Port Authentication Network Control, IEEE 802.1ab LLDP, IEEE 802.3az Energy Efficient Ethernet (EEE), RFC 768 UDP, RFC 793 TFTP, RFC 791 IP, RFC 792 ICMP, RFC 2068 HTTP, RFC 1112 IGMP version 1, RFC 2236 IGMP version 2, RFC 3376 IGMP version 3, RFC 2710 MLD version 1, RFC 3810 MLD version 2, ITU G.8032 ERPS Ring
  Operating Environment	Temperature: -40 ~ 75 degrees C, Relative Humidity: 5 ~ 95% (non-condensing)
  Storage Environment	Temperature: -40 ~ 75 degrees C, Relative Humidity: 5 ~ 95% (non-condensing)

• Description	Downloads
  Datasheet	Downloads
