• Planet 24-Port 10/100/1000T + 4-Port 100/1000X SFP Managed Gigabit Switch | GS-4210-24T4S

  Perfect Managed Switches with Advanced L2/L4 Switching and Security
  PLANET GS-4210-24T4S and GS-4210-24T4SR are the ideal Gigabit Switches which provide cost-effective advantage to local area networks and are widely accepted in the SMB office network. They offer intelligent L2/L4 data packet switching and management functions, friendly web user interface and stable operation. Besides the popular IPv6/IPv4 management and abundant L2/L4 switching functions, the GS-4210-24T4S and GS-4210-24T4SR come with fanless feature and green technology to provide a quiet, energy-saving, high-speed and reliable office network environment.

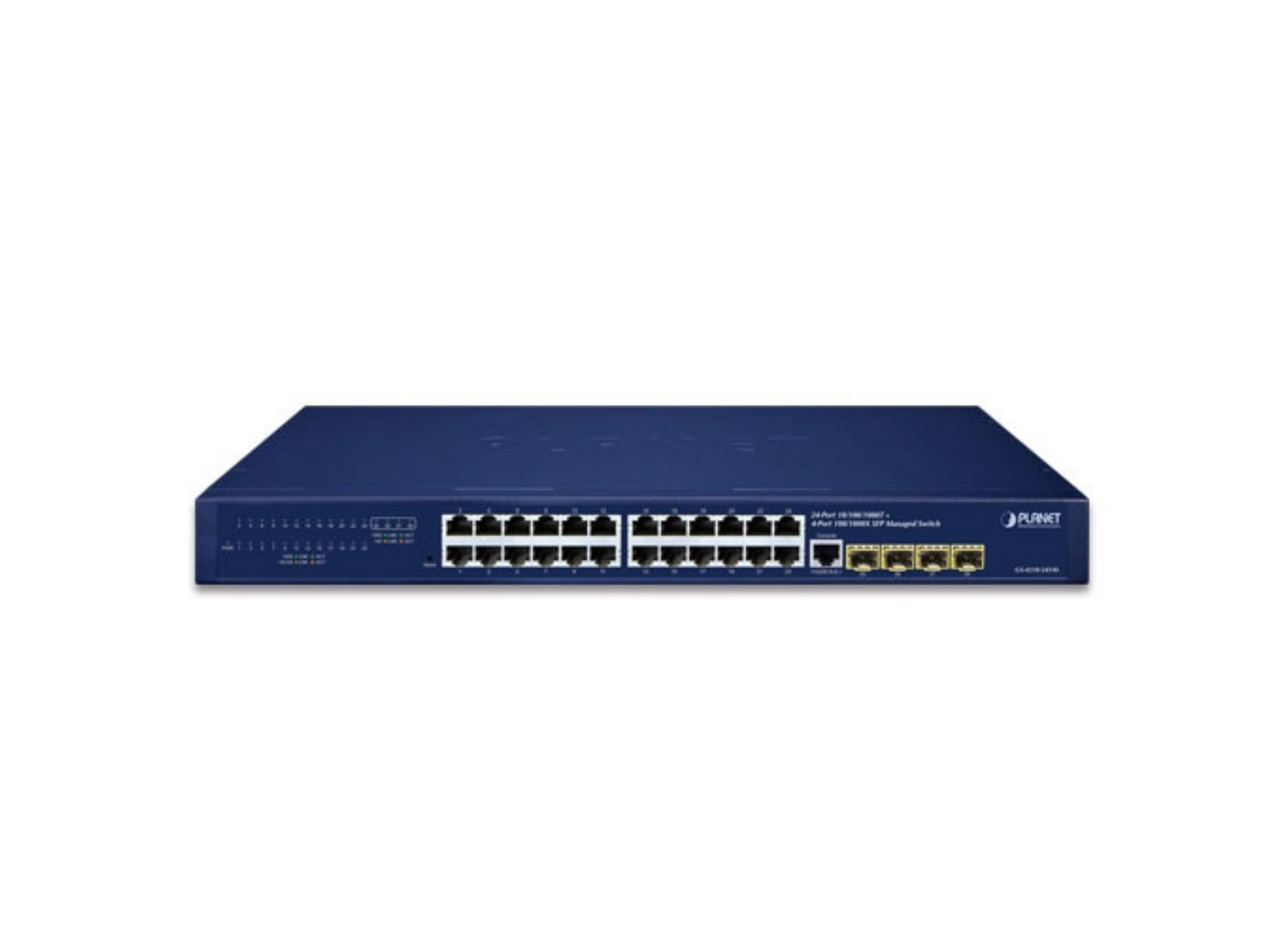

  The GS-4210-24T4S and GS-4210-24T4SR are equipped with 24 10/100/1000BASE-T Gigabit Ethernet ports and 4 additional 100/1000BASE-X SFP interfaces with built-in AC or AC+DC redundant power system. They offer a rack-mountable, affordable, safe and reliable Gigabit network switch solution for SMBs deploying networks, or requiring enhanced data security and network traffic management.


  Cybersecurity Network Solution to Minimize Security Risks
  The GS-4210-24T4S(R) supports SSHv2 and TLS protocols to provide strong protection against advanced threats. It includes a range of cybersecurity features such as DHCP Snooping, IP Source Guard, dynamic ARP Inspection Protection, 802.1x port-based network access control, RADIUS and TACACS+ user accounts management, SNMPv3 authentication, and so on to complement it as an all-security solution.


  Redundant Ring, Fast Recovery for Critical Network Applications
  The GS-4210-24T4S(R) supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP) into customer’s network to enhance system reliability and uptime in various environments.


  Redundant AC/DC Power Supply to Ensure Continuous Operation
  The GS-4210-24T4SR is particularly equipped with one 100~240V AC power supply unit and one 36~72V DC power supply unit to provide an enhanced reliable and scalable redundant power supply, the continuous power system is specifically designed to fulfill the demands of high-tech facilities requiring the highest power integrity. With the 36~72V DC power supply, the GS-4210-24T4SR is able to act as a telecom-level device that can be located in the electronic room.

  IPv6/IPv4 Dual Stack Management
  Supporting both IPv6 and IPv4 protocols, the GS-4210-24T4S and GS-4210-24T4SR help the SMBs to step in the IPv6 era with the lowest investment as their network facilities need not be replaced or overhauled if the IPv6 FTTx edge network is set up.


  Robust Layer 2 Features
  The GS-4210-24T4S and GS-4210-24T4SR can be programmed for advanced switch management functions such as dynamic port link aggregation, 802.1Q VLAN and Q-in-Q VLAN, Multiple Spanning Tree protocol (MSTP), loop and BPDU guard, IGMP snooping, and MLD snooping. Via the link aggregation, the GS-4210-24T4S and GS-4210-24T4SR allow the operation of a high-speed trunk to combine with multiple ports, and supports fail-over as well.  Also, the Link Layer Discovery Protocol (LLDP) is the Layer 2 protocol included to help discover basic information about neighboring devices on the local broadcast domain.


  Efficient Traffic Control
  The GS-4210-24T4S and GS-4210-24T4SR are loaded with robust QoS features and powerful traffic management to enhance services to business-class data, voice, and video solutions. The functionality includes broadcast / multicast storm control, per port bandwidth control, IP DSCP QoS priority and remarking. They guarantee the best performance for VoIP and video stream transmission, and empowers the enterprises to take full advantage of the limited network resources.

  Powerful Security
  PLANET GS-4210-24T4S and GS-4210-24T4SR offer comprehensive IPv4/IPv6 Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. They can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Their protection mechanism also comprises 802.1X port-based user and device authentication, which can be deployed with RADIUS and TACACS+ to ensure the port level security and block illegal users. With the protected port function, communication between edge ports can be prevented to guarantee user privacy. Furthermore, Port security function allows to limit the number of network devices on a given port.

  Friendly and Secure Management
  For efficient management, the GS-4210-24T4S and GS-4210-24T4SR are equipped with web, Telnet and SNMP management interfaces.

  With the built-in Web-based management interface, the GS-4210-24T4S and GS-4210-24T4SR offer an easy-to-use, platform-independent management and configuration facility.
  For text-based management, the switches can be accessed via Telnet and the console port.
  By supporting the standard SNMP, the switches can be managed via any standard management software


  Moreover, the GS-4210-24T4S and GS-4210-24T4SR offers secure remote management by supporting SSHv2, TLSv1.2 and SNMP v3 connections which encrypt the packet content at each session.


  Flexibility and Long-distance Extension Solution
  The GS-4210-24T4S and GS-4210-24T4SR provide 4 extra Gigabit SFP interfaces supporting 100BASE-FX/1000BASE-SX/LX SFP (small form-factor pluggable) fiber transceiver to uplink to backbone switch and monitoring center in long distance. The distance can be extended from 550 meters to 2 kilometers (multi-mode fiber) and up to above 10/20/40/60/80/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.

  Fanless Design
  Adopting the latest chip process and green technology, the GS-4210-24T4S and GS-4210-24T4SR successfully reduce substantial power consumption with the fanless and noiseless design collocating with the effective cooler. Therefore, the GS-4210-24T4S and GS-4210-24T4SR are able to operate stably and quietly in any environment without affecting their performance.

• Category	Specification
  Copper Ports	24 x 10/100/1000BASE-T RJ45 Auto-MDI/MDI-X ports
  SFP/mini-GBIC Slots	4 x 100/1000BASE-X SFP interfaces with Port-25 to Port-28. Supports 100/1000Mbps dual mode and DDM
  Console	1 x RS-232-to-RJ45 serial port (115200, 8, N, 1)
  Reset Button	< 5 sec: System reboot
  	> 5 sec: Factory default
  Dimensions (W x D x H)	441 x 207 x 44 mm, 19-inch, 1U height
  Weight	GS-4210-24T4S: 2.1kg
  	GS-4210-24T4SR: 2.1kg
  ESD Protection	Contact Discharge 4KV DC, Air Discharge 8KV DC
  Enclosure	Metal

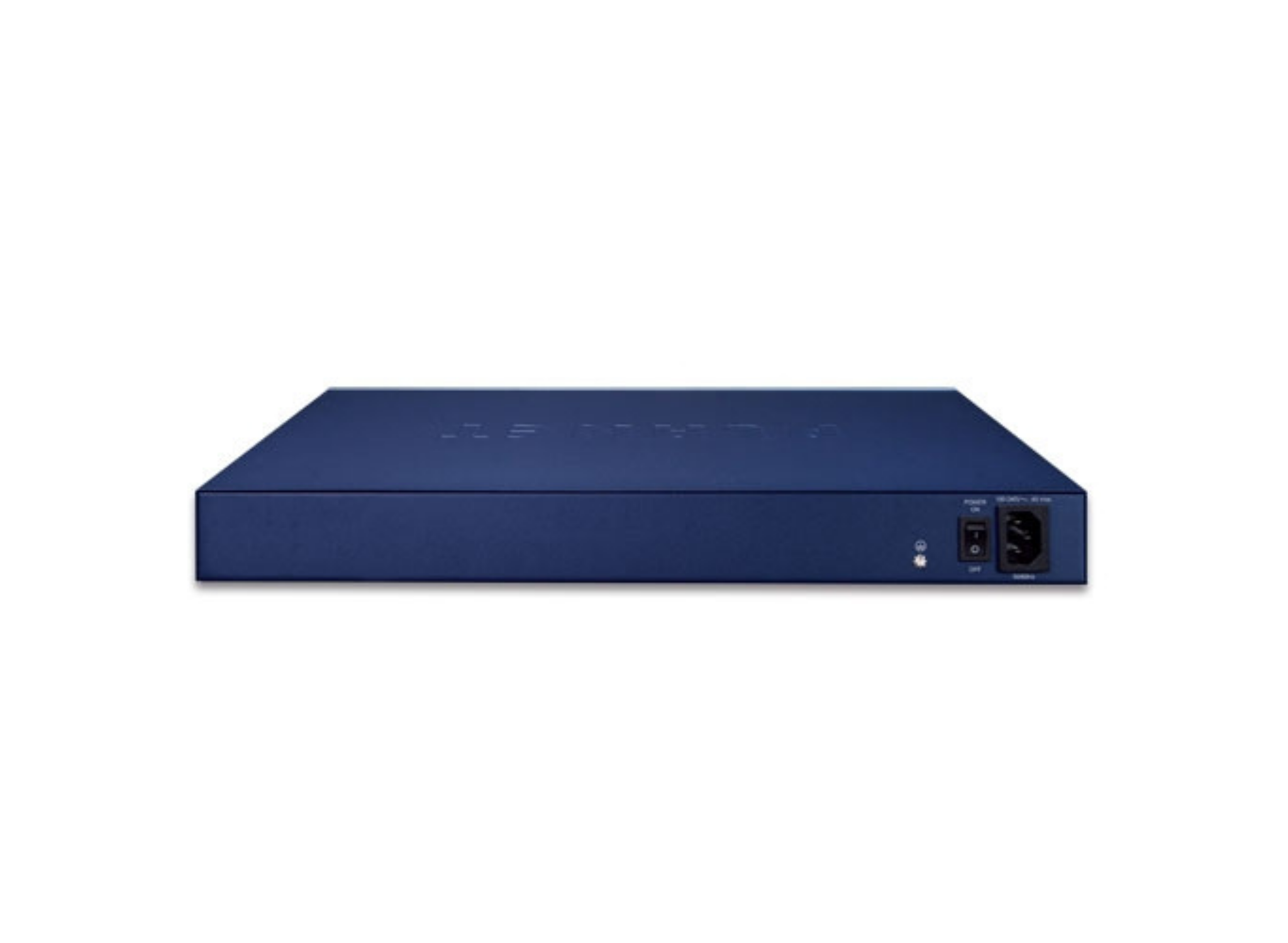

  Power Requirements	GS-4210-24T4S:
  	AC 100~240V, 50/60Hz, auto-sensing
  	GS-4210-24T4SR:
  	AC 100~240V, 50/60Hz, auto-sensing, DC 36-72V
  Power Consumption / Dissipation	GS-4210-24T4S: 19.3 watts (max.)/65BTU
  	GS-4210-24T4SR: AC: 19.3 watts (max.)/65BTU, DC: 19.2 watts (max.)/65BTU
  LED Indicators	System: Power (Green)
  	10/100/1000T RJ45 Interfaces (Port 1 to Port 24): 1000 LNK/ACT (Green), 10/100 LNK/ACT (Orange)
  	100/1000Mbps SFP Interfaces (Port 25 to Port 28): 1000 LNK/ACT (Green), 100 LNK/ACT (Orange)
  Switch Architecture	Store-and-Forward
  Switch Fabric	56Gbps/non-blocking
  Switch Throughput@64Bytes	41.67Mpps
  Address Table	8K entries
  Shared Data Buffer	4.1 megabits
  Flow Control	IEEE 802.3x pause frame for full-duplex, Back pressure for half-duplex
  Jumbo Frame	10K bytes
  Port Mirroring	TX/RX/both, Many-to-1 monitor, Up to 4 sessions
  VLAN	802.1Q tagged-based VLAN, Up to 256 VLAN groups, out of 4094 VLAN IDs, 802.1ad Q-in-Q tunneling, Voice VLAN, Protocol VLAN, Private VLAN (Protected port), GVRP
  Link Aggregation	IEEE 802.3ad LACP/Static Trunk, Supports 8 trunk groups with 8 ports per trunk
  Spanning Tree Protocol	STP, IEEE 802.1D Spanning Tree Protocol, RSTP, IEEE 802.1w Rapid Spanning Tree Protocol, MSTP, IEEE 802.1s Multiple Spanning Tree Protocol, STP BPDU Guard, BPDU Filtering and BPDU Forwarding
  IGMP Snooping	IGMP (v2/v3) Snooping, IGMP Querier, Up to 256 multicast groups
  MLD Snooping	MLD (v1/v2) Snooping, up to 256 multicast groups
  QoS	8 mapping ID to 8 level priority queues
  	– Port number, 802.1p priority, 802.1Q VLAN tag, DSCP field in IP packet
  	Traffic classification based, strict priority and WRR
  Ring	Supports ERPS, and complies with ITU-T G.8032
  Access Control List	IPv4/IPv6 IP-based ACL/MAC-based ACL
  Port Security	IEEE 802.1X – Port-based authentication, Built-in RADIUS client to co-operate with RADIUS server, RADIUS/TACACS+ user access authentication
  MAC Security	IP-MAC port binding, MAC filter, Static MAC address
  Enhanced Security	DHCP Snooping and DHCP Option82, STP BPDU guard, BPDU filtering and BPDU forwarding, DoS attack prevention, ARP inspection, IP source guard
  Basic Management Interfaces	RS232 to RJ45 Console, Web browser, Telnet, SNMP v1, v2c
  Secure Management Interfaces	SSHv2, TLS v1.2, SNMP v3
  System Management	Firmware upgrade by HTTP/TFTP protocol through Ethernet network, LLDP protocol, SNTP, PLANET Smart Discovery Utility, PLANET NMS System/CloudViewer
  Event Management	Remote/Local Syslog, System log
  SNMP MIBs	RFC 1213 MIB-II, RFC 1215 Generic Traps, RFC 1493 Bridge MIB, RFC 2674 Bridge MIB Extensions, RFC 2737 Entity MIB (Version 2), RFC 2819 RMON (1, 2, 3, 9), RFC 2863 Interface Group MIB, RFC 3635 Ethernet-like MIB
  Regulatory Compliance	FCC Part 15 Class A, CE
  Standards Compliance	IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX/100BASE-FX, IEEE 802.3z Gigabit SX/LX, IEEE 802.3ab Gigabit 1000T, IEEE 802.3x flow control and back pressure, IEEE 802.3ad port trunk with LACP, IEEE 802.1D Spanning Tree Protocol, IEEE 802.1w Rapid Spanning Tree Protocol, IEEE 802.1s Multiple Spanning Tree Protocol, IEEE 802.1p Class of Service, IEEE 802.1Q VLAN tagging, IEEE 802.1x Port Authentication Network Control, IEEE 802.1ab LLDP, IEEE 802.3az Energy Efficient Ethernet (EEE), RFC 768 UDP, RFC 793 TFTP, RFC 791 IP, RFC 792 ICMP, RFC 2068 HTTP, RFC 1112 IGMP version 1, RFC 2236 IGMP version 2, RFC 3376 IGMP version 3, RFC 2710 MLD version 1, RFC 3810 MLD version 2, ITU G.8032 ERPS Ring
  Operating Environment	Temperature: 0 ~ 50 degrees C, Relative Humidity: 5 ~ 95% (non-condensing)
  Storage Environment	Temperature: -20 ~ 70 degrees C, Relative Humidity: 5 ~ 95% (non-condensing)
