• Planet 2-Port 10G/2.5G/1G/100BASE-X SFP+ Media Converter | XT-815A

  High Performance, Flexibility, and Reliability
  PLANET XT-815A is a commercial-grade 2-Port 10G/2.5G/1GBASE-X and 100BASE-FX SFP+ media converter designed for the networks that require high-speed transmission over fiber cabling. Suitable for enterprise backbone, hospital, campus and telecom infrastructures, the XT-815A delivers robust performance and versatility for a wide range of applications.

  Versatile Features to Meet Diverse Networking Needs
  The XT-815A provides broad bandwidth and powerful processing capacity. Its dual fiber-optic 10GBASE-X SFP+ interfaces support multiple speeds like 10GBASE-SR/LR, 2500BASE-X, 1000BASE-SX/LX and 100BASE-FX to enable the administrator to choose a suitable SFP/SFP+ transceiver based on distance or speed requirements. It also supports flexible conversion between multi-mode and single-mode fiber, extending transmission distances from 300 meters to 80 kilometers using 10GBASE-SR or 10GBASE-LR SFP+ modules.

  10GBASE-X fiber to 2.5G/1G/100BASE-X fiber
  Multi-mode fiber to Single mode fiber
  Duplex fiber to Simplex fiber
  10Gbps XGSPON/2.5Gbps GPON fiber-optic networking to 10Gbps Ethernet fiber-optic networking.
  Its dual ports connect to servers, switches, storage systems, and wireless access points. The XT-815A also supports 10GPON to 10Gbps Ethernet bridging, making it suitable for data center cloud computing, enterprise backbone networks, and inter-building deployments.


  Two Fiber Optic Ports Double the Distance of Deployment
  The XT-815A offers two 10G fiber ports, which can be used for single mode and multimode conversion, as well as for converting between PON and Ethernet. Since both ports are fiber optic, the transmission distance can reach up to 120km on both ends, significantly extending the service coverage.


  Stable and Efficient Chipset with High Network Performance
  The XT-815A features built-in 2-Port 10GBASE-X SFP+ interfaces, ensuring stable data transmission. It provides a 40Gbps switching fabric and 12K jumbo frame support, enabling seamless handling of large data traffic. Additionally, the 4K MAC address table and VLAN pass-through functionality enhance network management efficiency.

  Flexible Deployment and High Compatibility
  The XT-815A can be used as a standalone device or as a module in PLANET MC-series media converter chassis (e.g., MC-1500R), facilitating centralized fiber network management. With multi-rate auto-detection (10G/2.5G/1G/100Mbps) and compatibility with standard SFP/SFP+ modules, the XT-815A adapts to various networking requirements. Its compact design and LED indicators simplify installation and network diagnostics.


  Applications

  Ideal Applications for Enhanced Network Efficiency and Flexibility
  The XT-815A is perfect for network deployments with high bandwidth demands, including fast data transmission in data centers, efficient operations in enterprise backbones, long-distance fiber extension over kilometers, and telecom FTTH/FTTC network construction. Its easy installation and high-performance capabilities make the XT-815A an ideal choice for businesses and service providers alike.

  Thus, networks can be upgraded with the XT-815A for achieving 10G high speed, flexibility, and reliability.


  Perfect Applications for Advanced Networks
  The XT-815A is ideal for environments that demand high-performance, long-distance, and reliable networking solutions. With its 10G data transmission capabilities and easy installation, it is perfectly suited for deploying FTTH (Fiber to the Home) and FTTC (Fiber to the Curb) networks for ISPs, as well as FTTB (Fiber to the Building) networks for small- to medium-sized enterprises.

  Additionally, its ability to bridge 10GPON to 10G Ethernet and support a wide range of fiber transmission distances makes it a powerful tool for enterprise backbones, data centers, and campus-wide network extensions. Whether extending connectivity across a city or ensuring seamless data transmission within an enterprise, the XT-815A offers the flexibility and performance needed for modern network demands.


  Key Features

  Physical Port
  Media conversion between 10GBASE-X SFP+, 2.5GBASE-X, 1000BASE-X, and 100BASE-FX fiber optic
  Dual 10GBASE-X SFP+ fiber optic ports supporting
  Multi-mode fiber with LC connector
  Single-mode fiber with LC connector
  SFP transceivers support auto-detection for 10G/2.5G/1G/100Mbps

  Layer 2 Features
  Fully compliant with IEEE 802.3ae/bz/an Ethernet standards
  Non-blocking full wire-speed forwarding performance
  12K jumbo frame support for handling large data transmissions
  Transparent IEEE 802.1Q VLAN tagging and multicast pass-through
  IEEE 802.3x full-duplex flow control and back-pressure for packet loss prevention

  Mechanical Features
  Durable metal casing for enhanced reliability
  LED indicators to facilitate network diagnostics
  Compact size and Plug-and-Play installation

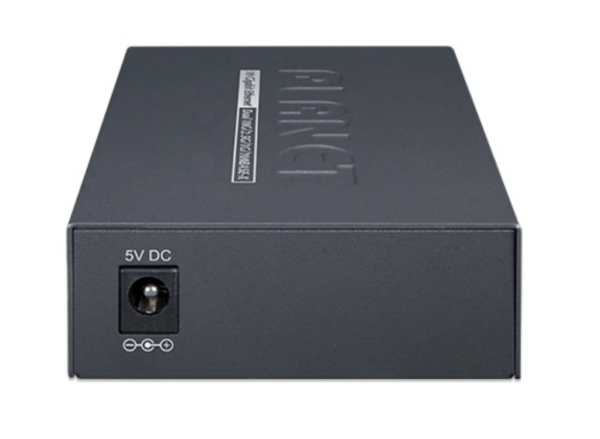

  External 5V DC, 2A power input socket
  Wall mounting or DIN-rail installation (optional)
  0 to 50 degrees C operating temperature
  Compatible with PLANET 10”/19” Media Converter Chassis (MC-700/MC-1500/MC-1500R/MC-1500R48).

• Category	Specification
  SFP+ Port	Dual 10GBASE-X SFP+ interfaces, backward compatible with 100BASE-FX, 1000BASE-X, 2500BASE-X
  Fiber Mode	May vary on SFP+/SFP Module
  Fiber Port Type (connector)	SFP, LC type
  Fiber Maximum Distance	May vary on SFP Module
  Network Cables	May vary on SFP+ and SFP modules
  Enclosure	Metal case
  Dimensions (W x D x H)	94 x 70.3 x 26.2 mm
  Weight	195g
  Power Supply	DC 5V, 2A Power Socket, external AC-to-DC adapter
  Installation	Wall-mount or DIN-rail installation (optional)

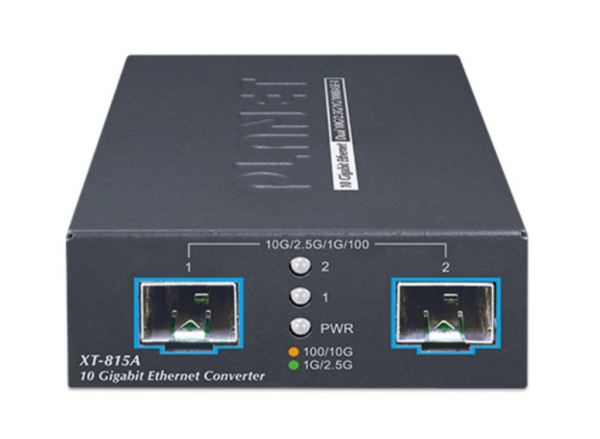

  LED	System: PWR (Green) SFP+ Port: 2.5Gbps/1Gbps LNK/ACT(Green) 10Gbps /100Mbps LNK/ACT(Amber)
  Switch Architecture	Store-and-Forward
  Fabric	40Gbps backbone to ensure high-speed data transmission
  Forwarding Rate	Non-blocking, full wire-speed forwarding rate
  Flow Control	Half duplex: Back pressure eliminates packet loss Full duplex: IEEE 802.3x pause frame support
  Maximum Frame Size	Supports jumbo frames up to 12K
  VLAN Support	Transparent 802.1Q VLAN pass-through for seamless integration in tagged network environments
  Priority Switching	8-level QoS priority switching for traffic optimization Supports 802.1p priority for efficient traffic management
  Regulatory Compliance	FCC Part 15 Class A, CE
  Protocols and Standards Compliance	IEEE 802.3z Gigabit SX/LX IEEE 802.3ae 10 Gigabit Ethernet IEEE 802.3x Flow Control IEEE 802.3az Energy Efficient Ethernet IEEE 802.1p Class of Service
  Operating Temperature	0 ~ 50 degrees C
  Storage Temperature	-10 ~ 70 degrees C
  Humidity	5% ~ 95% non-condensing
