• Planet 1000Base-SX / LX SFP PCI Express Fiber Adapter | ENW-9701

  High Performance Boosts Network Traffic Speed and Flexible Distance Extension

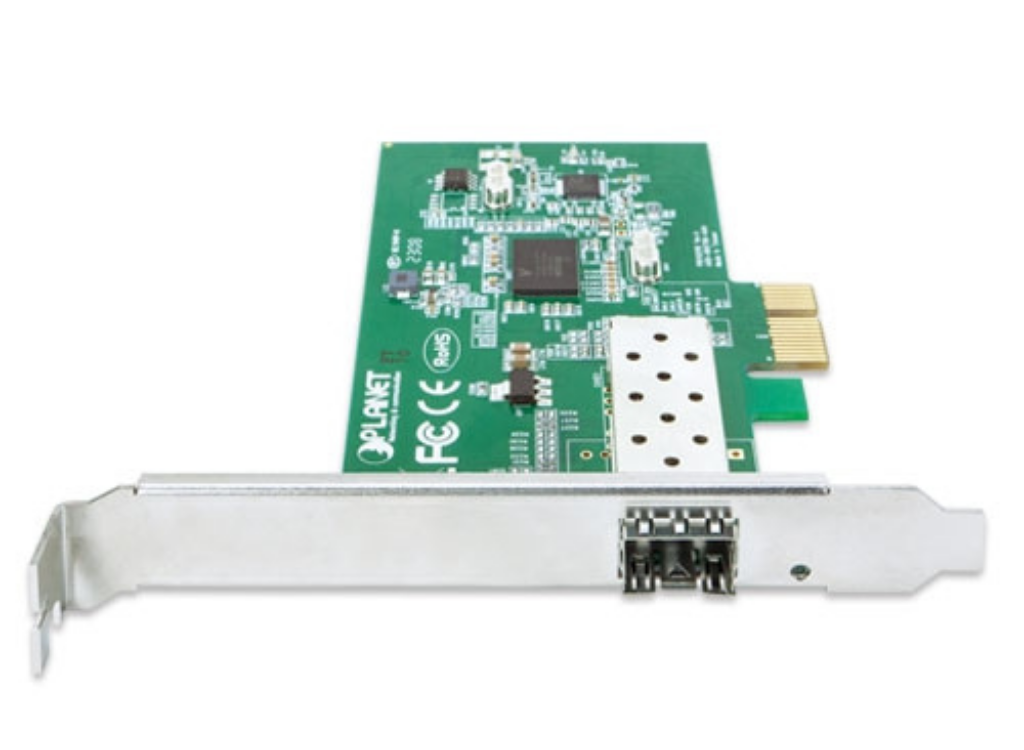

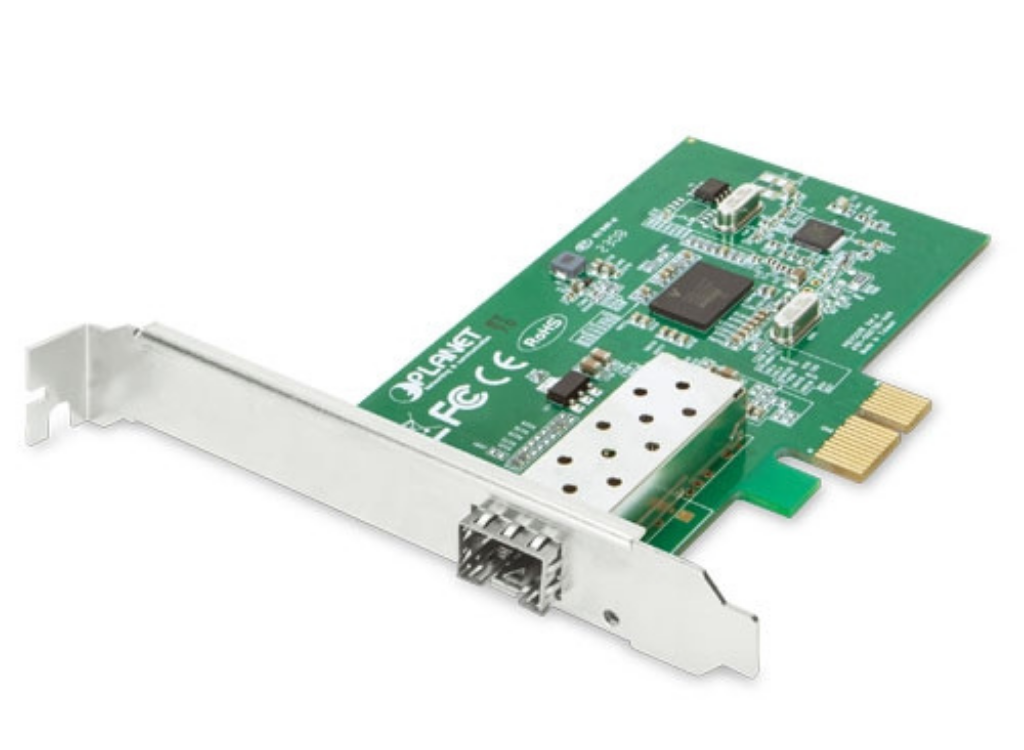

  PLANET ENW-9701 1000BASE-X SFP PCI Express Gigabit Ethernet Adapter is ideal for high end servers to extend long distance network reliably and flexibly with up to 2000Mbps full-duplex bandwidth capacity. It is an optimal solution for Ethernet applications by providing strictly low-power budgets and small form factor.

  Flexible Distance Option
  With the 1000BASE-X SFP (small-form factor pluggable) interface, the ENW-9701can extend fiber network deployment distance from 550 meters (via multi-mode fiber) to 10/20/30/40/50/70/120 kilometers (via single-mode fiber). Users can choose the most suitable SFP transceiver module for their needs. The ENW-9701 connects your servers and workstations, guaranteeing extremely high throughput and excellent signal quality.

  More Bandwidth and Advanced Functions
  The ENW-9701 is designed to address high-performance system requirements. With the innovative PCI Express Bus Architecture, the ENW-9701 provides better bandwidth and performance than the network cards which are based on 32/64bit PCI architecture. Moreover, the ENW-9701 supports IEEE 802.1Q VLAN which allows it to operate in a flexible and secure network environment. With 9K Jumbo Frame ability and IEEE 802.3 Flow Control support, it offers further optimal throughput and wire-speed packet transfer performance without risk of packet loss. The high data throughput of the device makes it ideal for most Gigabit Ethernet environments.

  Seamless Integration
  The ENW-9701 is completely harmonious with most of the servers’ operating systems, enabling simple integration into network designs. There is no need of any modification to the server’s operating system or any special software required for the ENW-9701 to be integrated into the system. The ENW-9701 can take the place of the Ethernet MAC of any conventional TCP connection and have the existing TCP/IP stack of server’s CPU still kept intact. It requires only a simple, standard PCIe driver to connect the ENW-9701 to the software.

  Applications

  Server / Workstation NICs
  PLANET ENW-9701 is equipped with one Gigabit SFP fiber connector which allows users to extend the network distances without any limitation and provides ten times performance than the existing Fast Ethernet transmission and PCI Express 1.1 technology. The ENW-9701 can easily act as a server NICs of your networks by wiring to the backbone switches and is right for the mainboard with PCI Express now and in the future. The ENW-9701 is a highly cost-effective solution and the best choice for the upgrade of various Fiber Optic network applications, such as:

  High-end Server / Storage Server
  Terminal Station
  PC-based Video Recorder
  Industrial Computer
  POS Cash Register

  Key Features

  One 1000BASE-X SFP slot
  One PCI Express Host Bus interface
  9K Jumbo Frame
  IP, TCP checksum offloading
  IEEE 802.1Q Tagged VLAN
  Low Power Consumption
  Windows Server, Win7/8/10/11, Linux, and MAC OS X Ready

• Category	Specification
  Attachment Interface	PCI Express Host Bus Interface, 1 lane (PCI Express Rev 1.1)
  Media Interface	SFP slot (LC Interface)
  Cabling Options	50/125μm & 62.5/125μm Multi-Mode, 9/125μm Single-Mode fiber cable
  Jumbo Frame	9 Kbytes
  LED Indicators	Link / Active per port
  Dimensions (W x D)	121.4 x 119.5 mm
  Layer 2 Features	IEEE 802.3x Flow Control, IEEE 802.1Q VLAN
  Performance Enhancements	RSS, Reduced Host Bus Traffic, IP/TCP/UDP Checksum Offloading, On-Chip Buffers
  Protocol Support	IPv4, IPv6
  OS Support	Windows Server (2008R2–2022R2, 64-bit), Windows 7–11, Linux (2.6.x+), VMware ESX/ESXi (2.6.x+), macOS 10.7
  Regulation Compliance	FCC Part 15 Class B, CE
  Standards Compliance	IEEE 802.3z (1000BASE-X), IEEE 802.3x, IEEE 802.1Q
  Operating Temp.	0 ~ 65°C
  Operating Humidity	5 ~ 95% (non-condensing)
  Storage Temp.	-10 ~ 85°C
  Storage Humidity	5 ~ 95% (non-condensing)
