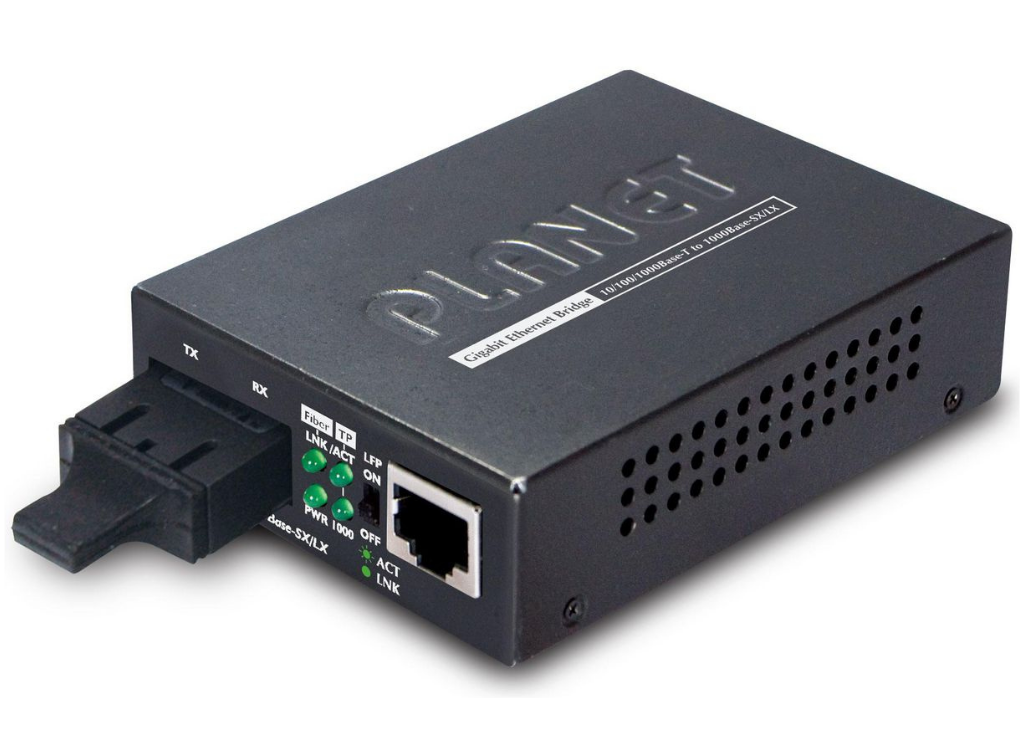

• Planet 10/100/1000Base-T to 1000Base-SX (SC, SM) Media Converter | GT-802S

  Offering the flexibility with all kinds of 10/100/1000Mbps Ethernet Media on RJ-45 port and performing highly stable Gigabit fiber capability, the PLANET Gigabit media converter series GT-80X (GT-802, GT-802S, GT-805A and GT-806A/B) supports conversion between 10/100/1000Base-T and 1000Base-LX/SX network. The GT-80X series offer three types of connector, SC / SFP / WDM connector, with single-mode or multi-mode media as required so that an Gigabit fiber network can be efficiently constructed through the Ethernet.

  Designed in compact size, the GT-80X can be used as a standalone unit or being installed in the media converter chassis such as the PLANET MC-700/MC-1000R/MC-1500 ( 7/10/15-slot Media Converter Chassis to build a centralized fiber-optic network. The media chassis can feed GT-80X power to maintain the fiber-optic network at one location.


  As the GT-80X series fully complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-LX/SX, the installation of the Gigabit media conversion is quite quick and easy by simple plug and play. The GT-80x also supports flow control and back pressure in half-duplex to eliminate packets loss. Even when the web UI is not available, the network manager still can remotely control and monitor GT-80X by OAM (TS-1000 and IEEE 802.3ah) terminal function such as remote failure indication, loop back test, port status and performance monitoring and troubleshooting.

• Category	Specification
  Design
  Certification	FCC Class A, CE Class A
  Internal	No
  LED indicators	Yes
  Product colour	Black
  Legal Information
  EU ECCN Code	N/A
  UNSPSC Code (Icecat)	43201553
  US ECCN Code	5A992
  Logistics data
  HS code	85176990
  Network
  Auto MDI/MDI-X	Yes
  Converter input interface	1000Base-T
  Converter output interface	1000Base-LX
  Duplex system	Full/Half
  Ethernet interface type	Gigabit Ethernet
  Ethernet LAN data rates	10/100/1000 Mbit/s
  Maximum data transfer rate	1000 Mbit/s
  Networking standards	IEEE 802.3/IEEE 802.3ab/IEEE 802.3u/IEEE 802.3z
  Operational conditions
  Operating relative humidity (H-H)	5 – 95 %
  Operating temperature (T-T)	0 – 50 °C
  Storage relative humidity (H-H)	5 – 95 %
  Storage temperature (T-T)	-10 – 70 °C
  Other features
  Dimensions (WxDxH)	97 x 69 x 26 mm
  Operating temperature (T-T)	32 – 122 °F
  Package dimensions (verified)
  Depth Verified	13.9 cm
  Gross Weight Verified	0.464 kg
  Height Verified	7.1 cm
  Width Verified	28.3 cm
  Performance
  Maximum transfer distance	100000 m
  Sensitivity	-14.4 dBmW
  Tx power (max)	-3 dBmW
  Tx power (min)	-9.5 dBmW
  Wavelength	1310 nm
  Ports & interfaces
  Connectivity technology	Wired
  Ethernet LAN (RJ-45) ports	1
  Fiber optic connector	SC
  Fiber ports quantity	1
  Power
  Input current	2 A
  Input voltage	5 V
  Power consumption (typical)	5.6 Watt
  Product dimensions
  Net Weight (Product, kg)	0.19 kg
  Product Depth	9.7 cm
  Product Height	2.6 cm
  Product Width	7 cm
  Technical details
  HS code	85176990
  Vendor information
  Brand Name	Planet
  Warranty	3 Year(s)
