• Planet 1-Port 802.3bt to 1-Port 802.3bt Gigabit PoE++ Extender | POE-E301

  Long Distance 802.3bt PoE++ and Gigabit Data Extension Solution
  PLANET POE-E301 is a simple extender that extends both the Gigabit Ethernet Data and IEEE 802.3bt/802.3at/802.3af Power over Ethernet transmission distance over the standard 100m (328 ft.) Cat. 5/5e/6 UTP cable to 200m, 300m, 400m and the maximum 400m. The POE-E301 can obtain a maximum of 95-watt PoE power from 802.3bt PoE++ input port and the output port can supply a maximum of 65-watt power, providing a simple solution to achieve more wide-coverage network applications without requiring an external power adapter.

  No matter how many PoE supported networking devices such as PoE IP cameras, PoE wireless access points and PoE IP phones are deployed, they are easily installed without the need of having an additional electrical outlet. However, limited by the UTP cabling, only up to 100 meters (328 ft.) of cable is used. Thus, the POE-E301 is designed as the extender to transmit both Gigabit Ethernet data and 802.3bt PoE++ power over another distance of 100m. By daisy-chaining multiple POE-E301s, distance can be tripled or quadrupled to meet your requirements.

  With its ability to provide 802.3bt PoE++ and Gigabit Ethernet data extension, the POE-E301 is an ideal networking solution for service providers, campuses and public areas. It enables you to centrally manage the power easily, efficiently and cost-effectively no matter how remote the location is.

  Plug and Play, and Easy Cabling Installation
  The POE-E301 Gigabit 802.3af/at/bt PoE Extender is quite easy to be installed by the simple plug and play configuration. It is used between a power source equipment (PSE) and a powered device (PD). The POE-E301 injects power to the PD without affecting the data transmission performance. It offers a cost-effective and quick solution to double the standard range of PoE from 100 to 200 meters. The POE-E301 Compact  2-Port 802.3af/at/bt PoE Extender, suitable for use, features 2 1000Mbps auto-negotiation ports, of which the “PoE IN” port functions as PoE (Data and Power) input and the “PoE OUT” port on the other side functions as PoE (Data and Power) output. The “PoE OUT” port is also the power injector to transmit DC voltage via the Cat. 5/5e/6 cable and transfer data and power simultaneously between the PSE and a PD.

  Applications

  Long Distance PoE IP Surveillance
  Is 100 meter cable long enough for a long-distance IP surveillance deployment? The answer is certainly not. To achieve the benefits of IP surveillance and also the long-distance IP camera distribution, PLANET POE-E301 Gigabit 802.3af/at/bt PoE Extender is a quick and cost-effective option besides adopting a PoE injector or PoE Ethernet switch equipped with fiber optic interface. In the simplest application, the POE-E301 enables a PoE IP camera to be installed up to 200 meters away from a PoE injector. The PoE injector delivers PoE power over the first 100 meters to the POE-E301 over UTP cable, and then the POE-E301 forwards the Ethernet data and remaining POE power to the PoE IP camera. The POE-E301 does not require an external power supply and can be installed easily by the plug and play configuration, meaning the operator does not need to configure the POE-E301.


  Long Distance PoE Wireless Access Point
  In the wireless LAN, the POE-E301 enables wireless access points to be connected using standard Cat.5/5e/6 cable over 100 meters in length from the PSE, such as PoE switch, PoE injector hub or single port PoE injector. The POE-E301 is also powered by the incoming PoE on the Ethernet cable and does not require any external power feed.  Therefore, the POE-E301 can reduce the usage of cables and eliminate the need of dedicated electrical outlets on the wall, ceiling or any unreachable place for the wireless AP deployment.


  Key Features

  Compliant with IEEE 802.3bt PoE++ Power over Ethernet Plus PSE and PD standard on POE in Port and POE out Port.
  Backward compatible with IEEE 802.3af/802.3at Power over Ethernet
  Supports PoE in BT and UPoE mode
  Complies with IEEE 802.3/802.3u/802.3ab 10/100/1000BASE-T
  Extends the range of PoE to more than 100 meters (328ft.).
  Automatically detects and protects PoE equipment from being damaged by incorrect installation
  Daisy-chain installation support
  Forwards both Ethernet data and PoE power to the remote device
  No external power cable installation required
  Compact size, wall-mountable design
  Plug and Play

• Category	Specification

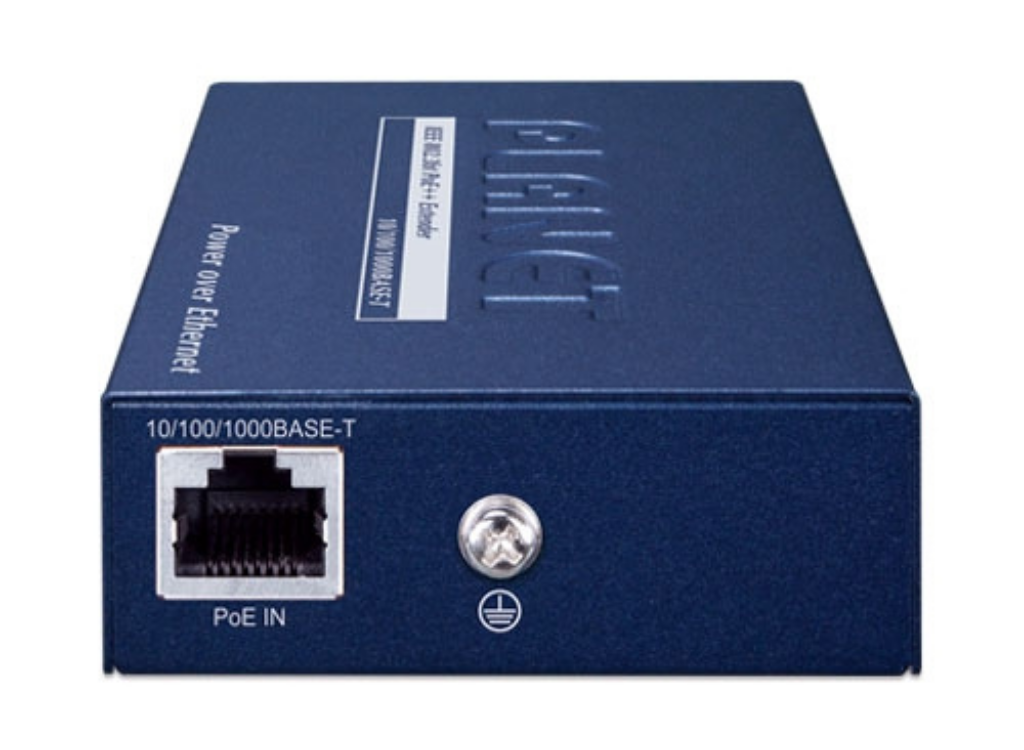

  PoE IN	1 x 10/100/1000BASE-T Ethernet with IEEE 802.3bt/at/af PoE “Data + DC” in auto MDI/MDI-X, auto-negotiation RJ45 connector
  PoE OUT	1 x 10/100/1000BASE-T Ethernet with IEEE 802.3bt/at/af PoE “Data + DC” out auto MDI/MDI-X, auto-negotiation RJ45 connector
  DIP Switch	PoE power feeding options (BT/UPOE) selection
  Dimensions (W x D x H)	93.5 x 70 x 26 mm
  Weight	258g
  Power Requirements	IEEE 802.3bt PoE++ compliant with voltage within 52V-56V DC, IEEE 802.3af PoE compliant with voltage within 44V-56V DC
  Power Consumption	2.4 watts (system maximum), PoE Output at maximum 60 watts
  Enclosure	Metal
  Installation	Wall or DIN-rail mounting
  Protection	ESD (Ethernet): 2KV, Surge (EFT for power): 2KV

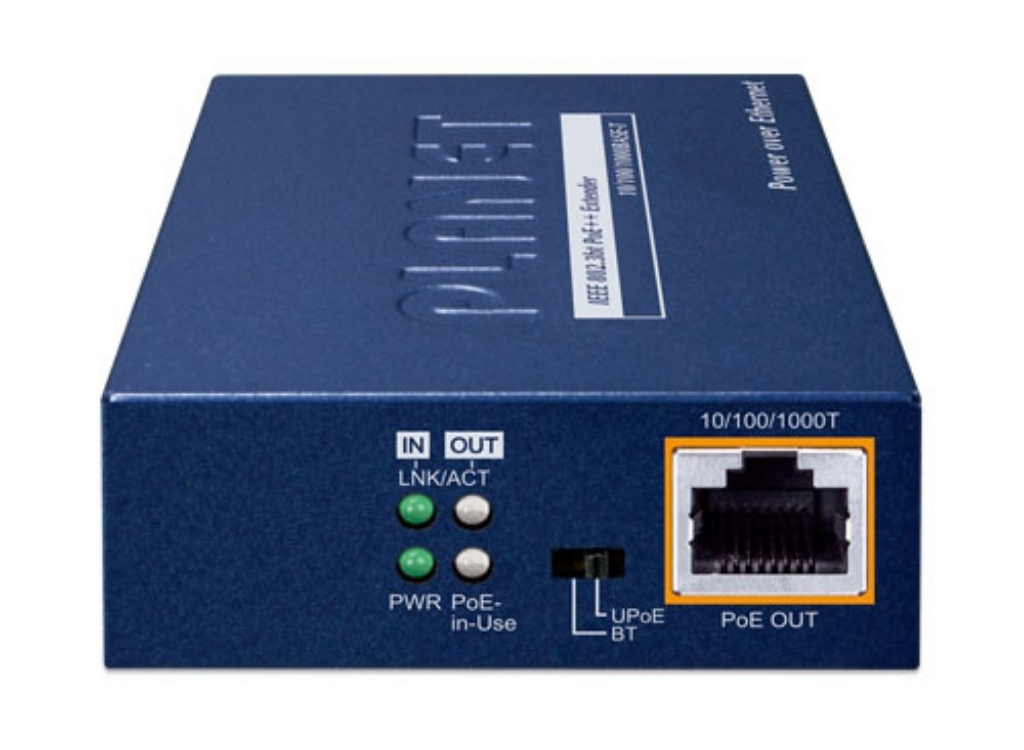

  LED Indicators	1 x PWR (Green), 1 x PoE IN Data (Green), 1 x PoE OUT Data (Green), 1 x PoE Out: PoE-in-use (Green: BT PD; Amber UPOE PD)
  Network Cable	10BASE-T: 4-Pair UTP Cat. 5 up to 100m (328ft), 100BASE-TX: 4-Pair UTP Cat. 5 up to 100m (328ft), 1000BASE-T: 4-Pair UTP Cat. 5e, 6, up to 100m (328ft), EIA/TIA-568 100-ohm STP (100m, 328ft)
  Data Rate	10/100/1000Mbps
  Switch Architecture	Store-and-Forward
  Switch Throughput	10Mbps: 14880pps@64Bytes, 100Mbps: 148810pps@64Bytes, 1000Mbps: 1488000pps@64Bytes
  Maximum Frame Size	9K bytes
  Flow Control	Back pressure for half duplex, IEEE 802.3x pause frame for full duplex
  PoE Standard (PoE In)	IEEE 802.3bt Power over Ethernet Plus end-span/mid-span PD class 4 PD
  PoE Standard (PoE Out)	IEEE 802.3bt Power over Ethernet Plus end-span PSE, Backward compatible with IEEE 802.3af/at
  PoE Power Supply Type	End-span + Mid-span
  PoE Power (PoE In)	50-56V DC, max. 95 watts PoE input
  PoE Power (PoE Out)	55V DC, max. 65 watts PoE budget
  Power Pin Assignment	“PoE In” Port: 1/2 (-), 3/6 (+); 4/5 (+), 7/8 (-), “PoE Out” Port: 1/2 (-), 3/6 (+); 4/5 (+), 7/8 (-)
  Maximum Distance	400 meters with daisy-chain installation of 3 units
  Regulatory Compliance	FCC Part 15 Class A, CE
  Standard Compliance	IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x, IEEE 802.3az
  Operating Temperature	-10 ~ 60 degrees C
  Operating Humidity	5 ~ 95% (non-condensing)
  Storage Temperature	-40 ~ 85 degrees C
  Storage Humidity	5 ~ 95% (non-condensing)
