• Planet 1-Port 802.3bt PoE++ to 4-Port 802.3af/at Gigabit PoE Extender | POE-E304

  PoE Solution for Breaking RJ45 100m Limitation
  PLANET POE-E304 is a 1-port 95W 802.3bt PoE++ to 4-port 802.3af/at Gigabit PoE Extender designed especially for point to multipoint PoE applications. The POE-E304 can obtain a maximum of 95-watt PoE power from IEEE 802.3bt PoE input port and supplies a maximum of 65-watt PoE power budget to four PoE output ports, extending the simultaneous transmission distance of both the Gigabit Ethernet Data and IEEE 802.3at/802.3af Power over Ethernet over the standard 100m (328 ft.) Cat. 5/5e/6 UTP cable to up to 200 meters. Thus, the POE-E304 provides a simple solution for adding PoE ports without running more cabling and achieves more flexible network applications without requiring an external power adapter.


  Plug and Play Installation

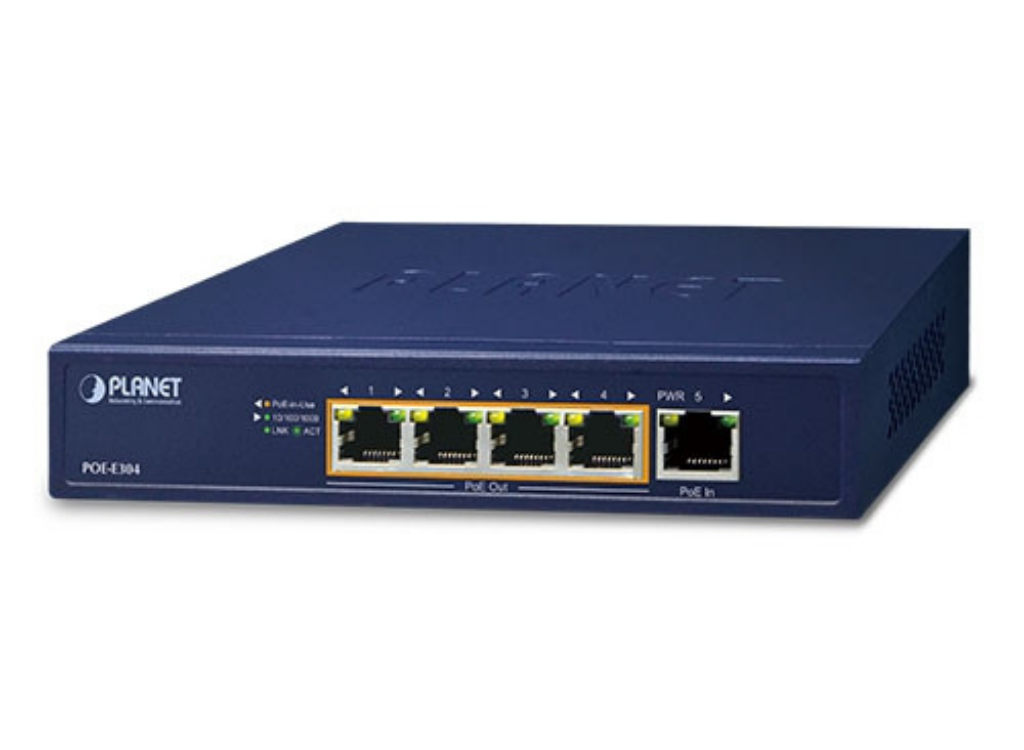

  The POE-E304 is quite easy to be installed by simple Plug and Play. It is used between a power source equipment (PSE) and a powered device (PD). The POE-E304 injects power to the PD without affecting the data transmission performance. The POE-E304 offers a cost-effective and quick solution to doubling the standard range of PoE from 100 to 200 meters. The POE-304 is designed in a compact box containing five RJ45 ports, of which one “PoE IN” port functions as PoE (Data and Power) input and the other four “PoE OUT” ports function as PoE output. The “PoE OUT” port is also the power injector that transmits DC voltage over the Cat5/5e/6 cable and transfers data and power simultaneously between the PSE and PD.


  Applications

  One Power Sourcing for Multiple Powered Devices
  Is 100-meter cable long enough for a wide range of IP surveillance network deployments? The answer is certainly not.  To achieve the benefits of IP surveillance and the long-distance IP camera distribution, the POE-E304 is quite a useful Gigabit PoE extender if users have most of their network already set up, and hope to expand network communications and overcome cable distance limitations offering connections to devices in locations where traditional networking does not allow.


  Key Features

  Physical Port
  5 10/100/1000BASE-T Gigabit RJ45 ports
  1-port data + power input
  4-port data + power output

  Power over Ethernet
  1-port data + power input
  Complies with IEEE 802.3bt PoE++ PD
  Supports PoE input power up to 95 watts
  4-port data + power output
  Complies with IEEE 802.3af/IEEE 802.3at PoE+/end-span PSE
  Up to 4 IEEE 802.3af/802.3at devices powered
  Supports PoE power up to 32 watts for each PoE port
  Auto detects powered device (PD)
  Extends the range of PoE to an additional 100 meters (328ft.)
  Forwards both Ethernet data and PoE power to remote device

  Layer 2 Features
  Hardware-based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
  Integrates address look-up engine, supporting 2K absolute MAC addresses
  9K jumbo packet support
  Features Store-and-Forward mode with wire-speed filtering and forwarding rates
  IEEE 802.3x flow control for full duplex operation and backpressure for half duplex operation
  Automatic address learning and address aging

  Case and Installation
  No external power cable installation required
  Made of metal, desktop size design
  Wall-mountable, Plug-and-Play installation
  0 ~ 50 degrees C operating temperature

• Specification	Details
  Network Connector (PoE In)	1 x 10/100/1000BASE-T Ethernet with IEEE 802.3bt PoE++ “Data + DC” in, auto MDI/MDI-X, auto-negotiation RJ45 connector
  PoE Out Ports	4 x 10/100/1000BASE-T Ethernet with IEEE 802.3af/802.3at PoE “Data + DC” out, auto MDI/MDI-X, auto-negotiation RJ45 connector
  Data Rate	10/100/1000Mbps
  Switch Architecture	Store-and-Forward
  MAC Address Table	2K
  Data Buffer	1Mbits
  Switch Fabric	10Gbps
  Switch Throughput	7.44Mpps @ 64 bytes
  Jumbo Frame	9K
  Flow Control	IEEE 802.3x pause frame for full duplex, Back pressure for half duplex

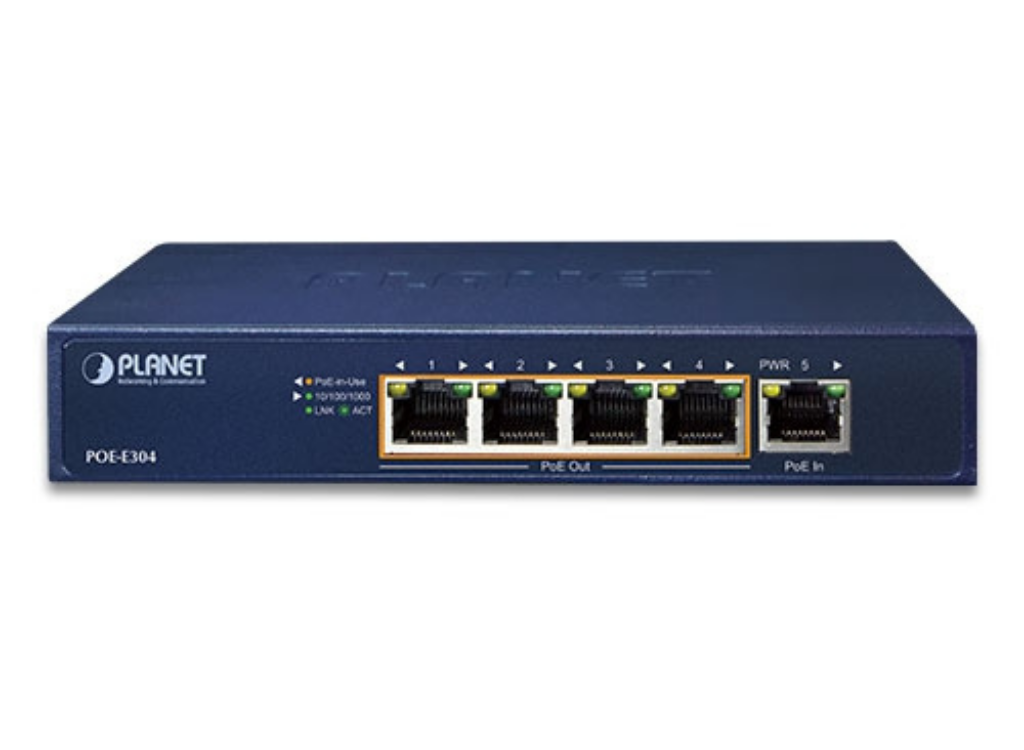

  LED Indicators	PoE In Port: 10/100/1000 LNK/ACT (green) PoE Out Port 1-4: 10/100/1000 LNK/ACT (green), PoE-in-Use (orange), PWR (orange)
  Protection	ESD: Contact 4KV, Air 6KV Surge: 4KV
  Enclosure	Metal
  Installation	Desktop/Wall mountable
  Dimensions (W x D x H)	168 x 94 x 32 mm
  Weight	403g

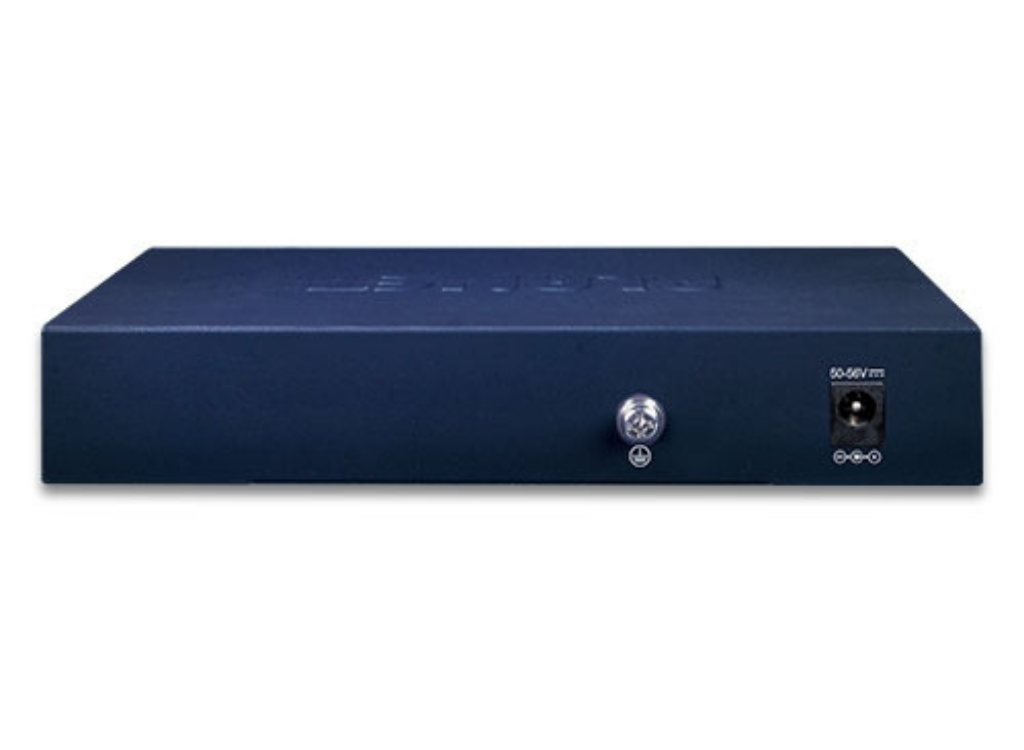

  Power Requirements (PoE In)	IEEE 802.3bt or 4-pair 802.3at PoE+ compliant with voltage within 50V-56V DC External DC: 50~56V DC
  Power Consumption	0.9 watts/3.1BTU (System on) 74 watts/252.4BTU (Full loading with PoE function)
  Network Cable	10BASE-T: 4-pair UTP Cat5 up to 100m 100BASE-TX: 4-pair UTP Cat5 up to 100m 1000BASE-T: 4-pair UTP Cat5e, 6, up to 100m
  PoE Standard (PoE In Port)	IEEE 802.3bt Power over Ethernet Plus Plus end-span and mid-span PD class 4 PD
  PoE Standard (PoE Out Ports)	IEEE 802.3at Power over Ethernet Plus end-span PSE IEEE 802.3af Power over Ethernet end-span PSE
  PoE Power (PoE In Port)	50~56V DC, max. 95 watts input
  PoE Power (PoE Out Ports)	50~55V DC, max. 32 watts output
  Power Pin Assignment (PoE In)	1/2 (-), 3/6 (+); 4/5 (+), 7/8 (-)
  Power Pin Assignment (PoE Out)	1/2 (-), 3/6 (+), end-span (Type A)
  PoE Power Budget	65 watts (max.) @ IEEE 802.3bt PoE++ Type 4 PSE input 32 watts (max.) @ IEEE 802.3at PoE+ input
  Regulatory Compliance	FCC Part 15 Class A, CE
  Standard Compliance	IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3af/at/bt Power over Ethernet
  Operating Temperature	0 ~ 50 degrees C
  Operating Humidity	5 ~ 95% (non-condensing)
  Storage Temperature	-10 ~ 70 degrees C
  Storage Humidity	5 ~ 95% (non-condensing)
