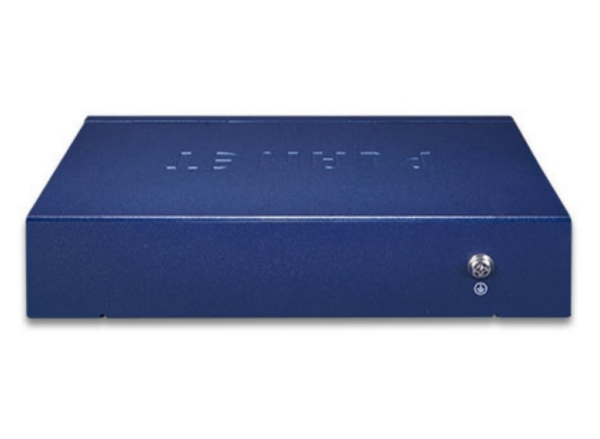

• Planet 1-port 802.3at PoE+ to 2-port 802.3af/at Gigabit PoE Extender | POE-E202

  PoE Solution for Breaking RJ45 100m Limitation
  PLANET POE-E202 is a 1-port PoE+ to 2-port 802.3af/at Gigabit PoE Extender designed especially for point to multipoint PoE application. The POE-E202 can obtain a maximum of 30-watt PoE power from PoE+ input port and supplies a maximum of 25-watt PoE power budget for two PoE output ports, extending both the Gigabit Ethernet Data and IEEE 802.3at/802.3af Power over Ethernet over the standard 100m (328 ft.) Cat. 5/5e/6 UTP cable to up to two 200m powered devices at the same time.

  The POE-E202 provides a simple solution for adding PoE ports without running more cabling and achieves more flexible network applications without requiring an external power adapter.


  Plug and Play Installation

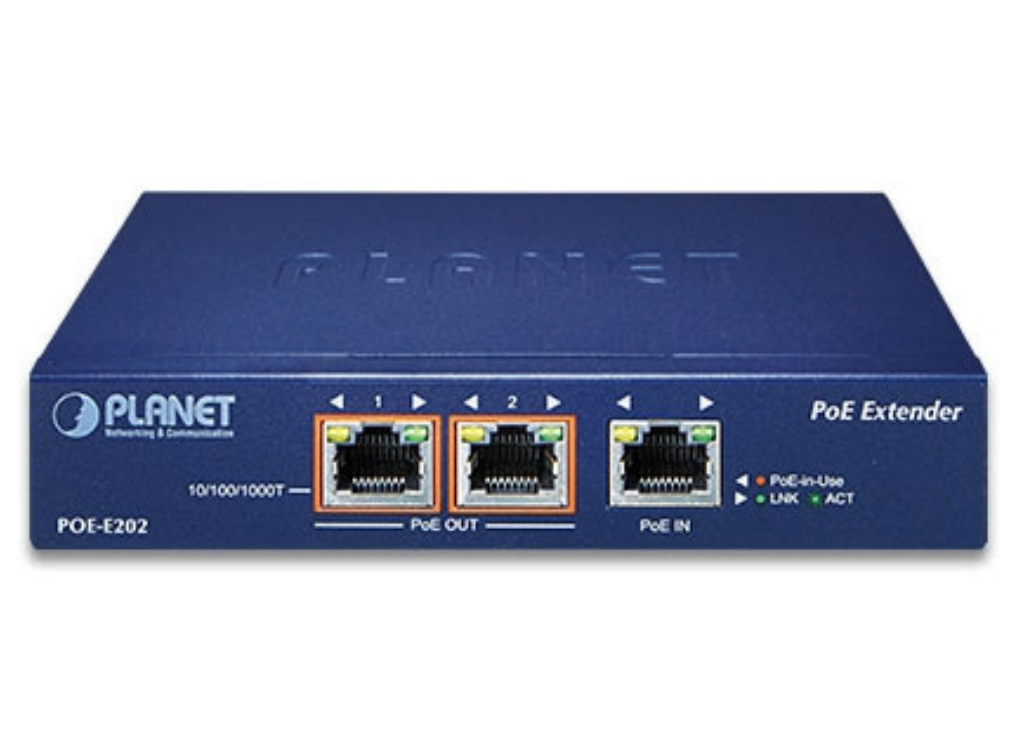

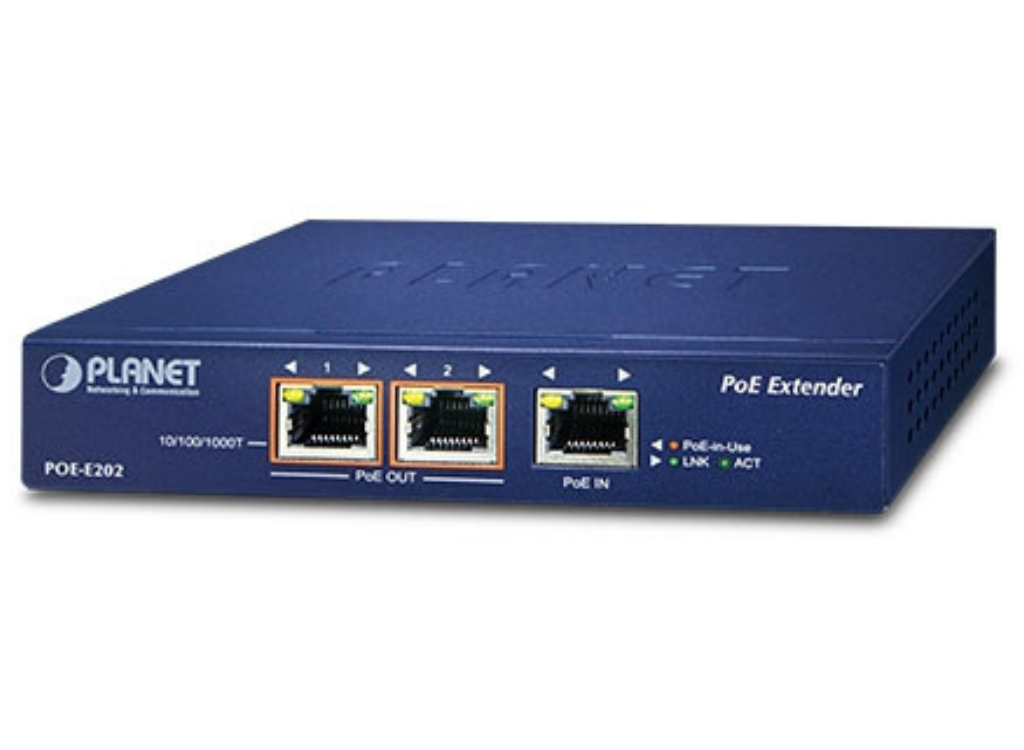

  The POE-E202 is quite easy to be installed by simple plug and play. It is used between a power source equipment (PSE) and a powered device (PD). The POE-E202 injects power to the PD without affecting the data transmission performance. The POE-E202 offers a cost-effective and quick solution to doubling the standard range of PoE from 100 to 200 meters. The POE-E202 is designed in a compact box containing three RJ45 ports, of which one “PoE IN” port functions as PoE (Data and Power) input and the other two “PoE OUT” ports function as PoE output. The “PoE OUT” port is also the power injector that transmits DC voltage over the Cat5/5e/6 cable and transfers data and power simultaneously between the PSE and PD.


  Applications

  One Power Sourcing for Multi Powered Devices Solution
  Is 100-meter cable long enough for a wide range of IP surveillance deployments? The answer is certainly not.  To achieve the benefits of IP surveillance and the long-distance IP camera distribution, PLANET POE-E202 is quite a useful Gigabit PoE extender if users have most of their network already set up, and hope to expand network communications and overcome cable distance limitations offering connections to devices in locations where traditional networking does not allow.


  Key Features

  Physical Port
  3-port 10/100/1000BASE-T Gigabit RJ45
  1-port data + power input
  2-port data + power output

  Power over Ethernet
  1-port data + power input
  Complies with IEEE 802.3at Power over Ethernet Plus end-span/mid-span PD
  Supports PoE input power up to 30.8 watts
  2-port data + power output
  Complies with IEEE 802.3af/IEEE 802.3at Power over Ethernet end-span PSE
  Up to 2 IEEE 802.3af/802.3at devices powered
  Supports PoE power up to 25 watts for each PoE port
  Auto detects powered device (PD)
  Extends the range of PoE to an additional 100 meters (328ft.)
  Forwards both Ethernet data and PoE power to remote device

  Layer 2 Features
  Hardware-based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
  Integrates address look-up engine, supporting 2K absolute MAC addresses
  10K iumbo packet support
  IEEE 802.1Q VLAN transparency
  Features Store-and-Forward mode with wire-speed filtering and forwarding rates
  IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
  Automatic address learning and address aging
  Supports CSMA/CD protocol

  Case and Installation
  No external power cable installation required
  Made of metal, desktop size design
  Wall-mountable, Plug-and-Play installation
  0 ~ 50 degrees C operating temperature

• Category	Specification
  Interfaces
  PoE IN	1 x 10/100/1000BASE-T, IEEE 802.3at PoE (Data + Power), RJ45, auto MDI/MDI-X
  PoE OUT	2 x 10/100/1000BASE-T, IEEE 802.3at/af PoE (Data + Power), RJ45, auto MDI/MDI-X
  PoE Standards
  PoE IN Port	IEEE 802.3at PoE+ PD, Class 4
  PoE OUT Ports	IEEE 802.3at PoE+ PSE, IEEE 802.3af PoE PSE
  PoE Supply Type	End-span (Type A)
  PoE IN Power	52~56V DC, max. 30.8W
  PoE OUT Power (per port)	44~55V DC, max. 25W
  PoE Pin Assignment (IN)	1/2(+), 3/6(-); 4/5(+), 7/8(-)
  PoE Pin Assignment (OUT)	1/2(+), 3/6(-)
  Hardware Specs
  Data Rate	10/100/1000Mbps
  MAC Address Table	2K
  Data Buffer	2Mbits
  Switch Architecture	Store-and-Forward
  Switch Fabric	6Gbps
  Throughput	4.46Mpps @ 64 bytes
  Jumbo Frame	10KB
  Flow Control	IEEE 802.3x (full duplex), back pressure (half duplex)
  LED Indicators
  PoE IN	PoE-in-Use (Amber), LNK/ACT (Green)
  PoE OUT 1	PoE-in-Use (Amber), LNK/ACT (Green)
  PoE OUT 2	PoE-in-Use (Amber), LNK/ACT (Green)
  Protection	ESD (Ethernet): 2KV (TBD), EFT (Power): 2KV (TBD)
  Physical
  Enclosure	Metal
  Installation	Wall-mountable
  Dimensions (W x D x H)	140 x 76.7 x 27.7 mm
  Weight	258g
  Power Requirements	IEEE 802.3at compliant (52~56V DC)
  Power Consumption	1.6W (idle), 2.2W (no PoE), 36W (full PoE load)
  Cabling	Cat. 5/5e/6 UTP up to 100m
  Standards Compliance	IEEE 802.3, 802.3u, 802.3ab, 802.3af, 802.3at, 802.3x
  Regulatory Compliance	FCC Part 15 Class A, CE
  Environmental Specs
  Operating Temperature	0°C ~ 50°C
  Operating Humidity	5% ~ 95% (non-condensing)
  Storage Temperature	-10°C ~ 70°C
  Storage Humidity	5% ~ 95% (non-condensing)
