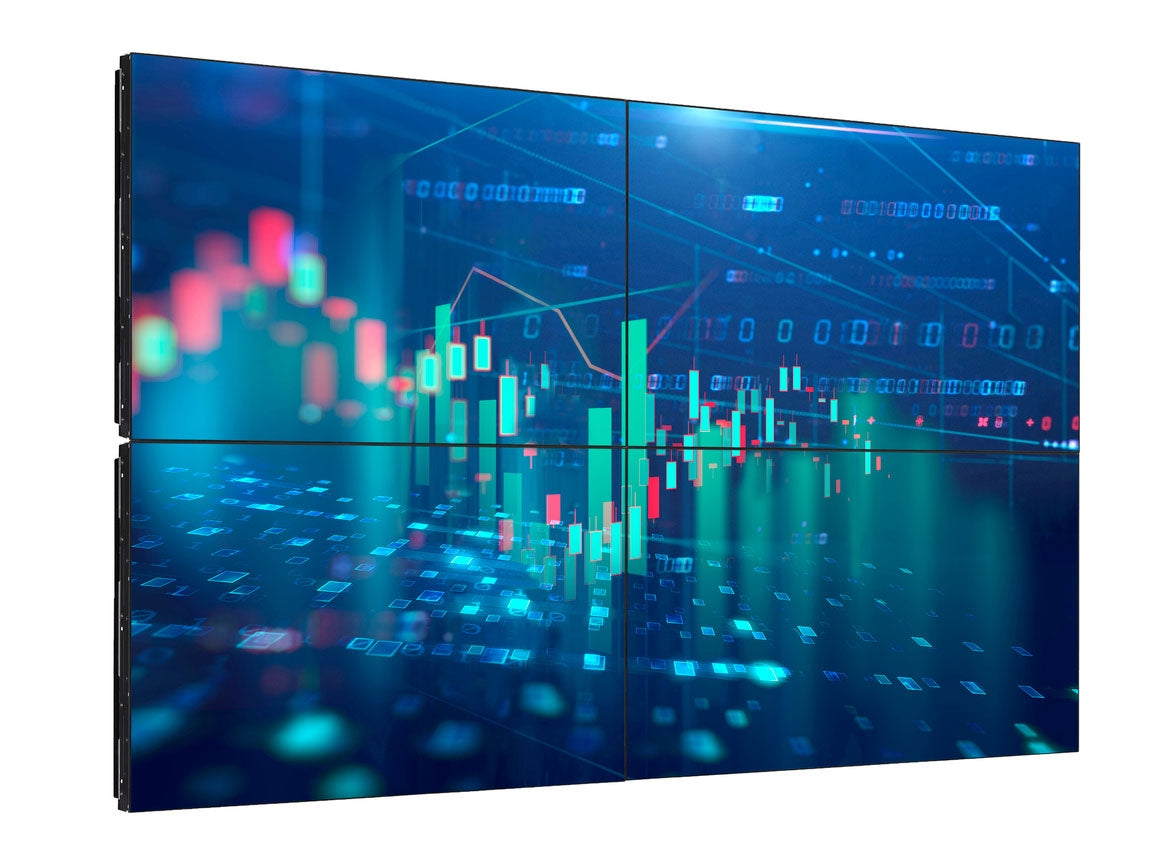

Philips X-Line | 65BDL6005X/00 65″ Ultra Slim Video Wall Display
- Description
- Specifications
- Warranty
- Downloads
-
Operate, monitor and maintain with CMND and Control
Run your display network over a local (LAN) connection. CMND and Control allows you to perform vital functions like controlling inputs and monitoring display status. Whether you’re in charge of one screen or 100.
FailOver ensures that content is always playing
From waiting room to meeting room, never show a blank screen. FailOver lets your Philips Professional Display switch automatically between primary and secondary inputs, ensuring that content keeps playing even if the primary source goes down. Simply set a list of alternative inputs to be sure your business is always on.
OPS slot allows for PC embedding without cabling
Integrate a full-power PC or Android-powered CRD50 module directly into your Philips Professional Display. The OPS slot contains all the connections you need to run your slot-in solution, including a power supply.
Add Android processing power with an optional CRD50 module
Embed an Android System-on-Chip (SoC) into your Philips Professional Display. The optional CRD50 module is an OPS device that enables Android processing power without the need for cables. Simply slide into the OPS slot, which contains all the connections needed to run the module (including power supply).
Tiling mode. Create tiled 4K videowalls of any size
Connect two or more Philips professional displays to create a tiled videowall — without the need for external devices. A single player takes care of content, whether you have four screens or 40. 4K content is fully supported and if you’re showing that content on four screens you get the best possible dot-by-dot resolution.
Ultra-narrow bezels. For distraction-free images
Boost image quality with Pure Colour Pro. Delivering higher luminance through custom colour temperature settings and advanced gamma calibration, content looks crisper and more radiant for stunning realism with a visual pop.
-
Picture/Display Diagonal screen size (metric) 164 cm Diagonal screen size (inch) 64.5 inch Panel resolution 3840 x 2160 Optimum resolution 3840 x 2160 @ 60 Hz Brightness 500 cd/m² Dynamic contrast ratio 500,000:1 Response time (typical) 8 ms Aspect ratio 16:9 Viewing angle (horizontal) 178 degree Viewing angle (vertical) 178 degree Pixel pitch 0.372 x 0.372 mm Display colours 1.07 B Contrast ratio (typical) 1300:1 Haze 25% Supported Display Resolution Computer formats 720 x 400, 70 Hz 800 x 600, 60, 75 Hz 1024 x 768, 60, 75 Hz 1280 x 768, 60 Hz 1280 x 800, 60 Hz 1280 x 960, 60 Hz 1280 x 1024, 60 Hz 1360 x 768, 60 Hz 1366 x 768, 60 Hz 1600 x 1200, 60 Hz 1920 x 1080, 60 Hz 3840 x 2160, 60 Hz Video formats 720p, 50, 60 Hz 1080i, 25, 30 Hz 1080p, 50, 60 Hz 3840 x 2160, 60 Hz 2160 P 50, 60 Hz ((HDMI/OPS/DP) Connectivity Video input Display Port1.2 (x 1) DVI-D (x 1) HDMI 2.0 (x 2) VGA (Analogue D-Sub) (x 1) Audio input 3.5 mm mini jack (x 1) Video output DisplayPort 1.2 (x 1) Audio output 3.5 mm Mini Jack (x 1) External control IR (in) 3.5 mm jack IR (in/out) RJ45 LAN RJ45 (x2) RS232 (in/out) RJ45 Other connections OPS USB 2.0 (x 1) Convenience Placement Landscape (24/7) Portrait (24/7) Tiled Matrix Up to 10 x 10 Signal loop through DisplayPort IR and RS232 via RJ45 LAN Ease of installation Carrying Handles Smart Insert Energy-saving functions Smart Power Network controllable LAN (RJ45) Screen-saving functions Pixel Shift, Low Bright Operating conditions Temperature range (operation) 0 ~ 40 °C Temperature range (storage) -20 ~ 60 °C Altitude 0 ~ 3000 m MTBF 50,000 hour(s) Humidity range (operation)[RH] 20 – 80% (without condensation) Humidity range (storage) [RH] 5 – - Warranty Period: 36 months
Philips Monitors
Dead on ArrivalManufacturer’s DOA period:7 days from end user
Contact: Philips Consumer Care
Tel. No.: 0208 1919 223 (opt 1)
Fax No.:
Email:
Comments: We are sorry you are having issues with your Philips product purchased, In order for us to assist you with your query as soon as possible the below procedure has been provided to ensure a smooth AfterCare experience.Philips deal with all your AfterCare requirements for the product you have purchased, they can help with technical queries and offer advice.
Please contact them direct on 0208 1919 223. You will need the following information to hand
* Customer Name
* Email Address
* Product Model Number
* Serial Number
* Details of the faultIf Philips advise they are unable to fix the fault they will issue a returns authorisation number which looks like MMD—. Once provided Screen Moove will be able to issue a return and provide a replacement if required.
If you have any questions or would like further advise, please feel free to contact our AfterCare Team (ACE) on 0208 1919 223 / who will be happy to assist.
In Warranty Support
Warranty Period SEE WARRANTY NOTES
Contact: Philips Warranty Line
Tel. No. 0208 1919 223 (opt 1)
Fax No.
Email
Manufacturers Website http://www.philips.co.uk
Comments We are sorry you are having issues with your Philips product purchased, In order for us to assist you with your query as soon as possible the below procedure has been provided to ensure a smooth AfterCare experience.Philips deal with all your AfterCare requirements for the product you have purchased, they can help with technical queries and offer advice.
Please contact them direct on 0208 1919 223. You will need the following information to hand
* Customer Name
* Email Address
* Product Model Number
* Serial Number
* Details of the faultIf you have any questions or would like further advise, please feel free to contact our AfterCare Team (ACE) on 0208 1919 223 / who will be happy to assist.
-
Manuals and Documentation Download Link User Manual Downloads Quick Start Guide Downloads Leaflet Downloads
