Philips X-Line | 55BDL3105X/02 55″ Ultra Slim Video Wall Display

• Description
• Specifications
• Warranty
• Downloads

• PHILIPS X-Line | 55BDL3105X/02 55″ Ultra Slim Video Wall Display

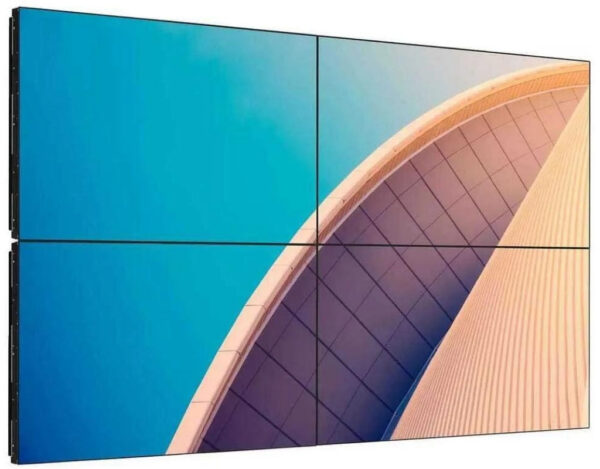

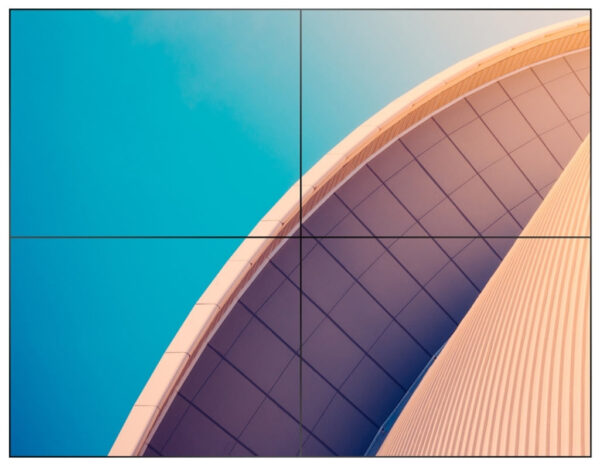

  Versatile videowall display
  Command attention with a Philips X-Line Videowall display. An ultra-narrow bezel allows for near seamless linking for a display of any size, whilst Advanced Colour Calibration ensures a clear image in any lighting condition.
  Unfortunately this product is no longer available

  Operate, monitor and maintain with CMND and Control

  Run your display network over a local (LAN) connection. CMND and Control allows you to perform vital functions like controlling inputs and monitoring display status. Whether you’re in charge of one screen or 100.

  OPS slot allows for PC embedding without cabling

  Integrate a full-power PC or Android-powered CRD50 module directly into your Philips Professional Display. The OPS slot contains all the connections you need to run your slot-in solution, including a power supply.

  FailOver ensures that content is always playing

  From waiting room to meeting room, never show a blank screen. FailOver lets your Philips Professional Display switch automatically between primary and secondary inputs, ensuring that content keeps playing even if the primary source goes down. Simply set a list of alternative inputs to be sure your business is always on.

  Tiling mode. Create tiled 4K videowalls of any size

  Connect two or more Philips professional displays to create a tiled videowall — without the need for external devices. A single player takes care of content, whether you have four screens or 40. 4K content is fully supported and if you’re showing that content on four screens you get the best possible dot-by-dot resolution.

  Add Android processing power with an optional CRD50 module

  Embed an Android System-on-Chip (SoC) into your Philips Professional Display. The optional CRD50 module is an OPS device that enables Android processing power without the need for cables. Simply slide into the OPS slot, which contains all the connections needed to run the module (including power supply).

  Pure Colour Pro and advanced colour accuracy

  Boost image quality with Pure Colour Pro. Delivering higher luminance through custom colour temperature settings and advanced gamma calibration, content looks crisper and more radiant for stunning realism with a visual pop.

• Specification/Feature	Value
  Diagonal screen size (metric)	138.7 cm
  Diagonal screen size (inch)	54.6 inch
  Panel resolution	1920 x 1080p
  Optimum resolution	1920 x 1080 @ 60 Hz
  Brightness	500 cd/m²
  Contrast ratio (typical)	1200:1
  Dynamic contrast ratio	500,000:1
  Response time (typical)	8 ms
  Aspect ratio	16:9
  Viewing angle (horizontal)	178 degree
  Viewing angle (vertical)	178 degree
  Pixel pitch	0.63 x 0.63 mm
  Display colours	1.07 B
  Supported Display Resolution (Computer formats)	1920 x 1080, 60 Hz, 1600 x 1200, 60 Hz, 1366 x 768, 60 Hz, 1360 x 768, 60 Hz, 1280 x 1024, 60 Hz, 1280 x 800, 60 Hz, 1280 x 768, 60 Hz, 1024 x 768, 60, 75 Hz, 1280 x 960, 60 Hz, 640 x 480, 60, 72, 75 Hz, 720 x 400, 70 Hz, 800 x 600, 60, 75 Hz
  Supported Display Resolution (Video formats)	1080p, 50, 60 Hz, 720p, 50, 60 Hz, 1080i, 25, 30 Hz
  Connectivity	Component BNC (x 3), Composite (Share component Y), DisplayPort, DVI-D (x 1), VGA (Analogue D-Sub) (x 1), HDMI (x 2)
  Video output	DisplayPort, DVI-I (x 1)
  Audio input	3.5 mm jack, Audio Left/Right (RCA)
  Audio output	Audio Left/Right (RCA)
  External control	IR (in/out) 3.5 mm jack, RS232C (in/out) 2.5 mm jack, RJ45
  Other connections	OPS
  Signal loop through	RS232, DisplayPort, IR Loop through
  Ease of installation	Carrying Handles, Smart Insert
  Energy-saving functions	Smart Power
  Network controllable	RS232, RJ45
  Placement	Landscape, Portrait
  Screen-saving functions	Pixel Shift, Low Bright
  Tiled Matrix	Up to 15 x 15
  Control software	SICP / CMND & Control
  Bezel thickness	3.5 mm (A-A)
  Bezel width	Top/Left: 2.3 mm, Bottom/Right: 1.2 mm
  Set Width	1213.4 mm
  Set Height	684.2 mm
  Set Depth	98 mm (D@Wall Mount)/99.2 (D@Handle) mm
  Set Width (inch)	47.77 inch
  Set Height (inch)	26.94 inch
  Set Depth (inch)	3.86 (D@Wall Mount)/3.91 (D@Handle) inch
  Product weight	26.2 kg
  Wall Mount	400 x 400 mm
  Temperature range (operation)	0 ~ 40 °C
  Temperature range (storage)	-20 ~ 60 °C
  Altitude	0 ~ 3000 m
  MTBF	50,000 hour(s)
  Humidity range (operation)[RH]	20~80% RH (No condensation)
  Humidity range (storage) [RH]	5~95% RH (No condensation)
  Standby power consumption	<0.5 W
  Consumption (Max)	320 W
  Consumption (Typical)	160 W
  Mains power	100 ~ 240 VAC,
