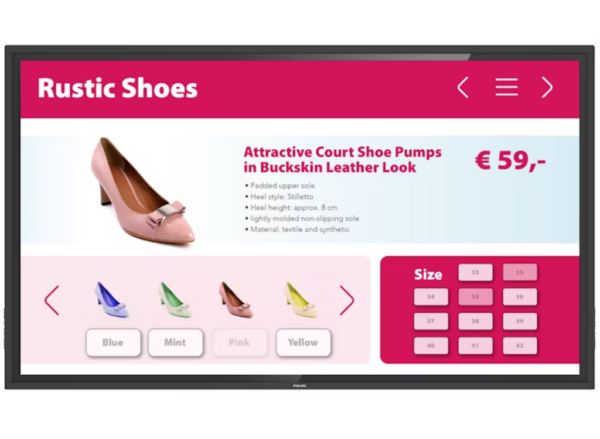

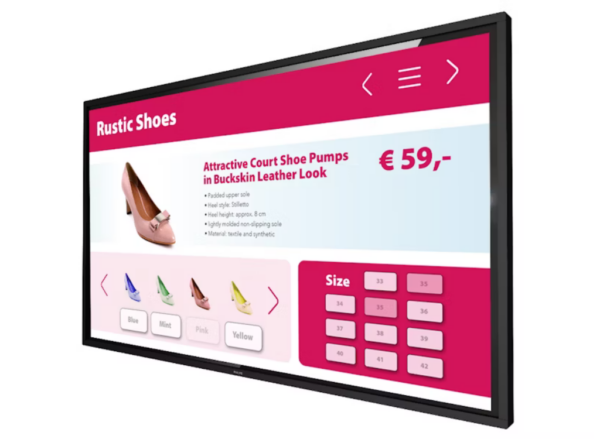

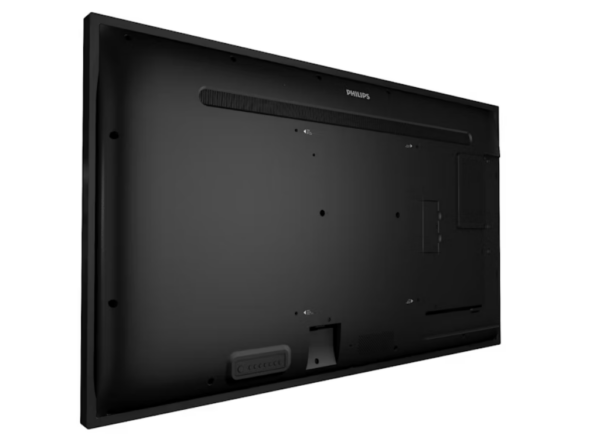

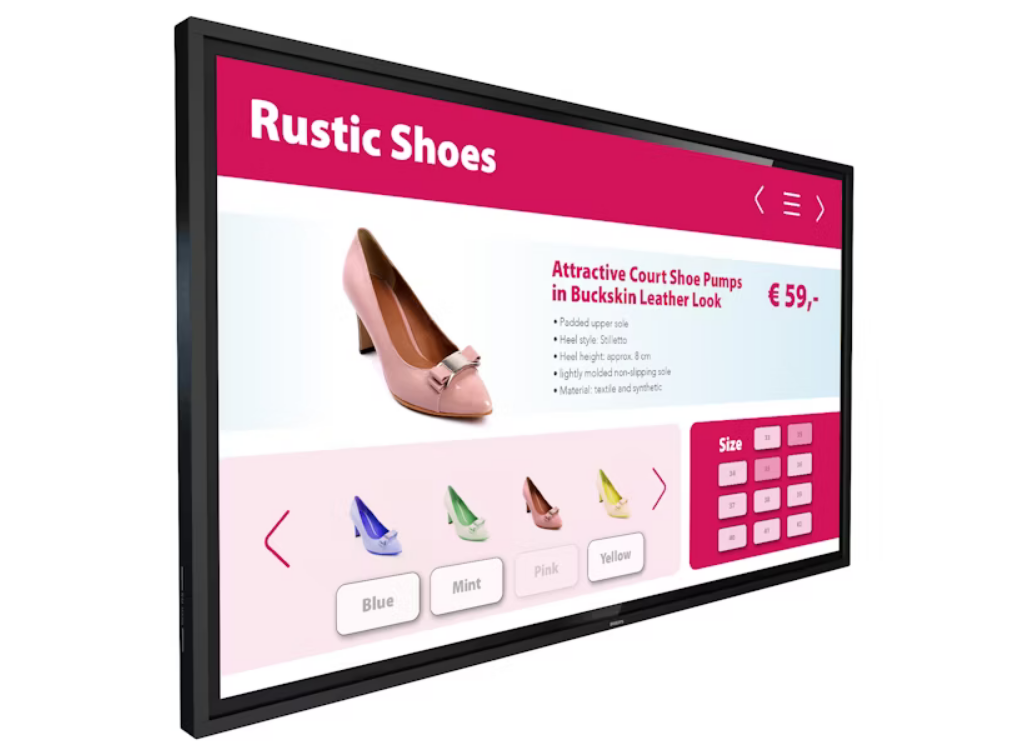

Philips T-Line 55BDL3452T 55″ 4K Ultra HD Interactive Display

• Description
• Specifications
• Downloads

• Philips T-Line 55BDL3452T 55″ 4K Ultra HD Interactive Display

  Inspire collaboration. Deliver information. This responsive Philips Multi-Touch Professional UHD Display is ideal for multi-finger, multi-user applications—from wayfinding to presentations. Up to 20 touch points can be active at once.

• Category	Details
  Picture/Display
  Diagonal screen size (metric)	138.8 mm
  Diagonal screen size (inch)	55″
  Panel resolution	3840 x 2160
  Optimum resolution	3840 x 2160 @ 60 Hz
  Brightness	400
  Contrast ratio (typical)	1300:1
  Surface treatment	Anti-Glare coating
  Aspect ratio	16:9
  Response time (typical)	8 ms
  Pixel pitch	0.315 (H) x 0.315 (V) mm
  Display colours	1.07 billion
  Viewing angle (horizontal)	178°
  Viewing angle (vertical)	178°
  Picture enhancement	Motion compensation, Dynamic contrast, etc.
  Panel technology	IPS
  Operating system	Android 8.0
  Interactivity
  Multi-touch technology	IRHE
  Touch points	20 simultaneous touch points
  Plug and play	HID compliant
  Protection glass	3 mm tempered safety glass
  Connectivity
  Video input	DVI-D (x 1), HDMI 2.0 (x 2), VGA (x 1), USB 2.0 (x 2)
  Audio input	3.5 mm jack
  Audio output	3.5 mm jack
  External control	RJ45, RS232C (in/out), IR (in/out)
  Other connections	micro SD, OPS
  Supported Display Resolution
  Computer formats	Multiple formats including 3840 x 2160 @ 60Hz
  Video formats	Multiple formats including 1080p, 4K
  Convenience
  Placement	Landscape (18/7), Portrait (18/7)
  Signal loop through	IR Loop through, RS232
  Screen-saving functions	Pixel Shift, Low Brightness
  Energy-saving functions	Smart Power
  Dimensions
  Set Width	1272.6 mm
  Set Height	743.4 mm
  Set Depth (Wall mount)	75.5 mm
  Set Depth (OPS Cover)	81.7 mm
  Product weight	27.0 kg
  Bezel width	16.3 mm
  Wall Mount	400 x 400 mm, M6
  Sound
  Built-in speakers	2 x 10 W
  Operating conditions
  Temperature range (operation)	0 ~ 40°C
  MTBF	50,000 hours
  Altitude	0 ~ 3000 m
  Temperature range (storage)	-20~60°C
  Humidity range (operation)	20–80% (without condensation)
  Humidity range (storage)	5–95% (without condensation)
  Power
  Mains power	100 ~ 240 VAC, 50/60 Hz
  Standby power consumption	<0.5 W
  Consumption (Typical)	140 W
  Power Saving Features	Smart Power
  Consumption (Max)	270 W
  Energy Label Class	G
  Accessories
  Stand	BM05922 (Optional)
  Included Accessories	Cleaning cloth, IR sensor cable, Power supply cable, etc.
  Miscellaneous
  On-Screen Display Languages	English, Arabic, Spanish, French, etc.
  Regulatory approvals	BSMI, CE, FCC, RoHS, etc.
  Warranty	3 years
  Multimedia Applications
  USB Playback Picture	BMP, GIF, JPEG, JPG, PDF
  USB Playback Audio	AAC, MP3, WAV, WMA
  USB Playback Video	MP4, MKV, MPEG, WMV, etc.
  Internal Player
  CPU	2 x A53 + 2 x A73
  Memory	2 GB DDR3
  Storage	8 GB
  GPU	ARM Mali G51
  Wi-Fi	2.4G, 5G

• Description	Downloads
  Leaflet	Downloads
  Mechanical Drawing	Downloads
  Manual	Downloads
