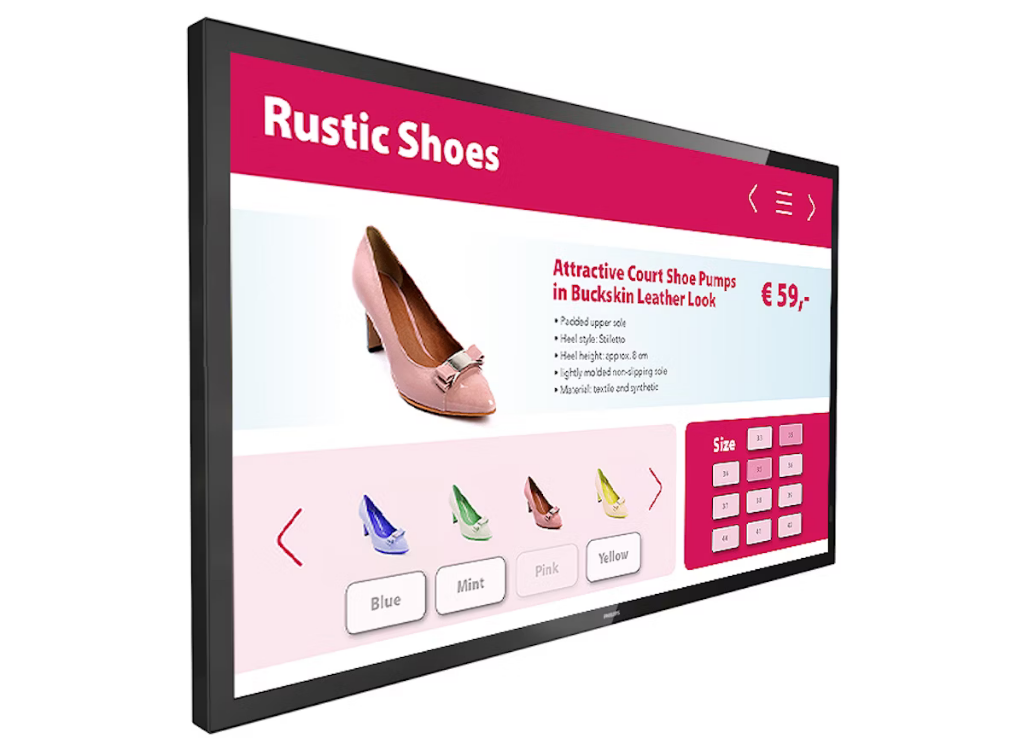

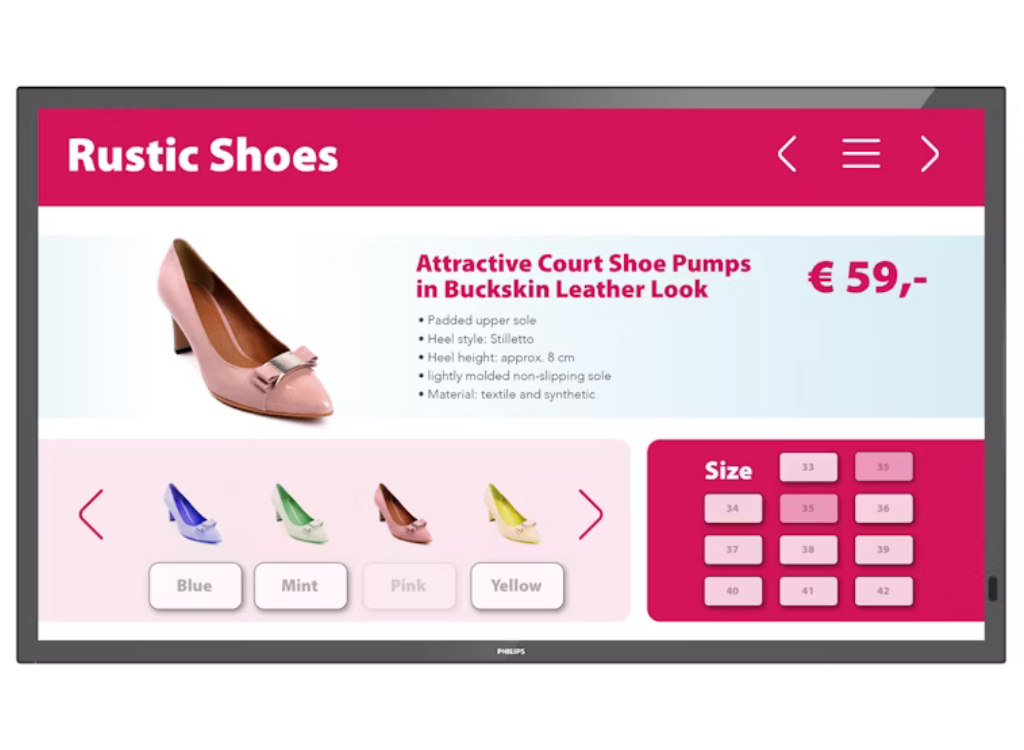

Philips T-Line 43BDL3651T 43″ 4K Ultra HD Interactive Display

• Description
• Specifications
• Downloads

• Philips T-Line 43BDL3651T 43″ 4K Ultra HD Interactive Display

  Inspire collaboration. Deliver information. This responsive Philips Multi-Touch Professional UHD Display is ideal for multi-finger, multi-user applications, from wayfinding to presentations. Up to 10 touch points can be active at once.

• Category	Details
  Picture/Display
  Diagonal Screen Size (Metric)	108.0 cm
  Diagonal Screen Size (Inches)	43 inches
  Panel Resolution	3840 x 2160p
  Optimum Resolution	3840 x 2160 @ 60 Hz
  Brightness	400 cd/m²
  Contrast Ratio (Typical)	1200:1
  Surface Treatment	Anti-Glare coating
  Aspect Ratio	16:9
  Response Time (Typical)	8 ms
  Pixel Pitch	0.2451 (H) x 0.2451 (V) mm
  Display Colours	1.07 Billion
  Viewing Angle (Horizontal)	178°
  Viewing Angle (Vertical)	178°
  Picture Enhancement	Motion Pull Down, 3D Combfilter, Progressive Scan
  Panel Technology	IPS
  Operating System	Android 8.0
  Interactivity
  Multi-touch Technology	Projected capacitive
  Touch Points	10 simultaneous touch points
  Protection Glass	3 mm tempered safety glass
  Connectivity
  Video Input	DVI-D (x 1), HDMI 2.0 (x 2), USB 2.0 Type A (x 2)
  Audio Input	3.5 mm jack
  Audio Output	3.5 mm jack
  External Control	RJ45, IR (in/out) 3.5 mm jack, RS232C (in/out)
  Other Connections	Micro SD, OPS
  Supported Display Resolution
  Computer Formats	Various (640 x 480 to 3840 x 2160)
  Video Formats	480i, 576p, 720p, 1080p, 4K (3840 x 2160)
  Convenience
  Placement	Landscape (18/7), Portrait (18/7)
  Network Controllable	RS232, RJ45
  Screen-Saving Functions	Pixel Shift, Low Brightness
  Energy-Saving Functions	Smart Power
  Dimensions
  Set Width	990.0 mm
  Set Height	578.2 mm
  Set Depth	70.2 mm (Wall mount), 102.7 mm (External OPS box)
  Product Weight	17.9 kg (39.46 lb)
  Bezel Width	2.0 mm (T/R/L/B)
  Wall Mount Compatibility	200mm x 200mm, M6
  Sound
  Built-in Speakers	2 x 10 W
  Operating Conditions
  Temperature Range (Operation)	0 ~ 40°C
  Humidity Range (Operation)	20–80% (without condensation)
  Power Supply	100 ~ 240 VAC, 50/60 Hz
  Consumption (Typical)	100 W
  Accessories
  Included Accessories	Cleaning cloth, IR sensor cable, Power cable, etc.
  Multimedia Applications
  USB Playback (Audio)	AAC, MP3, WAV, WMA, etc.
  USB Playback (Picture)	JPEG, PNG, BMP, etc.
  USB Playback (Video)	MP4, MKV, MPEG, WMV, etc.
  Internal Player
  CPU	2 x A53 + 2 x A73
  GPU	ARM Mali G51
  Memory	2 GB DDR3, 8 GB
  Wi-Fi	2.4 G, 5 G
