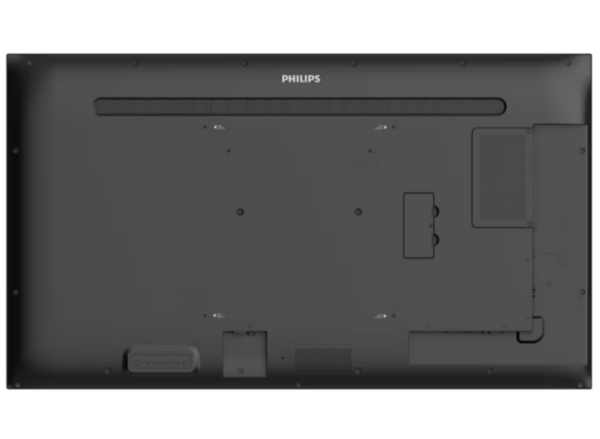

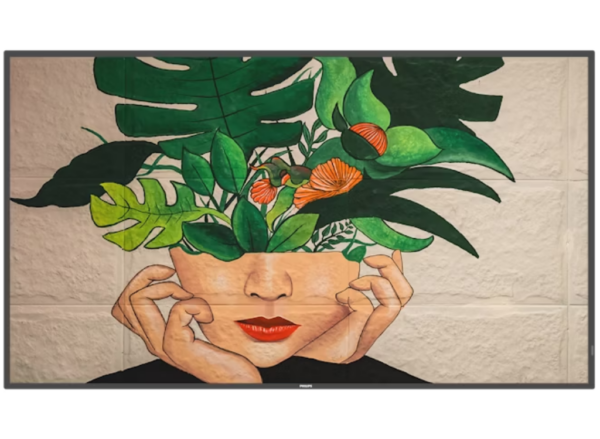

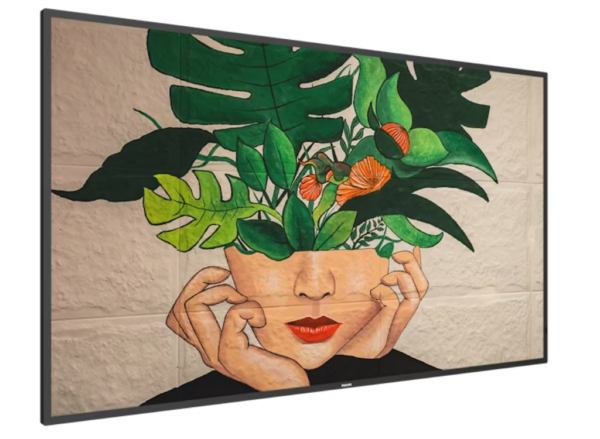

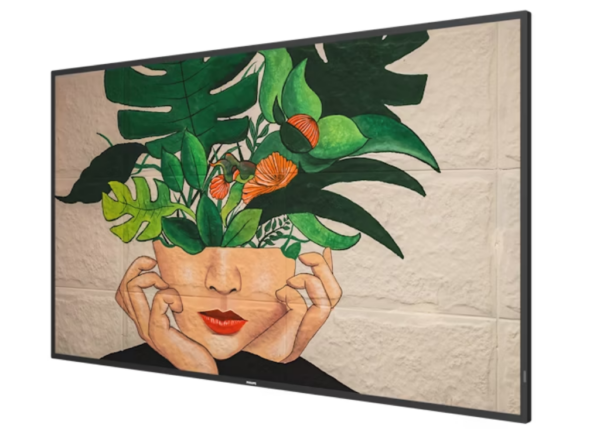

Philips D-Line 55″ 4K Ultra HD Digital Signage Display

• Description
• Specifications
• Downloads

• Philips D-Line 55″ 4K Ultra HD Digital Signage Display

  Make it stand out with a fast Philips D-Line Professional 4K UHD display. Philips superb picture quality ensures true colours and intense contrast. You can effortlessly display content from multiple sources on a single screen.


• Category	Specification
  Picture/Display
  Diagonal screen size (metric)	138.7 mm
  Diagonal screen size (inch)	54.6 inches
  Panel resolution	3840 x 2160
  Optimum resolution	3840 x 2160 @ 60 Hz
  Brightness	500 cd/m²
  Dynamic contrast ratio	500,000:1
  Response time (typical)	8 ms
  Aspect ratio	16:9
  Viewing angle (horizontal)	178°
  Viewing angle (vertical)	178°
  Pixel pitch	0.315 × 0.315 mm
  Display colours	1.07 Billion
  Panel technology	VA
  Contrast ratio (typical)	5000:1
  Haze	25%
  Supported Display Resolution
  Computer formats	640 x 480, 800 x 600, 1024 x 768, 1280 x 720, 1280 x 1024, 1440 x 900, 1600 x 900, 1680 x 1050, 1920 x 1080, 3840 x 2160
  Video formats	480i, 480p, 576p, 576i, 720p, 1080i, 1080p, 2160p
  Connectivity
  Video input	Display Port 1.2 (x 1), DVI-I (x 1), HDMI 2.0 (x 2), USB 2.0 (x 2)
  Audio input	3.5 mm jack
  Video output	DisplayPort 1.2 (x 1), HDMI 2.0 (x 1)
  Audio output	3.5 mm jack
  External control	IR (in/out) 3.5 mm jack, RJ45, RS232C (in/out) 2.5 mm jack
  Other connections	OPS
  Convenience
  Placement	Landscape (24/7), Portrait (24/7)
  Screen-saving functions	Pixel Shift, Low Bright
  Signal loop through	DisplayPort, RS232, HDMI, IR Loop through
  Energy-saving functions	Smart Power
  Network controllable	RS232, RJ45
  Keyboard control	Hidden, Lockable
  Operating conditions
  Temperature range (operation)	0 ~ 40 °C
  Temperature range (storage)	-20 ~ 60 °C
  Altitude	0 ~ 3000 m
  MTBF	50,000 hours
  Humidity range (operation) [RH]	20–80% RH (No condensation)
  Humidity range (storage) [RH]	5–95% RH (No condensation)
  Power
  Consumption (Typical)	135 W
  Consumption (Max)	278 W
  Standby power consumption	0.5 W
  Mains power	100 ~ 240 VAC, 50 ~ 60 Hz
  Energy Label Class	G
  Sound
  Built-in speakers	2 x 10 W RMS
  Accessories
  Stand	BM05922 (Optional)
  Included Accessories	AC Switch Cover, Philips logo, RS232 daisy-chain cable, AC power cord, IR sensor cable (1.8 m), Quick start guide, Remote control and AAA batteries, RS232 cable, USB Cover, Wire Clamper (x 3)
  Miscellaneous
  On-Screen Display Languages	Arabic, Dutch, Danish, English, French, Finnish, German, Italian, Japanese, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish, Simplified Chinese, Turkish, Traditional Chinese
  Regulatory approvals	CE, FCC, Class A, CCC, RoHS, CB, BSMI, EMF, VCCI, PSB, ETL, CECP, EAC
  Warranty	3-year warranty
  Multimedia Applications
  USB Playback Video	H.263, H.264, H.265, MPEG
  USB Playback Picture	BMP, JPEG, PNG
  USB Playback Audio	AAC, MPEG, HEAAC
  Dimensions
  Set Width	1241.8 mm
  Set Height	712.6 mm
  Set Depth	63.6 mm
  Set Width (inch)	48.89 inches
  Set Height (inch)	28.06 inches
  Set Depth (inch)	2.50 inches
  Bezel width	13.9 mm (Even bezel)
  Wall Mount	400 (H) x 400 (V) mm, M6
  Product weight	16.6 kg
  Product weight (lb)	36.60 lbs
