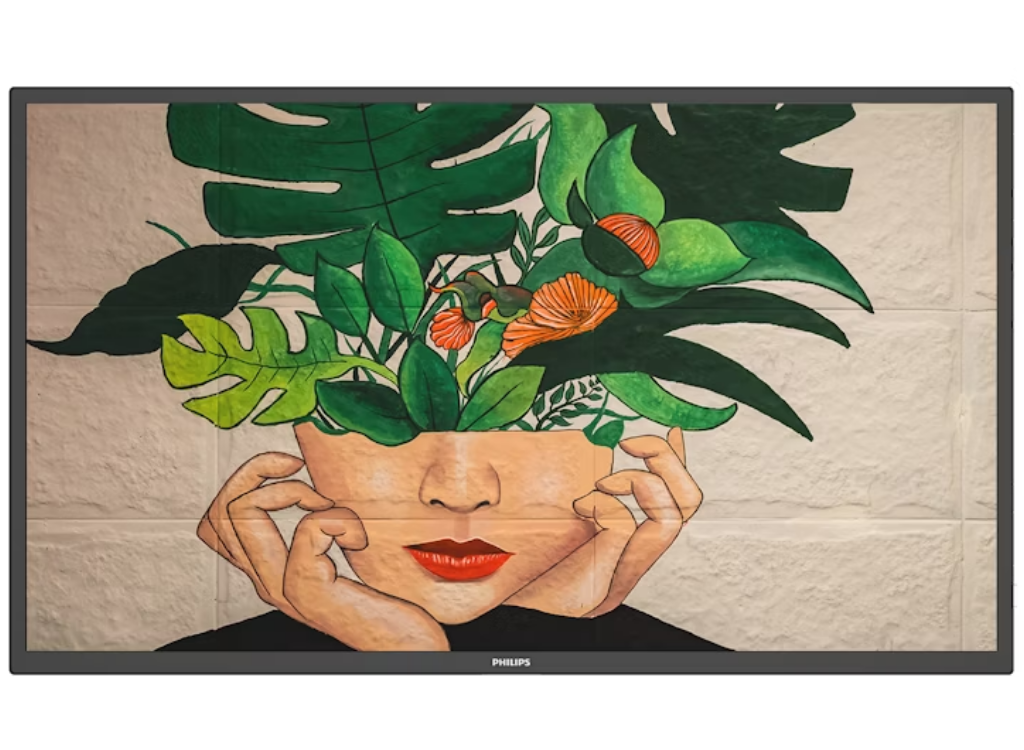

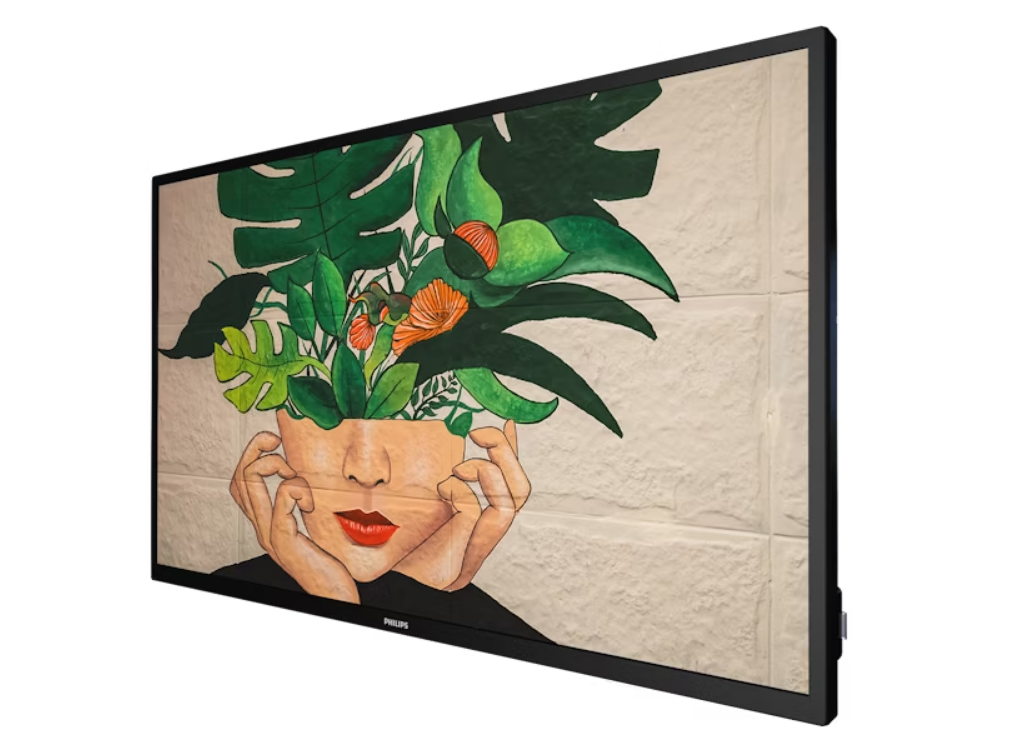

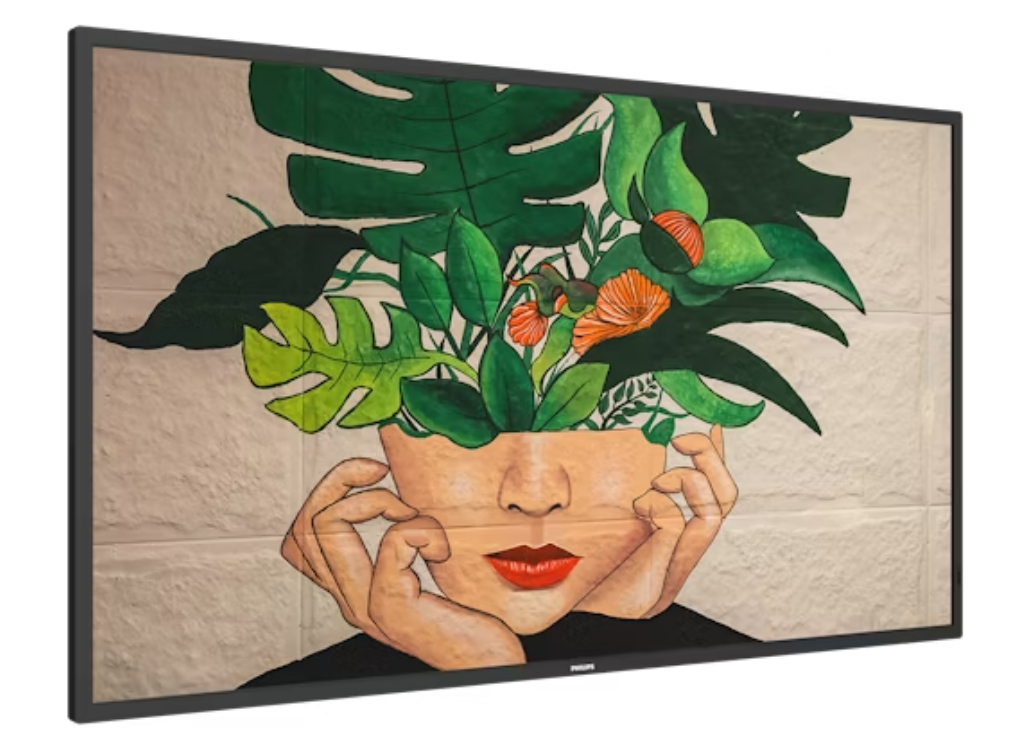

Philips D-Line 32BDL4550D 32″ Full HD Digital Signage Display
- Description
- Specifications
- Downloads
-
Philips D-Line 32BDL4550D 32″ Full HD Digital Signage Display
Made for results
D-Line
Bigger impact
Powered by Android
With Android on your professional display you’ll enjoy a faster, richer and guest-friendly interface. It’s your launch control to a wealth of dedicated hospitality services, applications and so much more. There’s an easy-to-navigate menu with direct links to your favourite apps.
Proof of Play
Be sure your Android-powered Philips professional display is showing the right content-even when you’re not there. When playing content via the embedded media player, you can set up your display to take automatic screenshots at regular intervals. Screenshots are stored on the display’s internal memory, and you can choose to receive them via email.
FailOver
From waiting room to meeting room, never show a blank screen. FailOver lets your Philips professional display switch automatically between primary and secondary inputs, ensuring that content keeps playing even if the primary source goes down. Simply set a list of alternative inputs to be sure your business is always on.
Smart Power
The backlight intensity can be controlled and pre-set by the system to reduce the power consumption by up to 50%, which saves substantially on energy costs.
CMND
Optimise your on-screen content with the PPDS exclusive CMND platform. Products that feature CMND put you in total control with powerful content creation, advanced system connectivity and pro-grade deployment through an easy to use interface.
CMND & Create
Take control of your content with CMND and Create. A drag-and-drop interface makes it simple to publish your own content, whether it’s a daily specials board or branded corporate information. Preloaded templates and integrated widgets ensure that your stills, text and video will be up and running in no time.
CMND & Control
Run your display network over a local (LAN or RF) connection. CMND & Control allows you to perform vital functions like updating software and settings, as well as monitoring display status. Whether you’re in charge of one display or more, CMND & Control makes managing your fleet easy.
Internal memory
Save and play content without the need for a permanent external player. Your Philips professional display has an internal memory, which allows you to upload media into the display for instant playback. The internal memory also functions as a cache for online streaming.
Integrated HTML5 browser
Connect and control your content over the internet with the integrated HTML5 browser. Using the Chromium-based browser, design your content online and connect a single display or your complete network. Show content in both landscape and portrait mode, with full-HD resolution. Streaming content can also be shown in a PIP (picture-in-picture) window. Simply connect the display to the internet using WiFi or with an RJ45 cable, and enjoy your own created playlist
ADS wide-view panel display
Be seen from any angle with ADS wide-view technology. Advanced Super Dimension Switch delivers faster on-display picture processing for smoother content transitions, remarkable image accuracy and superior colour reproduction with 180 degree viewing.Powerful performance
D-Line delivers versatility and performance designed for impact. -
Category Specification Picture/Display Diagonal screen size (inch) 32 Diagonal screen size (metric) 81.28 cm Panel resolution 1920 x 1080p Optimum resolution 1920 x 1080 @ 60 Hz Brightness 400 cd/m² Contrast ratio (typical) 1200:1 Dynamic contrast ratio 500,000:1 Aspect ratio 16:9 Response time (typical) 8 ms Pixel pitch 0.36375 (H) x 0.36375 (V) mm Display colours 16.7 million Viewing angle (horizontal) 178° Viewing angle (vertical) 178° Picture enhancement 3D Combfilter, Motion compens. deinterlacing, Dynamic contrast enhancement Operating System Android 8.0 Panel technology IPS Connectivity Video input DisplayPort 1.2 (x 1), DVI-I (x 1), HDMI 2.0 (x 2), USB 2.0 (x 2) Video output DisplayPort 1.2 (x 1), HDMI 2.0 (x 1) Audio input 3.5 mm jack Audio output 3.5 mm jack External control RJ45, RS232C (in/out), 2.5 mm jack, IR (in/out), 3.5 mm jack Wi-Fi Dual aerial 2.4 GHz and 5 GHz Supported Display Resolution Computer formats 1920 x 1080, 1024 x 768, 1280 x 1024, 1280 x 720, 1600 x 900, etc. Video formats 1080i, 576i, 480p, 720p, 1080p, etc. Dimensions Set Width 726.5 mm Set Height 425.4 mm Set Depth 65.1 mm (@Wall mount), 69.1 mm (@AC) Set Width (inch) 28.60 inches Set Height (inch) 16.75 inches Set Depth (inch) 2.56 inches (@Wall mount), 2.72 inches (@AC) Bezel width 11.9 mm (T/L/R), 17.2 mm (B) Product weight (lb) 12.57 lbs Product weight 5.7 kg Wall Mount 100 (H) x 100 (V) mm, 200 (H) x 200 (V) mm, M4 Convenience Placement Landscape (24/7), Portrait (24/7) Tiled Matrix Up to 10 x 15 Keyboard control Hidden, Lockable Signal loop through RS232, IR, DisplayPort, HDMI Network controllable RS232 Energy-saving functions Smart Power, Pixel Shift, Low Bright Power Standby power consumption <0.5 W Mains power 100 ~ 240 VAC, 50 ~ 60 Hz Consumption (Max) 85 W Energy Label Class G Consumption (Typical) 44 W Operating Conditions Temperature range (operation) 0 ~ 40 °C Temperature range (storage) -20 ~ 60 °C Altitude 0 ~ 3000 m MTBF 50,000 Humidity range (operation) [RH] 20–80% RH (No condensation) Humidity range (storage) [RH] 5–95% RH (No condensation) Sound Built-in speakers 2 x 10 W RMS Accessories Included accessories Quick start guide, RS232 cable, AC Power Cord, Remote Control, IR sensor cable (1.8 M) Multimedia Applications USB Playback Audio AAC, HEAAC, MPEG USB Playback Picture BMP, JPEG, PNG USB Playback Video MPEG, H.263, H.264, H.265 Miscellaneous On-Screen Display Languages English, French, German, Spanish, Polish, Turkish, etc. Regulatory approvals CE, RoHS, EnergyStar, ETL, FCC Class A, etc. Warranty 3 year warranty Internal Player CPU 2 x A53 + 2 x A73 GPU ARM Mali G51 Memory 3 GB DDR Storage 32 GB eMMc -
