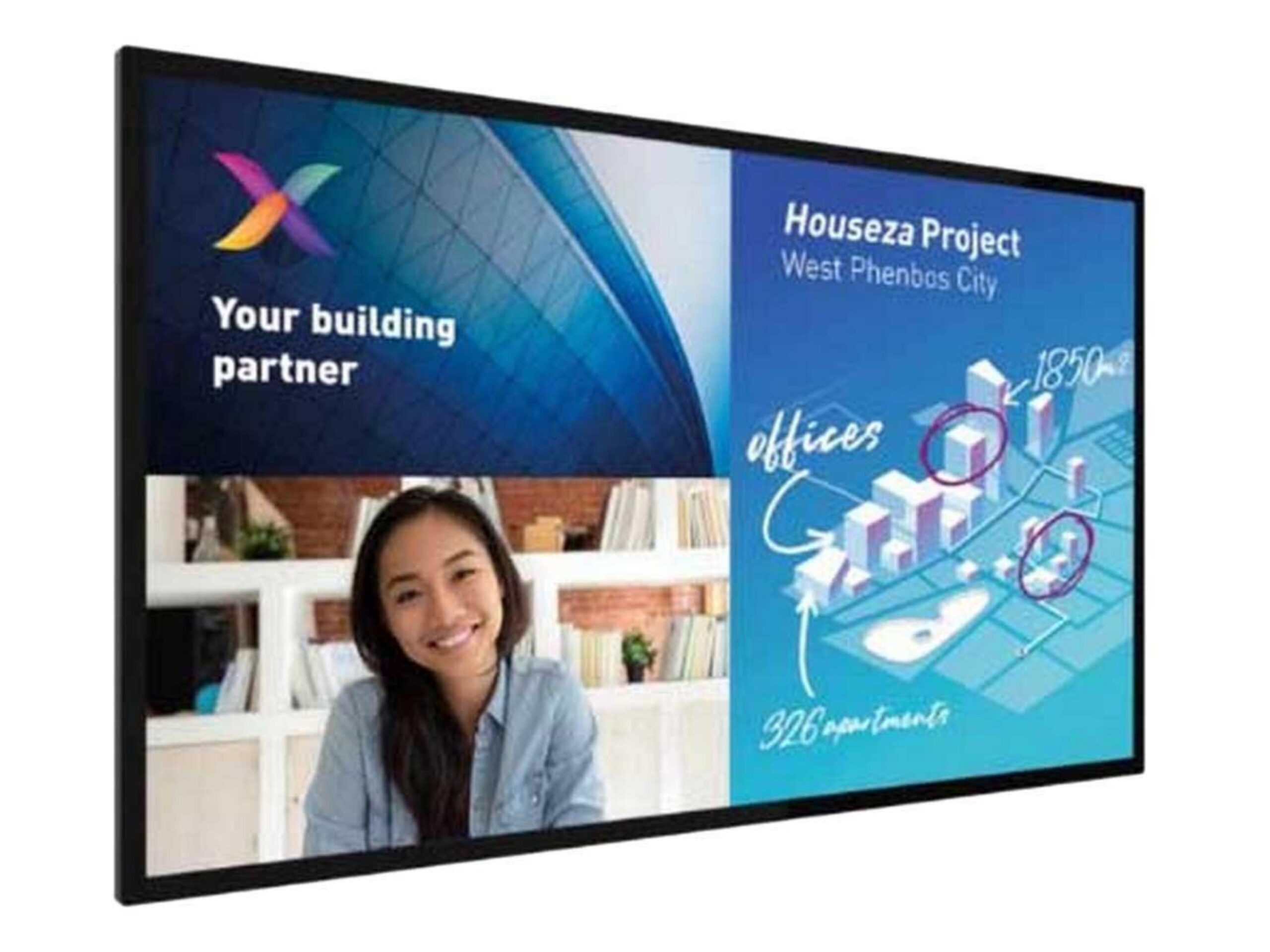

Philips C-Line | 86BDL8051C/00 86″ 4K Interactive PCAP Touchscreen

• Description
• Specifications
• Warranty
• Downloads

• Philips C-Line | 86BDL8051C/00 86″ 4K Interactive PCAP Touchscreen


  Interactive meeting display

  Maximise engagement and inspire collaboration with an interactive Philips C-Line display. These Windows-powered displays are made to withstand heavy daily usage and feature up to 10 touchpoints, edge-to-edge glass and a flush design.

  high-end capacitive multi-touch technology

  • 86″
  • Powered by Windows
  • 350 cd/m²
  Operate, monitor and maintain with CMND and Control

  Run your display network over a local (LAN) connection. CMND and Control allows you to perform vital functions like controlling inputs and monitoring display status. Whether you’re in charge of one screen or 100.

  Wireless screen sharing and advanced collaboration

  Display four feeds on the one screen. Use your existing Wi-Fi network to instantly and securely connect devices or use the two included HDMI dongles to cast directly to the screen without needing to connect to your secured/protected network.

  HID Capacitive Touch with USB Plug and Play

  Capacitive Touch gives you the cutting edge appearance of edge to edge glass with a bezel width of just 1.5 mm! Create a memorable interactive experience with up to 10 touchpoints at the same time. Perfect for collaborative and competitive applications, this display connects your audience with any content — making it ideal for education, public venues, corporate, hospitality and retail settings.

  Powered by Windows 10

  Powerful Core i7 processor with nVidia GPU. Runs all of your favourite apps like Zoom, Skype (included) and MS Teams, MS Office (not included)

  Whiteboard mode built in

  Inspire agile collaboration with whiteboard mode. Simply activate this feature to turn your display into a blank canvas that can be drawn on by multiple users by hand or with dedicated display markers. Everything on the screen can then be captured for easy printing or file sharing.

  Fast and easy video conferencing

  Ready to use video conferencing software makes one-to-one or group video calls easier than ever. Simply use your own camera or add the optional Logitech Meetup bundle for an all-in-one ConferenceCam solution.

  Crestron Connected certified

  Integrate this Philips Professional Display to your Crestron network for full remote control via your laptop, desktop or mobile device. Switch the display on and off, schedule content, manage settings and easily connect external devices. Crestron Connected® provides a fast, reliable and secure enterprise level solution for system control.

• Technical Specifications
  Diagonal screen size (inch)	85.6 inch
  Diagonal screen size (metric)	217.42 cm
  Panel resolution	3840 x 2160
  Optimum resolution	3840 x 2160 @ 60 Hz
  Brightness	350 cd/m²
  Contrast ratio (typical)	1000:1
  Dynamic contrast ratio	500,000:1
  Aspect ratio	16:9
  Response time (typical)	8 ms
  Pixel pitch	0.4935 (H) x 0.4935 (V) mm
  Display colours	1.07 billion
  Viewing angle (horizontal)	178 degree
  Viewing angle (vertical)	178 degree
  Picture enhancement	3/2 – 2/2 motion pull down, Motion compens. deinterlacing, 3D MA deinterlacing, Dynamic contrast enhancement, Progressive scan
  Operating system	Windows 10
  Video input	Display Port1.2 (x 1), HDMI 2.0 (x 4), DVI-I (x 1), USB 2.0 (x 2), USB 3.0 (x 2), USB-C
  Video output	DisplayPort 1.2 (x 1), DVI – D (x 1), HDMI 2.0 (x 2)
  Audio input	3.5 mm Jack (x 1)
  Audio output	3.5 mm Jack (x 2)
  Other connections	micro SD, OPS, External control, RJ45, RS232C (in/out) 2.5 mm jack, IR (in/out) 3.5 mm jack
  Computer formats	1920 x 1200, 60 Hz; 1920 x 1080, 60 Hz; 1680 x 1050, 60 Hz; 1600 x 1200, 60 Hz; 1600 x 900, 60 Hz; 1440 x 1050, 60 Hz; 1440 x 900, 60, 75 Hz; 1400 x 1050, 60, 75 Hz; 1366 x 768, 60 Hz; 1360 x 768, 60 Hz; 1280 x 1024, 60, 67, 75 Hz; 1280 x 960, 60 Hz; 1280 x 800, 60, 75 Hz; 1280 x 768, 60 Hz, 75 Hz; 1280 x 720, 60, 70 Hz; 1152 x 900, 66 Hz; 1152 x 864, 60, 70, 75 Hz; 1024 x 768, 60, 70 Hz; 960 x 720, 75 Hz; 848 x 480, 60 Hz; 832 x 624, 75 Hz; 800 x 600, 56, 60, 72, 75 Hz; 720 x 400, 70 Hz; 640 x 350, 70 Hz; 640 x 480, 60, 67, 72, 75 Hz
  Video formats	1080p, 50, 60 Hz; 576p, 50 Hz; 480p, 60 Hz; 1080i, 50, 60 Hz; 4K x 2K, 50, 60 Hz; 720p, 50, 60 Hz; 480i, 60 Hz
  UHD Formats	3840 x 2160, 24, 25, 30, 60 Hz; 3840 x 2160, 50 Hz
  Set Width	1949 mm
  Set Height	1120.00 mm
  Set Depth	77.50 (@wall mount), 93.00 (@max) mm
  Set Width (inch)	76.73 inch
  Set Height (inch)	44.09 inch
  Set Depth (inch)	3.05 (@wall mount), 3.66 (@max) inch
  Bezel width	1.50 mm(even)
  Product weight (lb)	175.27 lb
  Product weight	79.5 kg
  Wall Mount	600(H)x400(V) mm, M8
  Smart Insert mount	6M4L6

• Warranty Period: 36 months

  Philips Monitors
  Dead on Arrival

  Manufacturer’s DOA period:7 days from end user

  Contact: Philips Consumer Care
  Tel. No.: 0208 1919 223 (opt 1)
  Fax No.:
  Email:
  Comments: We are sorry you are having issues with your Philips product purchased, In order for us to assist you with your query as soon as possible the below procedure has been provided to ensure a smooth AfterCare experience.

  Philips deal with all your AfterCare requirements for the product you have purchased, they can help with technical queries and offer advice.

  Please contact them direct on 0208 1919 223. You will need the following information to hand

  * Customer Name
  * Email Address
  * Product Model Number
  * Serial Number
  * Details of the fault

  If Philips advise they are unable to fix the fault they will issue a returns authorisation number which looks like MMD—. Once provided Screen Moove will be able to issue a return and provide a replacement if required.

  If you have any questions or would like further advise, please feel free to contact our AfterCare Team (ACE) on 0208 1919 223 / who will be happy to assist.
  In Warranty Support
  Warranty Period SEE WARRANTY NOTES
  Contact: Philips Warranty Line
  Tel. No. 0208 1919 223 (opt 1)
  Fax No.
  Email
  Manufacturers Website http://www.philips.co.uk
  Comments We are sorry you are having issues with your Philips product purchased, In order for us to assist you with your query as soon as possible the below procedure has been provided to ensure a smooth AfterCare experience.

  Philips deal with all your AfterCare requirements for the product you have purchased, they can help with technical queries and offer advice.

  Please contact them direct on 0208 1919 223. You will need the following information to hand

  * Customer Name
  * Email Address
  * Product Model Number
  * Serial Number
  * Details of the fault

  If you have any questions or would like further advise, please feel free to contact our AfterCare Team (ACE) on 0208 1919 223 / who will be happy to assist.

• Manuals and Documentation	Download Link
  Leaflet	Downloads
