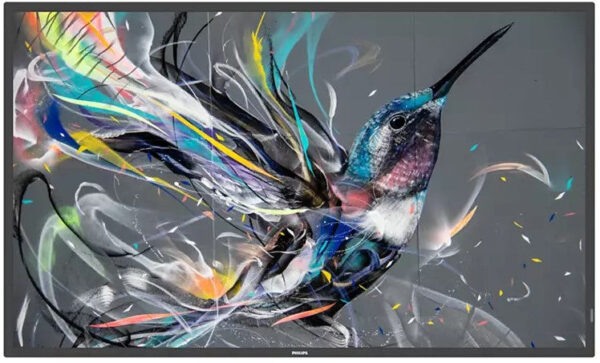

Philips 43BDL3650Q/00 43″ 4K Q-Line Digital Signage Display

• Description
• Specifications
• Warranty
• Downloads

• Philips 43BDL3650Q/00 43″ 4K Q-Line Digital Signage Display


  Stand out from the crowd
  Your versatile and easy-to-set-up 18/7 display
  43″
  Direct LED Backlight
  Ultra HD
  Connect and control your content via the cloud
  Connect and control your content via the cloud with the integrated HTML5 browser. Using the Chromium-based browser, design your content online and connect either a single display or your complete network. Show content in both landscape and portrait mode, with fullHD resolution. Simply connect the display to the Internet using WiFi or with an RJ45 cable, and enjoy your own curated playlists.

  FailOver. Ensure your display never goes blank
  Critical for demanding commercial applications, FailOver is a revolutionary technology that automatically plays back-up content onscreen in the unlikely event of an input source or application failure. Simply select a primary input connection and a FailOver connection and you are ready for instant content protection.

  Easily schedule content from a USB or internal memory
  Easily schedule content to play from a USB or from internal memory. Your Philips Professional Display will wake from standby to play the content you want, and then return to standby once playback is done.

  Optional Interact for wireless screen share
  Wirelessly screen share using your existing Wi-Fi network to instantly and securely connect devices, or use our optional HDMI Interact dongle to cast directly onto the screen without connecting into the secured network.

  Android SoC processor. Native and web apps
  Powered by our Android 10 SoC platform, these hardworking Philips professional displays are optimised for native Android apps, and you can install web apps directly onto the display too. Flexible and secure, ensuring display specs stay up to the moment for longer.

  Catch the Wave for revolutionary results
  Unlock the power, versatility and intelligence inside your Philips Q-Line displays remotely with Wave. This evolutionary cloud platform puts you fully in control, with simplified installation and setup, monitoring and controlling displays, upgrading firmware, managing playlists and setting power schedules. Saving you time, energy and environmental impact.

• Category	Specification
  Picture/Display
  Diagonal screen size (metric)	108 cm
  Diagonal screen size (inch)	42.5 inch
  Panel resolution	3840 x 2160
  Optimum resolution	3840 x 2160 @ 60 Hz
  Brightness	400 cd/m²
  Contrast ratio (typical)	1200:1
  Dynamic contrast ratio	500,000:1
  Response time (typical)	8 ms
  Aspect ratio	16:9
  Viewing angle (horizontal)	178 degree
  Viewing angle (vertical)	178 degree
  Pixel pitch	0.2451 x 0.2451 mm
  Display colours	1.07 Billion
  Panel technology	ADS
  Picture enhancement	3/2 – 2/2 motion pull down
  Progressive scan	Dynamic contrast enhancement
  Operating system	Android 10
  Haze	2%
  Supported Display Resolution
  Computer formats	See detailed specifications
  Video formats	See detailed specifications
  Connectivity
  Video input	HDMI 2.0 (x 2), USB 2.0 (x 2), DVI-I (x 1), USB 3.0 (x 1)
  Audio input	3.5 mm jack
  Audio output	3.5 mm jack
  External control	RJ45, RS232C (in/out) 2.5 mm jack, IR (in/out) 3.5 mm jack
  Other connections	micro SD
  Convenience
  Energy-saving functions	Smart Power
  Tiled Matrix	Up to 3 x 3
  Keyboard control	Lockable, Hidden
  Network controllable	RS232, RJ45
  Signal loop through	RS232
  IR Loop through
  Placement	Landscape (18/7), Portrait (18/7)
  Remote control signal	Lockable
  Dimensions
  Bezel width	13.9 mm (Even bezel)
  Set Width	973.0 mm
  Set Height	561.2 mm
  Set Depth	63.5 mm
  Set Width (inch)	38.31 inch
  Set Height (inch)	22.09 inch
  Set Depth (inch)	2.50 inch
  Wall Mount	200 mm x 200 mm, M6
  Product weight	11.29 kg
  Product weight (lb)	24.91 lb
  Operating conditions
  Temperature range (operation)	0 ~ 40 °C
  Temperature range (storage)	-20 ~ 60 °C
  MTBF	50,000 hour(s)
  Humidity range (operation) [RH]	20~80% RH (No condensation)
  Humidity range (storage) [RH]	5~95% RH (No condensation)
  Altitude	0 ~ 3000 m
  Power
  Mains power	100–240 V~, 50/60 Hz
  Standby power consumption	<0.5 W
  Consumption (Max)	170 W
  Consumption (Typical)	96 W
  Power Saving Features	Smart Power
  Energy Label Class	G
  Sound
  Built-in speakers	2 x 10 W RMS
  Multimedia Applications
  USB Playback Video	H.264, MPEG, H.263, H.265, AVI, MP4, VP8
  USB Playback Picture	BMP, JPEG, PNG
  USB Playback Audio	AAC, HEAAC, MPEG
  Accessories
  Included Accessories	See detailed specifications
  Miscellaneous
  Warranty	3 year warranty
  On-Screen Display Languages	English, French, German, Italian, Polish, Russian, Spanish, Turkish, Simplified Chinese, Traditional Chinese, Arabic, Japanese
  Regulatory approvals	CE, CB, FCC Class A, VCCI, RoHS, UL
  Internal Player
  CPU	Quad Core Cortex A55
  GPU	G52 MC1
  Memory	16 GB, 3 GB DDR
