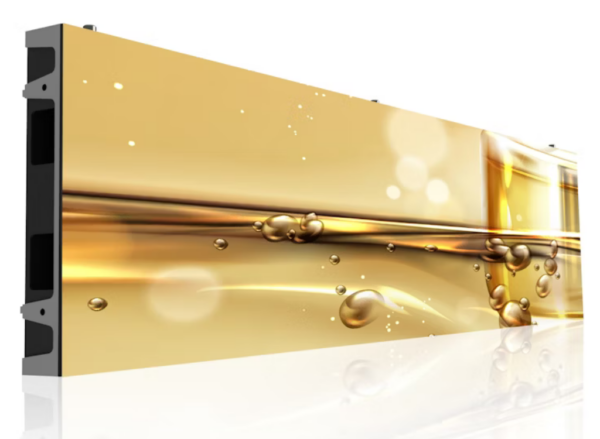

• Philips 41BDL7224L L-Line 7000 Series 41″ Direct View LED (DVLED) Indoor

  Made for results

  L-Line
  Unleash your imagination


  Active Health Monitoring
  Achieve perfection through precision. Active Health Monitoring makes maintenance fast and simple by displaying the exact location should it experience a failure. Utilising this real-time software, replacing the relevant part becomes an efficient procedure.

  Factory calibrated
  Calibrated in our factory under perfect conditions, Philips direct view LED installations are more efficient, with no need for on-site calibration. For fast and effective maintenance, all configuration files are available online.


  Dynamic Panel Connect
  Mix and match panel sizes to form a single LED wall of any shape and size. Dynamic flexible alignment ensures a perfect fit and a smooth, seamless surface. For added efficiency, each panel features openings on either side for versatile wired connections between panels and any external input connection.


  Built-in cable and data wiring
  Your Philips professional LED Display features built-in cable wiring to keep power and data cables tidy. Display cabinets are daisy-chained for both power and data, allowing you to minimise clutter and speed up installation.


  High performance displays
  Achieve perfection through precision. Quality and performance go hand-in-hand with Philips professional displays designed, manufactured, calibrated and thoroughly tested in-house.


  IP30 rated conformal coating
  Dust, dirt, fungus and moisture resistant conformal coating protects this product and enables easier maintenance. IP30 rated and certified against ingress for reduced chance of short circuit from dust and corrosion.


  Optional easy-mount brackets
  Patented easy-mount brackets make installation even faster. These optional items are available for flat LED mounting, convex curves (177.5/175/172.5 degree), and L-shaped 90 degree corners.


  Versatile shapes and sizing
  Ready to be installed in any landscape format with no limitations on size. Shape into corners or flow through a creative curve with bevelled edge options flexing to your design.


  Unique in every way
  Go with the flow with a modular Philips LED display that can adapt to any shape, size or resolution. Build vast installations or assemble intriguing patterns. Flex seamlessly around doorways and openings, and move elegantly through corners and curves.


  Certified fire retardancy
  Fire retardant design slows down the spread of flames in the event of fire. Tested and certified with British standard (BS476), B1 DIN4102, and UL94.

  Limitless videowall
  L-Line creates an LED videowall of any shape or size for a truly unique experience.

• Category	Specification
  Convenience
  Signal control loop through	RJ45
  Power loop through	For 230 V environments: 8 cabinets or less, for 110 V environments: 4 cabinets or less, 10 A max
  Ease of installation	Guide pins
  Light weight	Yes
  Accessories
  Power cable	2 pcs
  LAN cable (RJ45, CAT-5)	2 pcs
  QSG	1 pcs

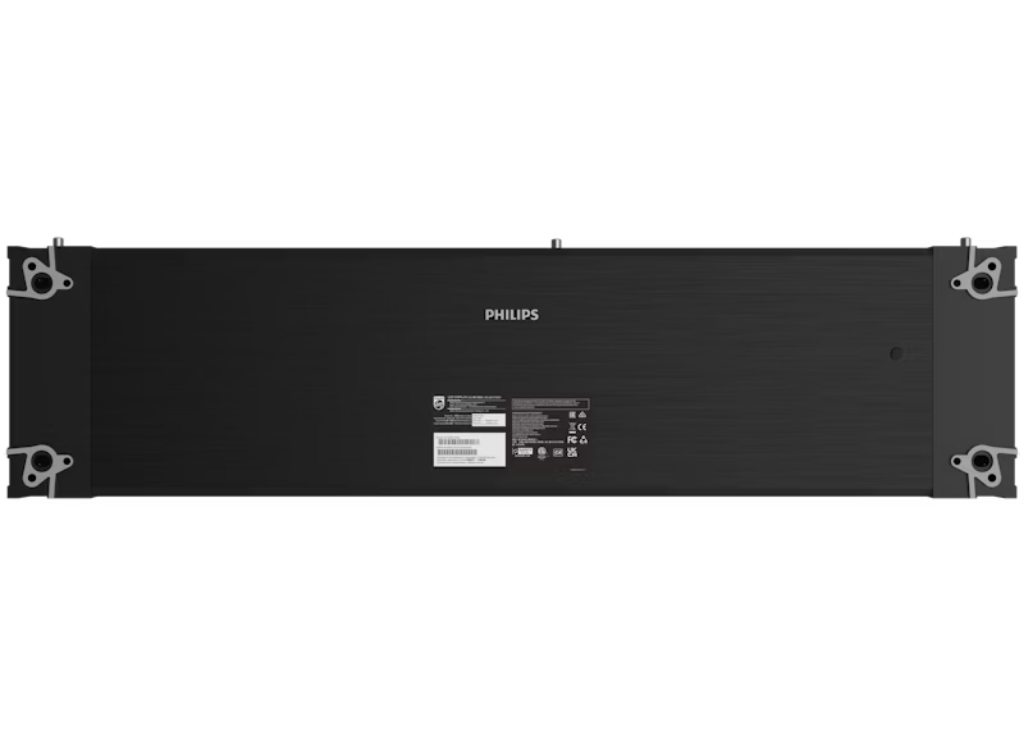

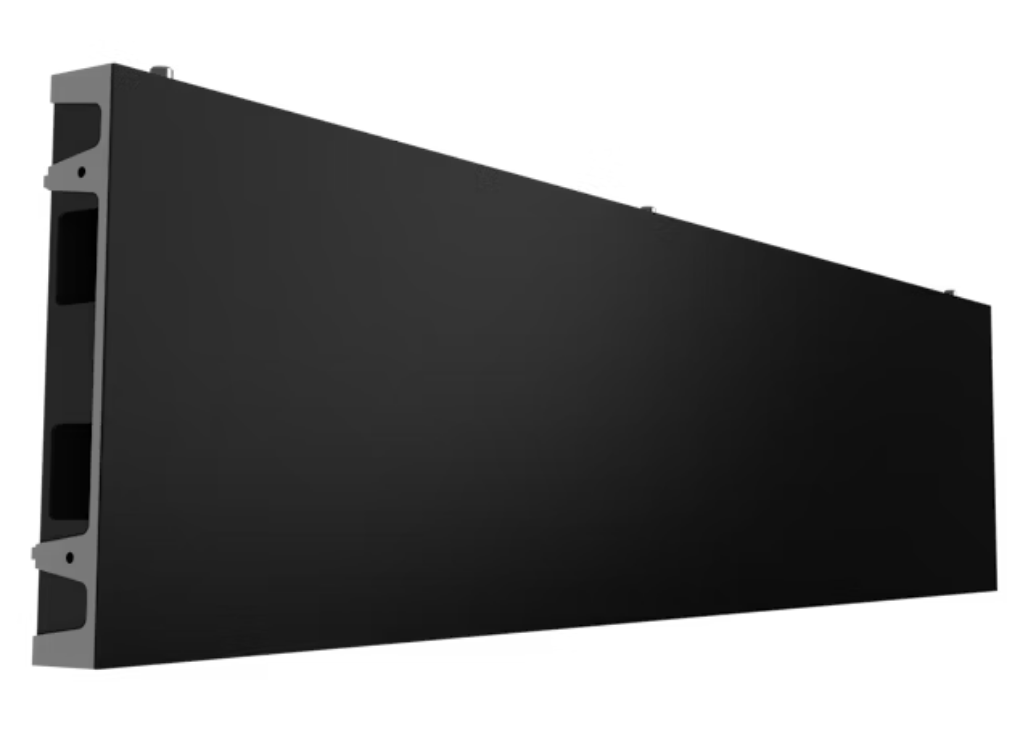

  Cabinet
  Cabinet construction	Die-Casting Aluminium
  Data connector	RJ45
  Receiving card quantity	1 pcs
  Power connector	3 core socket (C14 in, C13 out)
  Cabinet diagonal (inch)	40.6″
  Cabinet resolution (W x H)	416 x 104
  Cabinet size (mm)	1000 x 250 x 40
  Receiving card brand	NovaStar
  Weight (kg)	6.19 (±310 g)
  Cabinet area (m2)	0.25
  Cabinet pixels (Dot)	43,264
  Receiving card spec.	A5S plus
  Side angle (degree)	90
  Power
  Max. power cons. BC (W)	<150
  Black screen power cons. (W)	<11
  Max. power cons. AC (W)	<125
  Input voltage	AC100~240 V (50 and 60 Hz)
  Typical power cons. (W)	<41.67
  Picture/Display
  Brightness before calibration	1200 nits
  Calibration (brightness/colour)	Supported
  Colour temperature adjust range	4000~9500 K (by software)
  Picture enhancement	Wide colour gamut display
  Brightness uniformity	>=97%
  Frame frequency (Hz)	50 & 60
  Refresh rate (Hz)	2100~3900 (14 bits: 3900 Hz)
  Aspect ratio	4:1
  Placement	Landscape
  Viewing angle (horizontal)	160 degree
  Usage	Indoor
  Brightness after calibration	900 nits
  Colour temperature default	6500±500 K
  Viewing angle (vertical)	160 degree
  Contrast ratio (typical)	3500:1
  Miscellaneous
  Conformal coating	Hub board, backside LED module
  Fire retardancy certification	BS 476 Part7:1997, UL94, DIN4102-1
  Regulatory approvals	EN55032, EN55035, EN61000-3-2, EN61000-3-3, IEC/UL60950, IEC/UL62368, IEC62471, RoHS, FCC SDOC, Part 15, Class A
  Warranty	2 years
  Operating conditions
  Temperature range (storage)	-20~50 °C
  Temperature range (operation)	-20~45 °C
  Humidity range (operation)[RH]	10~80%
  Humidity range (storage) [RH]	10~85%
  Module
  LED lifetime (Hrs)	100,000 at half brightness
  Module size (W x H in mm)	249.9*249.9
  Pixel constitution	1R1G1B
  Pixel pitch (mm)	2.4
  Module resolution (WxH pixels)	104 x 104
  LED type	SMD 1515 Copper wire
  Packaging Data
  Gross weight (KG)	9.15
  Dimension of packaging (mm)	1354 x 392 x 221
