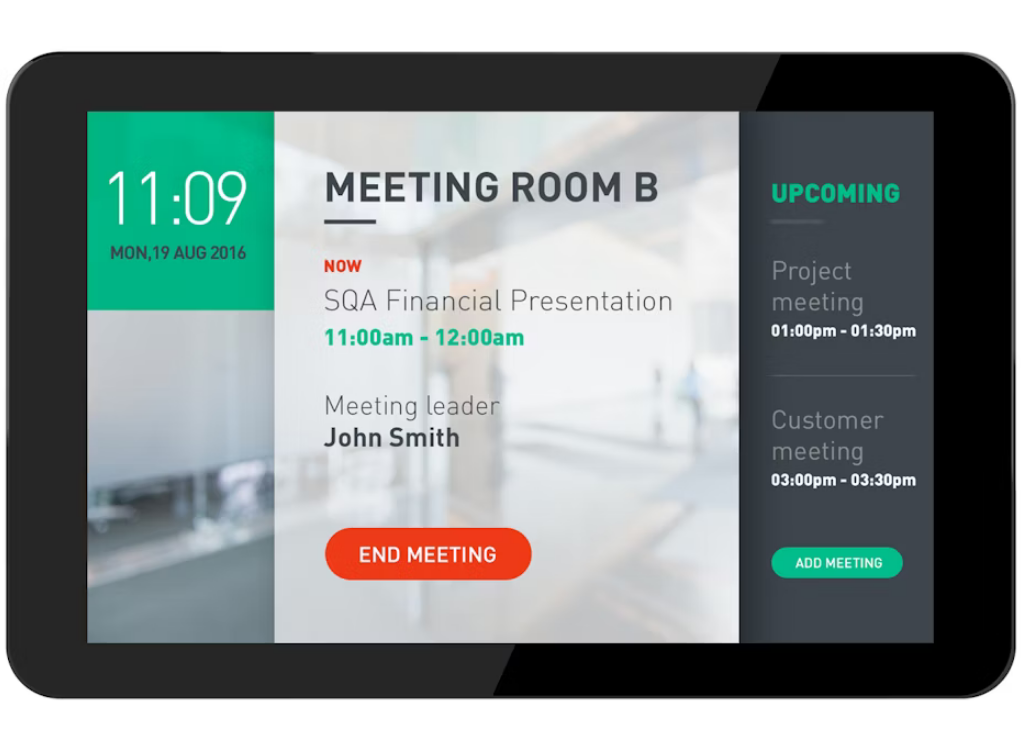

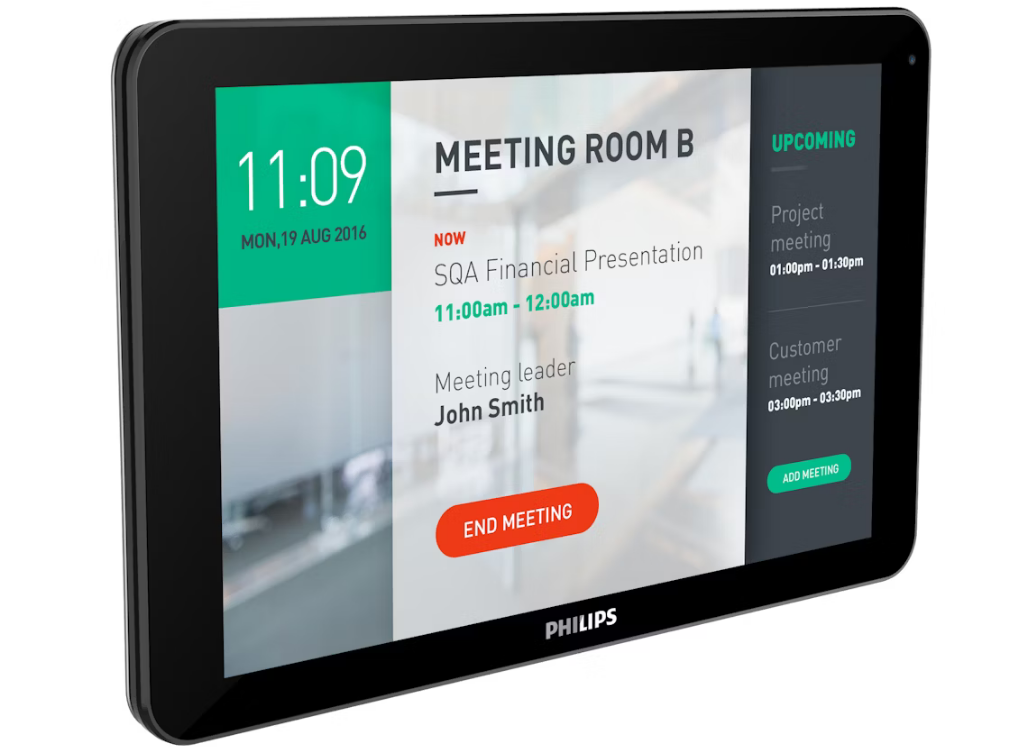

Philips 10BDL4551T/00 10” Multi-Touch Meeting Room Display

• Description
• Specifications
• Warranty
• Downloads

• Philips 10BDL4551T/00 10” Multi-Touch Meeting Room Display


  Big impact
  From shelf advertising to wayfinding, this ultra-clear Multi-Touch Smart Display is ideal when space is at a premium. A versatile all-in-one solution, content is easy to manage remotely. Power-over-Ethernet enables flexible placement

  Big impact

  Small Multi-Touch display.

  • 10″
  • Powered by Android
  • Multi-touch

  CMND and Create. Develop and launch your own content

  Take control of your content with CMND and Create. A drag-and-drop interface makes it simple to publish your own content, whether it’s a daily specials board or branded corporate information. Preloaded templates and integrated widgets ensure that your stills, text and video will be up and running in no time.

  Operate, monitor and maintain with CMND and Control

  Run your display network over a local (LAN) connection. CMND and Control allows you to perform vital functions like controlling inputs and monitoring display status. Whether you’re in charge of one screen or 100.

  Built-in camera and speakers

  The built-in camera and speakers make this small touchscreen a truly versatile smart solution. Use it for retail audience measurement, footfall analytics, and more. Harness the power of Android AI apps to show targeted content. Or simply use your display for video conferencing.

  Easy installation with PoE+ technology

  Place your Philips Professional Display almost anywhere. PoE+ allows power and data to be delivered to your display over a single Ethernet cable. You won’t need a power socket, but a power adapter is also supplied should you wish to plug in.


  Internal memory. Upload content for instant play

  Save and play content without the need for a permanent external player. Your Philips professional display has an internal memory, which allows you to upload media into the display for instant playback. The internal memory also functions as a cache for online streaming.

  CMND & Deploy. Install and launch apps remotely

  Quickly install and launch any app – even when you’re off site and working remotely. CMND & Deploy lets you add and update your own apps, as well as apps from the Philips Professional Display App Store. Simply scan the QR code, log in to the store and click on the app you want to install. The app will be automatically downloaded and launched.

  Android SoC processor. Native and web apps

  Control your display via an Internet connection. Android-powered Philips Professional Displays are optimised for native Android apps and you can install web apps directly to the display too. A new Android 8 OS ensures the software is kept secure and stays up to date with the latest specification for longer.

• Feature	Specification
  Diagonal screen size	25.6 cm (10.1”)
  Panel resolution	1280 x 800
  Optimum resolution	1280 x 800
  Brightness	300 cd/m²
  Contrast ratio	800:1
  Aspect ratio	16:10
  Response time	30 ms
  Viewing angle (horizontal)	178 degrees
  Viewing angle (vertical)	178 degrees
  Display colours	16.7 million
  Operating system	Android 8.1
  Multi-touch technology	Projected capacitive
  Touch points	5 simultaneous touchpoints
  Protection glass	0.7 mm tempered safety glass
  Video output	HDMI
  Audio output	External speaker connector
  External control	RJ45
  Other connections	USB, micro SD
  Placement	Landscape (24/7), Portrait (24/7)
  Network controllable	RJ45, Wi-Fi
  Built-in speakers	2 x 2 W
  Temperature range (operation)	0 ~ 40 °C
  Relative humidity	10 ~ 85% (non-condensing)
  MTBF	50,000 hour(s)
  Altitude	0 ~ 3000 m
  Temperature range (storage)	-20 ~ 60 °C
  Mains power	DC12V +/- 5%, 1.5A, PoE=24W
  Standby power consumption	<0.5 W
  Consumption (Max)	10.96 W
  Set Width	261 mm (10.28”)
  Set Height	167.2 mm (6.58”)
  Set Depth	29 mm (1.14”)
  Product weight	0.74 kg (1.63 lb)
  Wall Mount	75 x 75
  Bezel width (L/R, T/B)	19.77 mm (L/R), 13.56 mm (T/B)
  Memory	2 GB DDR3/8 GB eMMC
  On-Screen Display Languages	Arabic, English, French, German, Italian, Japanese, Polish, Spanish, Turkish, Russian, Simplified Chinese, Traditional Chinese, Danish, Dutch, Finnish, Norwegian, Portuguese, Swedish
  Regulatory approvals	CB, CE, RoHS, FCC Class A, UL
  Warranty	3 year warranty
  USB Playback Audio	AAC, M4A, MP2, MP3, WMA
  USB Playback Picture	BMP, GIF, JPEG, PNG
  USB Playback Video	MOV, MP4, MPG, TS, VOB, WEBM, 3GP, AVI, DAT, FLV, MKV
  Included accessories	Quick start guide, tabletop stand, USB cable, DC power adapter, HDMI cable, power plug, silicone foot
