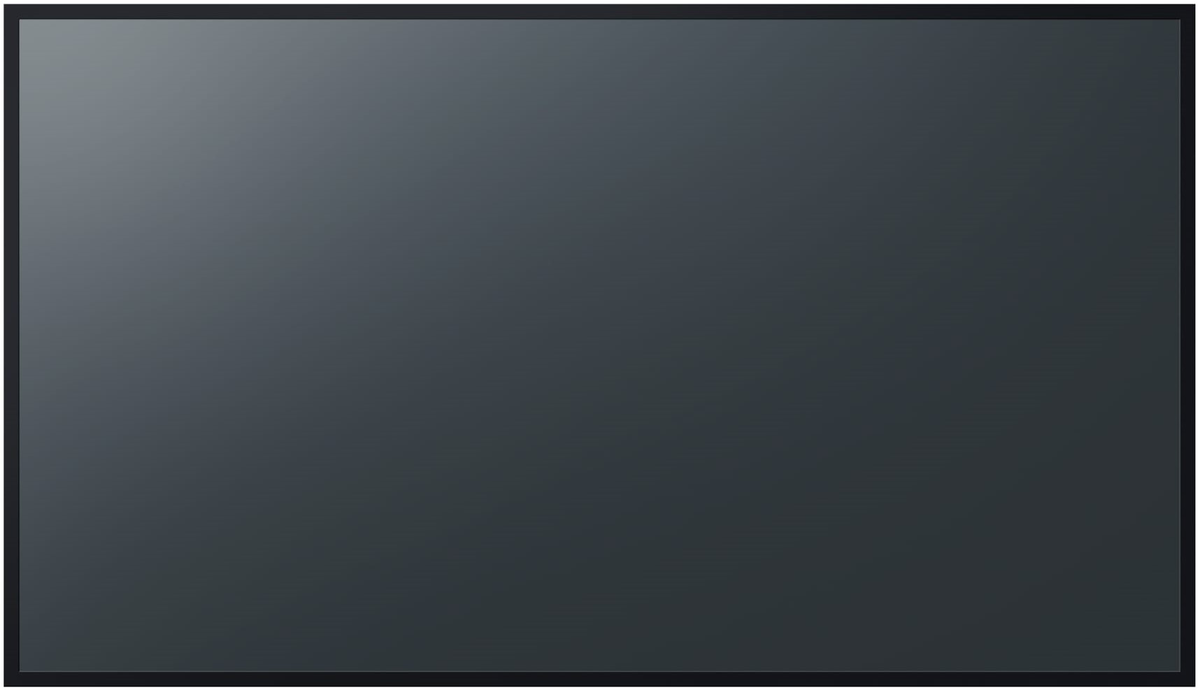

Panasonic TH-86EQ2W 86″ Class 4K Digital Signage Display
- Description
- Specifications
- Warranty
-
Large 86″ 4K professional display featuring a thin and stylish design offering high level digital signage with easy installation and high connectivity. Ideal for corporate and retail environments.
Easy to connect peripherals (camera/speaker) directly to display Increased input type and number of available inputs Function slot for increased functionality High visibility and installation properties
With 500 cd/m² brightness and high haze value panels to suppress the reflected glare of bright light, the EQ2 Series is ideal for conference rooms, classrooms and open spaces such as receptions and shopping malls. The ability to position the display in portrait or landscape mode, with up to a 20-degree tilt angle and 18 hours continuous operation also makes the Series perfect for information display.
USB pass through function to save time and effort in meeting preparation
USB devices can be connected to the display via a USB Type-A cable and controlled using a PC connected to the EQ2 via the USB Type-C port. This functionality, for example, is ideal for a simple and quick start to video conferences. If a camera or speakerphone is permanently connected to the display in a conference room, a user can just plug in their PC and immediately control all devices to start the meeting. 4K display, data transfer and charging of connected devices (up to 60W) can be simultaneously conducted over a single cable with the USB Type-C port.
Supports the Next-Generation Intel ® SDM Specification Slot Standard
The EQ2 Series is equipped with the new Intel®SDM specification slot standard that supports 4K signals. It can be used with the receiver board version of Panasonic’s wireless presentation system PressIT, or optional terminal boards such as 12G-SDI and DIGITAL LINK.
-
Screen size (diagonal) (inch) 85.6-inch (2174.2 mm) Aspect Ratio 16:9 Effective display area (W x H) (mm) 1895.0 x 1065.9 mm (74.60″ x 41.96″) Effective display area (W x H) (inch) 1895.0 x 1065.9 mm (74.60″ x 41.96″) Resolution 3840 x 2160 Brightness (typ.) 500 cd/m2 Contrast Ratio 1200 : 1 Response Time 8.0 ms (G to G) Viewing angle [(T/B)/(L/R)] 178°/178° (CR>10) Panel Surface Treatment Anti-glare type (Haze 25%) Terminals HDMI In Terminals PC IN/AUDIO IN (L/R) Terminals Serial Terminals Audio Out Terminals LAN Terminals USB Type A: DC 5 V/2 A, USB 2.0 is supported Type C: max ~ 60W (Power Delivery compatible) USB2.0 is supported, DisplayPort Alternate mode compatible Terminals Slot Built-in Speaker 20W [10 W + 10 W] Power Requirements AC 110 – 240 V 50 Hz / 60 Hz Power Consumption 580 W Power Off Condition Approx. 0.3 W Standby Condition Approx. 0.5 W Weight (kg) 50.7 kg (111.8 lbs.) Weight (lbs.) 50.7 kg (111.8 lbs.) Bezel width (mm) 15.5 mm (0.61″) (T/R/L/B) Bezel width (inch) 15.5 mm (0.61″) (T/R/L/B) Wall-hanging pitch (mm) VESA Compliant 600 x 400 mm(23.6″ x 15.8″), M8 Wall-hanging pitch (inch) VESA Compliant 600 x 400 mm(23.6″ x 15.8″), M8 Orientation Landscape/Portrait Operating Environment Temperature: 0 °C to 40 °C (32 °F to 104 °F) Humidity: 20-80 % (Non condensation) Altitude: 0-1400 m (4593 ft) Temperature: 0 °C to 35 °C (32 °F to 95 °F) Altitude: 1400-2800 m (4593 ft to 9186 ft) Dimensions (W × H × D*1) 1929 x 1100 x 96 mm (75.95″ x 43.31″ x 3.76″) Note 1: Including handles. 2: Please contact your sales representative with regard to the tilt angle before installation. 3: In case of long time, the moving image is recommended to be displayed. If you display a still picture for an extended period, the image retention might remain on the screen. However, image retention can gradually disappear by displaying moving images. Tilting angle*2 0 – 20 degrees forward/backward with landscape/portrait setting Operating time*3 18 h/day -
PANASONIC PROFESSIONAL DISPLAY
Limited Warranty
3-year WarrantyOn-site Swap Out (Collect, repair, return as standard)
A 3-year parts, labor, and logistics warranty for product failure.
