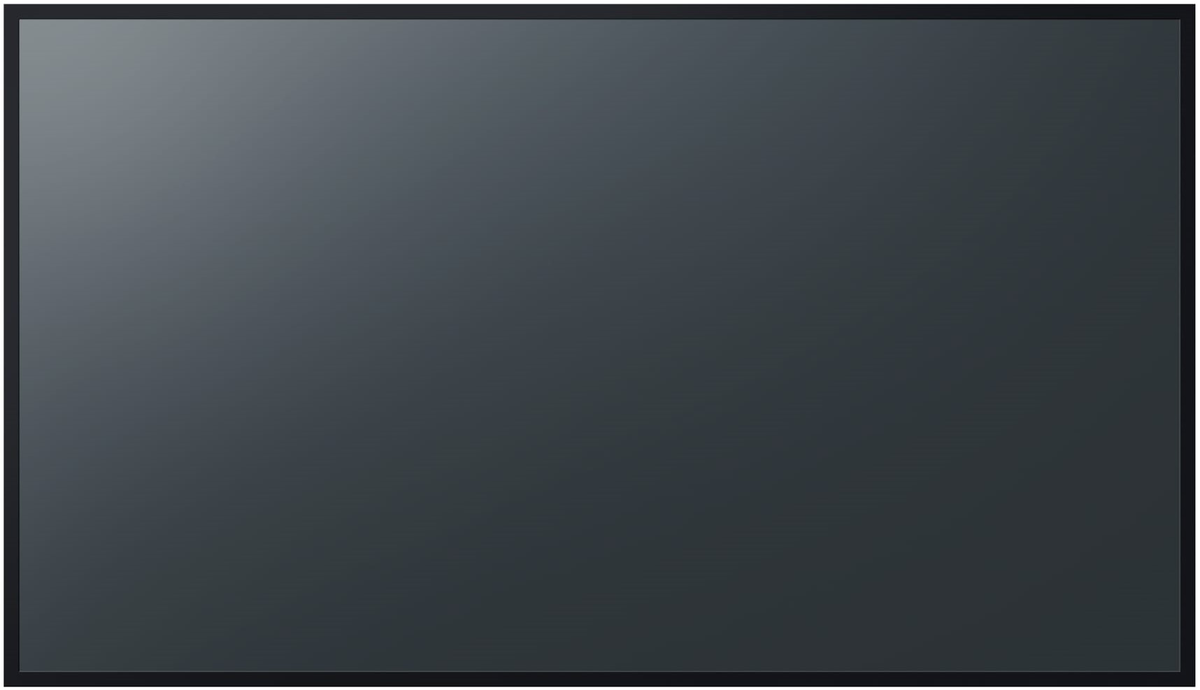

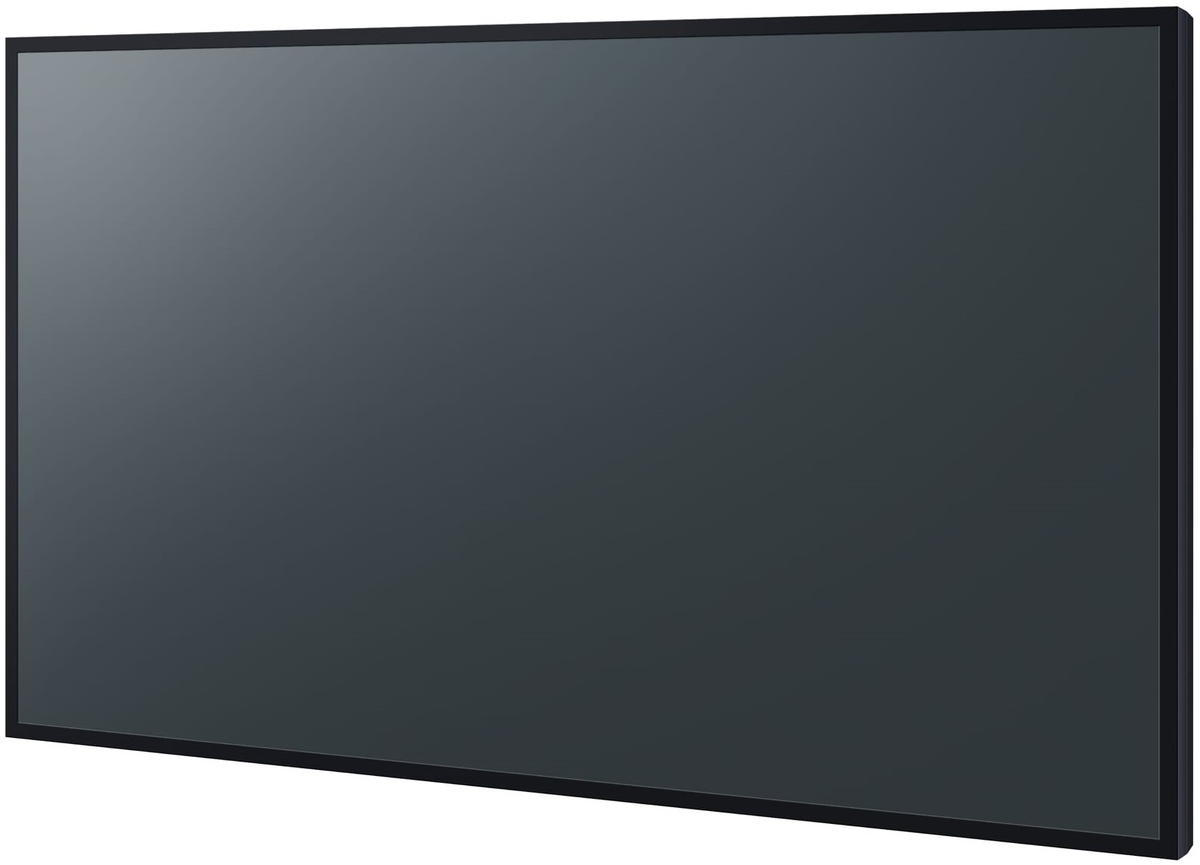

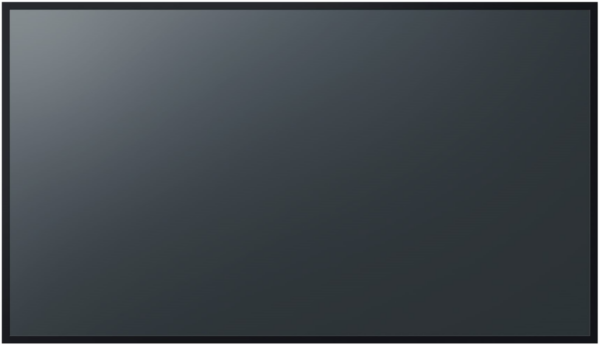

• Panasonic TH-86CQE2W 86″ Ultra HD Entry-Level Digital Signage Display


  The Panasonic Connect TH-86CQE2W 4K Professional display is designed for 16-hours/day continuous operation and crystal-clear viewing clarity. The display provides a brightness of 400cd/m² with an anti-glare panel, and minimum haze treatment, reducing the reflection of ambient light and vastly improving visibility. For ultimate flexibility and a clean look without set-top-boxes or cables, the TH-86CQE2Wis also equipped with a built-in TV tuner for access to broadcast, cable and subscription TV services, making them an ideal solution for corporate, education and even sports bar applications.

  KEY FEATURES
  High image quality
  Reliability and ease of installation
  System scalability

• Panel	Details
  Panel size	86-inch (85.60-inch/2174.2 mm)
  Brightness (typ.)	400 cd/m2
  Panel surface treatment	Anti-glare (Haze 3 %)
  Terminals
  USB	Type A: DC 5 V/max. 0.9 A, USB 3.0 is supported, Type A: DC 5 V/max. 0.5 A, USB 2.0 is supported,<br> Type A: DC 5 V/max. 0.5 A, USB 2.0 is supported (Internal),<br> Type C: DC 5 V/max. 3.0 A, USB 3.0 is supported, DisplayPort Alternate mode compatible
  microSD	microSD/SDHC/SDXC / MAX 1 TB
  SERIAL IN	Stereo mini jack (φ3.5 mm) x 1, RS-232C Compatible
  LAN	RJ45 x 1, compatible with PJLink™ 10BASE-T/100BASE-TX/1000BASE-T
  IR In	Stereo mini jack (φ3.5 mm) x 1
  Slot	No
  Wi-Fi	Yes (Dongle)
  AUDIO OUT	Stereo mini jack (φ3.5 mm) x 1, SPDIF x 1
  Built-in Speaker	24 W
  Power consumption	345 W
  Dimension (WxHxD)	Excluding remote IR sensor: 1929 x 1100 x 80 mm (75.91″ x 43.28″ x 3.13″)<br> Including remote IR sensor: 1929 x 1116 x 80 mm (75.91″ x 43.94″ x 3.13″)
  Weight	61.7kg/136.1 lbs

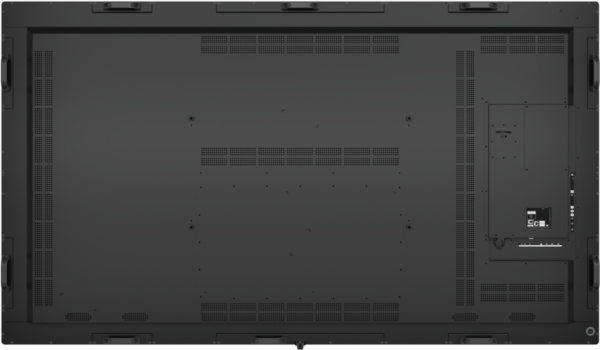

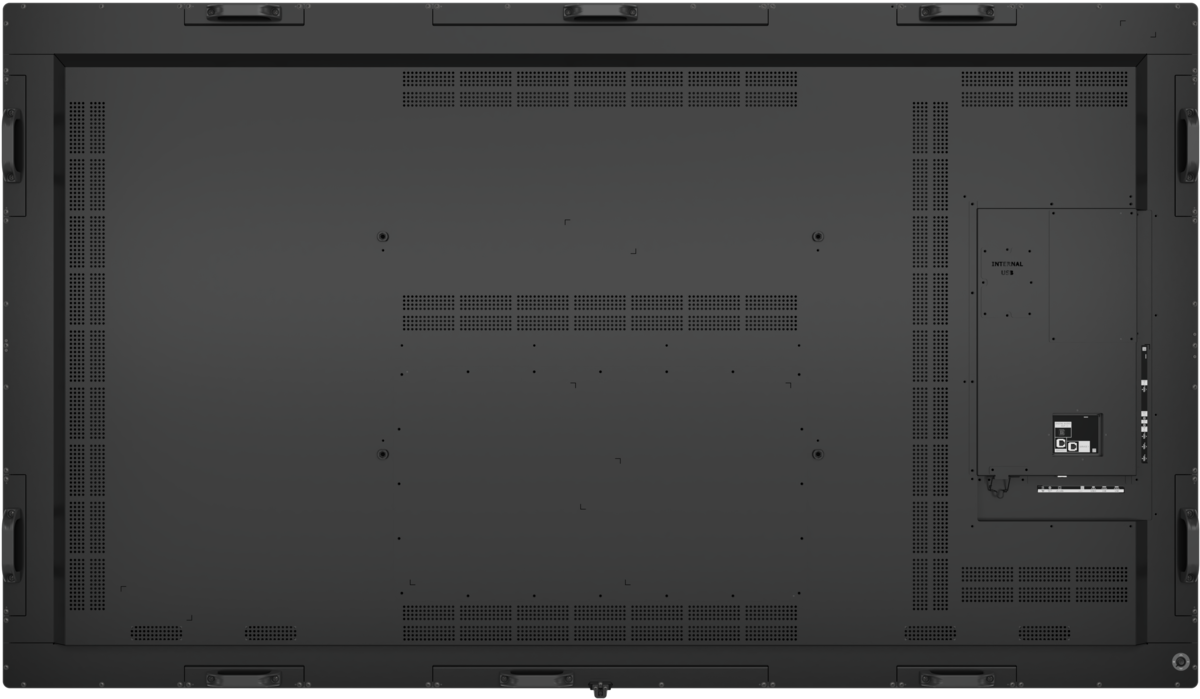

  Wall-hanging pitch	600 x 400 mm, M8
  HTML browser	HTML5 (Vwed)
  Panel Effective display area	1895.0 x 1065.9 mm (74.60″ x 41.96″)
  Panel Resolution	3840 x 2160
  Panel Contrast	1200:1
  Panel Viewing angle	(T/B)/(L/R): 178°/178° (CR>10)
  HDMI™ IN	HDMI™ x 4 (compatible with HDCP2.2)
  Bluetooth®	Yes (Dongle)
  Android™-OS	Yes
  Operating time	16 h/day
  Orientation	Landscape/Portrait
  Tilt angle	0-20 degrees forward with landscape setting
  Power Requirements	AC 220 – 240 V 50 Hz / 60 Hz
  Power Off Condition	0 W
  Stand-by Conditions	Approx. 0.5 W
  Energy efficiency class	–
  Bezel Width	15.3 mm (0.6″) (T/R/L/B)
  Operating environment	Temperature: 0 °C to 40 °C (32 °F to 104 °F)/Humidity: 20-80 % (Non condensation)/for up to 0-1400 m (4593 ft) altitude.<br> Temperature: 0 °C to 35 °C (32 °F to 95 °F)/Altitude 1400 -2800 m (4593 ft to 7874 ft)

• PANASONIC PROFESSIONAL DISPLAY
  Limited Warranty
  3-year Warranty

  On-site Swap Out (Collect, repair, return as standard)
  A 3-year parts, labor, and logistics warranty for product failure.
