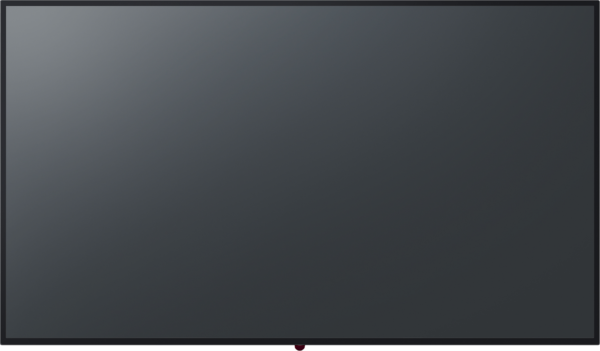

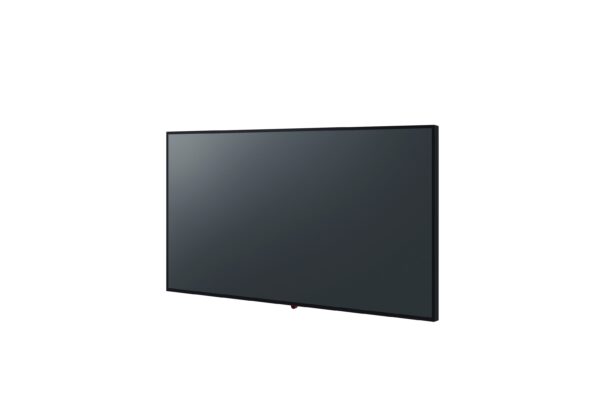

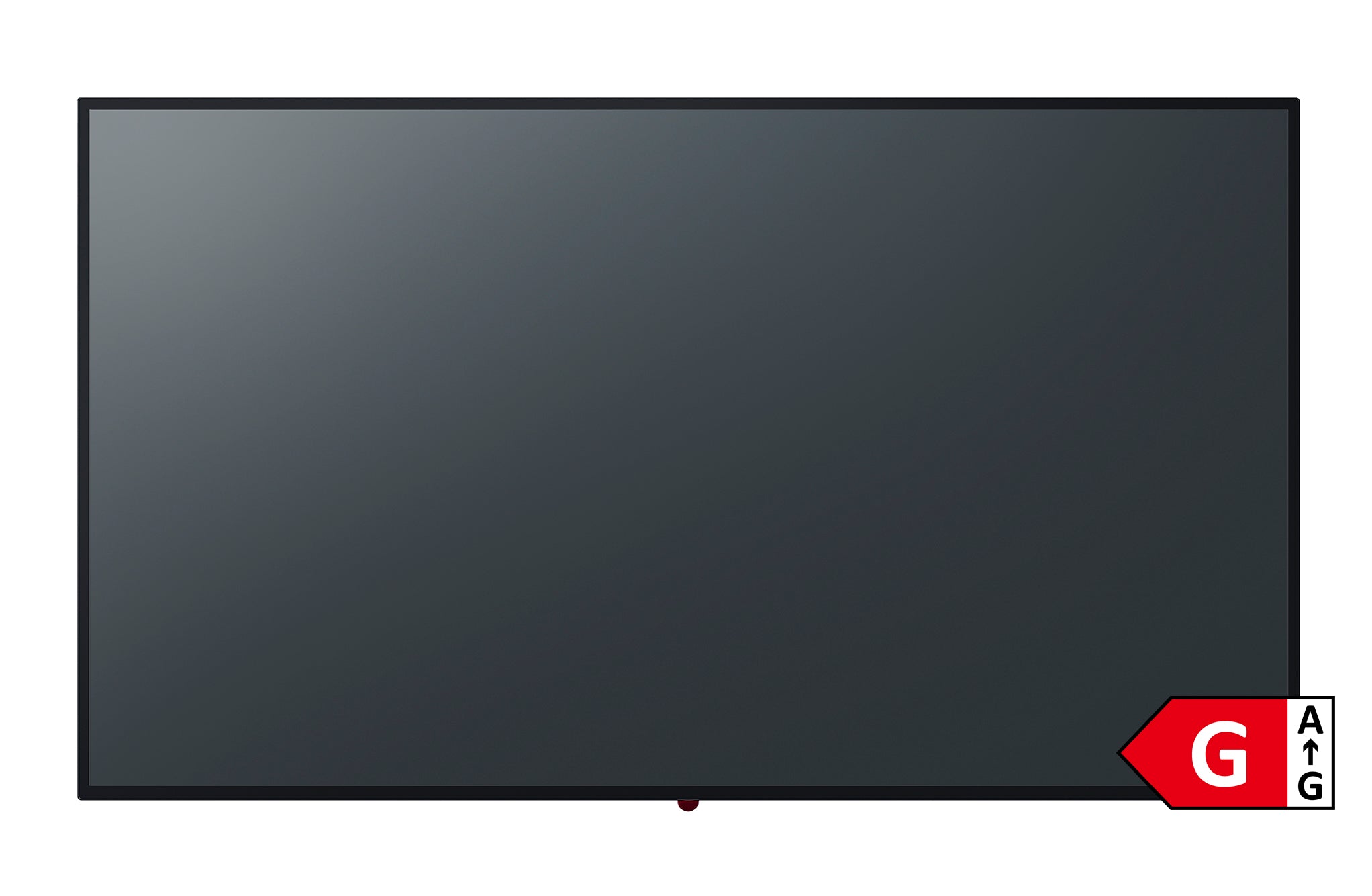

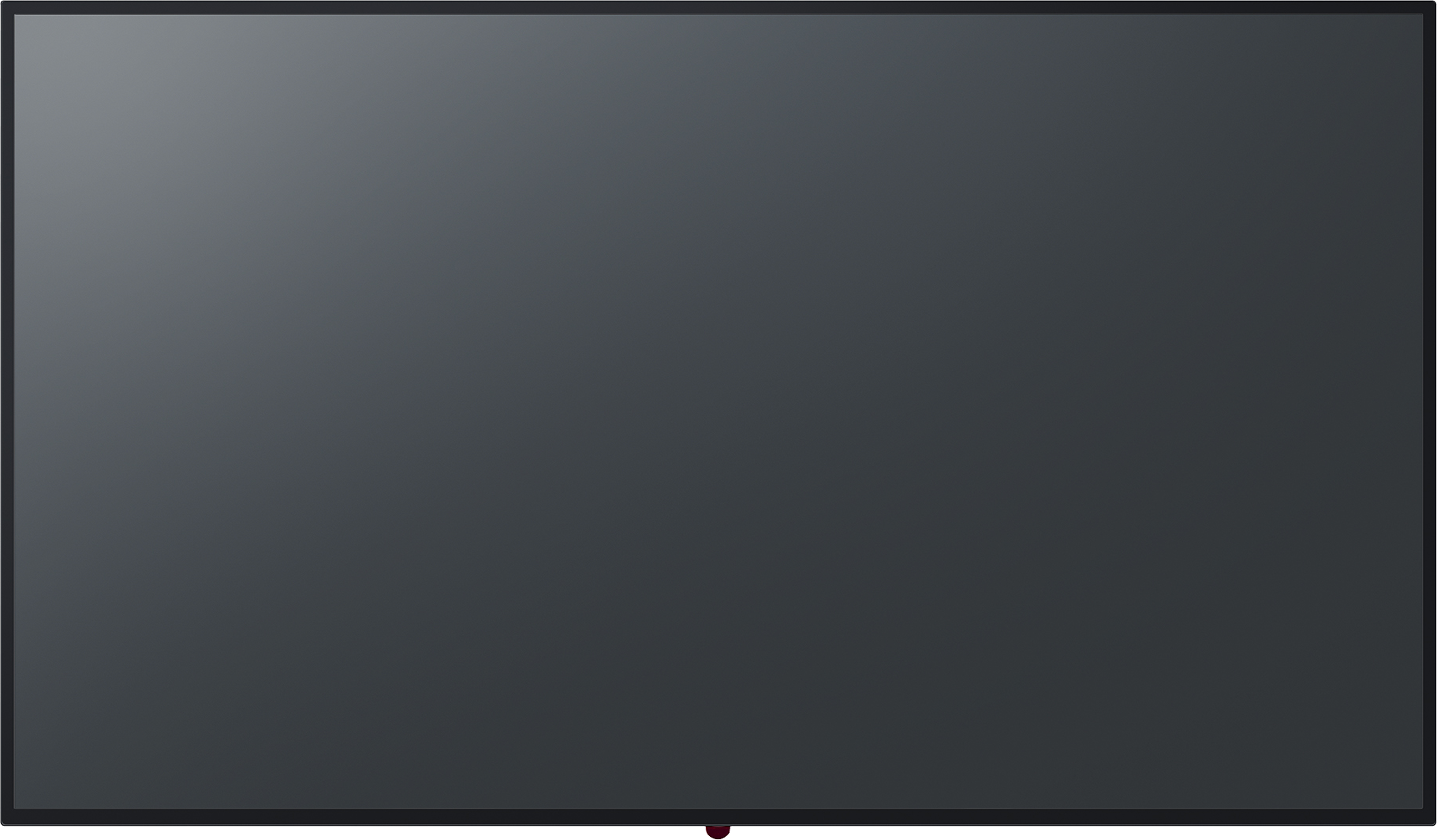

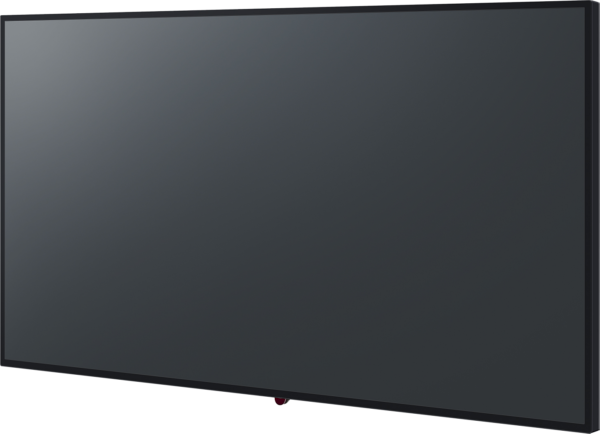

Panasonic TH-55SQE1W 55″ Class 4K UHD Digital Signage Display Supply

Panasonic TH-55SQE1W 55″ Class 4K UHD Digital Signage Display

• Description
• Specifications
• Warranty

• The 4K-resolution SQE1 series supports portrait installation and 24/7 continuous operation with high 500cd/m brightness and advanced connectivity. It is suited to installation in public spaces and commercial facilities

  55″, 500 cd/m2, 4K with slim and stylish design and 24/7 operation

  4K USB Media Player: eliminates the need for external devices and allows updates via LAN

  Slot with Intel  SDM (Smart Display Module) specifications. Equipped with 4 HDMI, USB Type-A and C, DP(In/Out) input terminals, supports HDMI CEC

  Embedded Wi-Fi and HTML5 browser

  Flexible and light installation either in portrait or landscape

  Four times higher resolution quality than Full HD has been achieved to display 4K/60p video that expresses images in detail. Compatible with a wide range of applications, for a design that blends into spaces. Supports portrait installation, and 24/7 continuous operation. Ideal for installation in public spaces. A slot with Intel® SDM (Smart Display Module) specifications has been adopted. Equipped with four HDMI input terminals that support HDMI CEC. The SQE1 Series has a USB Type-C terminal to connect with a PC or tablet. Also compatible with Crestron Connected™.

  Wireless functionality

  SQE1 Series offers one-to-one wireless communication from a PC via Wi-Fi. You can easily stream videos to a big screen and view photos and presentations.

  Cloning Function Saves Labour When Setting Up Multiple Devices

  When installing multiple displays, the Cloning function lets you use a USB memory to copy the settings of a parent display to other units, thus greatly shortening the setup time.

  Support LAN Control Connection

  The SQE1 Series can be controlled by LAN or RS-232C. Also compatible with Crestron Connected™.

  Multi Monitoring & Control Software

  Four times higher resolution quality than Full HD has been achieved to display 4K/60p video that expresses images in detail. Compatible with a wide range of applications, for a design that blends into spaces. Supports portrait installation, and 24/7 continuous operation. Ideal for installation in public spaces. A slot with Intel® SDM (Smart Display Module) specifications has been adopted. Equipped with four HDMI input terminals that support HDMI CEC. The SQE1 Series has a USB Type-C terminal to connect with a PC or tablet. Also compatible with Crestron Connected™.

• Screen size (diagonal)	55-inch class (1387.8 mm)
  Panel Type	D-LED
  Aspect Ratio	16:9
  Effective display area	1209.6 x 680.4 mm (47.62″ x 26.78″)
  Resolution	3840 x 2160
  Brightness (typ.)	500 cd/m2
  Contrast Ratio	1200:1
  Response Time	8.0 ms (G to G)
  Viewing angle	178° / 178° (CR>10)
  Panel Surface Treatment	Anti-glare type (Haze 1 %)
  Terminals
  HDMI In	HDMI TYPE-A Connector x 4 (HDCP 2.2 supported)
  DisplayPort IN	DisplayPort x 1
  DisplayPort OUT	DisplayPort x 1
  Serial	D-sub 9-pin x 1 (Female), RS232C Compatible
  Audio In	Pin Jack x 2 (L/R)
  Audio Out	Stereo Mini Jack(M3) x1, SPDIF x 1
  LAN	RJ45 x 1
  Slot	x1 (Intel® SDM Specification Capability)
  USB	USB Connector (TYPE-A) x 2, (Type-C) x 1, Internal (Type-A) x 1
  Wi-Fi	Built-in, IEEE 802.11 a/b/g/n/ Dual Wi-Fi CERTIFIED
  Built-in Speaker	16 W [8 W + 8 W]
  Power Requirements	110–127 V AC, 50/60 Hz, 220–240 V AC, 50/60 Hz
  Power Consumption	197 W
  Power Off Condition	0 W
  Stand-by Condition	Approx. 0.5 W
  Dimensions (W x H x D)	1239 x 712 x 104 mm (48.75″ x 28.02″ x 4.09″)
  Weight	Approx. 17.2 kg (38.0 lbs)
  Bezel width	12.3 mm (T/R/L), 15.1 mm (B)
  Wall-hanging pitch	VESA Compliant 15.8″ x 7.9″
  Operating Environment	Temperature: 0  C to 40  C (32  F to 104  F)
  	Humidity: 20-80 % (Non condensation)
  	Altitude 0-1400 m (4593 ft)
  	Temperature: 0  C to 35  C (32 F to 95  F)
  	Altitude 1400 -2800 m (4593 ft to 7874 ft)
  Terminals	PC In
  Terminals	IR In
  Orientation	Landscape/Portrait
  Tilting angle	0-20 degrees forward with landscape/portrait setting
  Operating time	24 h/day
  Bezel width	12.3 mm (T/R/L), 15.1 mm (B)
  Wall-hanging pitch	VESA Compliant 15.8″ x 7.9″
  Weight	Approx. 17.2 kg (38.0 lbs)

• PANASONIC PROFESSIONAL DISPLAY
  Limited Warranty
  3-year Warranty

  On-site Swap Out (Collect, repair, return as standard)
  A 3-year parts, labor, and logistics warranty for product failure.
