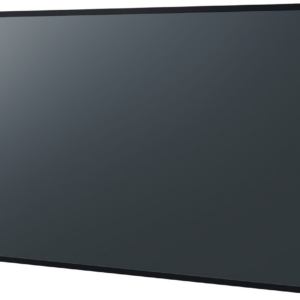

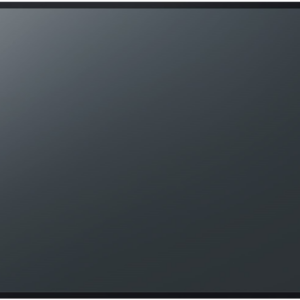

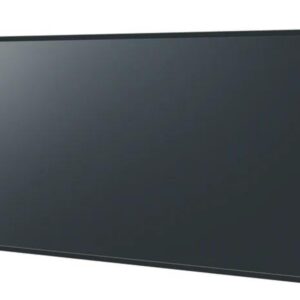

Panasonic TH-43SQE1W 43″ Class 4K UHD Digital Signage Display

Panasonic TH-43SQE1W 43″ Class 4K UHD Digital Signage Display

• Description
• Specifications
• Warranty

• The 4K-resolution SQE1 series supports portrait installation and 24/7 continuous operation with high 500cd/m² brightness and advanced connectivity. It is suited to installation in public spaces and commercial facilities

  43″, 500 cd/m2, 4K with slim and stylish design and 24/7 operation

  4K USB Media Player: eliminates the need for external devices and allows updates via LAN

  Slot with Intel® SDM (Smart Display Module) specifications. Equipped with 4 HDMI, USB Type-A and C, DP(In/Out) input terminals, supports HDMI CEC

  Embedded Wi-Fi and HTML5 browser

  Flexible and light installation either in portrait or landscape

  Four times higher resolution quality than Full HD has been achieved to display 4K/60p video that expresses images in detail. Compatible with a wide range of applications, for a design that blends into spaces. Supports portrait installation, and 24/7 continuous operation. Ideal for installation in public spaces. A slot with Intel® SDM (Smart Display Module) specifications has been adopted. Equipped with four HDMI input terminals that support HDMI CEC. The SQE1 Series has a USB Type-C terminal to connect with a PC or tablet. Also compatible with Crestron Connected™.

  Wireless functionality

  SQE1 Series offers one-to-one wireless communication from a PC via Wi-Fi. You can easily stream videos to a big screen and view photos and presentations.

  Cloning Function Saves Labour When Setting Up Multiple Devices

  When installing multiple displays, the Cloning function lets you use a USB memory to copy the settings of a parent display to other units, thus greatly shortening the setup time.

  Support LAN Control Connection

  The SQE1 Series can be controlled by LAN or RS-232C. Also compatible with Crestron Connected™.

  Multi Monitoring & Control Software

  Compatible with Multi Monitoring & Control Software for addition of new functions, such as automatic searching for map displays and registered devices. Displays and peripheral equipment on the intranet can be controlled and their status can be monitored. Also error notification and error indication can be detected by an indication monitoring function (for a fee) for improved maintenance.

• Screen size (diagonal) (inch)	43-inch class (1079.8 mm)
  Panel Type	D-LED
  Aspect Ratio	16:9
  Effective display area (W x H) (mm)	941.1 x 529.4 mm
  Effective display area (W x H) (inch)	37.05″ x 20.84″
  Resolution	3840 x 2160
  Brightness (typ.)	500 cd/m2
  Contrast Ratio	1200:1
  Response Time	8.0 ms (G to G)
  Viewing angle [(T/B)/(L/R)]	178° / 178° (CR>10)
  Panel Surface Treatment	Anti-glare type (Haze 1%)
  Terminals	HDMI In
  Terminals	DisplayPort IN
  Terminals	DisplayPort OUT
  Terminals	PC In
  Terminals	Serial
  Terminals	IR In
  Terminals	Audio In
  Terminals	Audio Out
  Terminal	LAN
  Terminals	Slot
  Terminals	USB
  Wi-Fi	Built-in, IEEE 802.11. a/b/g/n/ Dual Wi-Fi CERTIFIED
  Built-in Speaker	16 W [8 W + 8 W]
  Power Requirements	110–127 V AC, 50/60 Hz, 220–240 V AC, 50/60 Hz
  Power Consumption	172 W
  Power Off Condition	0 W
  Stand-by Condition	Approx. 0.5 W
  Dimensions (W x H x D) (mm)	966 x 558 x 106 mm *Excluding remote IR sensor
  Dimensions (W x H x D) (inch)	38.01″ x 21.94″ x 4.17″ *Excluding remote IR sensor
  Weight (kg)	Approx. 10.3 kg
  Weight (lbs.)	22.7 lbs
  Bezel width (mm)	9.6 mm (T/R/L), 13.2 mm (B)
  Bezel width (inch)	0.38″ (T/R/L), 0.52″ (B)
  Wall-hanging pitch (mm)	VESA Compliant 200 x 200 mm
  Wall-hanging pitch (inch)	VESA Compliant 7.9″ x 7.9″
  Orientation*1	Landscape/Portrait
  Tilting angle*2	0-20 degrees forward with landscape/portrait setting
  Operating time*3	24 h/day
  Operating Environment	Temperature: 0 °C to 40 °C (32 °F to 104 °F)
  	Humidity: 20-80% (Non-condensation)
  	Altitude: 0-1400 m (4593 ft)
  	Temperature: 0 °C to 35 °C (32 °F to 95 °F)
  	Altitude: 1400 – 2800 m (4593 ft to 7874 ft)
  Note	*1: When installing the display vertically, be sure that the power indicator comes to the right side.
  	*2: Please contact your sales representative with regard to the tilt angle before installation.
  	*3: In case of a long time, the moving image is recommended to be displayed. If you display a still picture for an extended period, the image retention might remain on the screen. However, image retention can gradually disappear by displaying moving images.

• PANASONIC PROFESSIONAL DISPLAY
  Limited Warranty
  3-year Warranty

  On-site Swap Out (Collect, repair, return as standard)
  A 3-year parts, labor, and logistics warranty for product failure.
