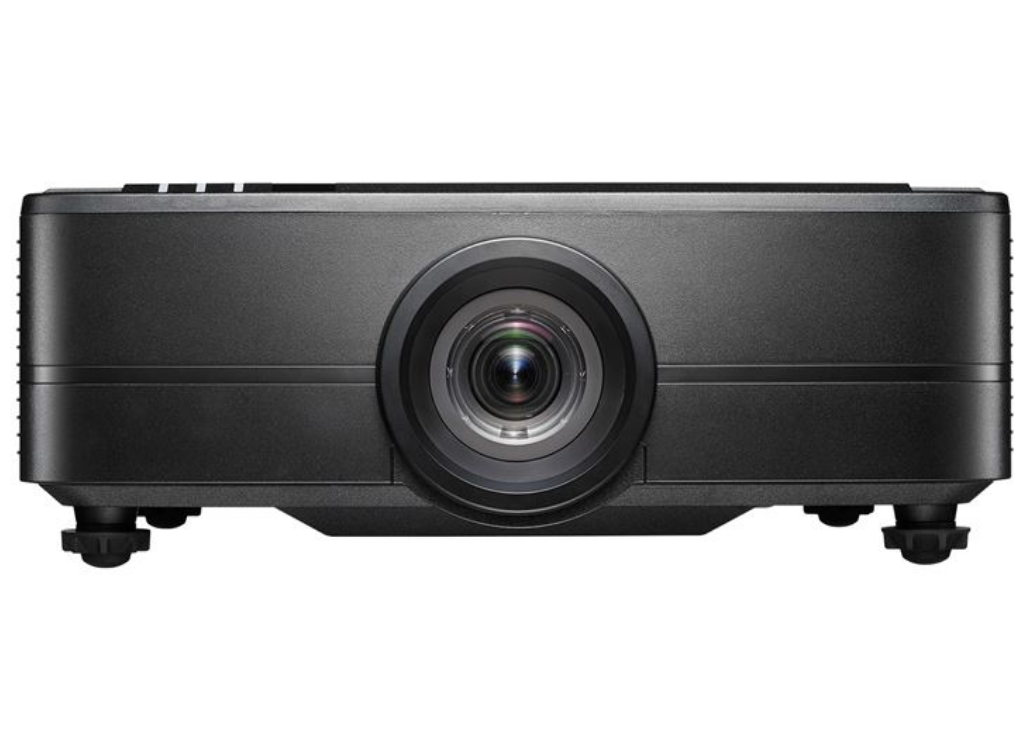

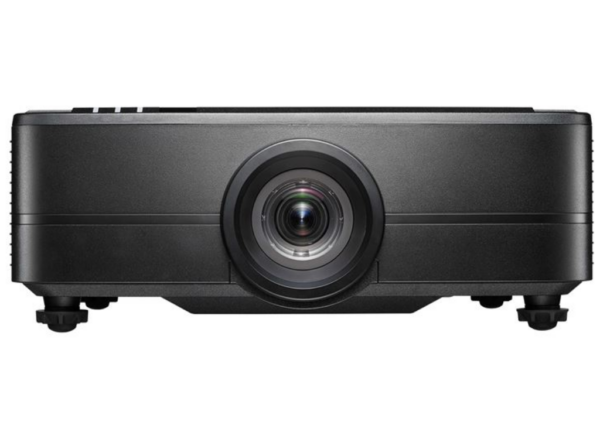

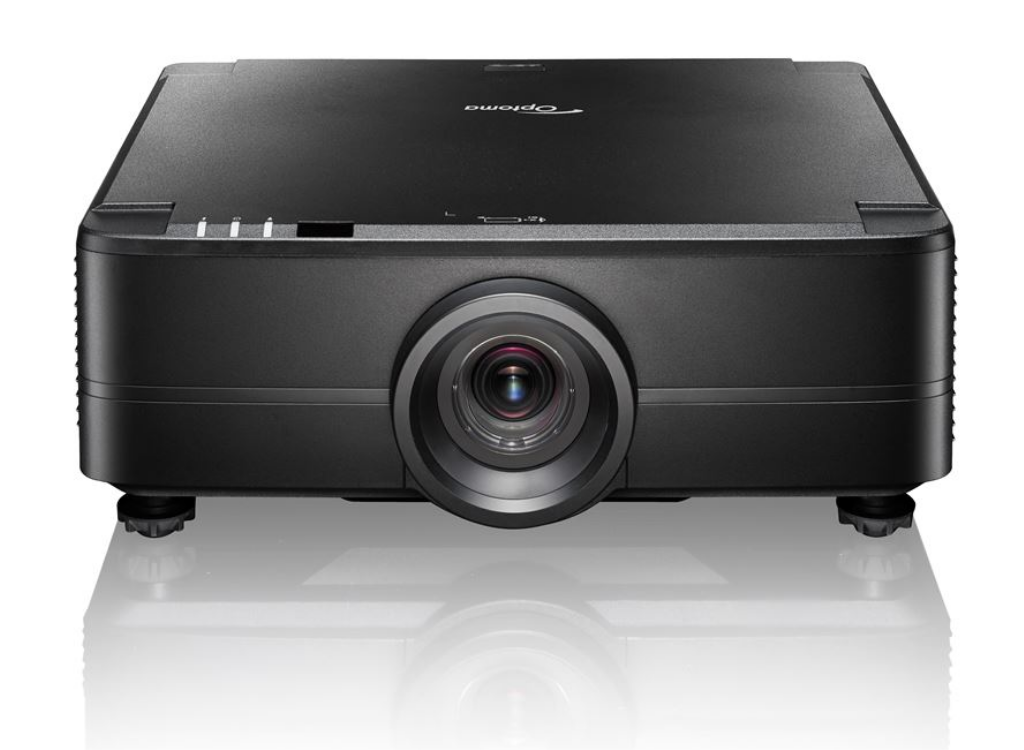

• Optoma ZU820TST Ultra Bright Professional Installation Laser Projector – 8200 Lumens

  Ultra bright professional installation laser projector
  At 8200 lumens with 4K and HDR compatibility, the ZU820TST features a dust-resistant IP5X certified optical engine for 24/7 operation capabilities, offering true maintenance-free projection for up to 30,000 hours of powerful performance in Eco mode. Other features include motorised zoom and focus, full motorised lens shift, and built-in dual 10W speakers.

  High brightness, colour precision and quiet operation, alongside a 1.26x zoom, make this projector the ideal solution for a variety of end-user scenarios and professional environments, such as simulation, edge-blending and projection mapping, and immersive installations.

  The added control flexibility of HDBaseT and LAN make this projector an affordable install and forget solution.


  Features
  8200 lumen DuraCore laser projector
  Ultra bright for immersive installations

  Full motorised lens shift
  Ideal for a simple set-up

  Large zoom range
  Motorised zoom expands placement opportunities

  DuraCore laser technology
  Delivers 30,000 hours of virtually maintenance-free operation


  DuraCore
  Industry leading lifetime is achieved using Optoma’s DuraCore technology. Implementing advanced laser diode cooling techniques and an innovative dust resistant design.


  Full lens shift
  Full lens shift makes installation simple and hassle free, offering the flexibility to move the projected image vertically or horizontally, as well as adjusting the screen size without the need to move or reposition the projector.

  Four corner correction
  Adjust the keystone in both the vertical and horizontal plane. You can individually warp each corner of the image to create a perfectly square image. Ideal for image stacking, uneven walls or where projector placement is awkward and needs to be installed at an angle.





  IP5X Dust resistant optical engine
  Independently tested and certified to IEC standard 60529 with an IP5X dust resistance rating. Outstanding dust resistance combined with exceptional brightness ensures industry leading durability; paramount for 24/7 maintenance free operation in challenging environments.


  HDBaseT™
  Uncompromising, uncompressed Full HD video, audio, network and control commands all delivered on a single CAT- type cable capable up to 100 meters/328 feet without signal loss makes installation hassle-free. HDBaseT™ simplifies cabling requirements and reduces installation complexity saving both time and reducing costs.


  HDR compatible
  Capable of receiving and displaying HDR meta data, Optoma HDR compatible projectors allow you to see far more detail and texture. Objects look more solid and life like and the extra detail creates a greater sense of depth. It’s like looking through a window.


  Portrait projection
  Ideal for digital signage applications you can rotate your projector 90 degrees to project a portrait image.


  360 projection*
  With 360° projection,* images can be displayed in any orientation, giving you the freedom and versatility to install this projector in the desired location.

  *For more information please refer to the user manual

  Integrated warping and edge blending processor
  Integrated warping and edge blending processor enables multiple projectors to be warped and blended without additional dedicated hardware, reducing the cost & complexity of installation. Warping and edge blending is configured using either the projectors on screen display or with PC software depending on model.

  *Compatible multi output graphics card with overlap function is required.





  Colour Management System (CMS)
  Display accurate lifelike colours to best match your viewing environment. This unique feature provides you with the flexibility to fine-tune the colour settings of your projector for optimal precision.


  True AV mute
  True AV mute enables the light source of the projector to be instantly switched off and on at the press of a button. Unlike standard AV mute functionality no light is emitted from the projector, this gives 100% blackout on screen.


  Full 3D
  Optoma projectors can display true 3D content from almost any 3D source, including 3D compatible graphics cards, 3D broadcasting and the latest generation 3d media servers.


  Wired remote
  The wired remote connection allows all aspects of the projector to be individually controlled without requiring a line-of-sight to the projector; invaluable when using multiple units during live events.


  Customise your projector
  Have your projector in any colour. Choose from any RAL colour. Perfect for bespoke installations. *Contact us for more information

  Direct power off
  Power off your projector immediately or directly at the mains. This means you don’t have to wait for the projector to cool down before turning it off.


  Constant power
  Allows users to set the power levels to meet individual installation requirements. Power levels can be managed to obtain the brightest picture or longest light source life – or anywhere inbetween


  Constant brightness
  Advanced light sensing technology allows the setting of brightness levels that will remain unchanged over time. Ideal for ensuruing constant brightness for fine tune installations


  Telnet
  This model is able to receive comands via telenet allowing for easy installation with Telnet compatible control systems.


  Control
  Featuring a wide range of options you can control and monitor the projector remotely.

  • RS232 Optoma projector’s come with an extensive set of RS232 commands making it simple and easy to manage using any control system.

  • AMX compatible Dynamic discovery protocol is incorporated into the projector allowing for easy installation with AMX control systems.

  • Crestron RoomView Using the compatible RoomView® software you can power on/off, monitor, manage and control up to 250 projectors at the same time from any computer

  • Extron IPLink compatible Allows for easy installation with Extron control systems

• Category	Detail
  Display/Image
  Display Technology	DLP
  Resolution	WUXGA (1920×1200)
  Brightness	8,200 lumens
  ANSI Brightness	6,900
  Contrast Ratio	3,000,000:1
  Contrast Ratio – Full On/Off	1,100:1
  Native Aspect Ratio	16:10
  Aspect Ratio Compatible	4:3, 16:9, 16:10
  Keystone Correction – Horizontal	30°
  Keystone Correction – Vertical	15°
  Displayable Colours	1073.4 million
  Uniformity	95%
  Screen Size	1.27m ~ 25.4m (50″ ~ 1000″) diagonal
  Lamp Info
  Light Source Type	Laser
  Laser Life	30,000 hours
  Optical
  Throw Ratio	0.75:1 ~ 0.95:1
  Projection Distance	0.79m – 6.21m
  Zoom	1.26
  Zoom Type	Motorised
  Focal Length	11.11mm ~ 14.16mm
  Lens Shift	Vertical: +/-50%, Horizontal: +/-15%

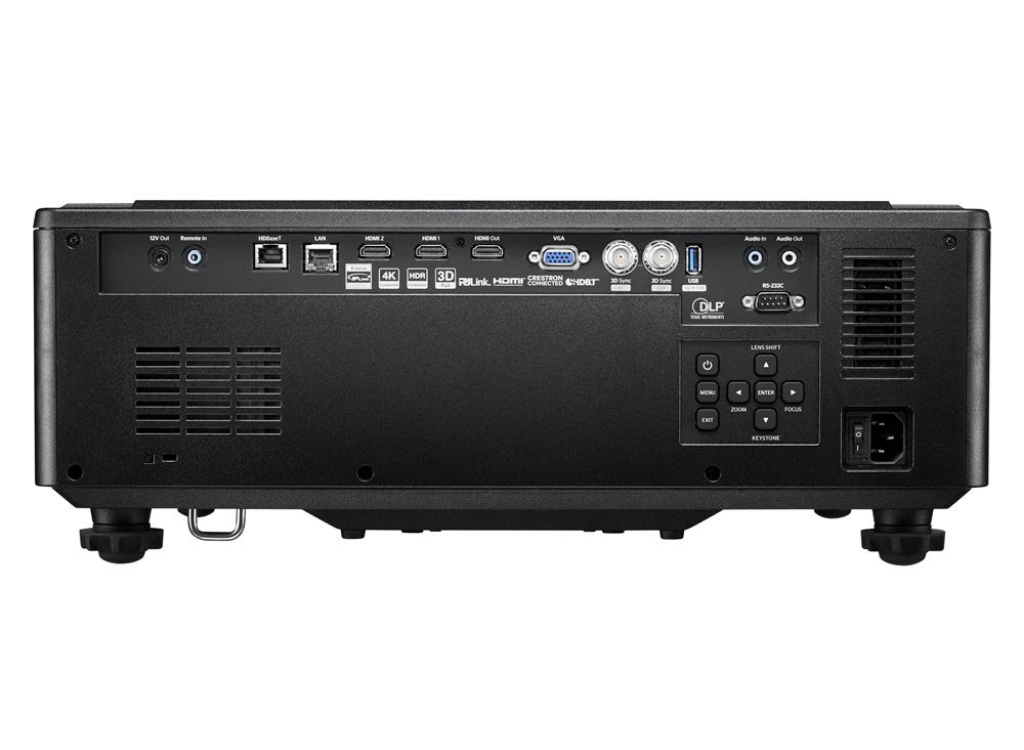

  Connectivity
  Connections	Inputs: 1 x HDBaseT, 2 x HDMI 2.0, 1 x VGA, 1 x 3D sync, 1 x Audio 3.5mm; Outputs: 1 x HDMI 2.0, 1 x 3D sync, 1 x USB-A power 1.5A, 1 x Audio 3.5mm; Control: 1 x 12V trigger, 1 x Wired remote, 1 x RJ45, 1 x RS232
  LAN – Wireless Networking	No
  General
  Noise Level (Min)	34dB
  Noise Level (Max)	36dB
  3D	Full 3D
  Security	Security bar, Kensington Lock
  IP Rating	IP5X
  OSD/Display Languages	9 languages (EN, FR, DE, IT, PT, RU, CN Simplified, ES, CN Traditional)
  24/7 Operation	Yes
  360° Operation	Yes
  Remote Control	Backlit ProAV remote
  Speaker Count	2
  Watts per Speaker	10W
  Networking
  LAN	Yes
  Power
  Power Supply	AC 90 – 264V, 50/60 Hz with PFC input
  Power Consumption (Standby)	0.5W
  Power Consumption (Min)	260W
  Power Consumption (Max)	520W
  Weight and Dimensions
  Dimensions	486 x 394.5 x 185.5 mm
  Gross Weight	17.5 kg
  Net Weight	12.6 kg
