• Optoma ZU607TST High Brightness Short Throw Laser Projector – 6000 Lumens

  High brightness short throw laser projector
  At 6000 lumens, with 4K and HDR compatibility, the ZU607TST features a dust-resistant IP6X certified optical engine for 24/7 operational capabilities and low maintenance. The ZU607TST short throw projector features extremely long-life laser technology, manual horizontal and vertical lens shift and built-in 15W speakers.

  Suitable for a wide variety of applications, this projector is perfect for anywhere that requires a clean bright image including large venues, classrooms, lecture theatres, museums, houses of worship, digital signage or immersive installations.

  The added control flexibility of HDBaseT 3.0 and LAN make this projector an affordable set-and-forget solution.


  Features
  Bright short throw WUXGA laser projector – 6000 lumens

  30,000 hours maintenance-free laser light source at full brightness

  4K, HDR and HLG compatibility

  HDBaseT 3.0 connectivity

  Lights on viewing
  This versatile projector combines high brightness and vivid colours for vibrant, true-to-life visuals in any environment*. Make a lasting impression with bigger and bolder presentations any time of day.

  *With no direct sunlight or lights directed on screen.


  HDR and HLG compatible
  Capable of receiving and displaying both HDR10 and Hybrid Log Gamma (HLG) HDR content. This Optoma projector allows you to see far more detail and texture. Objects look more solid and lifelike and the extra detail creates a greater sense of depth.


  Superior contrast
  Add more depth to your image with a high contrast projector. Compared to competing technology, Optoma DLP projectors provide you with brighter whites and ultra-rich blacks, images come alive and text appears crisp and clear – ideal for business and education applications.


  Short Throw
  With a short throw lens, you can project an impressive 100” image from just over a metre away. This allows you to place the projector closer to the wall, reducing shadows so you can present with ease.


  DuraCore
  Industry leading lifetime is achieved using Optoma’s DuraCore technology. Implementing advanced laser diode cooling techniques and an innovative dust resistant design.

  Auto keystone
  Auto keystone automatically adjusts the trapezoid effect to create a perfectly aligned image when a projector is off-axis, or the desired projection surface is not perfectly flat.

  *Auto keystone only adjusts the image in the vertical plane.


  Four corner correction
  Adjust the keystone in both the vertical and horizontal plane. You can individually warp each corner of the image to create a perfectly square image. Ideal for image stacking, uneven walls or where projector placement is awkward and needs to be installed at an angle.


  Game mode
  Game mode optimises your projector for maximum contrast and vivid colours to capture every detail – leaving you time to focus on winning.


  Golf Sim Picture Mode
  Golf sim picture mode delivers true-to-life greens and blues and impressive detailing even with the lights on. Carefully created to provide optimum colour grading for golf simulation setups.

  *Please ensure your projector is on the latest firmware for access to this new feature. For further assistance with this, please contact Optoma Customer Service.





  HDBaseT™
  Uncompromising, uncompressed Full HD video, audio, network and control commands all delivered on a single CAT- type cable capable up to 100 meters/328 feet without signal loss makes installation hassle-free. HDBaseT™ simplifies cabling requirements and reduces installation complexity saving both time and reducing costs.


  Full 3D
  Optoma projectors can display true 3D content from almost any 3D source, including 3D compatible graphics cards, 3D broadcasting and the latest generation 3d media servers.


  Control
  Featuring a wide range of options you can control and monitor the projector remotely.

  • RS232 Optoma projector’s come with an extensive set of RS232 commands making it simple and easy to manage using any control system.

  • AMX compatible Dynamic discovery protocol is incorporated into the projector allowing for easy installation with AMX control systems.

  • Crestron RoomView Using the compatible RoomView® software you can power on/off, monitor, manage and control up to 250 projectors at the same time from any computer

  • Extron IPLink compatible Allows for easy installation with Extron control systems


  Telnet
  This model is able to receive comands via telenet allowing for easy installation with Telnet compatible control systems.


  MHL
  Turn your projector into a smart display by connecting your smartphone or tablet with a single cable using MHL; now you can view presentations and documents, stream videos and share photos on the big screen.


  USB-Power
  Use the USB-A port to power external devices (5V/1.5A)


  Integrated speaker
  A powerful built-in speaker provides exceptional sound quality and an easy setup without the need for costly external speakers.


  IP6X Airtight optical engine
  Independently tested and certified to IEC standard 60529 with an IP6X dust resistance rating. Outstanding dust resistance combined with exceptional brightness ensures industry leading durability; paramount for 24/7 maintenance free operation in challenging environments.


  Auto power off
  There may be instances when the projector is left running when not in use. To help save energy, the “auto power off” feature automatically turns off the projector after a set period of time if it is not being used

  Direct power on
  The projector will start up instantly when power is supplied to the unit. This eliminates the need to manually turn on the projector via the remote control or the keypad, ideal for use in rooms with a “master” power switch.


  24/7 operation
  Optoma projectors have been designed to operate 24 hours a day in standard orientation. Perfect for applications where prolonged periods of use is required. Subject to 24 hour terms and conditions.

  24/7 Operation – standard lamp warranty applies. Projector warranty is based on standard business usage hours. For optimum performance Optoma recommends that your projector is turned off or placed in standby mode for 30 minutes every 24 hours to prolonging the life of your lamp.


  360 projection*
  With 360° projection,* images can be displayed in any orientation, giving you the freedom and versatility to install this projector in the desired location.

  *For more information please refer to the user manual


  Portrait projection
  Ideal for digital signage applications you can rotate your projector 90 degrees to project a portrait image.


  Customise your projector
  Have your projector in any colour. Choose from any RAL colour. Perfect for bespoke installations. *Contact us for more information

  DuraCare Warranty
  Optoma’s additional DuraCare warranty package offers a warranty designed for very high duty operation. It ensures higher average brightness and exceptional reliability over an extended period of up to 5 years or 24,000 hours. This additional package has the added benefit of a preventative maintenance service at 12,000 hours which will return the performance back to the day it was manufactured.

  12,000 hour re-manufacture service:

  Replacement of laser light source
  Replacement of critical components and moving parts
  Internal inspection and cleaning

• Category	Detail
  Display/Image
  Display Technology	DLP
  Resolution	WUXGA (1920×1200)
  Brightness	6,000 lumens
  Contrast Ratio	300,000:1
  Native Aspect Ratio	16:10
  Aspect Ratio Compatible	4:3, 16:9, 16:10
  Keystone Correction – Horizontal	+-15°
  Keystone Correction – Vertical	+-15°
  Vertical Auto Keystone Correction	Yes
  Displayable Colours	1073.4 million
  Horizontal Scan Rate	5~140KHz
  Vertical Scan Rate	24~120Hz
  Uniformity	85%
  Screen Size	0.76m ~ 7.62m (30″ ~ 300″) diagonal
  Lamp Info
  Light Source Type	Laser
  Laser Life	30,000 hours
  Optical
  Throw Ratio	0.58:1
  Projection Distance	0.38m – 3.75m
  Zoom Type	Fixed
  Focal Length	8.51mm
  Lens Shift	Vertical -100 ~ 110%, Horizontal: +/-4%
  Native Offset	100%
  Connectivity

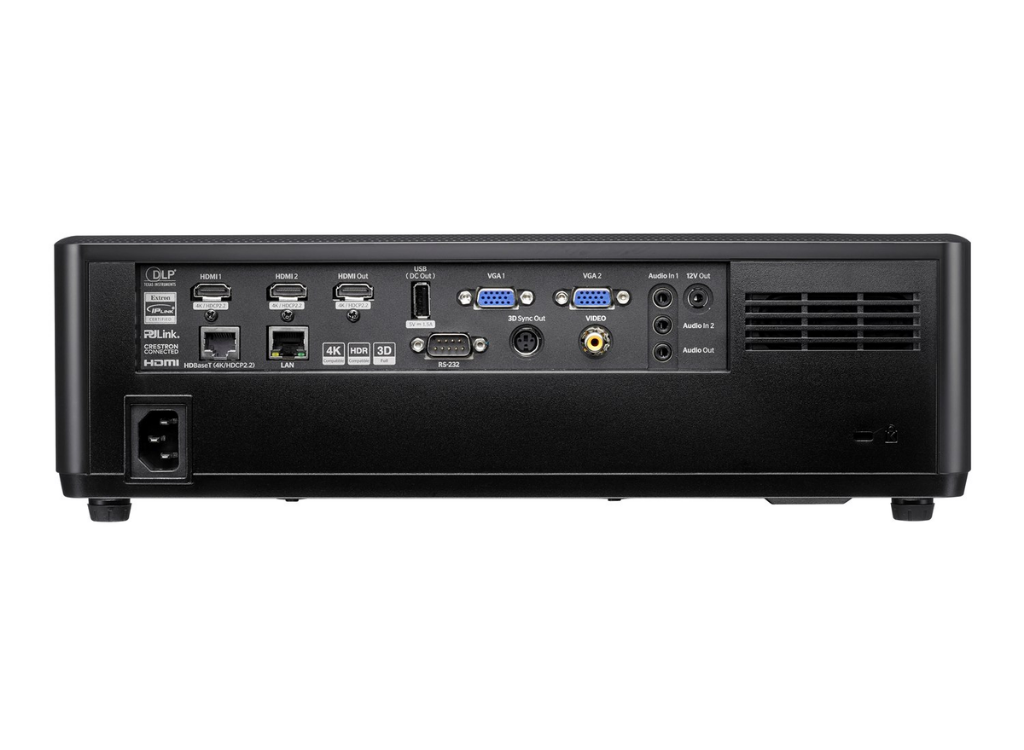

  Connections	Inputs: 2 x HDMI 2.0, 2 x VGA, 1 x Composite video, 2 x Audio 3.5mm, 1 x USB-A power 1.5A; Outputs: 1 x HDMI 2.0, 1 x Audio 3.5mm, 1 x 3D sync, 1 x 12V trigger; Control: 1 x HDBaseT 4K, 1 x RJ45, 1 x RS232
  LAN – Wireless Networking	No
  General
  Noise Level	Min 33dB, Max 36dB
  3D	Full 3D
  Security	Security bar, Kensington Lock, Password protected interface
  IP Rating	IP6X
  OSD/Display Languages	25 languages
  360° Operation	Yes
  Remote Control	Backlit ProAV remote
  Speaker Count	2
  Watts per Speaker	15W
  Networking
  LAN – Control	Yes
  Power
  Power Supply	Universal AC 100-240V± 10%, 50/60 Hz with PFC input
  Power Consumption	Standby: <0.5W, Min: 240W, Max: 366W
  Weight and Dimensions
  Dimensions	374 x 302 x 117 mm
  Gross Weight	8.6 kg
  Net Weight	6.3 kg
  In the Box	AC power cord, Remote control, 2x AAA batteries, Basic user manual
